Exploring the L78S12CV-DG: A Reliable Voltage Regulator for Your Electronics
Introduction:\
The L78S12CV-DG is a versatile and reliable voltage regulator that is widely used in various electronic applications. In this blog post, we will delve into the features, specifications, and benefits of this voltage regulator. Whether you are an electronics enthusiast or a professional, understanding the capabilities of the L78S12CV-DG can help you make informed decisions about your next project.
1. What is the L78S12CV-DG?\
The L78S12CV-DG is a linear voltage regulator manufactured by STMicroelectronics. It is a positive 12V regulator that can handle up to 2A of current. With a wide input voltage range and low quiescent current, it is ideal for powering a variety of electronic devices.
2. Key Features and Specifications\
The L78S12CV-DG offers several features that make it a popular choice among engineers and hobbyists. Some of its key features include:
Input and output voltage range: The regulator can accept an input voltage from 14V to 35V, making it compatible with a wide range of power sources. The regulated output voltage is fixed at 12V.
Output current: The L78S12CV-DG can deliver up to 2A of continuous output current, making it suitable for powering a range of electronic components and small systems.
Ripple rejection: The regulator offers excellent ripple rejection, ensuring a stable and clean output voltage for your circuits.
Thermal protection: The L78S12CV-DG incorporates thermal shutdown and current limiting features, protecting it from overheating and ensuring safe operation.
3. Applications of the L78S12CV-DG\
Due to its robust design and reliable performance, the L78S12CV-DG finds applications in various fields. Some common applications include:
Power supply for microcontrollers and other digital components.
Automotive electronics, providing stable voltage to sensors and control modules.
Industrial automation systems, powering various control circuits.
Audio amplifiers and low-power audio systems.
Battery charging circuits, ensuring a controlled and stable charging voltage.
4. Advantages of Using the L78S12CV-DG\
There are several advantages to using the L78S12CV-DG in your electronic projects:
High stability: The L78S12CV-DG offers excellent voltage regulation, ensuring a stable and reliable power supply for your circuits.
Efficiency: The linear voltage regulator design of the L78S12CV-DG delivers high efficiency, minimizing power dissipation and maximizing battery life.
Affordable and easily available: The L78S12CV-DG is a widely used voltage regulator, making it easily accessible and affordable for both hobbyist and professional projects.
Protections: The built-in protections such as overheating and current limiting ensure the longevity of the regulator and protect connected components.
Easy to use: The L78S12CV-DG comes in a TO-220 package, which is widely used and easy to work with. Its pin configuration is standard, enabling straightforward integration into your circuit design.
5. Tips for Using the L78S12CV-DG\
To maximize the performance and reliability of the L78S12CV-DG, consider the following tips:
Adequate heat sinking: The L78S12CV-DG dissipates heat during operation, and therefore, requires appropriate heat sinking to prevent overheating. Ensure sufficient airflow or use a heatsink to remove excess heat.
Input and output capacitor selection: To stabilize the output voltage and minimize ripple, it is recommended to use suitable input and output capacitors in your circuit design. The datasheet provides guidelines for selecting the appropriate capacitors.
Voltage derating: To ensure optimal performance and reliability, consider derating the voltage regulator by operating it below its maximum rating. This helps to reduce stress and prolong the lifespan of the component.
Follow datasheet guidelines: To design your circuit effectively, refer to the L78S12CV-DG datasheet provided by the manufacturer. It contains essential information regarding the regulator's electrical characteristics, recommended operating conditions, and application guidelines.
Conclusion:\
The L78S12CV-DG is a reliable and versatile voltage regulator that offers stable and regulated power supply for various electronic applications. Its robust design, wide input voltage range, and low quiescent current make it a popular choice among electronics enthusiasts and professionals. By understanding its features, specifications, and application considerations, you can harness the full potential of the L78S12CV-DG in your projects.

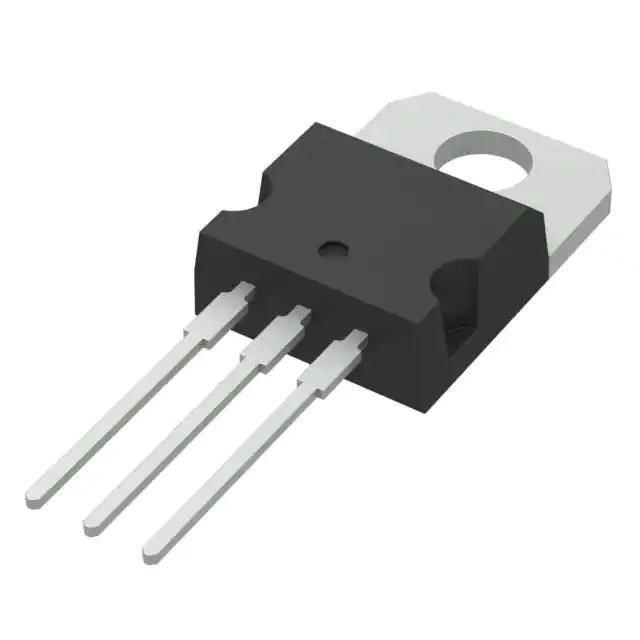

L78S12CV-DG
- Part Number :
- L78S12CV-DG
- Manufacturer :
- STMicroelectronics
- Description :
- IC REG LINEAR 12V 2A TO220
- Datasheet :
-
L78S12CV-DG.pdf
- Unit Price :
- Request a Quote
- In Stock :
- 2692
- Lead Time :
- To be Confirmed
- Quick Inquiry :
- - + Add To Cart
Request a Quote
L78S12CV-DG Specifications
- Package/Case:
- TO-220-3
- Packaging:
- Tube
- Series:
- -
- ProductStatus:
- Obsolete
- OutputConfiguration:
- Positive
- OutputType:
- Fixed
- NumberofRegulators:
- 1
- Voltage-Input(Max):
- 35V
- Voltage-Output(Min/Fixed):
- 12V
- Voltage-Output(Max):
- -
- VoltageDropout(Max):
- -
- Current-Output:
- 2A
- Current-Quiescent(Iq):
- 8 mA
- Current-Supply(Max):
- -
- PSRR:
- 47dB (120Hz)
- ControlFeatures:
- -
- ProtectionFeatures:
- Over Current, Over Temperature, Short Circuit
- OperatingTemperature:
- 0°C ~ 150°C
- MountingType:
- Through Hole
