Results: 7775

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
750082154 TRANS MODEM CONEXANT SMARTDAA Würth Elektronik	115736	0.75	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-AMT, MID-DAA	Active	-	30µH	-	1.67:1	Surface Mount	0.173 L x 0.360 W (4.39mm x 9.14mm)	0.078 (1.98mm)
749013011 TRANSFORMER LAN 10/100 POE SMD Würth Elektronik	3815	2.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.510 L x 0.280 W (12.95mm x 7.11mm)	0.210 (5.33mm)
749013011A TRANS WE-LAN 10/100 POE SMD Würth Elektronik	12716	3.93	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.250 (6.35mm)
7490100111A TRANSFORMER LAN 10/100 SMD Würth Elektronik	30690	3.99	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.250 (6.35mm)
750110056 TRANSFORMER 70/80UH SMD Würth Elektronik	25629	4.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-AMT, MID-PMA	Active	Data/Voice Coupling	70µH	-	1.08:1	Surface Mount	0.265 L x 0.340 W (6.73mm x 8.64mm)	0.140 (3.55mm)
750510231 DIGITAL TRANSFORMER Würth Elektronik	16917	2.94	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	1mH	-	1:1	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.530 (13.46mm)
749020111A WE-LAN 10/100/1000 BASE-T SMT TR Würth Elektronik	2202	3.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1:1	-	0.650 L x 0.354 W (16.50mm x 9.00mm)	0.093 (2.35mm)
749020023A XFRMR LAN 1000 BASE-T 1:1 350UH Würth Elektronik	9920	5.97	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 1000 Base-T	350µH	-	1:1	Surface Mount	0.594 L x 0.280 W (15.10mm x 7.10mm)	0.167 (4.25mm)
749020100 TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	2504	6.91	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.505 L x 0.264 W (12.83mm x 6.70mm)	0.085 (2.16mm)
749010110 TRANSFORMER LAN 10/100 SMD Würth Elektronik	1586	6.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.085 (2.16mm)
7490220120 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	2945	5.94	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720 L x 0.579 W (18.29mm x 14.70mm)	0.242 (6.15mm)

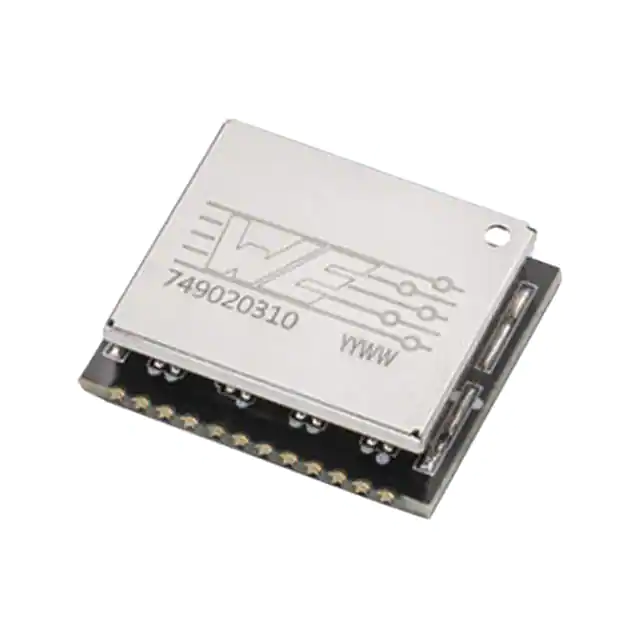

749020310 WE-LAN AQ 10/100/1000 BASE-T SMD Würth Elektronik	714	7.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	300µH	-	1:1	Surface Mount	0.690 L x 0.575 W (17.53mm x 14.60mm)	0.177 (4.50mm)
749022011 TRANSFORMER LAN 10/100/1000 POE Würth Elektronik	13296	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.720 L x 0.480 W (18.30mm x 12.20mm)	0.250 (6.35mm)

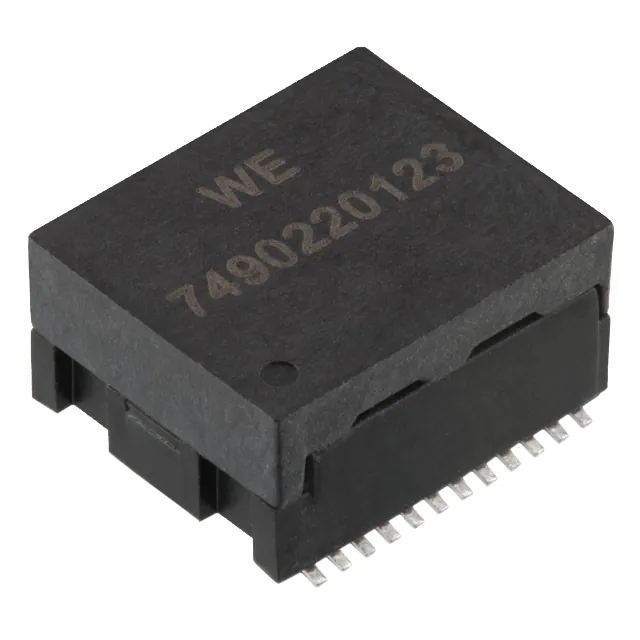

7490220123 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	3778	6.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	200µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720 L x 0.579 W (18.29mm x 14.70mm)	0.346 (8.80mm)

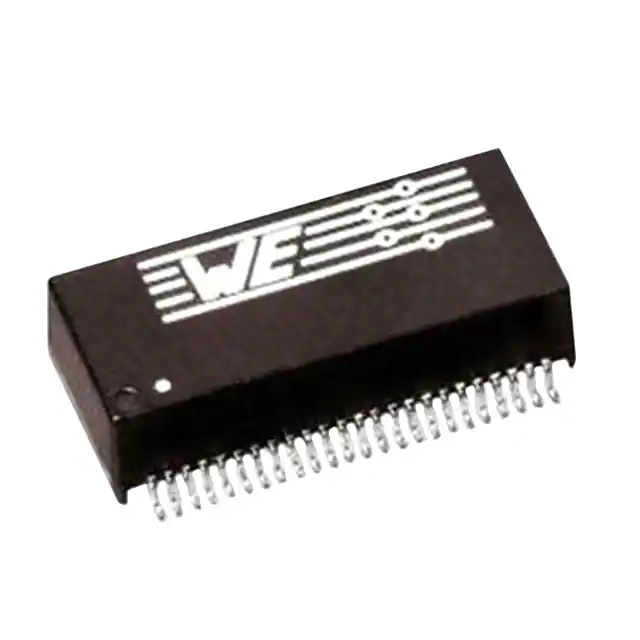

749020010A TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	1910	6.92	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.689 L x 0.559 W (17.50mm x 14.20mm)	0.236 (6.00mm)
7490220122 PULSE XFMR 1CT:1CT TX 1CT:1CT RX Würth Elektronik	14475	6.98	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.720 L x 0.579 W (18.29mm x 14.70mm)	0.346 (8.80mm)
749014010 TRANSFORMER WE-LAN MED 10/100BT Würth Elektronik	2400	7.80	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.673 L x 0.581 W (17.10mm x 14.75mm)	0.341 (8.65mm)
760301301 XFRMR GATE DRIVE SMD Würth Elektronik	4512	7.85	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	750µH	102VµS	1:1:1	Surface Mount	0.413 L x 0.413 W (10.50mm x 10.50mm)	0.433 (11.00mm)
760301302 XFRMR GATE DRIVE SMD Würth Elektronik	3359	7.85	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	750µH	102VµS	1:1	Surface Mount	0.413 L x 0.413 W (10.50mm x 10.50mm)	0.433 (11.00mm)
760301105 XFRMR GATE DRIVE 1:1:1 SMD Würth Elektronik	2093	8.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-GDT	Active	Gate Drive	260µH	25.2VµS	1:1:1	Surface Mount	0.276 L x 0.335 W (7.00mm x 8.50mm)	0.236 (6.00mm)

Total 124 Records«Prev12 3 4...7 Next»
