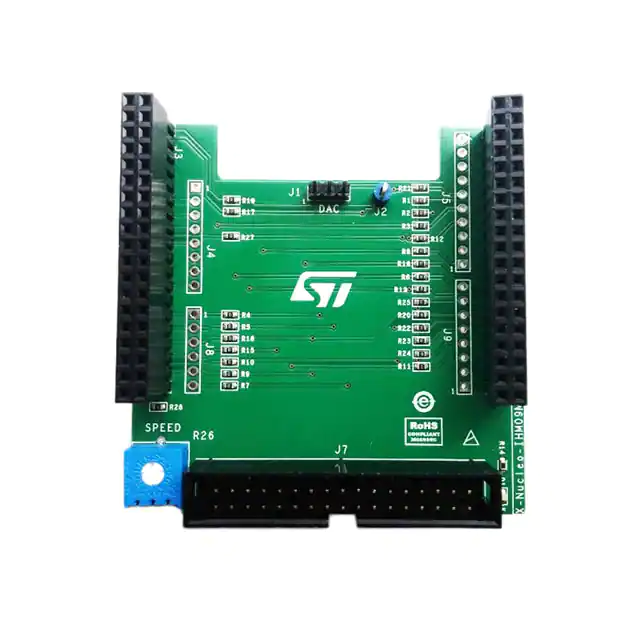

The X-NUCLEO-IHM09M1 is a high-performance motor control shield designed for engineers and hobbyists interested in building scalable, cost-effective motor control systems. The shield leverages advanced control algorithms to ensure smooth and accurate motor operation, with a range of set-up options making it a versatile solution across different industries.

If you’re interested in the X-NUCLEO-IHM09M1 and want to learn more about its capabilities, then this post is for you. We’ll go over its hardware and software components, along with some real-world use cases to help you better understand how to integrate it into your own projects.

Hardware Overview

The X-NUCLEO-IHM09M1 shield is built with a STMicroelectronics L6230 motor driver IC that can control up to three different motors. This driver embraces a fool proof thermal protection circuit, to prevent the motors from overheating and also provide an advanced integration of the power stage for minimizing the current sensing footprint. It also uses all ceramic capacitors, which guarantee a stable and durable power supply. The device also has a powerful STM32 microcontroller onboard, which helps manage the motors with greater precision and reliability.

Other key hardware features of the X-NUCLEO-IHM09M1 shield include a built-in current sense amplifier, which can be leveraged to minimize both motor current sensing footprint, and a technology for measuring motor temperature, which is helpful for monitoring the overall health of the drive. The shield is also expandable, featuring a variety of pins for connecting to additional peripherals based on necessary needs.

Software Capabilities

The X-NUCLEO-IHM09M1’s software capabilities consist of a set of embedded libraries that are compatible with the mbed online development environment. mbed provides a rich development platform for designing and testing motor control algorithms, with more than 200 libraries of master applications available for off-the-shelf use.

One of the key software components of the shield is the STSW-SPIN320 firmware, which uses advanced algorithms to help optimize motor drive performance and reduce energy consumption. Other software capabilities include a torque-mode motor control module, speed control mode, and a component for real-time motor status monitoring. These features make the X-NUCLEO-IHM09M1 an ideal platform for experimentation, research, and product development.

Real-World Applications

So what can the X-NUCLEO-IHM09M1 be used for in practice? Here are just a few of many potential use cases:

Robotics: The X-NUCLEO-IHM09M1 shield can be applied in robotics for controlling DC, AC, and stepper motors. It can help robotics enthusiasts or engineers optimize their projects, providing them with greater accuracy and engagement.

Transportation: The shield can be implemented in electric bicycles and scooters for maximizing the performance and range of these devices, making for a smoother and more user-friendly ride.

Industrial Automation: The X-NUCLEO-IHM09M1 shield can be used in different industrial machines for automating production lines. It can help better distribute workloads and ensure consistent performance, helping to maximize profits and efficiency.

Smart Homes: The shield’s ability to minimize energy consumption makes it an ideal platform for smart home technology, where appliances such as pumps or fans can operate at minimal energy consumption without sacrificing performance.

Medical Devices: The X-NUCLEO-IHM09M1 can also be useful in designing hospital equipment, such as CT scanners, MRI machines, and X-ray machines, making them run more efficiently and reducing faults.

Conclusion

The X-NUCLEO-IHM09M1 is a versatile and highly capable motor control shield that can be used in a variety of applications. Its ease-of-use and modular design make it ideal for everything from robotics to transportation and industrial automation. We hope this overview has been helpful in giving you a thorough understanding of its features and capabilities, and inspired you to develop your own projects with this impressive device.
