In today's world of rapidly-evolving technology, embedded systems have become ubiquitous. From industrial automation to home automation, from healthcare devices to automotive electronics, embedded systems are everywhere. One of the key components of an embedded system is the microcontroller, a small computer that is designed to control the system's functions.

If you're looking for a cost-effective and energy-efficient microcontroller that can drive your embedded system, the STM8L151G4U6 might just be the one for you. In this blog post, we'll take a closer look at this microcontroller and explore its features and capabilities.

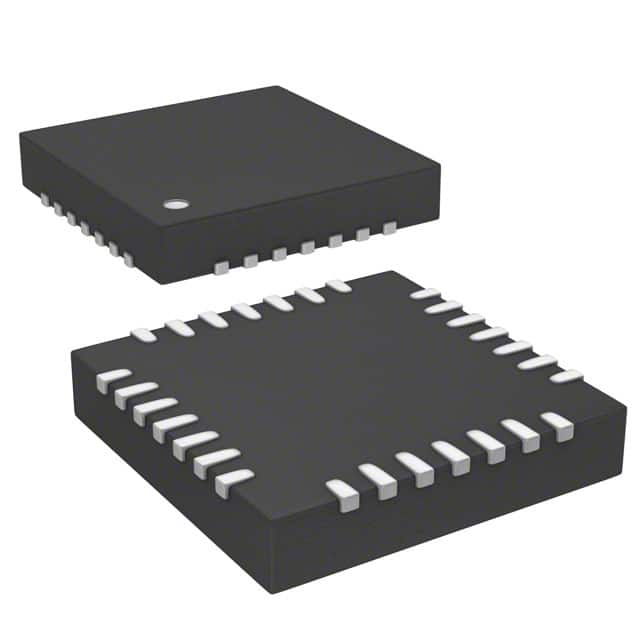

Introduction to the STM8L151G4U6 Microcontroller

The STM8L151G4U6 is a member of STMicroelectronics' STM8L15x microcontroller family. It is based on the STM8L151K6T6 microcontroller and offers several enhancements in terms of performance, memory, and peripherals. The STM8L151G4U6 features an 8-bit STM8 core with a clock speed of up to 16 MHz, 32 KB flash memory, and 2 KB RAM.

One of the key advantages of the STM8L151G4U6 is its low power consumption. It is designed to operate at a supply voltage of 1.65V to 3.6V, which makes it ideal for battery-powered applications. The microcontroller also features various low-power modes, including a standby mode that draws as little as 300 nA of current.

Features and Capabilities

The STM8L151G4U6 offers a wide range of features and capabilities that make it suitable for a variety of embedded system applications. Some of these features include:

Peripheral Features

1 x USART

1 x SPI

1 x I2C

9 x 16-bit timers

1 x 32-bit timer

1 x DMA controller

1 x 12-bit ADC

2 x comparators

1 x DAC

1 x RTC

Communication Interfaces

The STM8L151G4U6 supports various communication interfaces, including USART, SPI, and I2C. These interfaces make it easy to connect the microcontroller with other devices and systems.

Timers

The microcontroller features nine 16-bit timers and one 32-bit timer. The timers can be used for various purposes, including PWM generation, input capture, and output compare.

Analog-to-Digital Converter (ADC)

The STM8L151G4U6 features a 12-bit ADC that can sample up to 1 Msps. The ADC supports up to 10 channels and is ideal for applications that require precise analog measurement.

Digital-to-Analog Converter (DAC)

The microcontroller also features a 12-bit DAC that can output a voltage range of 0-3.3V. The DAC is ideal for applications that require accurate voltage output.

Low Power Modes

As mentioned earlier, the STM8L151G4U6 features various low-power modes that can help reduce power consumption. These modes include a stop mode that draws as little as 350 nA of current and a standby mode that draws as little as 300 nA of current.

Applications and Use Cases

The STM8L151G4U6 microcontroller is ideal for a wide range of embedded system applications. Some of the applications and use cases where the microcontroller can be used include:

Battery-powered applications

Home automation

Industrial automation

Healthcare devices

Automotive electronics

Consumer electronics

Conclusion

The STM8L151G4U6 is a cost-effective and energy-efficient microcontroller that offers a wide range of features and capabilities. Its low power consumption, combined with its peripheral features and communication interfaces, make it an ideal choice for a variety of embedded system applications. If you're looking for a microcontroller that can drive your embedded system, the STM8L151G4U6 is definitely worth considering.
