Looking for a versatile and powerful microcontroller for your next project? Look no further than the STM8L151C4U6TR from STMicroelectronics. In this guide, we'll take a closer look at this microcontroller's features, advantages, and use cases.

What is the STM8L151C4U6TR?

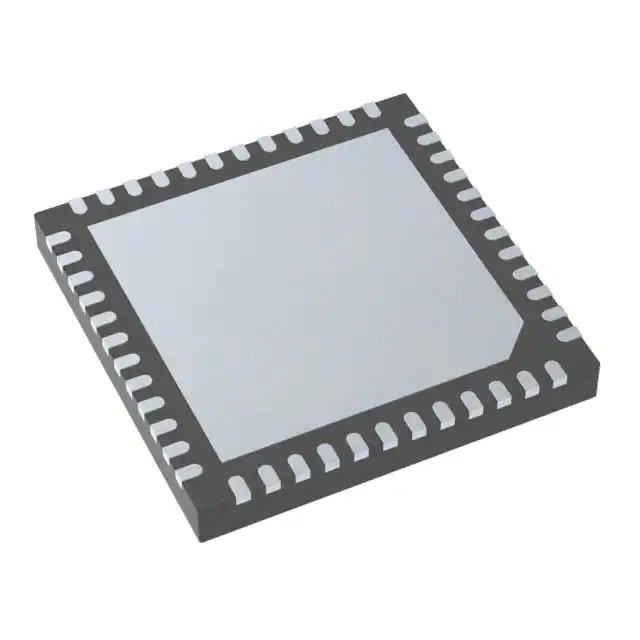

The STM8L151C4U6TR is a member of STMicroelectronics' STM8L family of ultra-low-power microcontrollers. The device combines a powerful 8-bit STM8 core with a range of advanced peripherals and features, making it an ideal choice for a wide range of embedded applications. The STM8L151C4U6TR has an operating frequency of up to 16 MHz and can operate from a supply voltage as low as 1.8V, making it an ideal choice for battery-powered applications.

Key Features

Some of the key features of the STM8L151C4U6TR microcontroller include:

Core: STM8 8-bit MCU with up to 16 MHz CPU frequency, 24 MHz, 3.3V E00492-APP3224

Memory: 16 KB Flash memory, 2 KB RAM, 256 B EEPROM

Power: Ultra-low-power consumption with flexibility to reach less than 350 nA in Halt mode with RTC

Peripherals: Advanced ultra-low-power analog peripherals, advanced motor-control timers, UART, SPI, and I2C interfaces

Operating voltage: 1.8V to 3.6V, independent and scalable supply voltage for analog peripherals (down to 1.65V)

Advantages

The STM8L151C4U6TR microcontroller offers a number of advantages for embedded systems designers, including:

Ultra-low-power consumption: The device's advanced low-power features make it an ideal choice for battery-powered or energy-harvesting applications.

Scalability: Its scalable supply voltage for analog peripherals ensures a high degree of flexibility in designing the system and helps to optimize power consumption.

Rich set of peripherals: The STM8L151C4U6TR includes a range of advanced analog peripherals, motor-control timers, and communication interfaces.

Compact size: The STM8L151C4U6TR is available in a compact QFN-20 package, making it easy to integrate into small-footprint designs.

Use Cases

The STM8L151C4U6TR microcontroller is well-suited for a wide range of applications, including:

Battery-powered devices: The ultra-low-power features of the STM8L151C4U6TR make it an ideal choice for battery-powered applications such as wearables, remote sensors, and energy-harvesting devices.

Industrial control: The device's advanced motor-control timers and communication interfaces make it an ideal choice for industrial control applications.

Consumer electronics: The STM8L151C4U6TR's compact size and advanced peripherals make it well-suited for consumer electronics applications such as remote controls, smart home devices, and gaming accessories.

Getting Started

If you're interested in using the STM8L151C4U6TR microcontroller in your next project, STMicroelectronics provides a wide range of resources to help you get started. These include:

Datasheets and application notes: STMicroelectronics provides comprehensive documentation for the STM8L151C4U6TR, including detailed datasheets and application notes.

Development tools: The company offers a range of development tools and software to help you design and program your STM8L151C4U6TR-based system.

Community support: STMicroelectronics maintains an active community of developers and engineers who are familiar with its products. This community can provide valuable advice and support as you work with the STM8L151C4U6TR.

Conclusion

The STM8L151C4U6TR microcontroller is a versatile and powerful device that is ideal for a wide range of embedded applications. Its advanced low-power features, flexible supply voltage, and rich set of peripherals make it an attractive choice for battery-powered devices, industrial control systems, consumer electronics, and more. If you're interested in using the STM8L151C4U6TR in your next project, be sure to explore STMicroelectronics' range of resources to help you get started.
