Microcontrollers (MCUs) are at the heart of many electronic devices we use today, from smartphones to smart appliances to automobiles. They provide the processing power and functionality required to control various functions of the device. However, as the applications become more demanding, the MCUs need to keep up with the pace and offer higher performance and features. The STM32H7B3IIT6Q MCU from STMicroelectronics is designed to meet these requirements and offer a reliable solution for next-generation devices.

Overview of the STM32H7B3IIT6Q MCU

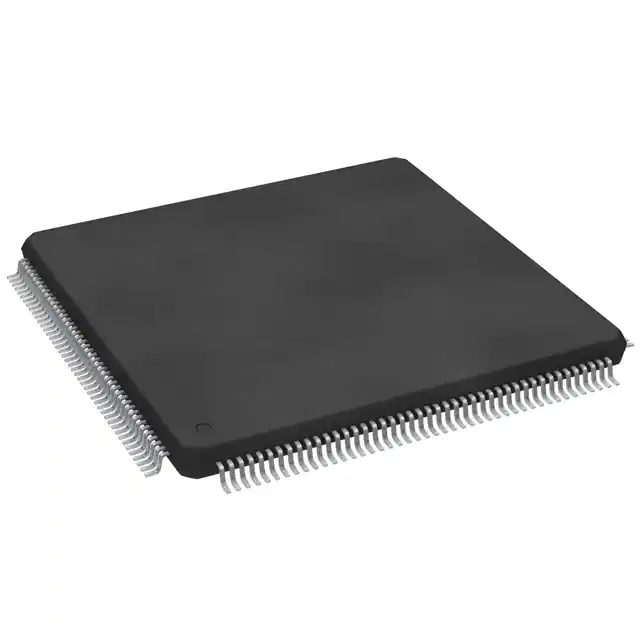

The STM32H7B3IIT6Q is a member of the STM32H7 series of Arm? Cortex?-M7-based MCUs. It features a dual-core architecture, with a main core running at up to 480MHz and a secondary core running at up to 240MHz. The MCU also includes various peripherals, such as high-speed USB, Ethernet, CAN, and multiple serial interfaces. It comes in a compact LQFP176 package, making it suitable for space-constrained applications.

One of the key features of the STM32H7 series is its performance. The Cortex-M7 core architecture is optimized for high-performance and low-latency applications. It features an FPU (floating-point unit) and DSP (digital signal processing) instructions, which are essential for many applications, such as audio and video processing, motor control, and machine learning. The STM32H7B3IIT6Q MCU also includes up to 1MB of flash memory, 1MB of RAM, and a high-speed external memory interface, providing ample space for program and data storage.

Another important aspect of the STM32H7 series is its security features. The MCU includes hardware-based security mechanisms, such as a True Random Number Generator (TRNG), a Secure Hash Algorithm (SHA), and a Physical Unclonable Function (PUF). These mechanisms help protect the device and its data from various attacks, such as tampering, cloning, and hacking. The STM32H7B3IIT6Q MCU also supports secure boot and firmware update features, which are essential for IoT and other connected devices.

Applications of the STM32H7B3IIT6Q MCU

The STM32H7B3IIT6Q MCU is suitable for a wide range of applications that require high-performance and reliability. Here are some examples:

IoT Devices

The STM32H7B3IIT6Q MCU is ideal for IoT devices that require connectivity, processing power, and security. Its Ethernet, Wi-Fi, and Bluetooth interfaces make it easy to connect to the internet and other devices. Its high-performance and DSP capabilities enable advanced algorithms for data processing, such as machine learning and predictive maintenance. Its security features ensure that the device and its data are protected from various cyber threats.

Medical Devices

The STM32H7B3IIT6Q MCU is also suitable for medical devices that require high-performance and safety. Its dual-core architecture and FPU/DSP instructions make it capable of processing large amounts of data in real-time, such as medical images and signals. Its safety features, such as Error Correction Code (ECC) and parity checks, ensure that the device operates correctly and reliably. Its security features protect the device and its data from unauthorized access and tampering.

Industrial Automation

The STM32H7B3IIT6Q MCU is well-suited for industrial automation applications that require high-performance and ruggedness. Its multiple serial interfaces and CAN interface make it easy to connect to a wide range of sensors and actuators. Its high-performance and DSP capabilities enable advanced control algorithms, such as model predictive control and fuzzy logic. Its ruggedness and reliability ensure that the device operates correctly in harsh environments, such as high temperatures and vibrations.

Conclusion

The STM32H7B3IIT6Q MCU is a high-performance and reliable microcontroller that offers various features and capabilities for demanding applications. Its Cortex-M7 core architecture, dual-core design, and FPU/DSP instructions make it capable of processing large amounts of data in real-time. Its security features, such as TRNG, SHA, and PUF, ensure that the device and its data are protected from various attacks. Its suitability for various applications, such as IoT, medical devices, and industrial automation, makes it a versatile solution for next-generation devices.
