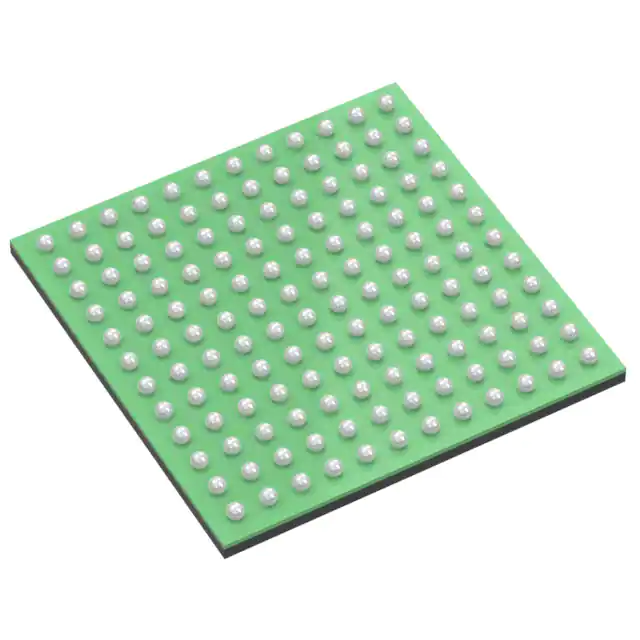

As a popular member of the STM32 microcontroller family, the STM32F446ZCJ7 offers a plethora of features that make it an ideal choice for a wide range of applications across industries. With its high processing speed and low power consumption, it is no surprise that designers worldwide are turning to this microcontroller for their projects.

In this guide, we’ll cover all the basics you need to get started with the STM32F446ZCJ7, from understanding its architecture to programming and debugging your projects.

Architecture

The STM32F446ZCJ7 is based on a 32-bit Arm Cortex-M4 processor with a maximum frequency of 180 MHz. With its floating-point unit (FPU) and digital signal processor (DSP) functionality, the STM32F446ZCJ7 is capable of handling demanding processing tasks with ease.

One of the key features of the STM32F446ZCJ7 is its integrated high-performance analog peripherals, which allow for precise measurement across a wide range of inputs. The microcontroller also comes with a rich set of communication interfaces, including USB, SPI, I2C, and UART, making it ideal for a wide range of applications such as motor control, audio processing, and industrial automation, to name but a few.

Development

Developing for the STM32F446ZCJ7 is made easy thanks to the range of development tools provided by ST. The STM32CubeIDE is a popular integrated development environment for STM32 microcontrollers, and it includes an array of code examples and libraries to help speed up development.

For those looking for additional functionality, the STM32F446ZCJ7 is also compatible with the ST-LINK debugger, which allows for in-circuit debugging during development. This means that developers can easily test their code on the actual hardware, which can help speed up the development cycle considerably.

Programming

Programming the STM32F446ZCJ7 is made easy thanks to the support for a range of programming languages, including C, C++, and Assembly. The microcontroller also supports the use of a real-time operating system (RTOS) for tasks that require precise timing and scheduling.

One of the key benefits of the STM32F446ZCJ7 is its support for low-power modes. This means it is possible to put the microcontroller into sleep mode, reducing power consumption considerably when it is not in use.

Debugging

Debugging is an essential part of any development process, and the STM32F446ZCJ7 makes it easy thanks to a range of built-in debugging features. The microcontroller comes with a serial wire debug (SWD) interface for in-circuit debugging, and it also supports hardware breakpoints and watchpoints for efficient debugging of code.

Conclusion

The STM32F446ZCJ7 is a versatile and powerful microcontroller that is ideal for a wide range of applications. With its high processing speed, low power consumption, and rich set of peripherals, it is no surprise that more and more developers are turning to this microcontroller for their projects.

In this guide, we’ve covered the basics of the STM32F446ZCJ7, from its architecture to development, programming, and debugging. We hope it has provided you with a useful introduction to this microcontroller and helps you get started with your next project.
