The STM32F030C8T6 microcontroller is a popular choice for electronics hobbyists and engineers alike, thanks to its low price point and powerful features. If you're new to the world of STM32, or just looking for a quick refresher, this guide will get you up to speed on everything you need to know to get started with the STM32F030C8T6.

What is the STM32F030C8T6?

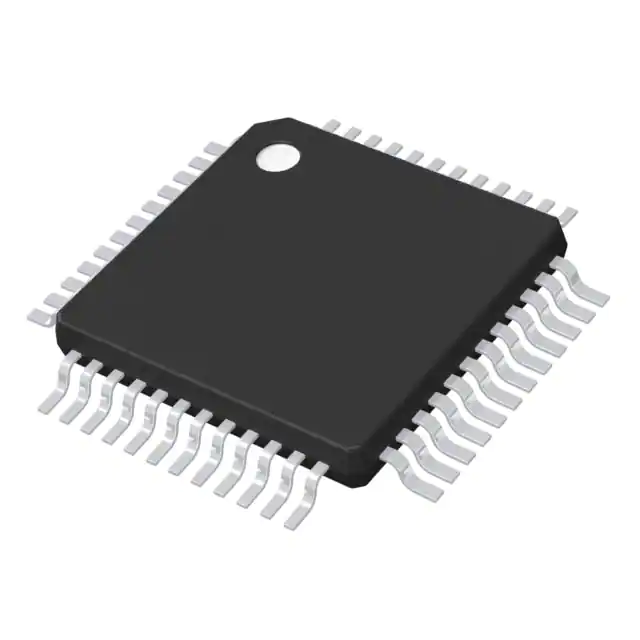

The STM32F030C8T6 is a member of ST Microelectronics' STM32F0 family of ARM Cortex-M0 microcontrollers. This particular model offers 64 KB of flash memory and 8 KB of SRAM, along with a rich peripheral set including USART, SPI, I2C, and more. The microcontroller operates at up to 48 MHz and can be powered from 2.0 to 3.6 volts.

Setting up Development Environment

Before diving into programming the STM32F030C8T6, it is necessary to set up a development environment. Firstly, it is important to have the STM32CubeMX software installed on your computer. Then, create a new project, select the microcontroller (in this case, STM32F030C8T6), configure the desired peripherals, and enable any interrupts needed. Once the project has been created, the initialization code can be generated and copied into the project folder. Now, create a new project in your preferred Integrated Development Environment (IDE), linking the startup code, CMSIS libraries and other necessary libraries provided by ST Microelectronics to get started with developing your application.

Programming the Board

The STM32F030C8T6 can be programmed using various programming languages. This guide will focus on programming the board using the C programming language in the Keil μVision IDE.

Initializing the Peripherals

Before using any of the peripherals, it is necessary to initialize them. This can be done by following these steps:

Initialize the RCC (Reset and Clock Control) to enable the required peripherals.

Configure the GPIOs based on the peripheral to be used.

Initialize the desired peripheral(s) using the appropriate function calls.

Writing and Compiling the Code

To write and compile code for the STM32F030C8T6 in Keil μVision, create a new "C/C++ Source File" and write the code based on the aforementioned peripheral initialization. Import the required CMSIS libraries and create any necessary header files. Once the code has been written, it can be compiled using the "Build Target" option.

Uploading Your Code

Programming the STM32F030C8T6 can be done using a variety of methods, including:

ST-LINK debugger/programmer using SWD (Serial Wire Debug) protocol

Serial bootloader

CAN bus bootloader

For this guide, we'll be using the ST-LINK debugger/programmer method.

Setting Up the Debug Environment

To set up the debugging environment, connect the STM32F030C8T6 to your computer using an ST-LINK debugger/programmer. In Keil μVision, go to the "Flash" menu and select "Configure flash tools". Configure the tool to use the ST-LINK debugger/programmer.

Uploading the Code

To upload your code, first ensure that the debugger/programmer is connected to the computer and the STM32F030C8T6. Compile the code using the "Build Target" option and then click on the "Debug" option to begin the programming and debugging process.

Testing Your Application

The final step is to test your application. This can be done using any one of the many development boards available for the STM32F030C8T6, or by creating your own custom board. Connect the board to your computer and ensure that it is powered on and running the program. You can use a variety of communication protocols to interact with the board, such as USART, SPI, or I2C.

Conclusion

In conclusion, the STM32F030C8T6 is a powerful and versatile microcontroller that can be used for a wide range of applications. Getting started with the STM32F030C8T6 is easy and can be done with minimal hardware and software requirements. With the information provided in this guide, you should have a solid understanding of the basics needed to program, upload, and test your own applications on the STM32F030C8T6.
