In today's rapidly growing technology world, electronics have become an integral part of our daily life. From our homes to workplaces, we are surrounded by electronic devices and machines all around us. These electronic devices are controlled and regulated by electrical circuits known as motor control systems.

Motor control systems have been around for a long time, and with advancements in technology, these systems have evolved into more sophisticated and intelligent systems. One such system is the STEVAL-IHM021V2, which is a motor controller board designed for AC induction motors.

What is STEVAL-IHM021V2?

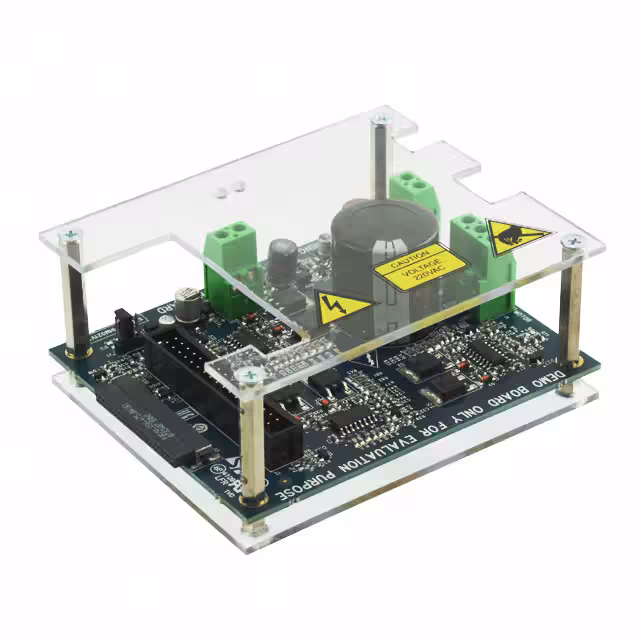

The STEVAL-IHM021V2 is a motor control board that can be used to control AC induction motors. The board is based on the STM32F103 microcontroller, which is a powerful 32-bit microcontroller based on the ARM Cortex-M3 architecture.

The STEVAL-IHM021V2 motor controller board is equipped with STMicroelectronics L6390 and STMicroelectronics STGIPS20C60 power modules, which provide safe and reliable performance. The board also features an isolated interface, designed to allow remote control and monitoring of the motor.

Applications of STEVAL-IHM021V2

The STEVAL-IHM021V2 motor controller board can be used in various applications, including:

Industrial machinery

HVAC systems

Pumps

Fans

Compressors

Robotics

And more

How to Implement STEVAL-IHM021V2?

Implementing the STEVAL-IHM021V2 motor controller board is relatively easy, but it requires some basic knowledge of motor control systems. Here's a simple guide to implementing the STEVAL-IHM021V2:

1. Power Supply

First, you need to connect the board to the power supply. The STEVAL-IHM021V2 requires a 24V DC power supply, and you can connect it to the board using the power terminal provided.

2. Motor Connection

Connect the three-phase induction motor to the board using the X1 connector provided. Make sure that the motor wires are connected correctly and securely.

3. Control Connection

Connect the control signals to the board using the J1 and J2 connectors provided. The J1 connector is used to connect the control signals, while the J2 connector is used for monitoring purposes.

4. Programming

After connecting the STEVAL-IHM021V2 board to the power supply, motor, and control signals, you can now program the board using the STMicroelectronics motor control software. The software is available for free download on the STMicroelectronics website.

Conclusion

The STEVAL-IHM021V2 motor controller board is an essential component in the motor control system. It provides safe and reliable performance while allowing remote control and monitoring of the motor. Implementing the STEVAL-IHM021V2 motor controller board is relatively easy, and with basic knowledge of motor control systems, anyone can use it to control AC induction motors. So if you're working on an application that requires the use of AC induction motors, make sure to consider the STEVAL-IHM021V2 motor controller board.
