Are you experiencing signal distortions, lost frames, or other issues when transmitting video signals? Then you may want to consider using the EMIF06-VID01F2, a filter designed to enhance the quality of video inputs and outputs.

In this post, we'll explore what the EMIF06-VID01F2 is, how it works, and why it matters for your video applications. But first, let's define some key terms and concepts.

Understanding Video Signals

A video signal is an electrical representation of a visual image, which can be transmitted over cables, wireless channels, or other media. Video signals may have different formats, resolutions, refresh rates, color depths, and encoding methods, depending on the source (e.g., camera, computer, TV) and the display (e.g., monitor, projector, screen).

However, video signals can suffer from various impairments that can degrade their quality. These impairments include:

Noise: random variations in the signal caused by interference, thermal effects, or other sources.

Attenuation: loss of signal power due to distance, cable length, or resistance.

Crosstalk: interference between adjacent channels or wires in a cable or on a board.

EMI/RFI: electromagnetic or radiofrequency interference from other sources, such as motors, transformers, or cell phones.

Jitter: variations in the timing or phase of the signal caused by clock drift or noise.

Reflection: echoes or bounces of the signal caused by impedance mismatches or obstructions.

Distortion: changes in the shape or amplitude of the signal caused by nonlinearities or filtering.

To mitigate these impairments, you can use various techniques such as equalization, amplification, shielding, grounding, or isolation. However, the effectiveness and applicability of these techniques may depend on the specific characteristics of the video signals and the transmission media.

Introducing the EMIF06-VID01F2

The EMIF06-VID01F2 is a low-pass filter designed to suppress high-frequency noise and interference in video signals. It can be used for both analog and digital video interfaces, such as VGA, DVI, HDMI, or DisplayPort.

The EMIF06-VID01F2 has a cutoff frequency of 220 MHz, which means that it can attenuate signals above this frequency while passing signals below it. This frequency range covers most of the video bandwidth for standard and high-definition signals. The filter has a 75-ohm impedance, which matches the characteristic impedance of most video cables and connectors.

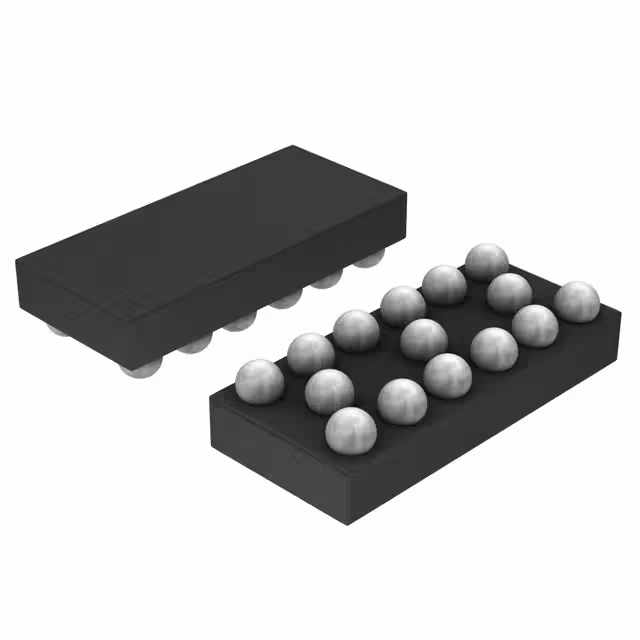

The EMIF06-VID01F2 has a compact and surface-mountable package, which simplifies integration into various video systems and designs. The filter has a maximum working voltage of 5.5 V and a maximum current of 50 mA, which makes it suitable for low-power and portable devices.

The EMIF06-VID01F2 can help improve the signal-to-noise ratio (SNR) of your video signals, which is a measure of the strength of the signal relative to the noise. A higher SNR means a clearer and sharper image, with fewer artifacts or glitches. The filter can also help reduce the EMI/RFI emissions of your video circuits, which is a measure of the radiofrequency energy that can interfere with other devices or systems.

How to Use the EMIF06-VID01F2

To use the EMIF06-VID01F2, you need to place it in series with the video signal path, either at the input or output side. The filter should be connected between the video source or receiver and the cable or connector that carries the signal.

For example, if you have a video camera that outputs an analog signal via a BNC connector, you can insert the EMIF06-VID01F2 between the camera and the coaxial cable that connects to the monitor or recorder. Or, if you have a laptop that outputs a digital signal via an HDMI connector, you can insert the EMIF06-VID01F2 between the laptop and the HDMI cable that connects to the projector or TV.

You should also follow some basic rules to ensure proper grounding and shielding of your video circuits and cables. These rules include:

Keep the length of your cables as short as possible, and use the appropriate connectors and terminations to minimize reflections, crosstalk, and attenuation.

Use high-quality and shielded cables and connectors, such as RG-6, RG-59, or HDMI, and avoid low-cost or unshielded ones that can pick up noise and EMI/RFI.

Ground and bond all your circuits and devices to a common and low-impedance reference, such as the earth ground or a metal chassis, to avoid ground loops and voltage differences.

Use ferrite beads, chokes, or filters to suppress high-frequency noise and transients that can propagate through your cables and affect your video signals.

Conclusion

The EMIF06-VID01F2 is a versatile and effective filter that can enhance the quality and reliability of your video signals. Whether you work with analog or digital video, the EMIF06-VID01F2 can help reduce noise, attenuation, crosstalk, EMI/RFI, and other impairments that can degrade your image. By following some basic guidelines for grounding and shielding your circuits and cables, you can ensure that your video signals stay clean and clear even in noisy and challenging environments. Try the EMIF06-VID01F2 today and see the difference it can make in your video applications!
