Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCX700N20MOSFET N-CH 200V 70A TO220FM |
2802 | 4.09 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 70A (Tc) | 10V | 42.7mOhm @ 35A, 10V | 5V @ 1mA | 125 nC @ 10 V | ±30V | 6900 pF @ 25 V | - | 2.23W (Ta), 40W (Tc) | 150°C (TJ) | Through Hole | |
IRF2204SPBFMOSFET N-CH 40V 170A D2PAK |
872 | 4.10 |
Add To CartInquiry Now |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 170A (Tc) | 10V | 3.6mOhm @ 130A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 5890 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
IXFA10N60PMOSFET N-CH 600V 10A TO263 |
108 | 4.22 |
Add To CartInquiry Now |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 740mOhm @ 5A, 10V | 5.5V @ 1mA | 32 nC @ 10 V | ±30V | 1610 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
FDPF20N50MOSFET N-CH 500V 20A TO220F |
228 | 3.17 |
Add To CartInquiry Now |
Datasheet |
Tube | UniFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 230mOhm @ 10A, 10V | 5V @ 250µA | 59.5 nC @ 10 V | ±30V | 3120 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |

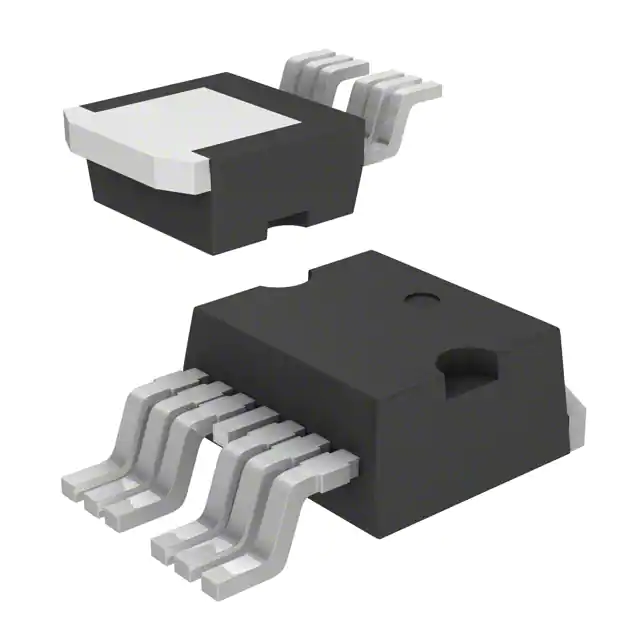

STH275N8F7-6AGMOSFET N-CH 80V 180A H2PAK-6 |
2000 | 7.15 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4.5V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
IXFA12N65X2MOSFET N-CH 650V 12A TO263AA |
204 | 4.30 |
Add To CartInquiry Now |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 310mOhm @ 6A, 10V | 5V @ 250µA | 18.5 nC @ 10 V | ±30V | 1134 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
IPP034NE7N3GXKSA1MOSFET N-CH 75V 100A TO220-3 |
1480 | 4.32 |
Add To CartInquiry Now |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 100A (Tc) | 10V | 3.4mOhm @ 100A, 10V | 3.8V @ 155µA | 117 nC @ 10 V | ±20V | 8130 pF @ 37.5 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
STP33N65M2MOSFET N-CH 650V 24A TO220 |
315 | 4.32 |
Add To CartInquiry Now |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 140mOhm @ 12A, 10V | 4V @ 250µA | 41.5 nC @ 10 V | ±25V | 1790 pF @ 100 V | - | 190W (Tc) | 150°C (TJ) | Through Hole | |
FQP22N30MOSFET N-CH 300V 21A TO220-3 |
3000 | 3.25 |
Add To CartInquiry Now |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 300 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2200 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
AOT2500LMOSFET N-CH 150V 11.5/152A TO220 |
945 | 4.37 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 11.5A (Ta), 152A (Tc) | 6V, 10V | 6.5mOhm @ 20A, 10V | 3.5V @ 250µA | 136 nC @ 10 V | ±20V | 6460 pF @ 75 V | - | 2.1W (Ta), 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
SIHB21N60EF-GE3MOSFET N-CH 600V 21A TO263AB |
366 | 4.38 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 176mOhm @ 11A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±30V | 2030 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
STW40NF20MOSFET N-CH 200V 40A TO247-3 |
1722 | 4.43 |
Add To CartInquiry Now |
Datasheet |
Tube | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 40A (Tc) | 10V | 45mOhm @ 20A, 10V | 4V @ 250µA | 75 nC @ 10 V | ±20V | 2500 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
STF33N65M2MOSFET N-CH 650V 24A TO220FP |
598 | 4.45 |
Add To CartInquiry Now |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 140mOhm @ 12A, 10V | 4V @ 250µA | 41.5 nC @ 10 V | ±25V | 1790 pF @ 100 V | - | 34W (Tc) | 150°C (TJ) | Through Hole | |
NTHL190N65S3HFMOSFET N-CH 650V 20A TO247-3 |
234 | 4.45 |
Add To CartInquiry Now |
Datasheet |
Tube | FRFET®, SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 430µA | 34 nC @ 10 V | ±30V | 1610 pF @ 400 V | - | 162W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IRFP150PBFMOSFET N-CH 100V 41A TO247-3 |
680 | 4.47 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 41A (Tc) | 10V | 55mOhm @ 25A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
FQA13N80-F109MOSFET N-CH 800V 12.6A TO3PN |
348 | 4.47 |
Add To CartInquiry Now |
Datasheet |
Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12.6A (Tc) | 10V | 750mOhm @ 6.3A, 10V | 5V @ 250µA | 88 nC @ 10 V | ±30V | 3500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |

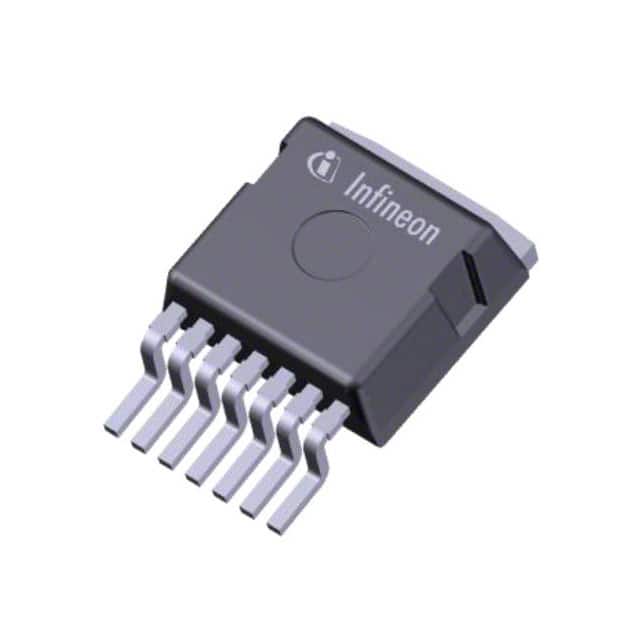

IPBE65R230CFD7AATMA1MOSFET N-CH 650V 11A TO263-7 |
3476 | 6.14 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 230mOhm @ 5.2A, 10V | 4.5V @ 260µA | 23 nC @ 10 V | ±20V | 1044 pF @ 400 V | - | 63W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount | |
IRFPE40PBFMOSFET N-CH 800V 5.4A TO247-3 |
441 | 4.56 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.4A (Tc) | 10V | 2Ohm @ 3.2A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IRFIB5N65APBFMOSFET N-CH 650V 5.1A TO220-3 |
969 | 4.58 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.1A (Tc) | 10V | 930mOhm @ 3.1A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±30V | 1417 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFP36N20X3MOSFET N-CH 200V 36A TO220 |
101 | 4.58 |
Add To CartInquiry Now |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 36A (Tc) | 10V | 45mOhm @ 18A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1425 pF @ 25 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
