Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | PackageCooled | AttachmentMethod | Shape | Length | Width | Diameter | FinHeight | PowerDissipation@TemperatureRise | ThermalResistance@ForcedAirFlow | ThermalResistance@Natural | Material |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
577002B00000GHEAT SINK TO-220 .250 COMPACT |
16543 | 0.33 |
Add To CartInquiry Now |
Datasheet |
Bag | - | Active | Board Level | Bolt On | Rectangular, Fins | 0.750 (19.05mm) | 0.520 (13.21mm) | - | 0.250 (6.35mm) | 1.5W @ 50°C | 10.00°C/W @ 500 LFM | 32.00°C/W | Aluminum | ||

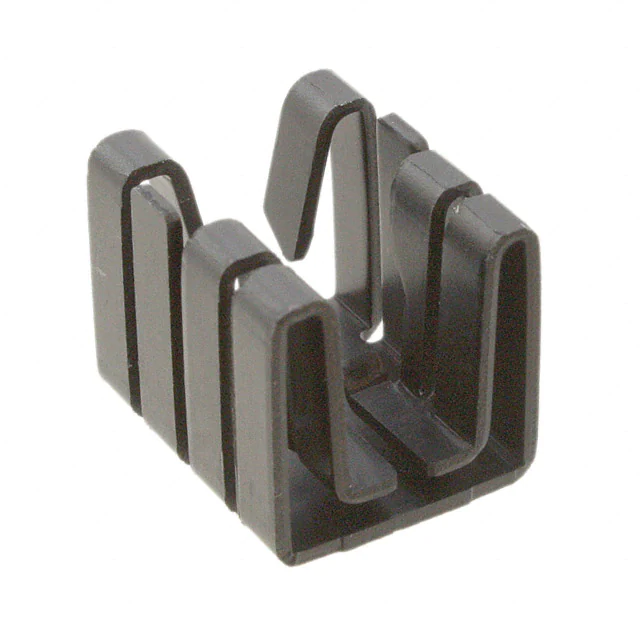

V8508GHEATSINK TO-220 15X12.8MM |
40157 | 0.35 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Press Fit | Rectangular, Fins | 0.591 (15.00mm) | 0.504 (12.80mm) | - | 0.500 (12.70mm) | 3.0W @ 60°C | 14.00°C/W @ 200 LFM | - | Aluminum | ||

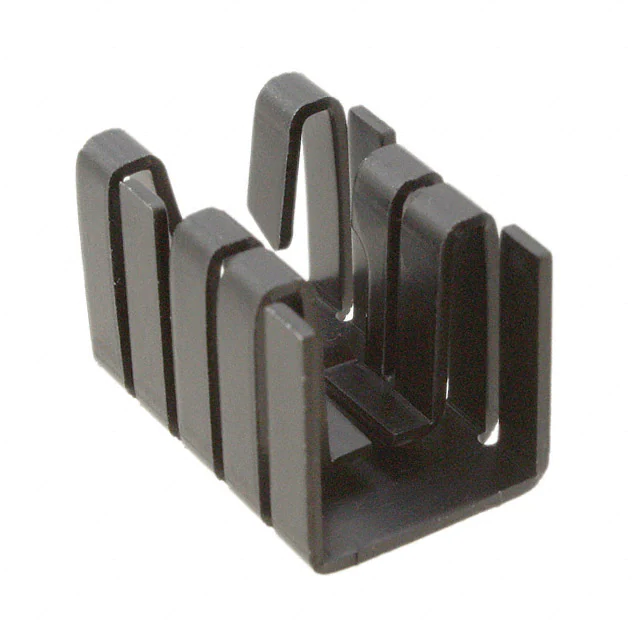

V8508AHEATSINK TO-220 19X12.80MM |
24732 | 0.35 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Press Fit | Rectangular, Fins | 0.748 (19.00mm) | 0.504 (12.80mm) | - | 0.500 (12.70mm) | 3.0W @ 60°C | 14.00°C/W @ 200 LFM | - | Aluminum | ||

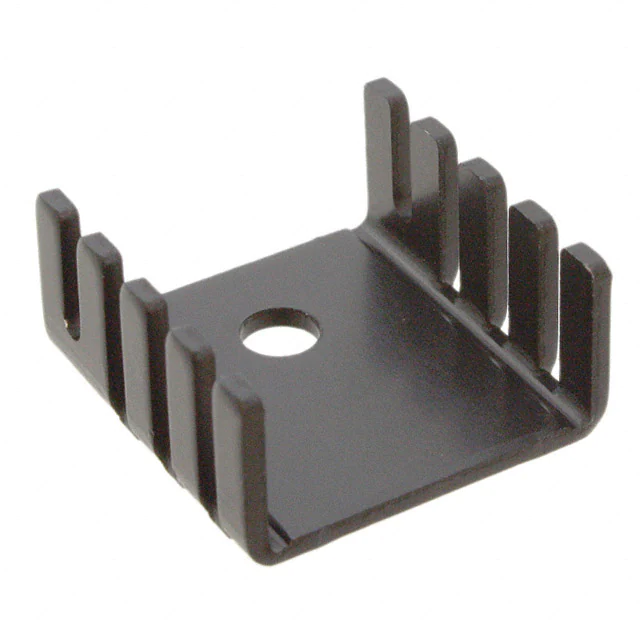

V7235-THEATSINK TO-220 19.05X9.52MM |
9314 | 0.35 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Bolt On | Square, Fins | 0.750 (19.05mm) | 0.750 (19.05mm) | - | 0.375 (9.52mm) | - | - | 24.00°C/W | Aluminum | ||

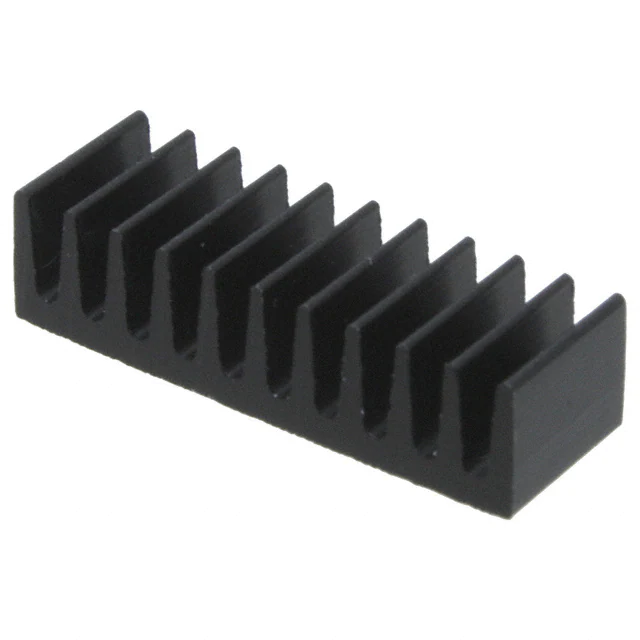

V5619AHEATSINK ALUM ANOD |
12038 | 0.36 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Top Mount | Press Fit | Rectangular, Fins | 0.250 (6.35mm) | 0.748 (19.00mm) | - | 0.190 (4.83mm) | - | - | 48.00°C/W | Aluminum | ||

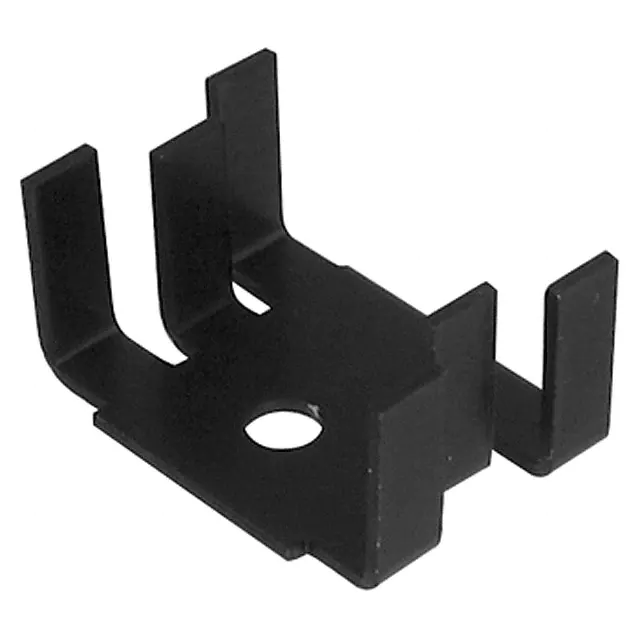

V5235B-THEATSINK ALUM ANOD |
1035 | 0.71 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Bolt On | Rectangular, Fins | 0.712 (18.08mm) | 1.000 (25.40mm) | - | 0.500 (12.70mm) | - | - | 21.00°C/W | Aluminum | ||

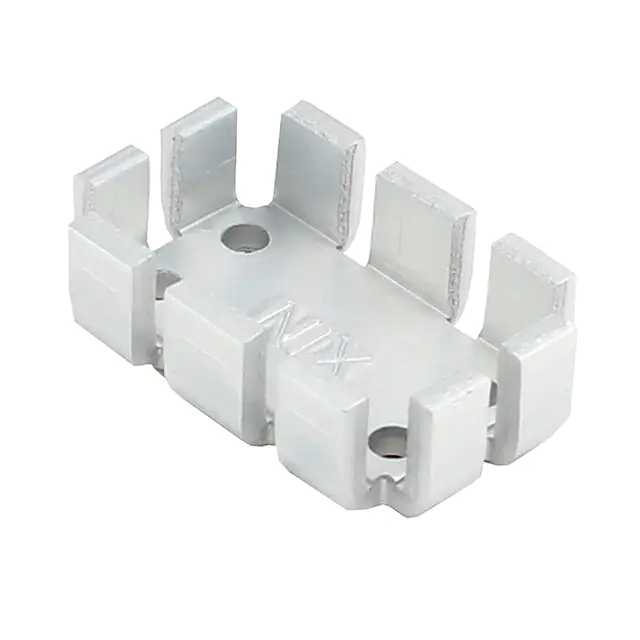

V2199N1HEATSINK CPU STAMPED |
5233 | 0.76 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Top Mount | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 1.378 (35.00mm) | 0.866 (22.00mm) | - | 0.394 (10.00mm) | - | - | - | Aluminum Alloy | ||

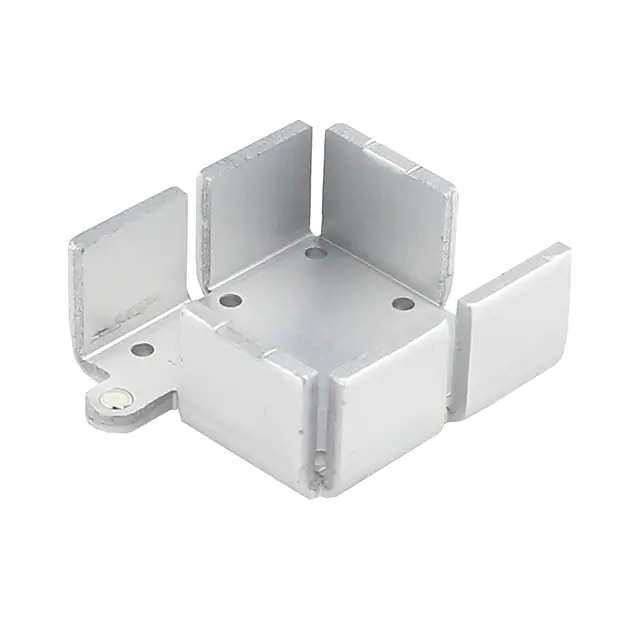

V2200N1HEATSINK CPU STAMPED |
2249 | 0.85 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Top Mount | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.181 (30.00mm) | 1.181 (30.00mm) | - | 0.512 (13.00mm) | - | - | - | Aluminum Alloy | ||
V5234B-THEATSINK ALUM ANOD |
2113 | 0.87 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Bolt On | Rectangular, Fins | 0.712 (18.08mm) | 1.000 (25.40mm) | - | 0.311 (7.90mm) | - | - | 25.00°C/W | Aluminum | ||

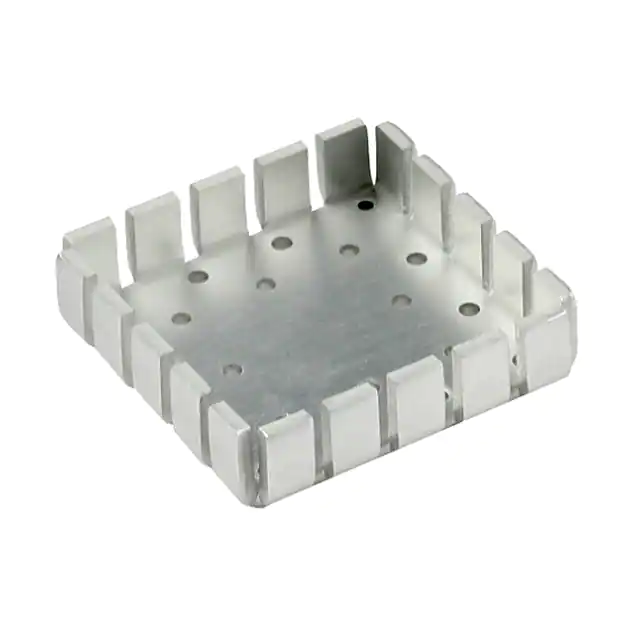

V2136NHEATSINK CPU STAMPED |
2205 | 1.02 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Top Mount | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.575 (40.00mm) | 1.575 (40.00mm) | - | 0.394 (10.00mm) | - | - | - | Aluminum Alloy | ||

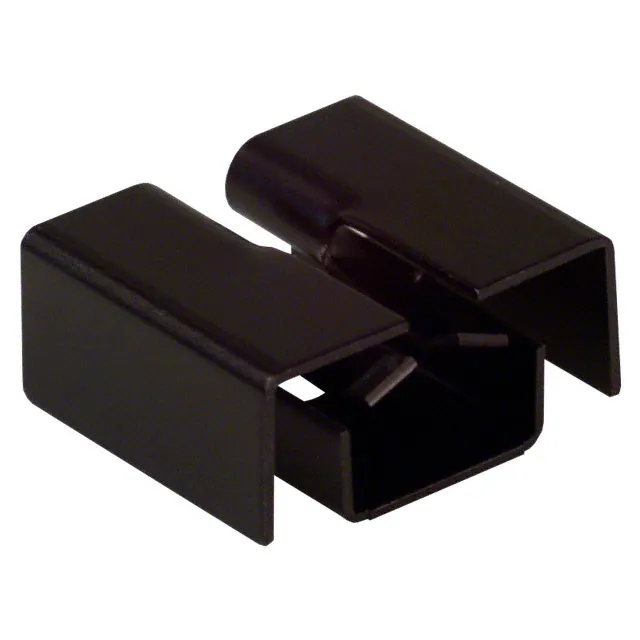

574502B00000GHEATSINK TO-220 VERT MNT .75 |
11955 | 0.37 |
Add To CartInquiry Now |
Datasheet |
Bag | - | Active | Board Level | Clip | Rectangular, Fins | 0.750 (19.05mm) | 0.860 (21.84mm) | - | 0.395 (10.03mm) | 3.0W @ 60°C | 8.00°C/W @ 400 LFM | 21.20°C/W | Aluminum | ||

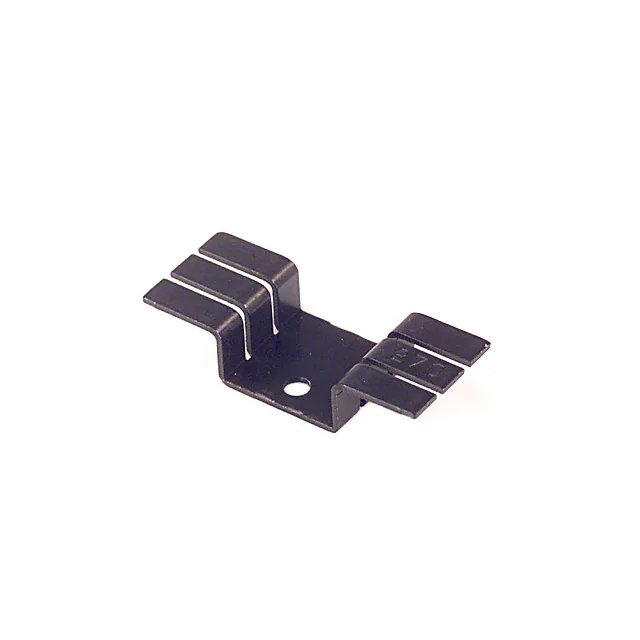

270-ABHEATSINK TO-220 SM FOOTPRINT BLK |
3005 | 0.38 |
Add To CartInquiry Now |
Datasheet |
Bulk | 270 | Active | Board Level | Bolt On | Rectangular, Fins | 0.700 (17.78mm) | 1.750 (44.45mm) | - | 0.375 (9.52mm) | 4.0W @ 70°C | 6.00°C/W @ 400 LFM | 17.50°C/W | Aluminum | ||

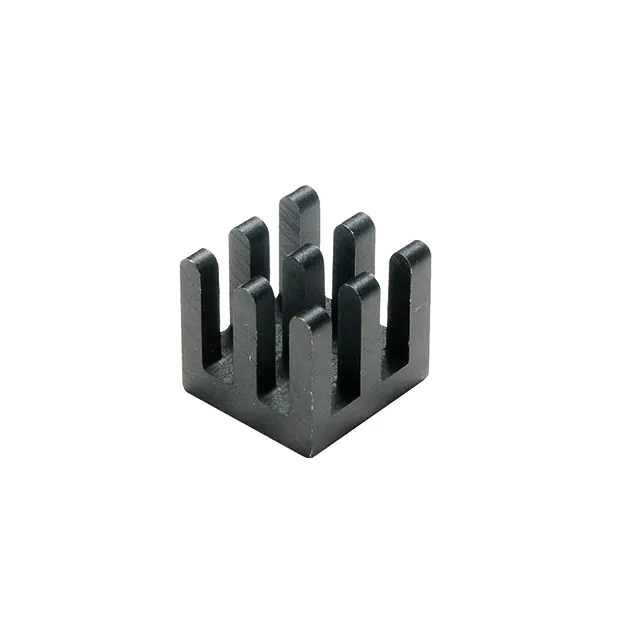

V2016BHEATSINK CPU XCUT |
53217 | 0.39 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Top Mount | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.335 (8.50mm) | 0.335 (8.50mm) | - | 0.315 (8.00mm) | - | - | 32.00°C/W | Aluminum Alloy | ||

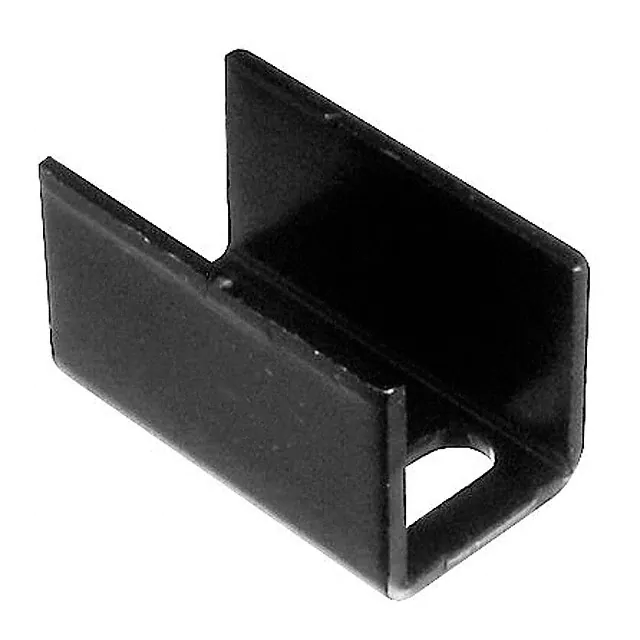

V5074C-THEATSINK ALUM ANOD TO-220 |
1197 | 0.39 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level | Bolt On | Rectangular, Fins | 0.984 (25.00mm) | 0.550 (13.97mm) | - | 0.590 (15.00mm) | - | - | 20.00°C/W | Aluminum | ||

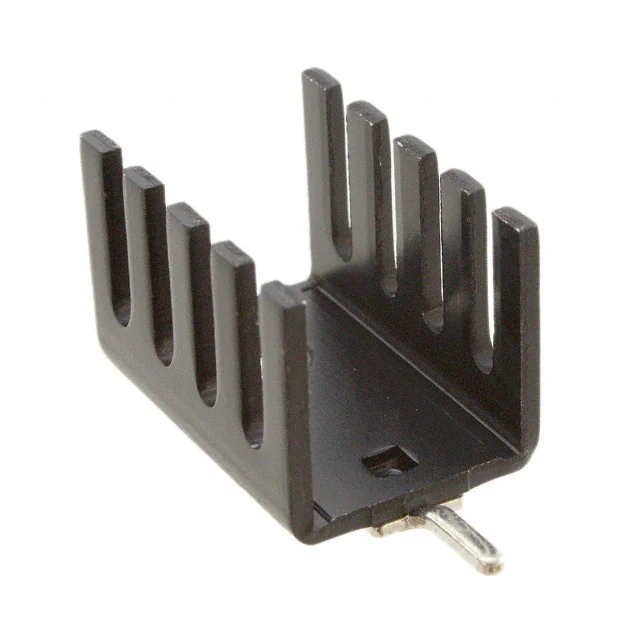

V7237CHEATSINK TO-220 19.05X13.21MM |
6945 | 0.40 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Board Level, Vertical | Bolt On and PC Pin | Rectangular, Fins | 0.750 (19.05mm) | 0.520 (13.21mm) | - | 0.500 (12.70mm) | - | - | 21.00°C/W | Aluminum | ||

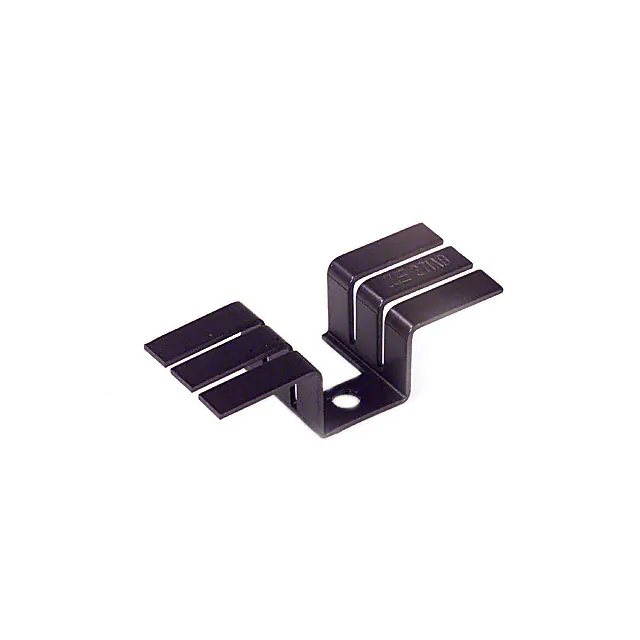

271-ABHEATSINK TO-220 TOP MNT BLK |
6349 | 0.40 |
Add To CartInquiry Now |
Datasheet |
Bulk | 271 | Active | Board Level | Bolt On | Rectangular, Fins | 0.700 (17.78mm) | 1.750 (44.45mm) | - | 0.500 (12.70mm) | 4.0W @ 62°C | 5.10°C/W @ 400 LFM | 15.50°C/W | Aluminum | ||

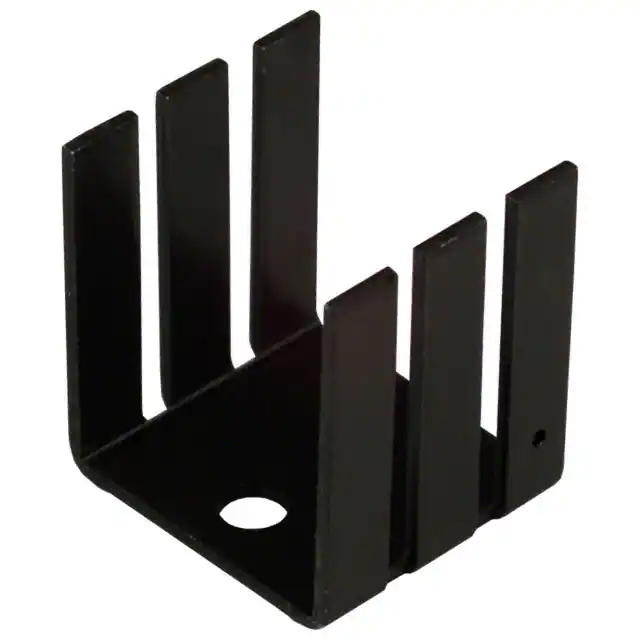

504102B00000GHEATSINK TO-220 PWR CLR .700 |
22903 | 0.41 |
Add To CartInquiry Now |
Datasheet |
Bag | - | Active | Board Level | Bolt On | Rectangular, Fins | 0.701 (17.80mm) | 0.779 (19.80mm) | - | 0.850 (21.60mm) | 2.0W @ 40°C | 6.00°C/W @ 300 LFM | 15.60°C/W | Aluminum | ||
273-ABHEATSINK TO-220 LOW HEIGHT BLK |
2110 | 0.42 |
Add To CartInquiry Now |
Datasheet |
Bulk | 273 | Active | Board Level | Bolt On | Rectangular, Fins | 0.750 (19.05mm) | 0.750 (19.05mm) | - | 0.375 (9.52mm) | 2.0W @ 49°C | 7.20°C/W @ 400 LFM | 24.50°C/W | Aluminum | ||

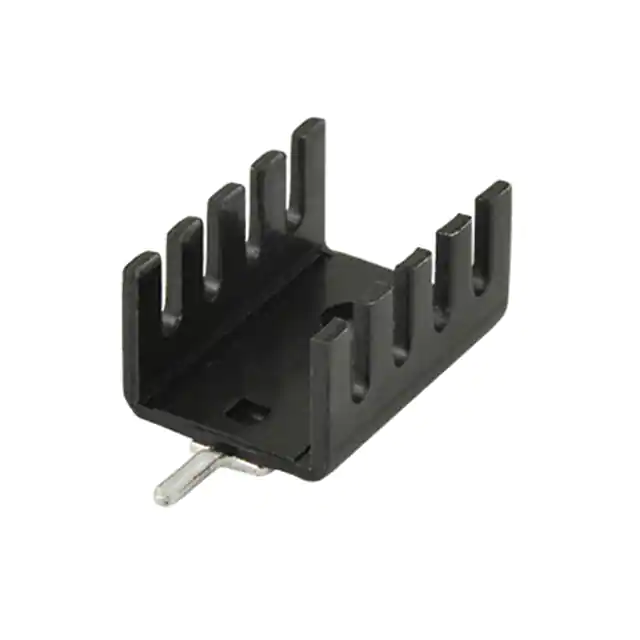

HSS-B20-0635H-01HEATSINK TO-220 2.7W ALUMINUM |
1923 | 0.42 |
Add To CartInquiry Now |
Datasheet |
Bag | HSS | Active | Board Level, Vertical | PC Pin | Rectangular, Fins | 0.520 (13.20mm) | 0.375 (9.53mm) | - | 0.748 (19.00mm) | 2.7W @ 75°C | 9.51°C/W @ 200 LFM | 27.78°C/W | Aluminum | ||
230-75ABHEATSINK TO-220 VERT/HORZ BLK |
5707 | 0.45 |
Add To CartInquiry Now |
Datasheet |
Bulk | 230 | Active | Board Level | Bolt On | Rectangular, Fins | 0.750 (19.05mm) | 0.570 (14.47mm) | - | 0.500 (12.70mm) | 2.0W @ 57°C | 7.50°C/W @ 400 LFM | 28.50°C/W | Aluminum |
