Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

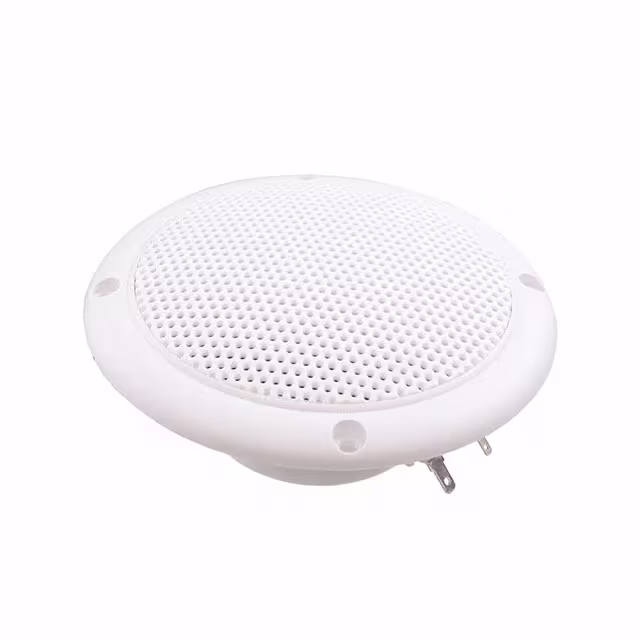

FR 10 WP - 4 OHM (WHITE)FR 10 WP - 4 OHM (WHITE) |
2925 | 19.47 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 80 Hz ~ 16 kHz | 120Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | - | |

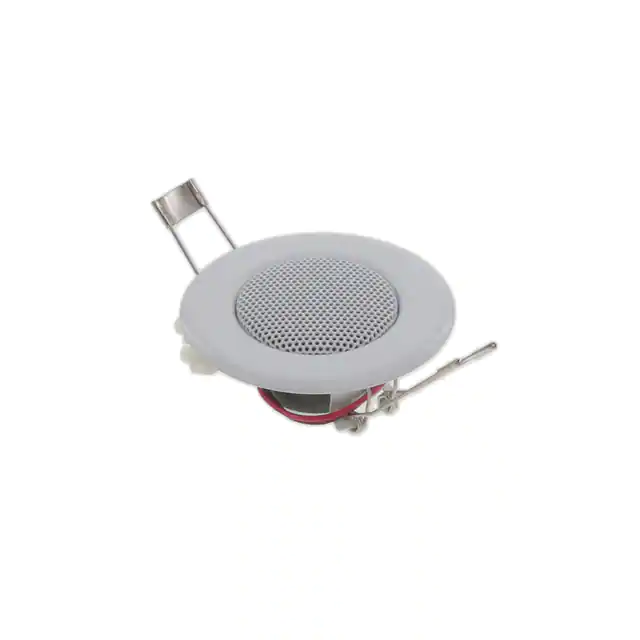

DL 5 - 8 OHMCEILING MOUNTED SPEAKER |
2891 | 20.21 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | Subwoofer | 150 Hz ~ 20 kHz | 280Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round | - | - | IP54 | - | Wire Leads | 3.366 Dia (85.50mm) | |

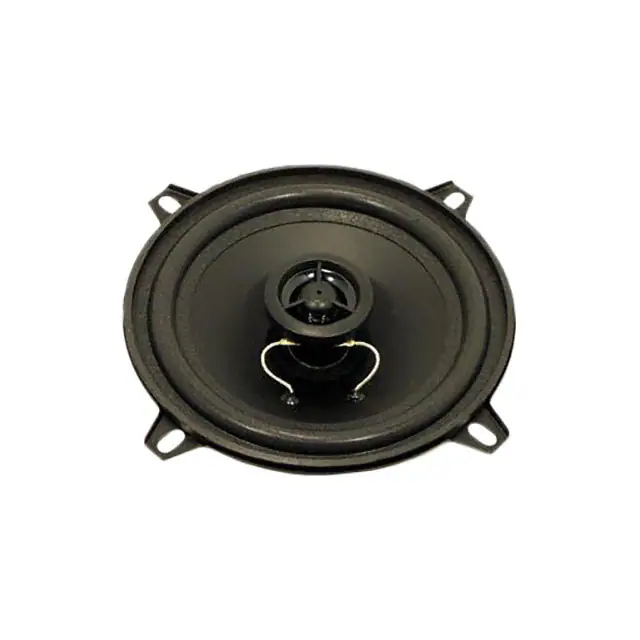

PX 13 - 4 OHM2-WAY COAXIAL SPEAKER |
2787 | 20.66 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Piezo | Tweeter | 60 Hz ~ 15 kHz | 95Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | - | - | - | - | |

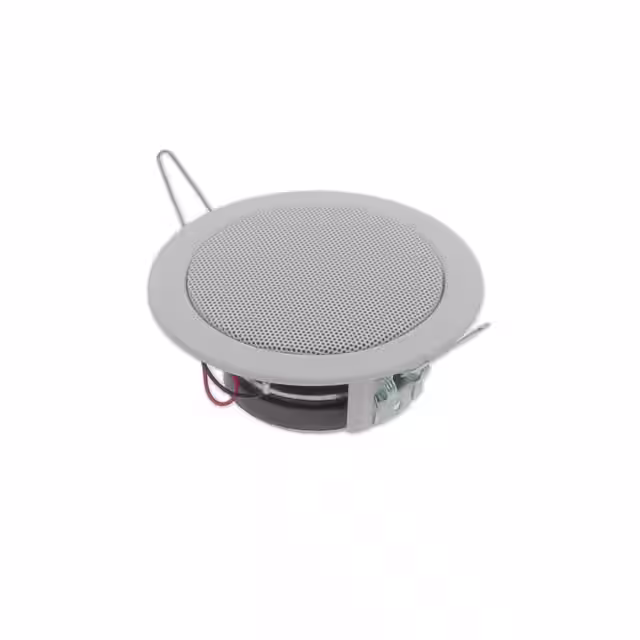

DL 8 - 8 OHMCEILING MOUNTED SPEAKER |
2332 | 25.79 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 90 Hz ~ 18 kHz | 190Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 30 W | Top | Round | - | - | IP54 | - | Wire Leads | 4.134 Dia (105.00mm) | |
BK-28562-000SPEAKER 35OHM SIDE PORT 123DB |
2885 | 26.13 |
Add To CartInquiry Now |
Datasheet |
Bulk | BK | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 35 Ohms | 123.00 | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310 L x 0.220 W (7.87mm x 5.59mm) | |

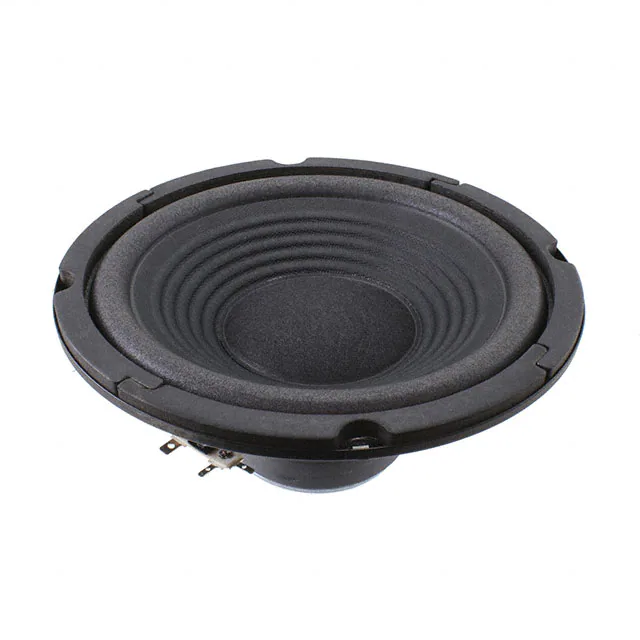

W 200 - 8 OHMHIFI WOOFER |
2359 | 28.68 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 46 Hz ~ 8 kHz | 46Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | Top | Round | - | - | - | - | Quick Connect | 8.110 Dia (206.00mm) | |

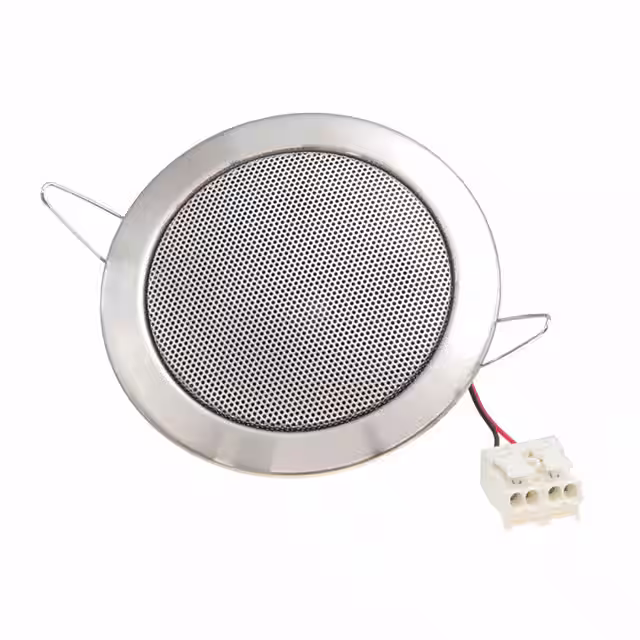

DL 8 ES - 8 OHMCEILING MOUNTED SPEAKER |
3432 | 37.86 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 173Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 30 W | Top | Round | - | - | IP54 | - | Wire Leads | 4.134 Dia (105.00mm) | |
GU-32829-000SPEAKER 17OHM TOP PORT 113.5DB |
2503 | 43.19 |
Add To CartInquiry Now |
Datasheet |
Tray | GU | Active | Magnetic | Receiver, Balanced Armature | 70 Hz ~ 9.9 kHz | - | 17 Ohms | 113.50 | - | Sound Pressure Level (SPL) | - | - | Top, Dual Port | Rectangular | - | - | - | - | Solder Pads | 0.310 L x 0.220 W (7.87mm x 5.59mm) | |

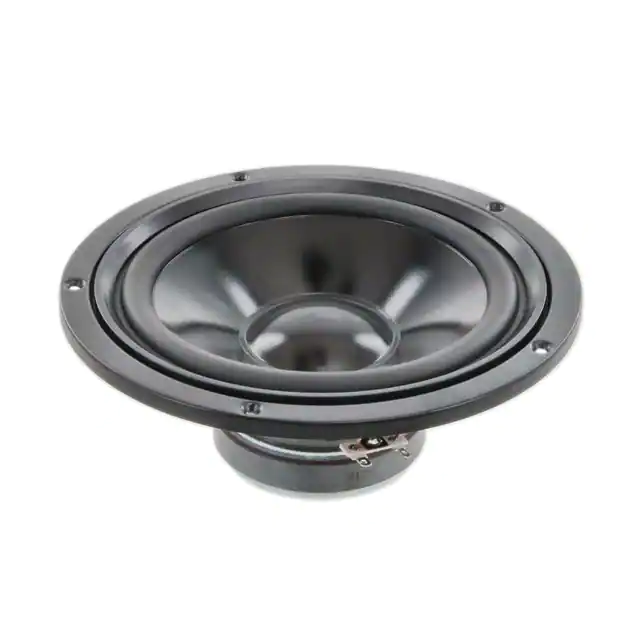

W 200 S - 4 OHMHIFI LOW-MIDRANGE DRIVER |
2192 | 51.92 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 29 Hz ~ 6 kHz | 29Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 75 W | 115 W | Top | Round | Paper | - | - | - | Quick Connect | 9.134 Dia (232.00mm) | |
W 250 S - 4 OHMHIFI LOW-MIDRANGE DRIVER |
2949 | 71.98 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 33 Hz ~ 5.5 kHz | 33Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 100 W | 150 W | Top | Round | Paper | - | - | - | Quick Connect | 11.142 Dia (283.00mm) | |
WB 10 - 100 V/8 OHM (BLACK)2-WAY COMPACT SPEAKER |
2220 | 72.98 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | Tweeter | 100 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | User Defined | Rectangular | - | - | IP54 | - | - | 4.528 Dia x 8.189 L (115.00mm x 208.00mm) | |
WF 130 ND - 8 OHMLOW-MIDRANGE DRIVER |
3256 | 85.18 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 46 Hz ~ 10 kHz | 46Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Polypropylene (PP) | Nd | - | - | Solder Eyelet(s) | 5.846 Dia (148.50mm) | |
DK 121 - 8 OHMRE-ENTRANT HORN SPEAKER |
3592 | 131.84 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | General Purpose | 570 Hz ~ 4.4 kHz | - | 8 Ohms | 104.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polypropylene (PP) | - | Waterproof | - | Wire Leads | 3.996 Dia x 4.764 L (101.50mm x 121.00mm) | |
SCM-1511L2.5-8N0.8RSPEAKER 8 0.8W |
120 | 2.04 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | - | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 93.00 | 10mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | - | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Spring Type | 0.591 L x 0.433 W (15.00mm x 11.00mm) | |
SCM-1609L3.3-8N1RSPEAKER 8 1W |
3459 | 2.16 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | - | 580 Hz ~ 20 kHz | 580Hz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | - | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Spring Type | 0.630 L x 0.354 W (16.00mm x 9.00mm) | |
SCM-2415L4.5-8N1RSPEAKER 8 1W |
2646 | 2.48 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | - | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 88.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | - | Oval | Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.945 L x 0.591 W (24.00mm x 15.00mm) | |
SCM-2514L6.0-4N2RSPEAKER 4 2W |
3496 | 2.62 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | - | 650 Hz ~ 20 kHz | 650Hz | 4 Ohms | 94.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | - | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Solder Pads | 0.984 L x 0.551 W (25.00mm x 14.00mm) | |
SCM-36R4.8-8N1RSPEAKER 8 1W |
3594 | 2.95 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | - | - | 570 Hz ~ 6 kHz | 570Hz | 8 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | - | Round | Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417 Dia (36.00mm) | |
RFR773N-4-RB-NL77 MM SPEAKER |
3297 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Box | - | Active | Magnetic | General Purpose | 300 Hz ~ 10 kHz | 300Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.031 Dia (77.00mm) | |

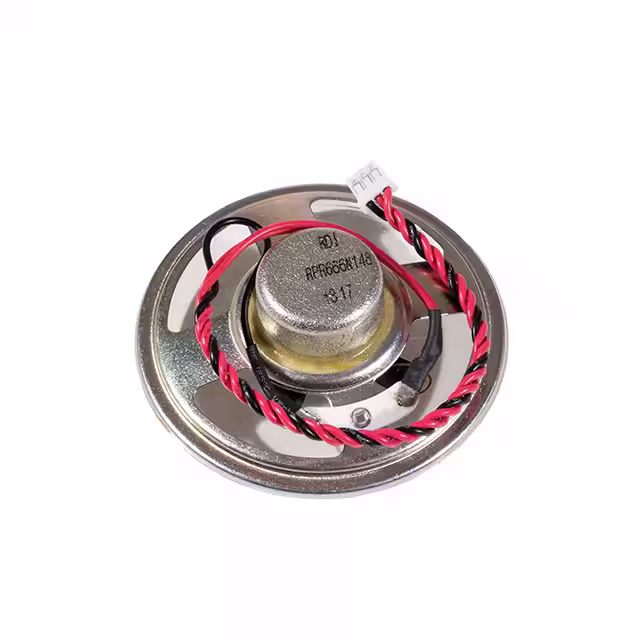

RPR666N148100NLSPEAKER |
3710 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Box | - | Active | Magnetic | General Purpose | 350 Hz ~ 10 kHz | 350Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 2.598 Dia (66.00mm) |
