Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | FrequencyRange | Frequency-SelfResonant | Impedance | Efficiency-dBA | Efficiency-Testing | Efficiency-Type | Power-Rated | Power-Max | PortLocation | Shape | Material-Cone | Material-Magnet | IngressProtection | Ratings | Termination | Size/Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CI-32139-000SPEAKER 47 OHM TOP PORT 131.5DB |
182 | 30.95 |
Add To CartInquiry Now |
Datasheet |
Tray | CI | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5.5 kHz | - | 47 Ohms | 131.50 | - | - | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.373 L x 0.283 W (9.47mm x 7.18mm) | |
FK-23451-000SPEAKER 630OHM SIDE PORT 107DB |
154 | 41.02 |
Add To CartInquiry Now |
Datasheet |
Bulk | FK | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.5 kHz | - | 630 Ohms | 95.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197 L x 0.108 W (5.00mm x 2.73mm) | |

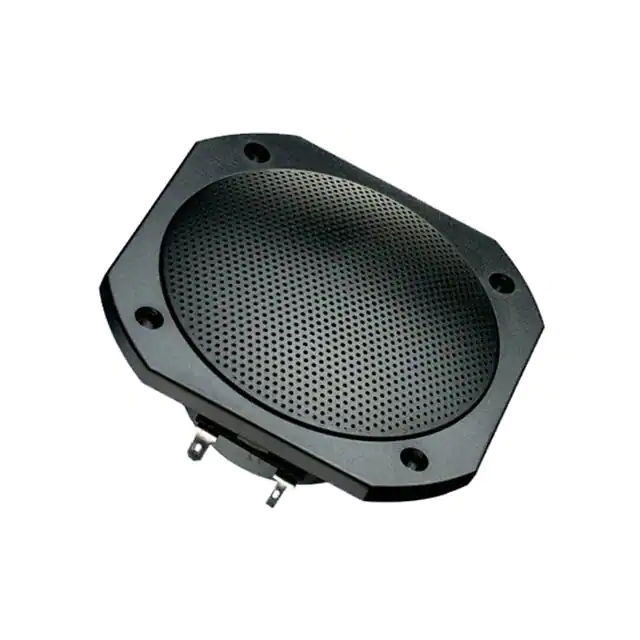

FRS 10 WP - 4 OHM (BLACK)FRS 10 WP - 4 OHM (BLACK) |
3578 | 41.46 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 19 Hz ~ 19 kHz | - | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 50 W | Top | Round, Square Frame | Glass Fiber Composite | - | Waterproof | - | Quick Connect | - | |
BGF-46166-18-4-003SPEAKER FLAT GLASS 166X46X17MM |
2961 | 41.97 |
Add To CartInquiry Now |
Datasheet |
Box | - | Active | Magnetic | Woofer | - | 90Hz | 3.4 Ohms | 75.00 | - | Sound Pressure Level (SPL) | 35 W | 180 W | Top | Oval, Rectangular Frame | Aluminum Composite, Glass Composite | Nd-Fe-B | - | - | Solder Pads | - | |

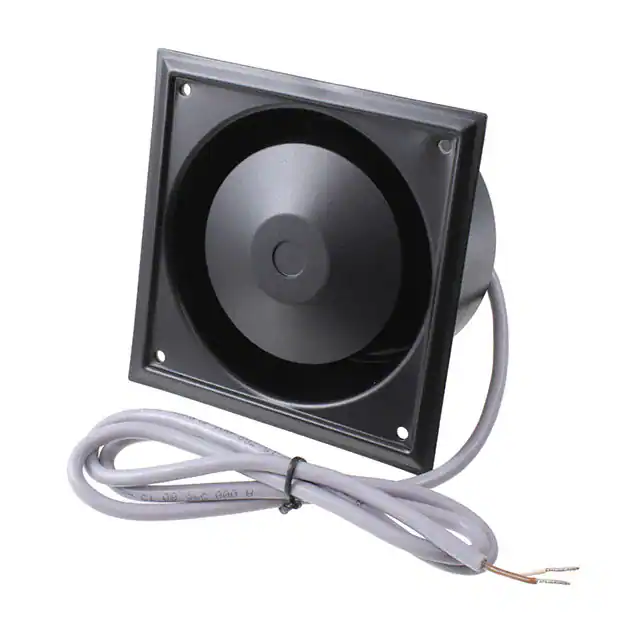

DK 121 FE EB - 8 OHMRE-ENTRANT HORN SPEAKER |
2780 | 94.65 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | General Purpose | 620 Hz ~ 5 kHz | - | 8 Ohms | 104.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round, Square Frame | Polypropylene (PP) | - | Waterproof | - | Wire Leads | 3.996 Dia x 4.764 L (101.50mm x 121.00mm) | |
SPKM.15.8.A15MM MINI 8 OHM SPEAKER |
957 | 1.70 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 950Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591 Dia (15.00mm) | |
SPKM.20.8.A20MM MINI 8 OHM SPEAKER |
967 | 1.97 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 850Hz | 8 Ohms | 98.00 | 500mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787 Dia (20.00mm) | |

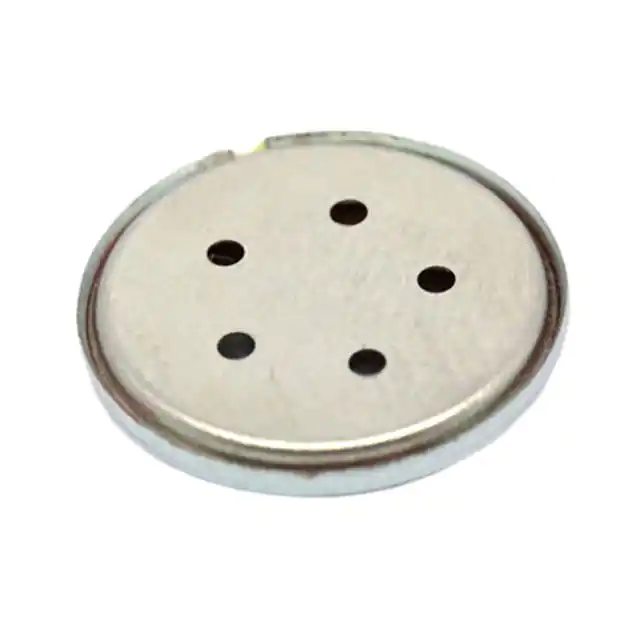

SM131108-1DYNAMIC MICRO SPEAKER |
3364 | 2.06 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1.1kHz | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.512 Dia (13.00mm) | |
SPKM.2413.8.A24X13MM MINI 8 OHM SPEAKER |
998 | 2.07 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8.6 mOhms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 650 mW | 930 mW | Top | Oval, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102 L x 0.354 W (28.00mm x 9.00mm) | |

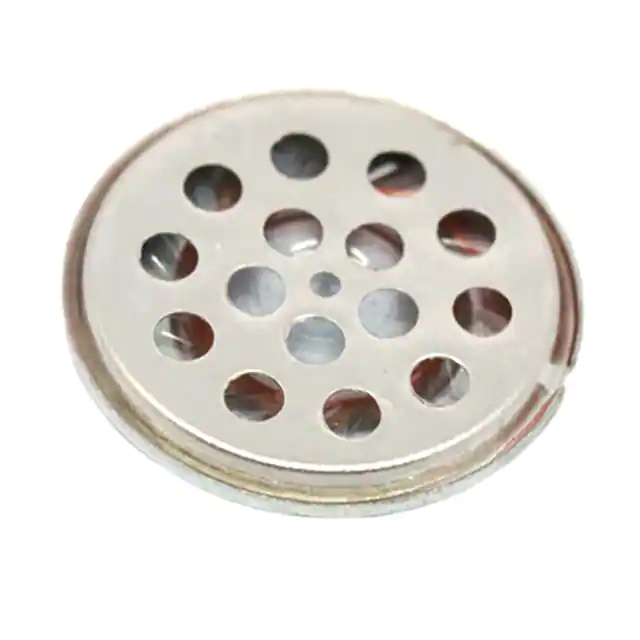

SM150908-2DYNAMIC MICRO SPEAKER |
2368 | 2.09 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | Magnetic | General Purpose | 920 Hz ~ 5 kHz | - | 8 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.591 Dia (15.00mm) | |
SPKM.17.8.A17MM MINI 8 OHM SPEAKER |
985 | 2.35 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 96.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.669 Dia (17.00mm) | |

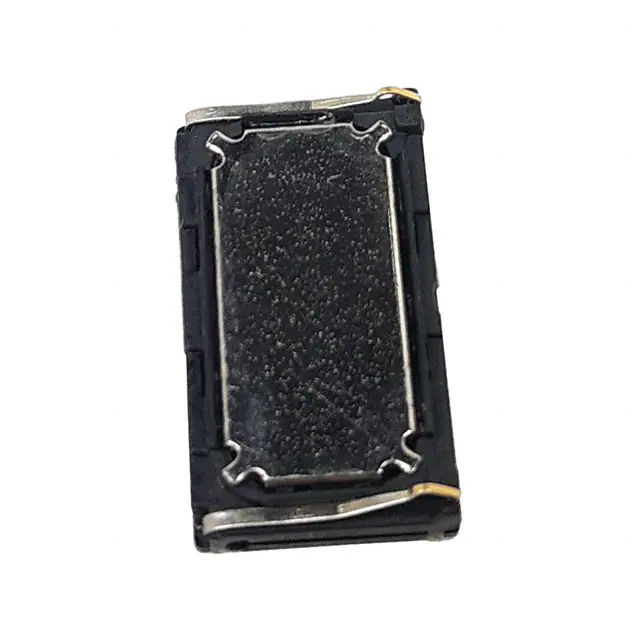

WSPH-1609SIP65 SPEAKER, 89DB SENSITIVITY |
413 | 413.00 |
Add To CartInquiry Now |
Datasheet |
Tray | WSP | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 730Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | Spring Type | |
SP-2618SPEAKER, 91DB SENSITIVITY, 20MM |
479 | 2.71 |
Add To CartInquiry Now |
Datasheet |
Tray | SP Micro Speaker | Active | Magnetic | General Purpose | 300 Hz ~ 6 kHz | 650Hz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Solder Eyelet(s) | - | |

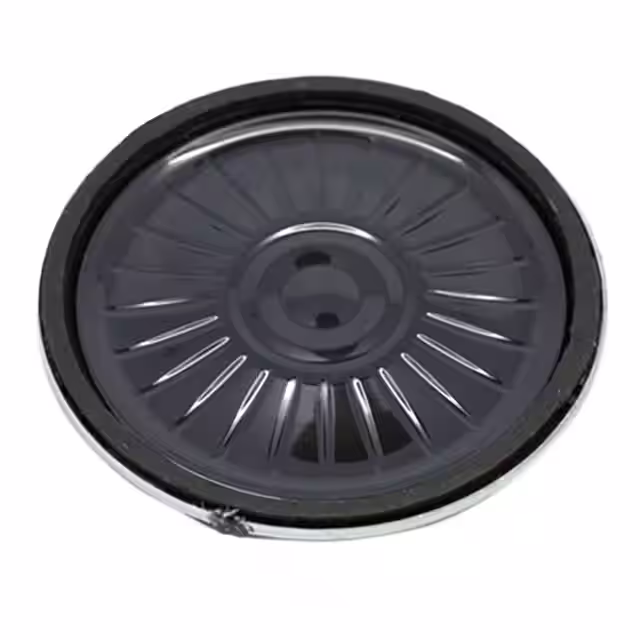

SM400608-2DYNAMIC SPEAKER |
749 | 2.76 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | Magnetic | General Purpose | 600 Hz ~ 6 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575 Dia (40.00mm) | |
SPKM.50.8.A50MM MINI 8 OHM SPEAKER |
893 | 2.82 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 450Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969 Dia (50.00mm) | |

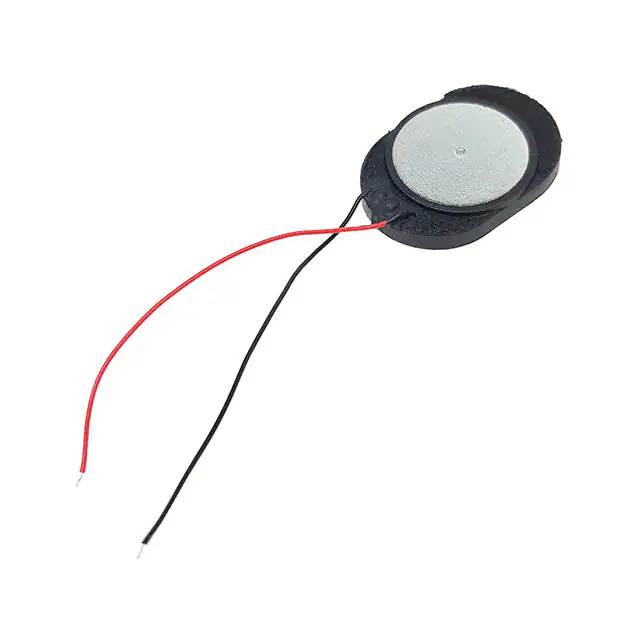

SP-2618LSPEAKER, 88DB SENSITIVITY, 20MM |
332 | 3.19 |
Add To CartInquiry Now |
Datasheet |
Tray | SP Micro Speaker | Active | Magnetic | General Purpose | 700 Hz ~ 6 kHz | 700Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | - | |
SPKM.2030.8.A20X30MM MINI 8 OHM SPEAKER |
3747 | 3.01 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.181 L x 0.787 W (30.00mm x 20.00mm) | |
SPKM.28.8.A28MM MINI 8 OHM SPEAKER |
993 | 3.06 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 580Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102 Dia (28.00mm) | |
SP-1625N8 OHM, 1.5W, 80DB, 750HZ,25MM X |
442 | 3.06 |
Add To CartInquiry Now |
Datasheet |
Tray | SP | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.984 L x 0.630 W (25.00mm x 16.00mm) | |
SPKM.23.8.A23MM MINI 8 OHM SPEAKER |
996 | 3.10 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8 Ohms | 85.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906 Dia (23.00mm) |
