Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature
DBR70575FU RELAY REED SPST-NC 7.5KV 5V Sensata-Cynergy3	3209	65.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Through Hole	5VDC	SPST-NC (1 Form B)	3 A	1000VAC, 1000VDC - Max	132 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C
DBR72475PU RELAY REED SPST-NC 7.5KV 24V Sensata-Cynergy3	3554	65.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Chassis Mount	24VDC	SPST-NC (1 Form B)	3 A	1000VAC, 1000VDC - Max	25.9 mA	Non Latching	-	Solder Turret	-	20 VDC	4 VDC	2 ms	3 ms	-20°C ~ 70°C
DAT70510F-HR RELAY REED SPST-NO 2A 5V Sensata-Cynergy3	3191	65.81	- + Add To Cart Inquiry Now	Datasheet	Tray	D-HR	Active	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	7000VAC, 7000VDC - Max	179 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR70510PU RELAY REED SPST-NO 3A 5V Sensata-Cynergy3	2967	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	5VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	179 mA	Non Latching	-	Solder Turret	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR70510SU RELAY REED SPST-NO 3A 5V Sensata-Cynergy3	3263	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	5VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	179 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR70510TU RELAY REED SPST-NO 3A 5V Sensata-Cynergy3	3413	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	179 mA	Non Latching	-	PC Pin, Solder Turret	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR71210PU RELAY REED SPST-NO 3A 12V Sensata-Cynergy3	3277	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	12VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	80 mA	Non Latching	-	Solder Turret	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR71210SU RELAY REED SPST-NO 3A 12V Sensata-Cynergy3	2144	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	12VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	80 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR71210TU RELAY REED SPST-NO 3A 12V Sensata-Cynergy3	2891	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	80 mA	Non Latching	-	PC Pin, Solder Turret	-	9 VDC	1.25 VDC	3 ms	2 ms	-20°C ~ 70°C

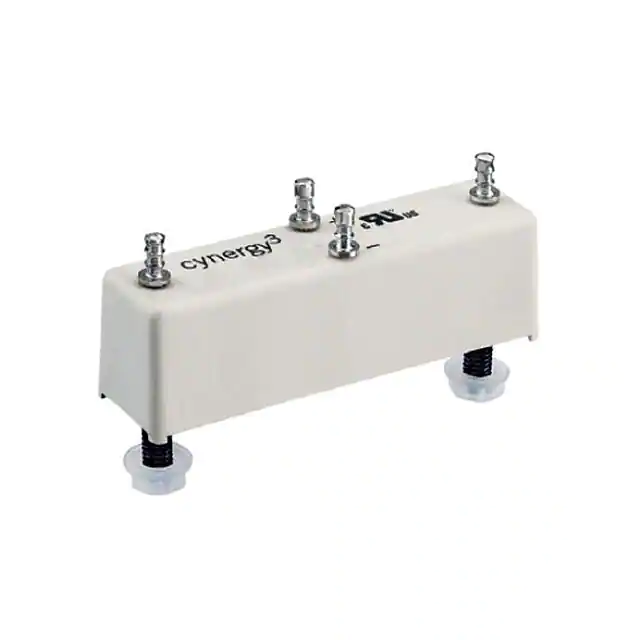

DAR72410PU RELAY REED SPST-NO 3A 24V Sensata-Cynergy3	2020	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	30.7 mA	Non Latching	-	Solder Turret	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR72410SU RELAY REED SPST-NO 3A 24V Sensata-Cynergy3	3431	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	30.7 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR72410TU RELAY REED SPST-NO 3A 24V Sensata-Cynergy3	3092	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	30.7 mA	Non Latching	-	PC Pin, Solder Turret	-	20 VDC	4 VDC	3 ms	2 ms	-20°C ~ 70°C
DAR70510FU RELAY REED SPST-NO 3A 5V Sensata-Cynergy3	3166	66.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	DA	Active	Through Hole	5VDC	SPST-NO (1 Form A)	3 A	1000VAC, 1000VDC - Max	179 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	3 ms	2 ms	-20°C ~ 70°C
DBT70510F RELAY REED SPST-NC 2A 5V Sensata-Cynergy3	2557	66.96	- + Add To Cart Inquiry Now	Datasheet	Tray	DB	Active	Through Hole	5VDC	SPST-NC (1 Form B)	2 A	7000VAC, 7000VDC - Max	132 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C

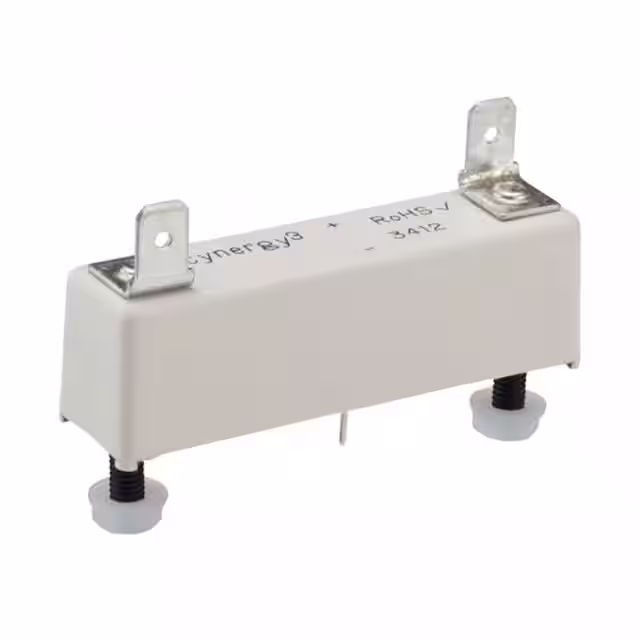

DBT70510S RELAY REED SPST-NC 2A 5V Sensata-Cynergy3	3285	66.96	- + Add To Cart Inquiry Now	Datasheet	Tray	DB	Active	Chassis Mount	5VDC	SPST-NC (1 Form B)	2 A	7000VAC, 7000VDC - Max	132 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C
DBT70510P RELAY REED SPST-NC 2A 5V Sensata-Cynergy3	2755	66.96	- + Add To Cart Inquiry Now	Datasheet	Tray	DB	Active	Chassis Mount	5VDC	SPST-NC (1 Form B)	2 A	7000VAC, 7000VDC - Max	132 mA	Non Latching	-	Solder Turret	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C
DBT71275TU RELAY REED SPST-NC 7.5KV 12V Sensata-Cynergy3	2475	67.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Through Hole	12VDC	SPST-NC (1 Form B)	2 A	5000VAC, 5000VDC - Max	50 mA	Non Latching	-	PC Pin, Solder Turret	-	9 VDC	1.25 VDC	2 ms	3 ms	-20°C ~ 70°C
DBT70575FU RELAY REED SPST-NC 7.5KV 5V Sensata-Cynergy3	2748	67.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Through Hole	5VDC	SPST-NC (1 Form B)	2 A	5000VAC, 5000VDC - Max	132 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C
DBT72475SU RELAY REED SPST-NC 7.5KV 24V Sensata-Cynergy3	2313	67.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Chassis Mount	24VDC	SPST-NC (1 Form B)	2 A	5000VAC, 5000VDC - Max	25.9 mA	Non Latching	-	Quick Connect - 0.250 (6.3mm)	-	20 VDC	4 VDC	2 ms	3 ms	-20°C ~ 70°C
DBT70575F-HR RELAY REED 7.5KV 5V SPST-NC Sensata-Cynergy3	3323	67.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	D-HR	Active	Through Hole	5VDC	SPST-NC (1 Form B)	2 A	5000VAC, 5000VDC - Max	132 mA	Non Latching	-	PC Pin, Wire Leads	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C

Total 1558 Records«Prev 1... 47 48 49 505152 53 54...78 Next»
