Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DAR70510URELAY REED SPST-NO 3A 5V |
3905 | 53.37 |
Add To CartInquiry Now |
Datasheet |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DAT70510PRELAY REED SPST-NO 2A 5V |
2637 | 60.09 |
Add To CartInquiry Now |
Datasheet |
Tray | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DBR72410FRELAY REED SPST-NC 3A 24V |
2973 | 67.83 |
Add To CartInquiry Now |
Datasheet |
Tray | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DBR70510PRELAY REED SPST-NC 3A 5V |
3655 | 67.83 |
Add To CartInquiry Now |
Datasheet |
Tray | DB | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DBT70510-HRRELAY REED SPST-NC 2A 5V |
2969 | 68.01 |
Add To CartInquiry Now |
Datasheet |
Tray | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DAT71210FURELAY REED SPST-NO 2A 12V |
3121 | 69.12 |
Add To CartInquiry Now |
Datasheet |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DAT70510FURELAY REED SPST-NO 2A 5V |
3925 | 69.12 |
Add To CartInquiry Now |
Datasheet |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DBT71210SRELAY REED SPST-NC 2A 12V |
3049 | 70.30 |
Add To CartInquiry Now |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DBT71210FRELAY REED SPST-NC 2A 12V |
2861 | 70.30 |
Add To CartInquiry Now |
Datasheet |
Tray | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DBR70510F-HRRELAY REED SPST-NC 3A 5V |
2719 | 77.94 |
Add To CartInquiry Now |
Datasheet |
Tray | D-HR | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DBT72410FURELAY REED SPST-NC 2A 24V |
3588 | 80.85 |
Add To CartInquiry Now |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
9001-05-00RELAY REED SPST 500MA 5V |
2223 | 5.01 |
Add To CartInquiry Now |
Datasheet |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | |
D31A3100REED RELAY 1A/5V |
2352 | 5.75 |
Add To CartInquiry Now |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
D31A7100REED RELAY 1A/24V |
3092 | 6.33 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | |
9091-05-11RELAY REED SPST 500MA 5V |
2403 | 9.83 |
Add To CartInquiry Now |
Datasheet |
Tube | 9091 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | |
9913-05-20RELAY REED SPST-NO 250MA 5V |
2740 | 10.46 |
Add To CartInquiry Now |
Datasheet |
Tube | 9913 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | |
9117-05-10RELAY REED SPST 250MA 5V |
2490 | 17.25 |
Add To CartInquiry Now |
Datasheet |
Bulk | 9117 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 12.5 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | |

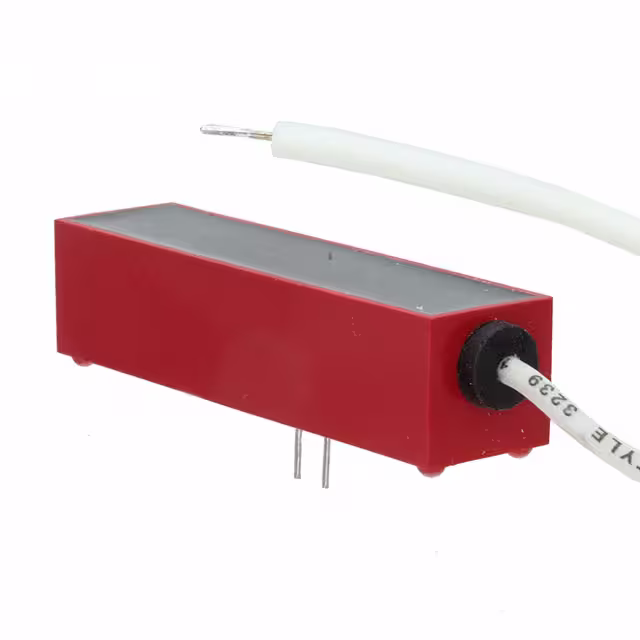

5000-0408RELAY REED CONMED REV K |
2232 | 33.08 |
Add To CartInquiry Now |
Datasheet |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
DBT71205URELAY REED SPST-NC 5KV12V |
3689 | 46.66 |
Add To CartInquiry Now |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
DAT72410F-HRRELAY REED SPST-NO 2A 24V |
3749 | 69.12 |
Add To CartInquiry Now |
Datasheet |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
