Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

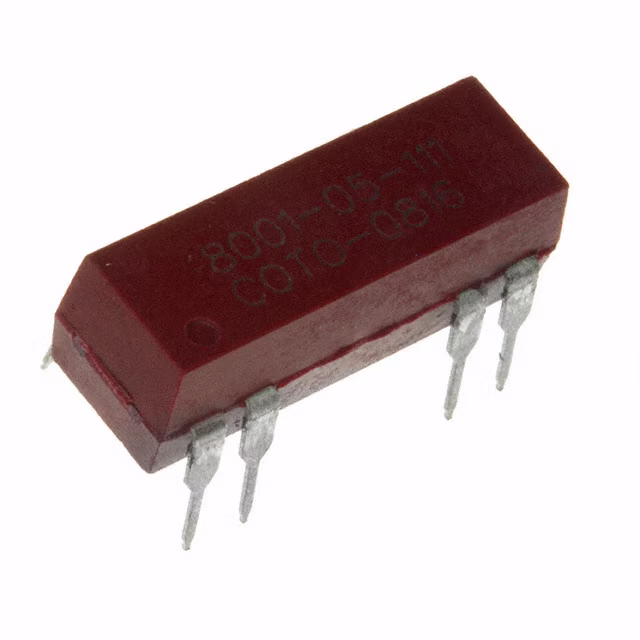

8001-05-111RELAY REED SPST 500MA 5V |
3422 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | |
MVS21A24RELAY REED SPST 2A 24V |
2498 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | MVS2 | Discontinued at Mosen | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2.5 ms | 2.5 ms | -40°C ~ 105°C | |
7142-12-1111RELAY REED DPDT 250MA 12V |
2223 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | 7000 | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | |
7142-24-1010RELAY REED DPDT 250MA 24V |
3621 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | 7000 | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 15.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | |
7143-05-1000RELAY REED 3PDT 250MA 5V |
3437 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | 7000 | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | |
7143-05-1010RELAY REED 3PDT 250MA 5V |
2319 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | 7000 | Obsolete | Through Hole | 5VDC | 3PDT (3 Form C) | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | |
8L21-05-10RELAY REED SPST 500MA 5V |
3288 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | |
8L21-05-11RELAY REED SPST 500MA 5V |
3480 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | |
8L21-12-00RELAY REED SPST 500MA 12V |
3535 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | |
8L21-12-01RELAY REED SPST 500MA 12V |
3237 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | |
8L21-12-10RELAY REED SPST 500MA 12V |
3579 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | |
LI05-1A85RELAY REED SPST 1A 5V |
2184 | 13.55 |
Add To CartInquiry Now |
Datasheet |
Tube | LI | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 0.1 ms | -20°C ~ 70°C | |
LI12-1A85RELAY REED SPST 1A 12V |
2181 | 14.58 |
Add To CartInquiry Now |
Datasheet |
Tube | LI | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.5 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | |
2332-12-000RELAY REED DPST 500MA 12V |
2933 | 14.81 |
Add To CartInquiry Now |
Datasheet |
Tray | 2300 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | |
2342-05-000RELAY REED DPDT 250MA 5V |
2356 | 20.25 |
Add To CartInquiry Now |
Datasheet |
Tray | 2300 | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | |
2341-12-000RELAY REED SPDT 500MA 12V |
3235 | 20.84 |
Add To CartInquiry Now |
Datasheet |
Tray | 2300 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | |
2341-05-000RELAY REED SPDT 500MA 5V |
3106 | 21.43 |
Add To CartInquiry Now |
Datasheet |
Tray | 2300 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | |
BE05-2A85-PRELAY REED DPST 1A 5V |
3828 | 22.09 |
Add To CartInquiry Now |
Datasheet |
Bulk | BE | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | |
S8-2405VURELAY REED SPST 1A 24V UL |
3819 | 22.49 |
Add To CartInquiry Now |
Datasheet |
Bulk | S8 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | |

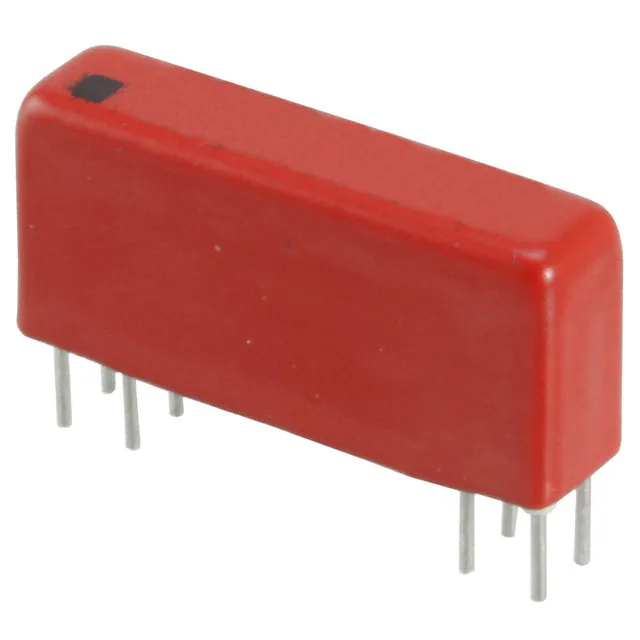

2372-05-000RELAY REED DPDT 250MA 5V |
3613 | 30.93 |
Add To CartInquiry Now |
Datasheet |
Bulk | 2370 | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C |
