Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature
7302-24-1010 RELAY REED DPST 500MA 24V Coto Technology	148	21.74	- + Add To Cart Inquiry Now	Datasheet	Tube	7000	Not For New Designs	Through Hole	24VDC	DPST-NO (2 Form A)	500 mA	500VAC, 500VDC - Max	9.8 mA	Non Latching	Electrostatic Shield	PC Pin	-	18 VDC	2 VDC	1 ms	0.1 ms	-20°C ~ 85°C
JWD-172-8 RELAY REED SPDT 500MA 24V TE Connectivity Potter & Brumfield Relays	356	23.37	- + Add To Cart Inquiry Now	Datasheet	Tray	JWD	Active	Through Hole	24VDC	SPDT (1 Form C)	500 mA	28VDC - Max	10.9 mA	Non Latching	Diode	PC Pin	-	19.2 VDC	2 VDC	1.5 ms	3 ms	-35°C ~ 85°C

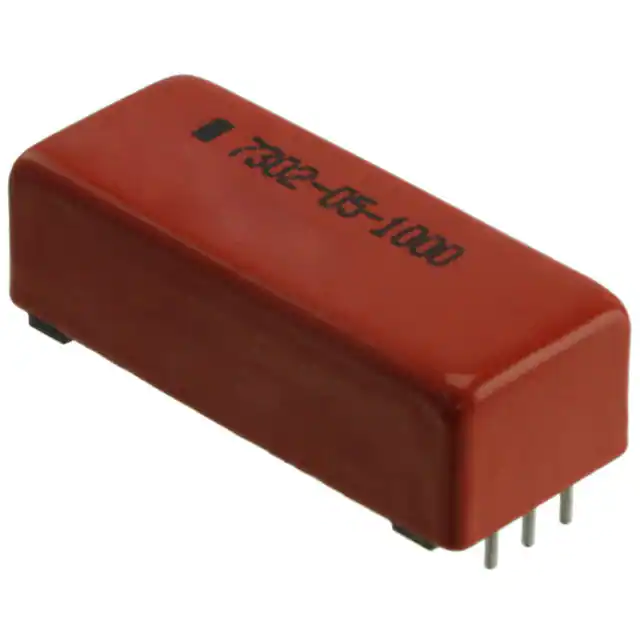

7302-05-1000 RELAY REED DPST 500MA 5V Coto Technology	180	23.58	- + Add To Cart Inquiry Now	Datasheet	Tube	7000	Not For New Designs	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	500VAC, 500VDC - Max	50 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.4 VDC	1 ms	0.1 ms	-20°C ~ 85°C
2271-05-001 RELAY REED SPDT 250MA 5V Coto Technology	338	24.04	- + Add To Cart Inquiry Now	Datasheet	Tube	2270	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	50 mA	Non Latching	-	PC Pin	Sealed - Hermetically	2.5 VDC	0.4 VDC	1 ms	2 ms	-20°C ~ 125°C

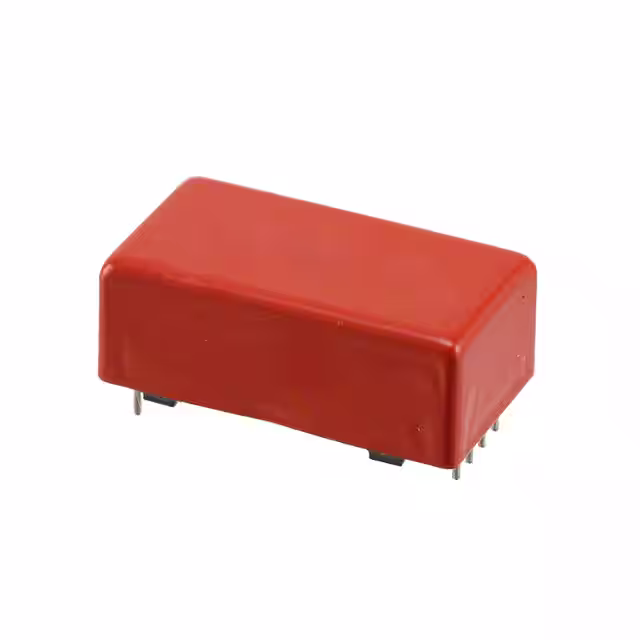

3650-05-92 RELAY REED 3PST 250MA 5V Coto Technology	338	24.28	- + Add To Cart Inquiry Now	Datasheet	Tube	3600	Active	Through Hole	5VDC	3PST-NO (3 Form A)	250 mA	150VAC, 150VDC - Max	14.3 mA	Non Latching	-	PC Pin	-	3.8 VDC	0.4 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C
3501-05-910 RELAY REED SPST 500MA 5V Coto Technology	230	24.30	- + Add To Cart Inquiry Now	Datasheet	Tube	3500	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	14.3 mA	Non Latching	-	PC Pin	Sealed - Hermetically	3.8 VDC	0.4 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C
3602-12-72 RELAY REED DPST 250MA 12V Coto Technology	2624	26.54	- + Add To Cart Inquiry Now	Datasheet	Tube	3600	Active	Through Hole	12VDC	DPST-NO (2 Form A)	250 mA	150VAC, 150VDC - Max	6 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C

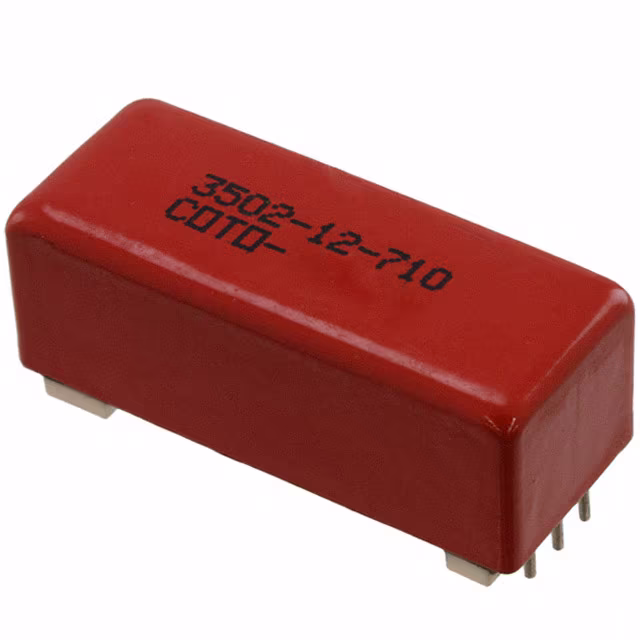

3502-12-710 RELAY REED DPST 500MA 12V Coto Technology	146	32.53	- + Add To Cart Inquiry Now	Datasheet	Tube	3500	Active	Through Hole	12VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	6 mA	Non Latching	-	PC Pin	Sealed - Hermetically	9 VDC	1 VDC	0.75 ms	0.1 ms	-20°C ~ 85°C
SAR90505 RELAY REED SPST 500MA 5V Sensata-Cynergy3	105	38.28	- + Add To Cart Inquiry Now	Datasheet	Tray	S	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	20VAC, 20VDC - Max	35.7 mA	Non Latching	-	PC Pin	-	3.7 VDC	0.5 VDC	1 ms	0.5 ms	-20°C ~ 70°C
DBT70510U RELAY REED SPST-NC 2A 5V Sensata-Cynergy3	140	68.01	- + Add To Cart Inquiry Now	Datasheet	Bulk	DB	Active	Through Hole	5VDC	SPST-NC (1 Form B)	2 A	7000VAC, 7000VDC - Max	132 mA	Non Latching	-	PC Pin	-	3.7 VDC	0.5 VDC	2 ms	3 ms	-20°C ~ 70°C
3570-1419-122 RELAY REED SIP SPST 1A 12V W/EM Comus International	576	3.71	- + Add To Cart Inquiry Now	Datasheet	Tube	3570	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	200VDC - Max	12 mA	Non Latching	EMI Shielded	PC Pin	-	9 VDC	1 VDC	0.35 ms	0.1 ms	-40°C ~ 85°C
8L01-24-111 RELAY REED SPST 500MA 24V Coto Technology	108	4.48	- + Add To Cart Inquiry Now	Datasheet	Tube	8L	Not For New Designs	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	11 mA	Non Latching	Diode, Electrostatic Shield	PC Pin	-	19.2 VDC	2 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C
8L01-12-011 RELAY REED SPST 500MA 12V Coto Technology	499	6.50	- + Add To Cart Inquiry Now	Datasheet	Tube	8L	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	24 mA	Non Latching	Diode	PC Pin	-	9.6 VDC	1 VDC	0.5 ms	0.5 ms	-20°C ~ 85°C
9094-12-00 RELAY REED SPST 500MA 12V Coto Technology	3864	6.64	- + Add To Cart Inquiry Now	Datasheet	Tube	9094	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	24 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	0.5 ms	0.3 ms	-20°C ~ 85°C
9094-05-01 RELAY REED SPST 500MA 5V Coto Technology	3447	7.03	- + Add To Cart Inquiry Now	Datasheet	Tube	9094	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	40 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.4 VDC	0.5 ms	0.3 ms	-20°C ~ 85°C
3563-1231-244 RELAY REED DIP SPDT .4A 24V W/DI Comus International	102	7.15	- + Add To Cart Inquiry Now	Datasheet	Tube	3563	Active	Through Hole	24VDC	SPDT (1 Form C)	400 mA	100VDC - Max	11 mA	Non Latching	Diode, Electrostatic Shield	PC Pin	-	18 VDC	2 VDC	1 ms	1.5 ms	-20°C ~ 85°C
BFH-3A-12 RELAY REED 3PST .5A 12V Comus International	489	9.84	- + Add To Cart Inquiry Now	Datasheet	Tube	BFH	Active	Through Hole	12VDC	3PST-NO (3 Form A)	500 mA	200VDC - Max	12 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	0.5 ms	0.15 ms	-20°C ~ 85°C
8L41-12-101 RELAY REED SPDT 250MA 12V Coto Technology	199	10.50	- + Add To Cart Inquiry Now	Datasheet	Tube	8L	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	24 mA	Non Latching	Electrostatic Shield	PC Pin	-	9.6 VDC	1 VDC	1 ms	1 ms	-20°C ~ 85°C
9011-12-10 RELAY REED SPST 250MA 12V Coto Technology	3643	10.79	- + Add To Cart Inquiry Now	Datasheet	Bulk	9011	Active	Through Hole	12VDC	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	16 mA	Non Latching	EMI Shielded	PC Pin	-	9 VDC	1 VDC	0.35 ms	0.1 ms	-20°C ~ 85°C
8L41-24-101 RELAY REED SPDT 250MA 24V Coto Technology	339	10.86	- + Add To Cart Inquiry Now	Datasheet	Tube	8L	Active	Through Hole	24VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	12 mA	Non Latching	Electrostatic Shield	PC Pin	-	19.2 VDC	2 VDC	1 ms	1 ms	-20°C ~ 85°C

Total 1558 Records«Prev 1... 6 7 8 91011 12 13...78 Next»
