Results:

Mfr. Part #	Stock	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
H5019EFNLT PULSE XFMR 1CT:1 TX 1CT:1 RX Pulse Electronics Network	2186	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1 Transmitter, 1CT:1 Receiver	Surface Mount	0.780 L x 0.750 W (19.81mm x 19.05mm)	0.100 (2.54mm)

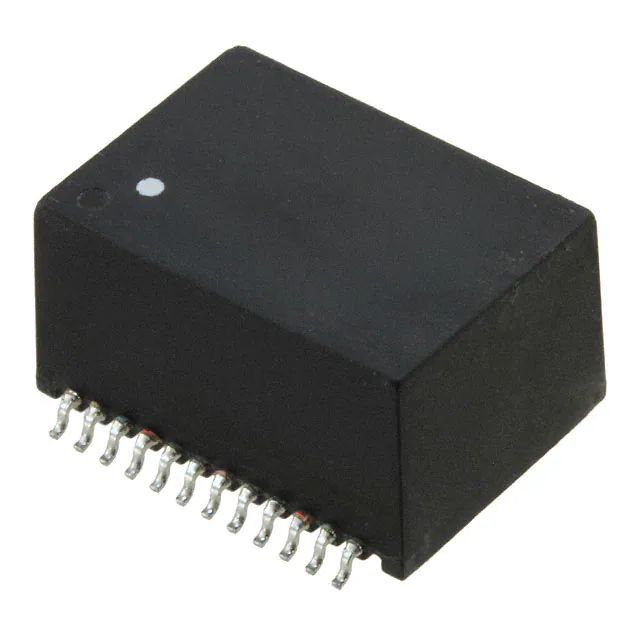

749022015 TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	2437	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.720 L x 0.511 W (18.28mm x 12.98mm)	0.404 (10.26mm)
PA2261NL TRANSFORMER Pulse Electronics Power	3626	- + Add To Cart Inquiry Now	Datasheet	-	-	Obsolete	-	-	-	-	-	-	-
T9030NL PULSE XFMR 1.2MH Pulse Electronics Network	2821	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	T1/E1 (Octal)	1.2mH	-	-	Surface Mount	1.255 L x 0.712 W (31.88mm x 18.08mm)	0.305 (7.75mm)
T9030NLT PULSE XFMR 1.2MH Pulse Electronics Network	3226	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	T1/E1 (Octal)	1.2mH	-	-	Surface Mount	1.255 L x 0.712 W (31.88mm x 18.08mm)	0.305 (7.75mm)
H1164FNLT PULSE XFMR 1CT:1CT TX/RX 350UH Pulse Electronics Network	3668	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)
HM1188FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2660	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	LAN 10/100 Base-T	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
HX1224NL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2298	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537 L x 0.570 W (13.64mm x 14.48mm)	0.245 (6.22mm)
HX1224NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3507	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537 L x 0.570 W (13.64mm x 14.48mm)	0.245 (6.22mm)

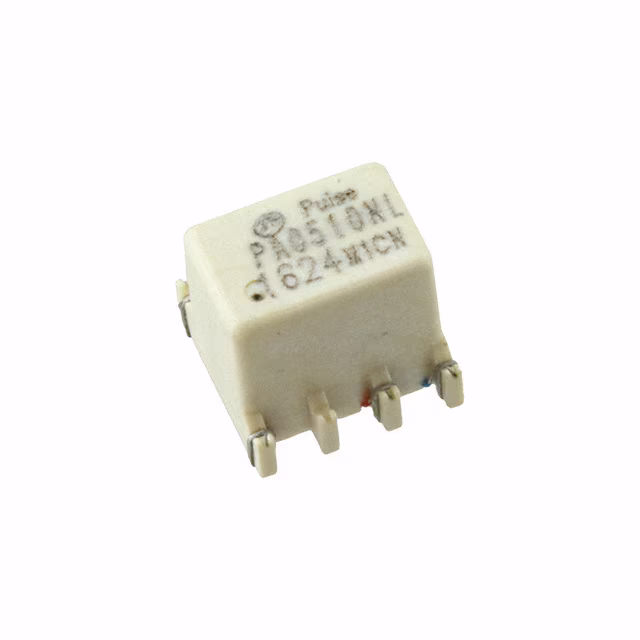

PA0510NLT PULSE XFMR 2.5:1:1 1.2MH Pulse Electronics Power	2643	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	1.2mH	27.2VµS	2.5:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
PA1066NLT PULSE XFMR 137UH Pulse Electronics Power	2692	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	-	137µH	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2041NL PULSE XFMR IND CM 10 MH 0.2A 1:1 Pulse Electronics Power	3532	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Obsolete	-	-	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2041NLT PULSE XFMR IND CM 10 MH 0.2A 1:1 Pulse Electronics Power	3582	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	-	-	-	-	Surface Mount	0.860 L x 1.150 W (21.84mm x 29.21mm)	0.450 (11.43mm)
PA2070NL PULSE XFMR 164UH Pulse Electronics Power	3317	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	164µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PH0400NL PULSE XFMR 2.5:1 1.75UH 2.5UH Pulse Electronics Power	3838	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	-	1.75µH, 2.5µH	-	2.5:1	Surface Mount	0.402 L x 0.295 W (10.20mm x 7.50mm)	0.433 (11.00mm)

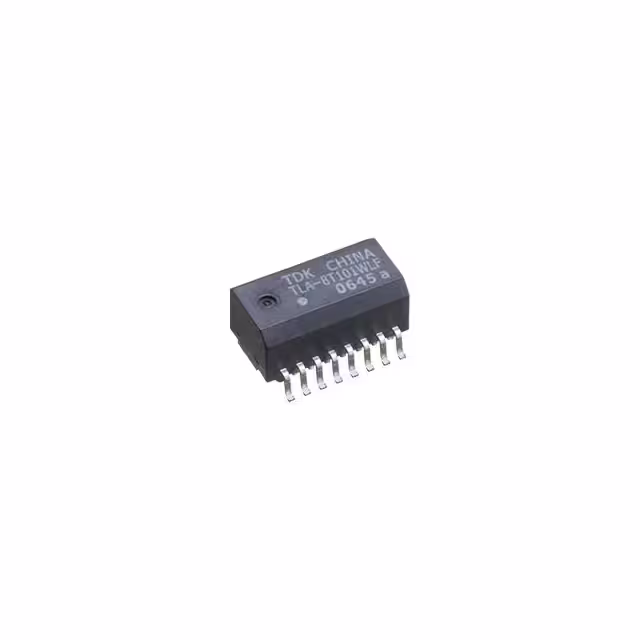

TLA-8T102WLF-T TRANSFORMER LAN 10/100/1000 T TDK Corporation	3238	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	TLA	Obsolete	LAN 10/100/1000 Base-T	100µH	-	1CT:1CT, 1CT:1.5CT	Surface Mount	0.457 L x 0.268 W (11.60mm x 6.80mm)	0.232 (5.90mm)
TLA-8T104WLF-T PULSE XFMR 1 CT:1CT TX/RX 350UH TDK Corporation	2677	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	TLA-8T	Obsolete	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.457 L x 0.256 W (11.60mm x 6.50mm)	0.232 (5.90mm)

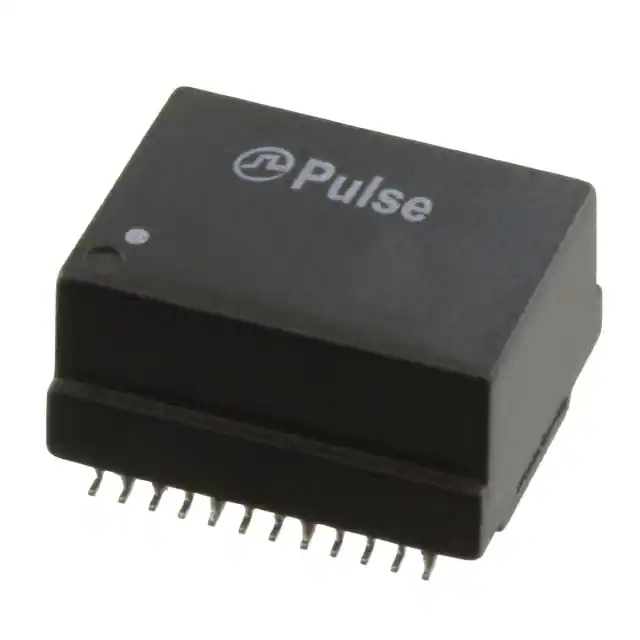

HX5224NL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	3670	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.537 L x 0.570 W (13.64mm x 14.48mm)	0.245 (6.22mm)
B8850NL PULSE XFMR XDSL ETSI A NPB Pulse Electronics Network	2317	- + Add To Cart Inquiry Now	Datasheet	Tray	SmartER Splitter™	Active	ADSL, VDSL	-	-	-	Through Hole	-	-
B8887NL PULSE XFMR XDSL NPB Pulse Electronics Network	2579	- + Add To Cart Inquiry Now	Datasheet	Tray	SmartER Splitter™	Obsolete	ADSL, VDSL	-	-	-	Through Hole	0.827 L x 0.531 W (21.00mm x 13.50mm)	0.315 (8.00mm)

Total 7775 Records«Prev 1... 177 178 179 180181182 183 184...389 Next»
