Results:

Mfr. Part #	Stock	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
E2458FNL XFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics Network	2284	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	Isolation and Data Interface (Encapsulated)	160µH, 160µH	-	1CT:1.41CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
E2458FNLT XFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics Network	3676	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	Isolation and Data Interface (Encapsulated)	160µH, 160µH	-	1CT:1.41CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.241 (6.12mm)
E2466FNL PULSE XFMR 1CT:1CT TX 1CT:2CT RX Pulse Electronics Network	3528	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	70µH	-	1CT:1CT Transmitter, 1CT:2CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
E2466FNLT PULSE XFMR 1CT:1CT TX 1CT:2CT RX Pulse Electronics Network	2613	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	70µH	-	1CT:1CT Transmitter, 1CT:2CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
E2467FNL PULSE XFMR 1CT:1CT TX 1CT:2CT RX Pulse Electronics Network	2482	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	-	-	1CT:1CT Transmitter, 1CT:2CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
E2467FNLT PULSE XFMR 1CT:1CT TX 1CT:2CT RX Pulse Electronics Network	2569	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	-	-	1CT:1CT Transmitter, 1CT:2CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

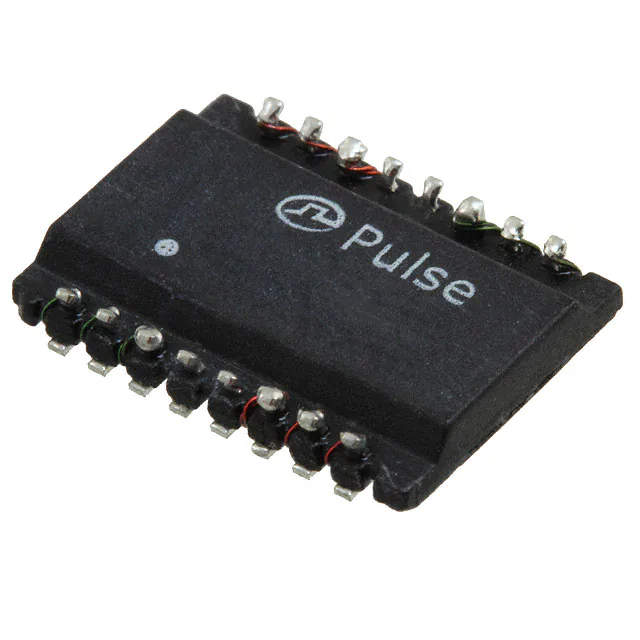

H0013FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3400	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.488 L x 0.365 W (12.40mm x 9.27mm)	0.073 (1.85mm)
H1121FNL PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	3294	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10G Base-T	250µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
H1121FNLT PULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics Network	2268	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10G Base-T	250µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

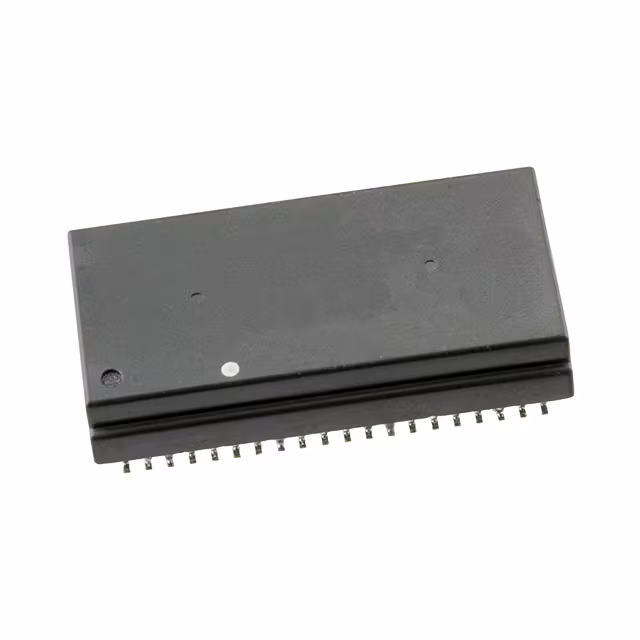

H1259FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3457	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)
H1259FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2482	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)

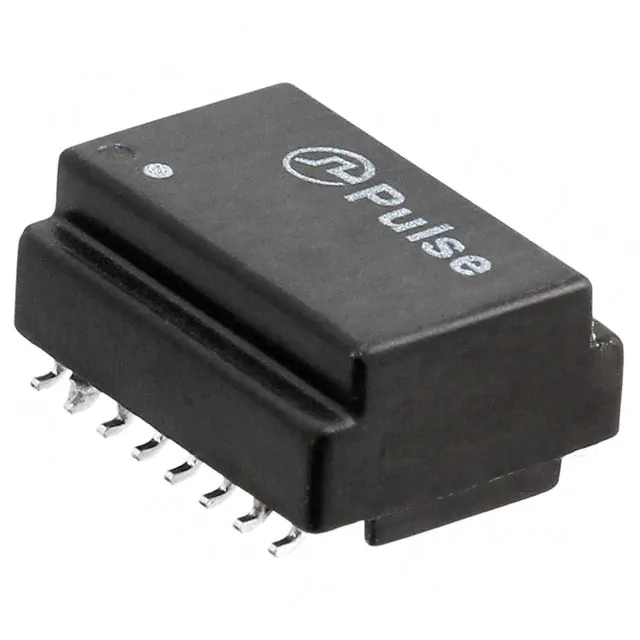

H2260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2038	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
H2305FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2745	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703 L x 0.518 W (17.86mm x 13.16mm)	0.241 (6.12mm)
H2305FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3610	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.703 L x 0.518 W (17.86mm x 13.16mm)	0.241 (6.12mm)
H5089FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3814	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
H5089FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2240	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Obsolete	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
H6080FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3758	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.590 W (27.81mm x 14.99mm)	0.285 (7.24mm)
HX1259FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	2073	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)
HX1259FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3087	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.110 L x 0.608 W (28.19mm x 15.44mm)	0.225 (5.72mm)
HX1305FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	3218	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Obsolete	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.518 L x 0.703 W (13.16mm x 17.86mm)	0.241 (6.12mm)

Total 7775 Records«Prev 1... 172 173 174 175176177 178 179...389 Next»
