Mfr. Part #	Stock	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

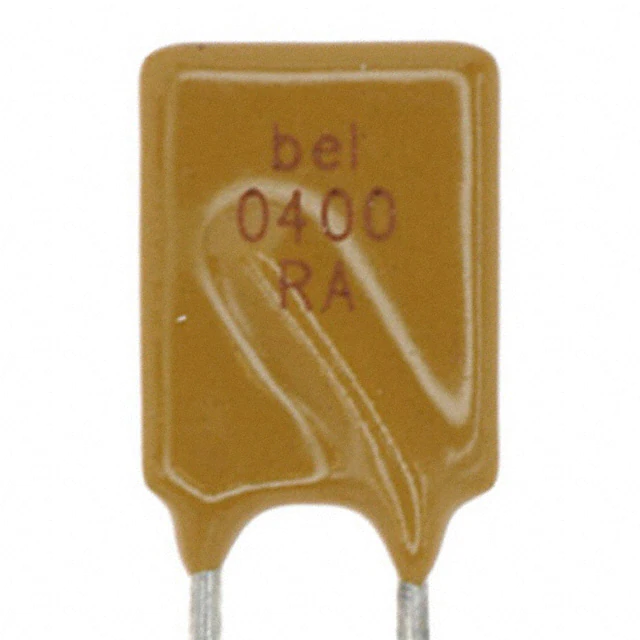

0ZRA0400FF1E PTC RESET FUSE 16V 4A RADIAL Bel Fuse Inc.	17822	0.39	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Box	0ZRA	Active	Polymeric	16V	100 A	4 A	6.8 A	3.5 s	20 mOhms	63 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.280 L x 0.118 W (7.10mm x 3.00mm)	0.504 (12.80mm)	-

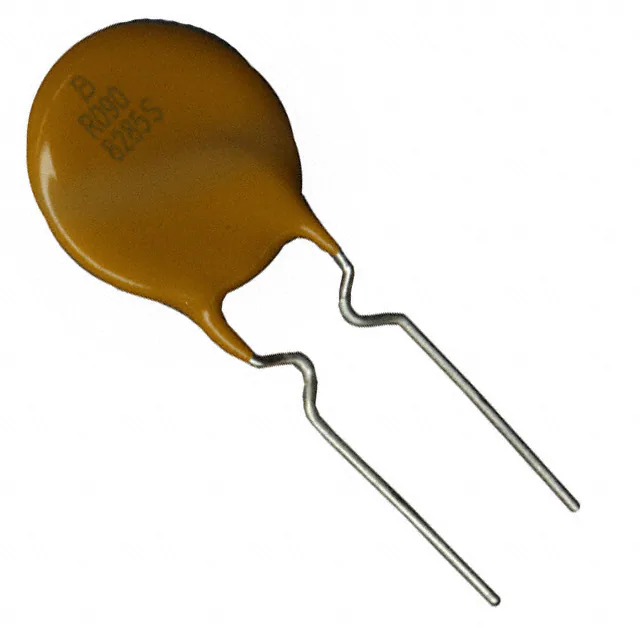

MF-R090 PTC RESET FUSE 60V 900MA RADIAL Bourns Inc.	14418	0.39	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	60V	40 A	900 mA	1.8 A	7.2 s	140 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.461 L x 0.122 W (11.70mm x 3.10mm)	0.657 (16.70mm)	-

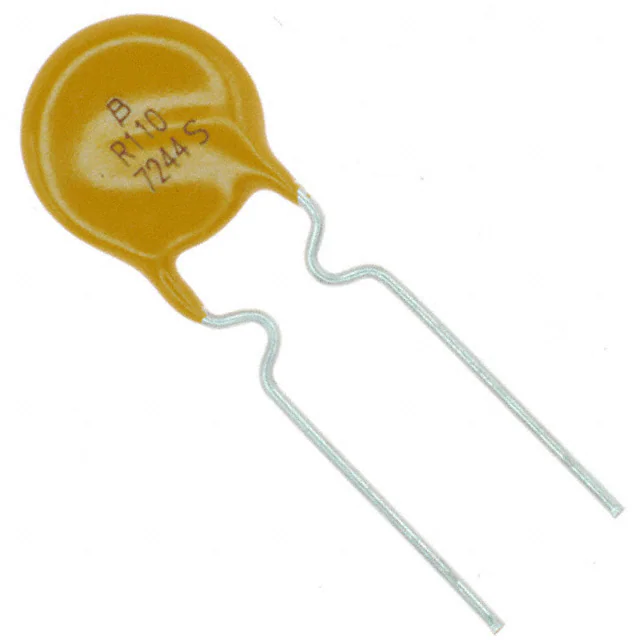

MF-R110 PTC RESET FUSE 30V 1.1A RADIAL Bourns Inc.	8450	0.39	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	30V	40 A	1.1 A	2.2 A	6.6 s	100 mOhms	270 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 Dia x 0.118 T (8.90mm x 3.00mm)	0.551 (14.00mm)	-

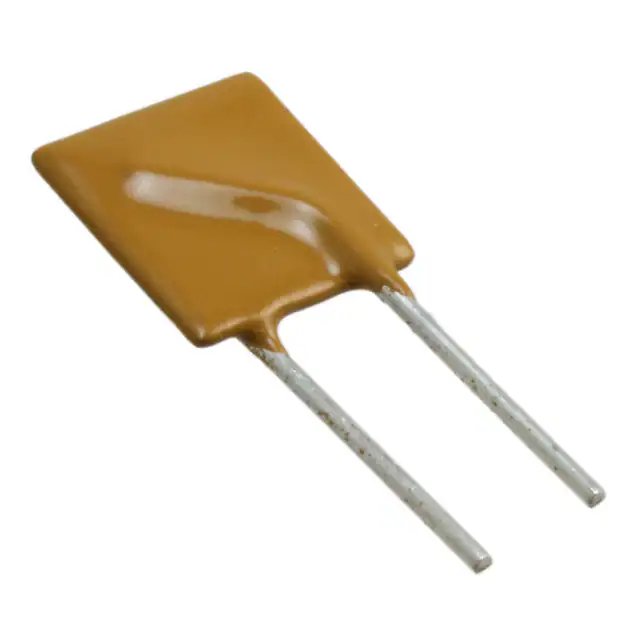

MF-RX110/72-0 PTC RESET FUSE 72V 1.1A RADIAL Bourns Inc.	3464	0.39	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.427 L x 0.122 W (10.84mm x 3.10mm)	0.662 (16.84mm)	-

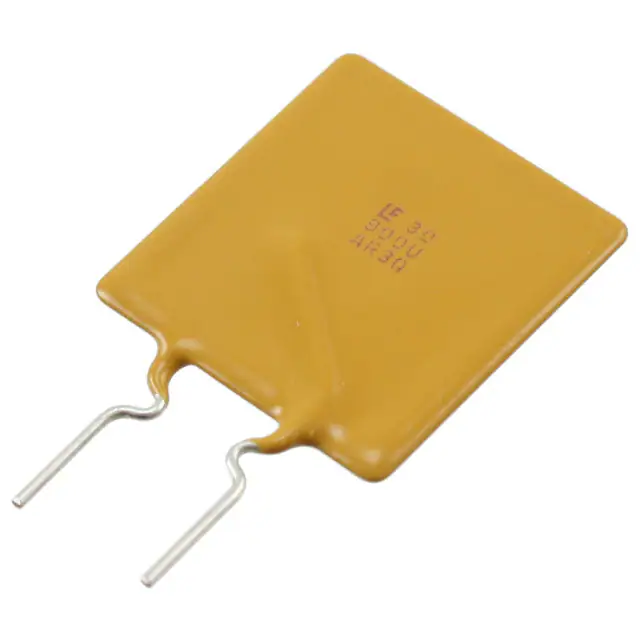

30R900UMR PTC RESET FUSE 30V 9A RADIAL Littelfuse Inc.	12800	0.87	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.950 L x 0.120 W (24.10mm x 3.00mm)	1.244 (31.60mm)	-
MF-NSML400/12-2 PTC RESET FUSE 12V 4A 1206 Bourns Inc.	16006	0.94	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSML/X	Active	Polymeric	12V	50 A	4 A	8 A	5 s	2 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.063 W (3.25mm x 1.60mm)	-	0.055 (1.40mm)
MF-NSML450/12-2 PTC RESET FUSE 12V 4.5A 1206 Bourns Inc.	13556	0.94	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSML/X	Active	Polymeric	12V	50 A	4.5 A	9 A	2 s	2 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.063 W (3.25mm x 1.60mm)	-	0.055 (1.40mm)
MF-USHT035KX-2 PTC RESET FUSE 30V 350MA 1210 Bourns Inc.	4139	0.94	- + Add To Cart Inquiry Now	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USHT	Active	Polymeric	30V	20 A	350 mA	1.75 A	100 ms	400 mOhms	2.2 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.126 L x 0.100 W (3.20mm x 2.55mm)	-	0.033 (0.85mm)
0ZRB0300FF1A PTC RESET FUSE 30V 3A RADIAL Bel Fuse Inc.	3913	0.42	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Box	0ZRB	Active	Polymeric	30V	40 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.681 (17.30mm)	-

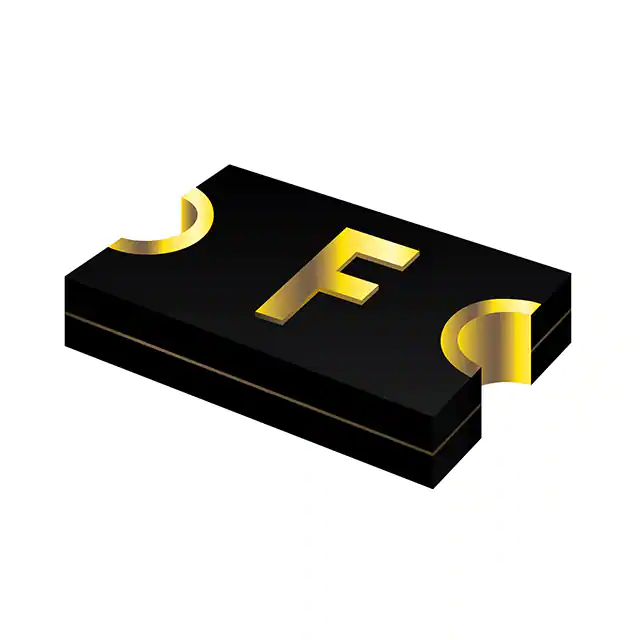

MF-NSHT035KX-2 PTC RESET FUSE 30V 350MA 1206 Bourns Inc.	34392	1.00	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSHT	Active	Polymeric	30V	20 A	350 mA	1.75 A	100 ms	400 mOhms	2.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
MF-NSHT020KX-2 PTC RESET FUSE 30V 200MA 1206 Bourns Inc.	9972	1.00	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSHT	Active	Polymeric	30V	20 A	200 mA	1 A	100 ms	600 mOhms	5 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
MF-NSHT050KX-2 PTC RESET FUSE 16V 500MA 1206 Bourns Inc.	14152	1.00	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSHT	Active	Polymeric	16V	20 A	500 mA	2.5 A	100 ms	170 mOhms	1.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.047 (1.20mm)
250S130DR PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	11578	0.97	- + Add To Cart Inquiry Now	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 250S	Active	Polymeric	60V (250V Int)	3 A	130 mA	260 mA	4 s	4 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.370 L x 0.291 W (9.40mm x 7.40mm)	-	0.146 (3.70mm)
250S130-RBDR PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	4030	0.91	- + Add To Cart Inquiry Now	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 250S	Active	Polymeric	60V (250V Int)	3 A	130 mA	260 mA	700 ms	9 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.370 L x 0.291 W (9.40mm x 7.40mm)	-	0.146 (3.70mm)
1812L200/16DR PTC RESET FUSE 16V 2A 1812 Littelfuse Inc.	5407	0.98	- + Add To Cart Inquiry Now	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	16V	100 A	2 A	3.5 A	2 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.047 (1.20mm)
PRG21BC0R2MM1RA PTC RESET FUSE 6V 750MA 0805 Murata Electronics	42480	1.14	- + Add To Cart Inquiry Now	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	6V	10 A	750 mA	1.62 A	-	-	-	200 mOhms	-20°C ~ 85°C	-	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	-	0.043 (1.10mm)
RXEF005 PTC RESET FUSE 60V 50MA RADIAL Littelfuse Inc.	6558	0.43	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	60V	40 A	50 mA	100 mA	5 s	7.3 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.315 Dia x 0.118 T (8.00mm x 3.00mm)	0.327 (8.30mm)	-
1206L010/60WR-A PTC RESET FUSE 60V 100MA 1206 Littelfuse Inc.	12161	1.02	- + Add To Cart Inquiry Now	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	60V	10 A	100 mA	250 mA	1.5 s	1.5 Ohms	10 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
RUEF700-2 PTC RESET FUSE 30V 7A RADIAL Littelfuse Inc.	7035	0.96	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.752 L x 0.118 W (19.10mm x 3.00mm)	1.020 (25.90mm)	-

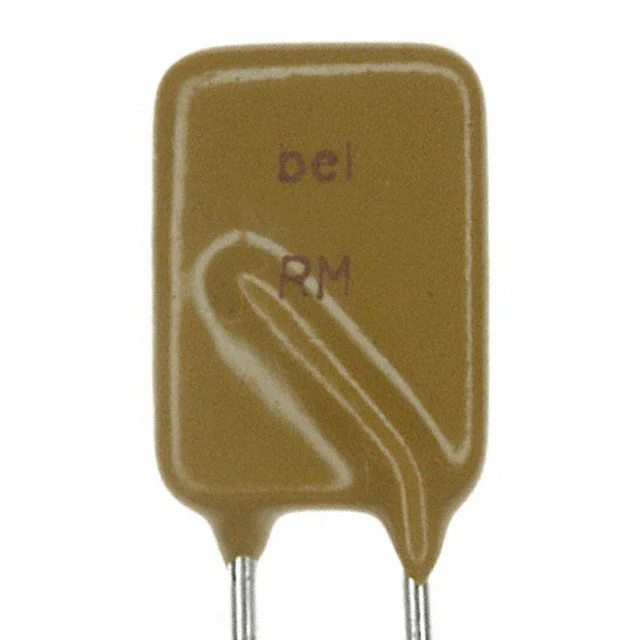

0ZRG0075FF1E PTC RESET FUSE 30V 750MA RADIAL Bel Fuse Inc.	31381	0.44	- + Add To Cart Inquiry Now	Datasheet	Radial, Disc	Bulk	0ZRG	Active	Polymeric	30V	40 A	750 mA	1.3 A	400 ms	80 mOhms	230 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.272 Dia x 0.118 T (6.90mm x 3.00mm)	0.449 (11.40mm)	-

Total 5829 Records«Prev 1... 24 25 26 272829 30 31...292 Next»
