Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ABP2MVNT400MG2A3BBABP2 SERIES SENSOR WITH LEADED S |
2523 | 61.85 |
Add To CartInquiry Now |
Datasheet |
6-SMD, J-Lead, Top Port | Box | ABP2 | Active | Medical Ventilation | Gauge | 0 ~ 5.8PSI (0 ~ 40kPa) | I²C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.106 (2.69mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -40°C ~ 110°C | |

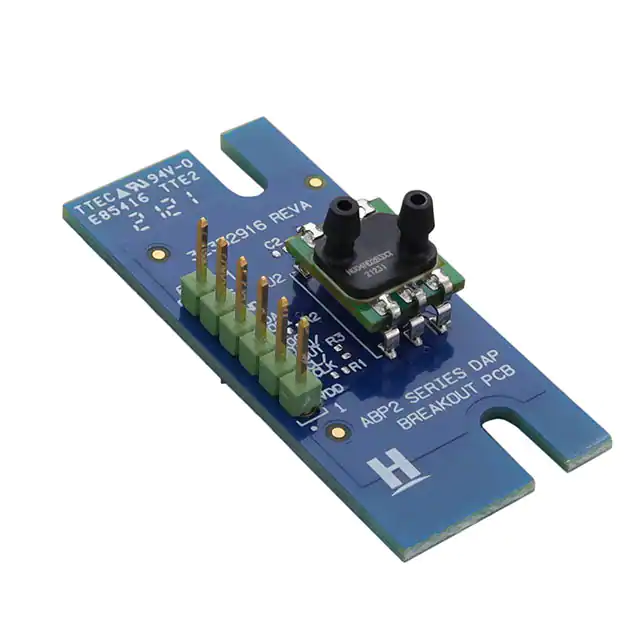

ABP2MDAN004ND2B3BBABP2 SERIES SENSOR WITH SMT PACK |
2501 | 61.85 |
Add To CartInquiry Now |
Datasheet |
6-SMD, J-Lead, Top Port | Box | ABP2 | Active | Medical Ventilation | Differential | -0.144 ~ 0.144PSI (-1.0 ~ 1.0kPa) | I²C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.12 (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | 9.75PSI (67.25kPa) | -40°C ~ 110°C | |
HSCDANN005PGSA5SENSOR PRESS 5PSI GAUGE 5V DIP |
100 | 62.60 |
Add To CartInquiry Now |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Tube | TruStability® HSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | |
NPC-1210-10WG-3-SSENSOR PRESS GAUGE 10 H2O 8DIP |
2226 | 61.28 |
Add To CartInquiry Now |
Datasheet |
8-DIP Module | Bulk | NPC-1210 | Active | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.5% | - | Male - 0.13 (3.23mm) Tube | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -40°C ~ 125°C | |
HSCMRNN015PAAA3SENSOR PRES 15PSI ABSO 3.3V SMD |
2006 | 64.11 |
Add To CartInquiry Now |
Datasheet |
8-SMD, J-Lead, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | |
HSCDANN150PASA5SENSOR PRES 150PSI ABSO 5V DIP |
2564 | 62.60 |
Add To CartInquiry Now |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Bulk | TruStability® HSC | Active | Board Mount | Absolute | 150PSI (1034.21kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | |

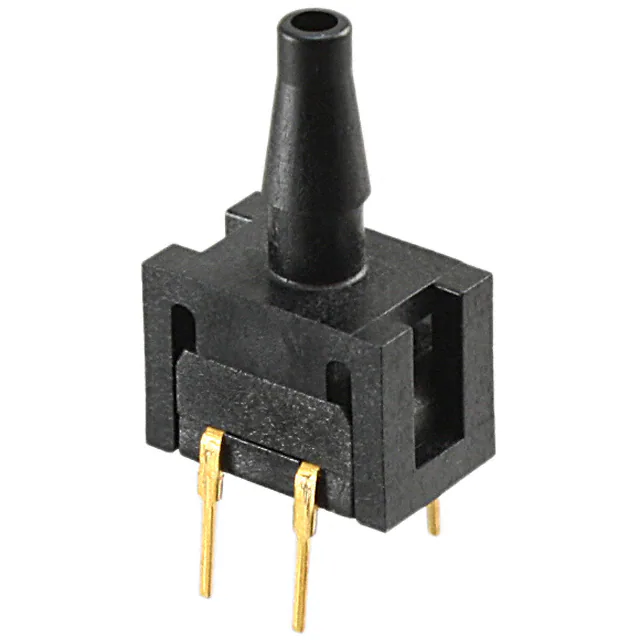

26PCCFB2GSENSOR VACUUM GAUGE +-15 PSI |
2039 | 64.70 |
Add To CartInquiry Now |
Datasheet |
4-SIP Module | Bulk | 26PC | Active | Board Mount | Compound | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18 (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | |
HSCMRRN005PDSA5SENSOR PRES 5V SMD |
2987 | 64.11 |
Add To CartInquiry Now |
Datasheet |
8-SMD, J-Lead, Dual Ports, Same Side | Bulk | TruStability® HSC | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08 (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±30PSI (±206.84kPa) | -20°C ~ 85°C | |
SSCDANT030PG2A3SENSOR PRES 30PSI GAUGE 3V DGTL |
2442 | 67.65 |
Add To CartInquiry Now |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Tube | TruStability® SSC | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I²C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | |
HSCMRND030PA2A3SENSOR PRES 3.3V SMD |
3572 | 66.28 |
Add To CartInquiry Now |
Datasheet |
8-SMD, J-Lead, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Absolute | 30PSI (206.84kPa) | I²C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 60PSI (413.69kPa) | -20°C ~ 85°C | |
HSCMRRD100PDSA3SENSOR PRES 100PSI DIFF 3.3V SMT |
2370 | 66.28 |
Add To CartInquiry Now |
Datasheet |
8-SMD, J-Lead, Dual Ports, Same Side | Bulk | TruStability® HSC | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | - | -20°C ~ 85°C | |
HSCDANN005PGAA5SENSOR PRES 5PSI GAUG 5V DIP |
3588 | 68.87 |
Add To CartInquiry Now |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | |
HSCSAND005PGAA5SENSOR PRES 5PSI GAUG 5V SIP |
3058 | 71.22 |
Add To CartInquiry Now |
Datasheet |
4-SIP, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | |
PS02-G350KP-4WPRESSURE SENSOR, I2C, 35KPA, GAU |
2098 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS02 | Active | - | Gauge | 0 ~ 5.08PSI (0 ~ 35kPa) | I²C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 15.23PSI (105kPa) | -40°C ~ 105°C | |
PS01-A100KP-3WPRESSURE SENSOR, RATIOMETRIC, 10 |
3859 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS01 | Active | - | Absolute | 0 ~ 14.5PSI (0 ~ 100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 105°C | |
PS02-G250KP-4WPRESSURE SENSOR, I2C, 250KPA, GA |
2304 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS02 | Active | - | Gauge | 0 ~ 36.26PSI (0 ~ 250kPa) | I²C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 105°C | |
PS01-G160MP-3WPRESSURE SENSOR, RATIOMETRIC, 1. |
2065 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS01 | Active | - | Gauge | 0 ~ 232.06PSI (0 ~ 1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | |
PS01-G250MP-3WPRESSURE SENSOR, RATIOMETRIC, 2. |
3413 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS01 | Active | - | Gauge | 0 ~ 362.59PSI (0 ~ 2500kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 105°C | |
PS02-G100MP-4WPRESSURE SENSOR, I2C, 1MPA, GAUG |
2869 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS02 | Active | - | Gauge | 0 ~ 145.04PSI (0 ~ 1000kPa) | I²C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 290.08PSI (2000kPa) | -40°C ~ 105°C | |
PS01-S160MP-3WPRESSURE SENSOR, RATIOMETRIC, 1. |
2105 | 80.21 |
Add To CartInquiry Now |
Datasheet |
Module | Box | PS01 | Active | - | Sealed Gauge | 0 ~ 232.06PSI (0 ~ 1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C |
