Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
186D120 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	3425	17.65	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	120V	250mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
186D56 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	3450	17.65	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	56V	530mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
166JB24 PWR XFMR LAMINATED 24VA CHAS MT Hammond Manufacturing	3251	17.72	- + Add To Cart Inquiry Now	Datasheet	Box	166	Active	Laminated Core	115V	24V	1A	Single	Single	Yes	24VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms
266JB6 PWR XFMR LAMINATED 7.6VA CHAS MT Hammond Manufacturing	2134	17.72	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 3.15V, Series 6.3V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	7.6VA	Chassis Mount	Wire Leads	71.63mm L x 42.93mm W	42.93mm	2000Vrms
166J25 PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	2600	17.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	25V	1A	Single	Single	Yes	25VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms
166EA24 PWR XFMR LAMINATED 4.8VA CHAS MT Hammond Manufacturing	2391	18.10	- + Add To Cart Inquiry Now	Datasheet	Box	166	Active	Laminated Core	115V	24V	200mA	Single	Single	Yes	4.8VA	Chassis Mount	Wire Leads	60.45mm L x 38.10mm W	35.05mm	2000Vrms
166GD12 PWR XFMR LAMINATED 8.4VA CHAS MT Hammond Manufacturing	3346	18.10	- + Add To Cart Inquiry Now	Datasheet	Box	166	Active	Laminated Core	117V	12V	700mA	Single	Single	No	8.4VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms
186C36 PWR XFMR LAMINATED 12.6VA CHAS Hammond Manufacturing	3038	18.11	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	36V	350mA	Dual	Single	Yes	12.6VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
186C24 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	2669	18.11	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	24V	500mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
186C28 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3884	18.11	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	28V	420mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
186C10 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3853	18.11	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	10V	1.2A	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
186C120 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	2128	18.11	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	120V	100mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
162G16 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	3173	18.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.6A, Series 800mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms

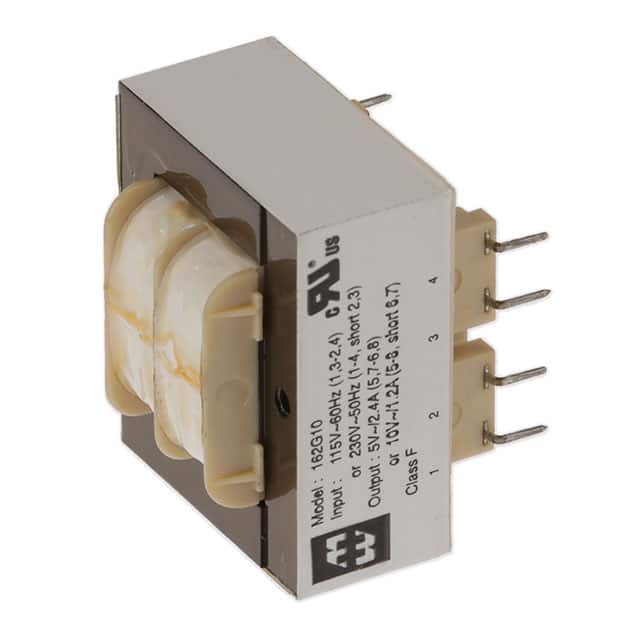

162G10 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	2908	18.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
162G24 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	2457	18.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 1A, Series 500mA	Dual	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
229B20 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2251	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B56 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2975	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 400mA, Series 200mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms

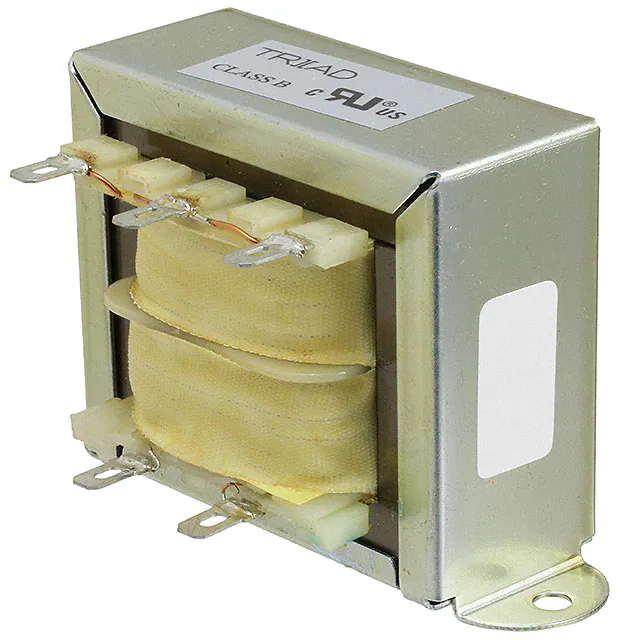

F7-24 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2526	18.44	- + Add To Cart Inquiry Now	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	24V	2.4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
L01-6301 PWR XFMR TORO 1.6VA TH Amgis, LLC	3586	18.45	- + Add To Cart Inquiry Now	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 178mA, Series 89mA	Dual	Dual	No	1.6VA	Through Hole	PC Pin	39.60mm L x 39.60mm W	18.50mm	4000Vrms
241-6-24 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	172	18.65	- + Add To Cart Inquiry Now	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	24V	1.25A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms

Total 6768 Records«Prev 1... 67 68 69 707172 73 74...339 Next»
