Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Inputs-Side1/Side2	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	OutputType	Current-Output/Channel	DataRate	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType
HCPL-0601-000E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	2778	2.66	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACSL-6210-50RE OPTOISO 2.5KV 2CH OPEN COLL 8SO Broadcom Limited	2546	6.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	1/1	2500Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	100ns, 100ns	30ns, 12ns	1.52V	15mA	3V ~ 5.5V	-40°C ~ 100°C	Surface Mount
FOD8001R2 OPTOISO 3.75KV PUSH PULL 8SO onsemi	2399	6.63	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	20kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25Mbps	40ns, 40ns	6.5ns, 6.5ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-M611-000E OPTOISO 3.75KV OPN COLLECTOR 5SO Broadcom Limited	2355	3.24	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	75ns, 75ns	24ns, 10ns	1.5V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-M62L-000E OPTOISO 3.75KV OPEN DRAIN 5SO Broadcom Limited	2579	3.35	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	DC	Open Drain	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-060L-000E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	3829	3.35	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	20mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-M484-000E OPTOISO 3.75KV PUSH PULL 5SO Broadcom Limited	690	3.44	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	-	120ns, 150ns	6ns, 6ns	1.5V	10mA	4.5V ~ 30V	-40°C ~ 105°C	Surface Mount
ACPL-071L-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	3406	3.48	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	50ns, 50ns	20ns, 25ns	1.5V	20mA	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCPL-0466-000E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	3546	3.52	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA	-	550ns, 400ns	-	1.5V	25mA	4.5V ~ 30V	-40°C ~ 100°C	Surface Mount
HCPL0600 OPTOISO 3.75KV OPN COLLECTOR 8SO onsemi	3512	3.56	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.75V (Max)	50mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-061A-000E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	2923	3.63	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	42ns, 12ns	1.3V	10mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-0661-500E OPTOISO 3.75KV 2CH OPEN COLL 8SO Broadcom Limited	2080	7.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	15mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-2232-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3629	7.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
HCPL-7720-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3907	7.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	9ns, 8ns	-	-	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-2201-000E OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited	226	3.80	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Through Hole
HCPL-2200-300E OPTOISO 3.75KV TRI-STATE 8DIP GW Broadcom Limited	436	3.98	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	1kV/µs	DC	Tri-State	25 mA	2.5MBd	300ns, 300ns	55ns, 15ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
ACPL-W61L-000E OPTOISO 5KV PUSH PULL 6SO Broadcom Limited	2649	4.01	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount

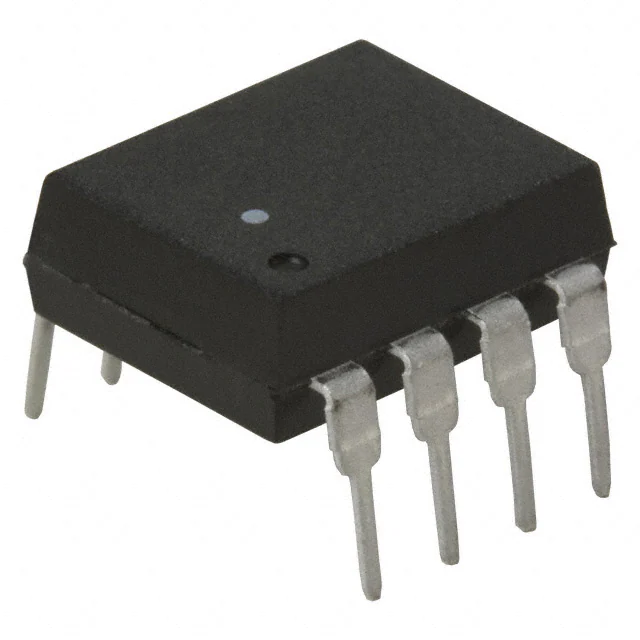

HCNW2611-000E OPTOISO 5KV OPEN COLLECTOR 8DIP Broadcom Limited	2403	4.22	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
ACSL-6310-50TE OPTOISO 2.5KV 3CH OPEN COLL 16SO Broadcom Limited	3522	8.64	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	3	2/1	2500Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	100ns, 100ns	30ns, 12ns	1.52V	15mA	3V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL-2212-000E OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited	3665	4.29	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Through Hole
