Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74LVC1G11FZ4-7 IC GATE AND 1CH 3-INP DFN1410-6 Diodes Incorporated	9900	0.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	1	3	-	1.65V ~ 5.5V	40 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	3.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74AHC08DR IC GATE AND 4CH 2-INP 14SOIC Texas Instruments	14760	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	AND Gate	4	2	-	2V ~ 5.5V	2 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74AHCT32PWR IC GATE OR 4CH 2-INP 14TSSOP Texas Instruments	4000	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	OR Gate	4	2	-	4.5V ~ 5.5V	2 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
SN74AHCT1G00DCK3 IC GATE NAND 1CH 2-INP SC70-5 Texas Instruments	4829	0.41	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	NAND Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 15pF	-40°C ~ 125°C	Surface Mount
74HCT2G04GV,125 IC INVERTER 2CH 2-INP 6TSOP Nexperia USA Inc.	5515	0.41	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74HCT	Active	Inverter	2	2	-	4.5V ~ 5.5V	1 µA	4mA, 4mA	0.8V	2V	18ns @ 4.5V, 50pF	-40°C ~ 125°C	Surface Mount
74AUP1G08FW5-7 IC GATE AND 1CH 2-INP DFN1010-6 Diodes Incorporated	17261	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AUP	Active	AND Gate	1	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.2ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount
74LVC00APW,118 IC GATE NAND 4CH 2-INP 14TSSOP Nexperia USA Inc.	3415	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	NAND Gate	4	2	-	1.2V ~ 3.6V	40 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	4.3ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC00APW,112 IC GATE NAND 4CH 2-INP 14TSSOP Nexperia USA Inc.	2460	1.00	- + Add To Cart Inquiry Now	Datasheet	Bulk,Bulk,Tube	74LVC	Obsolete	NAND Gate	4	2	-	1.2V ~ 3.6V	40 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	4.3ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
SN74LVU04APWR IC INVERTER 6CH 1-INP 14TSSOP Texas Instruments	7549	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVU	Active	Inverter	6	1	-	2V ~ 5.5V	20 µA	12mA, 12mA	0.3V	1.7V	7ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
74LVC04APW,118 IC INVERTER 6CH 1-INP 14TSSOP Nexperia USA Inc.	2563	0.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	6	1	-	1.2V ~ 3.6V	40 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	4.5ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC04APW,112 IC INVERTER 6CH 1-INP 14TSSOP Nexperia USA Inc.	2370	1.00	- + Add To Cart Inquiry Now	Datasheet	Bulk,Bulk,Tube	74LVC	Obsolete	Inverter	6	1	-	1.2V ~ 3.6V	40 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	4.5ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
SN74LVC1GU04DPWR IC INVERTER 1CH 1-INP 5X2SON Texas Instruments	11900	0.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	1	1	-	1.65V ~ 5.5V	10 µA	32mA, 32mA	0.1V ~ 0.55V	0.1V ~ 3.8V	3.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount

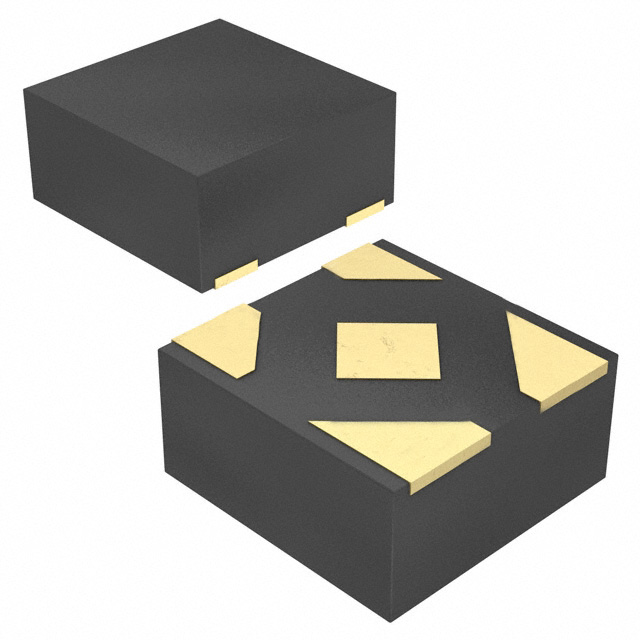

SN74LVC1G04DPWR IC INVERTER 1CH 1-INP 4XDFN Texas Instruments	11842	0.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	1	1	-	1.65V ~ 5.5V	10 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	3.7ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74LV06ADGVR IC INVERTER OD 6CH 1-INP 14TVSOP Texas Instruments	2445	0.47	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LV	Active	Inverter	6	1	Open Drain	2V ~ 5.5V	20 µA	-, 16mA	0.5V	1.5V	7.5ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
74LVC11D,118 IC GATE AND 3CH 3-INP 14SO Nexperia USA Inc.	5097	0.48	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	3	3	-	1.2V ~ 3.6V	10 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	6.2ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC11D,112 IC GATE AND 3CH 3-INP 14SO Nexperia USA Inc.	385	0.51	- + Add To Cart Inquiry Now	Datasheet	Tube	74LVC	Obsolete	AND Gate	3	3	-	1.2V ~ 3.6V	10 µA	24mA, 24mA	0.12V ~ 0.8V	1.08V ~ 2V	6.2ns @ 3.3V, 50pF	-40°C ~ 125°C	Surface Mount
74AHCT14PW,118 IC INVERTER 6CH 1-INP 14TSSOP Nexperia USA Inc.	6100	0.48	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	Inverter	6	1	Schmitt Trigger	4.5V ~ 5.5V	2 µA	8mA, 8mA	0.5V ~ 0.6V	1.9V ~ 2.1V	8ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHCT14PW,112 IC INVERTER 6CH 1-INP 14TSSOP Nexperia USA Inc.	2467	1.00	- + Add To Cart Inquiry Now	Datasheet	Bulk,Bulk,Tube	74AHCT	Obsolete	Inverter	6	1	Schmitt Trigger	4.5V ~ 5.5V	2 µA	8mA, 8mA	0.5V ~ 0.6V	1.9V ~ 2.1V	8ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
CD74HCT03M96 IC GATE NAND OD 4CH 2-INP 14SOIC Texas Instruments	3605	0.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74HCT	Active	NAND Gate	4	2	Open Drain	4.5V ~ 5.5V	2 µA	-, 4mA	0.8V	2V	24ns @ 4.5V, 50pF	-55°C ~ 125°C	Surface Mount
74AUP2G02GS,115 IC GATE NOR 2CH 2-INP 8XSON Nexperia USA Inc.	13570	0.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AUP	Active	NOR Gate	2	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.4ns @ 3.3V, 30pF	-40°C ~ 125°C	Surface Mount

Total 15259 Records«Prev 1... 29 30 31 323334 35 36...763 Next»
