Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Technology	NumberofChannels	Voltage-Isolation	CommonModeTransientImmunity(Min)	PropagationDelaytpLH/tpHL(Max)	PulseWidthDistortion(Max)	Rise/FallTime(Typ)	Current-OutputHighLow	Current-PeakOutput	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-OutputSupply	OperatingTemperature	MountingType
PS9531-V-AX OPTOISO 5KV 1CH GATE DRIVER 8DIP Renesas Electronics America Inc	662	3.53	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	175ns, 175ns	75ns	40ns, 40ns	2A, 2A	2.5A	1.56V	25 mA	15V ~ 30V	-40°C ~ 125°C	Through Hole
SI8221CC-D-IS DGTL ISO 3.75KV GATE DRVR 8SOIC Skyworks Solutions Inc.	288	4.10	- + Add To Cart Inquiry Now	Datasheet	Tube	Automotive, AEC-Q100	Active	Capacitive Coupling	1	3750Vrms	30kV/µs (Typ)	60ns, 40ns	-	30ns, 30ns (Max)	300mA, 500mA	500mA	2.5V (Max)	30 mA	12.2V ~ 24V	-40°C ~ 125°C	Surface Mount
MAX22702DASA+ ULTRA-HIGH CMTI SILICON-CARBIDE Analog Devices Inc./Maxim Integrated	3193	4.61	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Capacitive Coupling	1	3000Vrms	300kV/µs	36ns, 36ns	2ns	3.6ns, 1.8ns (Max)	2.35A, 3.7A	-	-	-	6V ~ 36V	-40°C ~ 125°C	Surface Mount
SI8232BD-D-IS DGTL ISO 5KV 2CH GATE DVR 16SOIC Skyworks Solutions Inc.	578	5.20	- + Add To Cart Inquiry Now	Datasheet	Tube	Automotive, AEC-Q100	Active	Capacitive Coupling	2	5000Vrms	20kV/µs	60ns, 60ns	5.6ns	20ns, 20ns (Max)	250mA, 500mA	500mA	-	-	9.4V ~ 24V	-40°C ~ 125°C	Surface Mount
SI8275GB-IS1 DGTL ISO 2.5KV GATE DRVR 16SOIC Skyworks Solutions Inc.	336	5.53	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Capacitive Coupling	2	2500Vrms	150kV/µs	60ns, 60ns	8ns	10.5ns, 13.3ns	1.8A, 4A	4A	-	-	4.2V ~ 30V	-40°C ~ 125°C	Surface Mount
SI8234AB-D-IS1 DGTL ISO 2.5KV GATE DRVR 16SOIC Skyworks Solutions Inc.	524	5.53	- + Add To Cart Inquiry Now	Datasheet	Tube	Automotive, AEC-Q100	Active	Capacitive Coupling	2	2500Vrms	20kV/µs	60ns, 60ns	5.6ns	12ns, 12ns (Max)	2A, 4A	4A	-	-	6.5V ~ 24V	-40°C ~ 125°C	Surface Mount
ADUM7223CCCZ DGTL ISO 2.5KV GATE DRIVER 13LGA Analog Devices Inc.	2121	6.26	- + Add To Cart Inquiry Now	Datasheet	Tray	iCoupler®	Active	Magnetic Coupling	2	2500Vrms	50kV/µs	62ns, 62ns	-	12ns, 12ns	-	4A	-	-	4.5V ~ 18V	-40°C ~ 125°C	Surface Mount
ADUM7223BCCZ DGTL ISO 2.5KV GATE DRIVER 13LGA Analog Devices Inc.	480	6.26	- + Add To Cart Inquiry Now	Datasheet	Tray	iCoupler®	Active	Magnetic Coupling	2	2500Vrms	50kV/µs	62ns, 62ns	-	12ns, 12ns	-	4A	-	-	4.5V ~ 18V	-40°C ~ 125°C	Surface Mount
PS9031-Y-AX LSO-5 Renesas Electronics America Inc	2823	5.86	- + Add To Cart Inquiry Now	Datasheet	Cut Tape (CT),Strip	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	175ns, 175ns	75ns	40ns, 40ns	2A, 2A	2.5A	1.56V	25 mA	15V ~ 30V	-40°C ~ 125°C	Surface Mount
ADUM3223CRZ DGTL ISO 3KV 2CH GATE DVR 16SOIC Analog Devices Inc.	2716	7.30	- + Add To Cart Inquiry Now	Datasheet	Bulk,Tube	iCoupler®	Active	Magnetic Coupling	2	3000Vrms	50kV/µs	54ns, 54ns	-	12ns, 12ns	-	4A	-	-	11.5V ~ 18V	-40°C ~ 125°C	Surface Mount
ADUM4146CRWZ 1500V ISOLATED GATE DRIVER Analog Devices Inc.	2586	6.61	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Magnetic Coupling	1	5000Vrms	100kV/µs	100ns, 100ns	-	16ns, 16ns	11A, 9A	4.61A	-	-	2.5V ~ 6V, 12V ~ 30V	-40°C ~ 125°C	Surface Mount

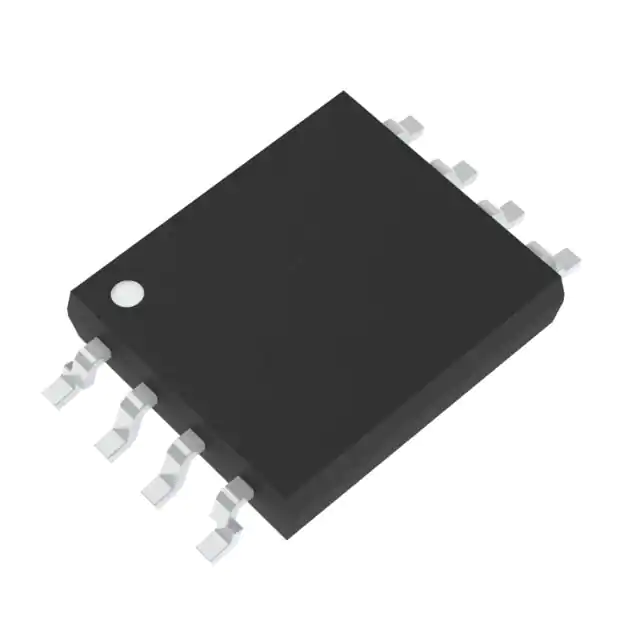

PS9332L-V-AX SDIP Renesas Electronics America Inc	340	10.14	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	200ns, 200ns	75ns	17ns, 17ns	1.5A, 1.5A	2A	1.56V	25 mA	15V ~ 30V	-40°C ~ 125°C	Surface Mount

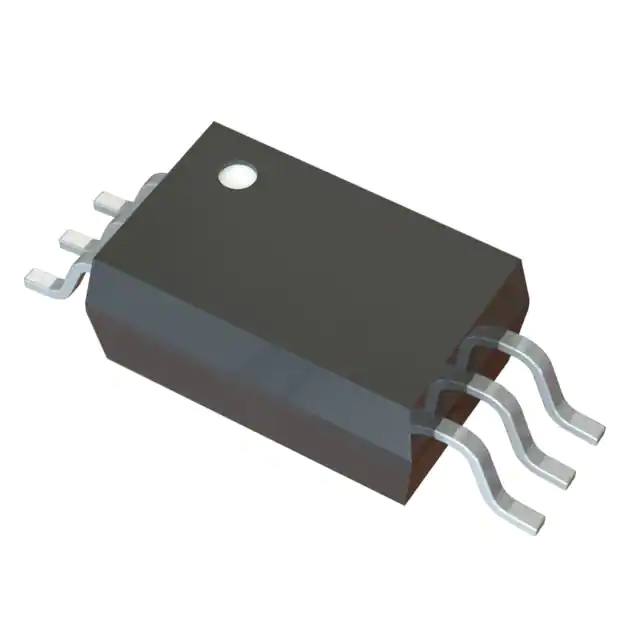

PS9307AL-AX SDIP Renesas Electronics America Inc	3752	7.52	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	150ns, 150ns	50ns	6ns, 7ns	400mA, 400mA	600mA	1.56V	25 mA	10V ~ 30V	-40°C ~ 125°C	Surface Mount
PS9307AL-V-AX SDIP Renesas Electronics America Inc	2292	7.62	- + Add To Cart Inquiry Now	Datasheet	Cut Tape (CT),Strip	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	150ns, 150ns	50ns	6ns, 7ns	400mA, 400mA	600mA	1.56V	25 mA	10V ~ 30V	-40°C ~ 125°C	Surface Mount
PS9307AL2-V-AX SDIP Renesas Electronics America Inc	2203	7.71	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	150ns, 150ns	50ns	6ns, 7ns	400mA, 400mA	600mA	1.56V	25 mA	10V ~ 30V	-40°C ~ 125°C	Surface Mount
PS9332L-AX SDIP Renesas Electronics America Inc	360	9.80	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	Optical Coupling	1	5000Vrms	50kV/µs	200ns, 200ns	75ns	17ns, 17ns	1.5A, 1.5A	2A	1.56V	25 mA	15V ~ 30V	-40°C ~ 125°C	Surface Mount
TLP152(TPL,E OPTOISO 3.75KV GATE DRIVER 6SO-5 Toshiba Semiconductor and Storage	3140	1.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Optical Coupling	1	3750Vrms	20kV/µs	145ns, 165ns	50ns	18ns, 22ns	2A, 2A	2.5A	1.57V	20 mA	10V ~ 30V	-40°C ~ 100°C	Surface Mount
IS480P OPTOISO 5KV 1CH GATE DRIVER 6SO Isocom Components 2004 LTD	2140	1.95	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Optical Coupling	1	5000Vrms	20kV/µs	200ns, 220ns	120ns	35ns, 35ns	200mA, 200mA	-	1.33V	10 mA	4.5V ~ 30V	-40°C ~ 105°C	Surface Mount
TLP5752(D4-TP,E OPTOISO 5KV 1CH GATE DRIVER 6SO Toshiba Semiconductor and Storage	2090	2.65	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Optical Coupling	1	5000Vrms	35kV/µs	150ns, 150ns	50ns	15ns, 8ns	2.5A, 2.5A	2.5A	1.55V	20 mA	15V ~ 30V	-40°C ~ 110°C	Surface Mount
STGAP2SMTR DGTL ISO STMicroelectronics	982	2.78	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Magnetic Coupling	1	1700VDC	100V/ns	100ns, 100ns	20ns	30ns, 30ns	4A, 4A	-	-	-	3V ~ 5.5V	-40°C ~ 125°C (TJ)	Surface Mount
