Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E25/10/6-3C92-G200E CORES |
2293 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 25 x 10 x 6 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.380 (9.65mm) | |
B64290L0742X037FERRITE CORE TOROID 3.92UH T37 |
2065 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | TX12.7/7.9/7.5 | Active | Toroid | - | T37 | 0.535 (13.60mm) | 3.92 µH | ±25% | Ungapped | - | 6500 | 2.08 | 31.17 | 14.96 | - | 466 | Epoxy | 0.281 (7.15mm) | |

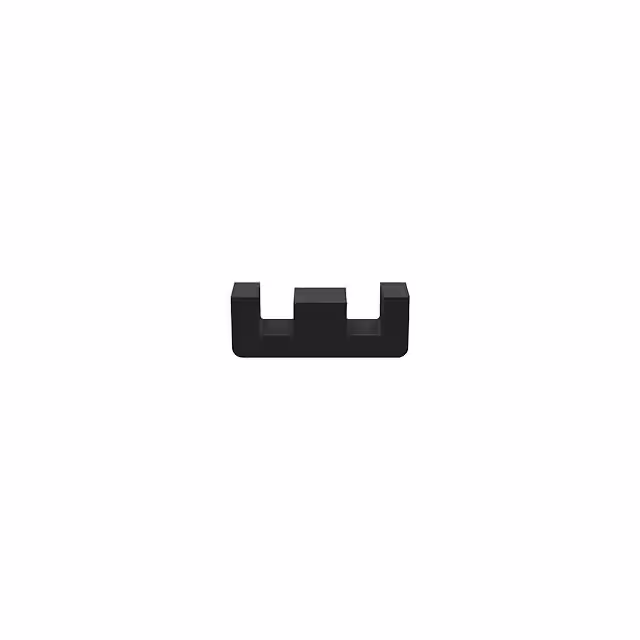

B66393G0000X127FERRITE CORE E N27 1PC |
3444 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | E16/6/5 | Active | E | E 16 x 6 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.228 (5.80mm) | |
E20/10/5-3F36E CORES |
3028 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 20 x 10 x 5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394 (10.00mm) | |
B64290L0643X035FERRITE CORE |
2805 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | TX12.5/7.5/4.1 | Active | Toroid | - | T35 | - | - | - | Gapped | - | 6000 | - | - | - | - | - | Epoxy | - | |
B64290P0676X830FERRITE CORE |
2941 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | TC6.3/3.8/5 | Active | Toroid | - | N30 | - | - | - | Gapped | - | 4300 | - | - | - | - | - | Parylene | - | |
E25/10/6-3C96-G100E CORES |
2289 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 25 x 10 x 6 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.380 (9.65mm) | |
E25/10/6-3C96-G200E CORES |
2622 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 25 x 10 x 6 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.380 (9.65mm) | |
B64290L0658X065FERRITE CORE TOROID 2.3UH T65 |
2242 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | TX14/9/5 | Active | Toroid | - | T65 | 0.594 (15.10mm) | 2.3 µH | ±30% | Ungapped | - | 5200 | 2.84 | 34.98 | 12.3 | - | 430 | Epoxy | 0.236 (6.00mm) | |
ROD6/40-3C90-DFERRITE ROD |
3345 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | ROD | ROD 6 x 40 | 3C90 | 0.236 (6.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | - | |
40T0232-20PNFCC,NEWTRANSFORMFERRITE |
2001 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | Toroid | - | 40 | 0.231 (5.87mm) | 2.147 µH | ±30% | Ungapped | - | 10000 | 5.86 | 13.03 | 2.22 | - | - | Parylene | 0.066 (1.68mm) | |
897815152178 EFD CORE SET |
3969 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | EFD | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 223 | 34.4 | 15.4 | 12.7 | 531 | Uncoated | 0.295 (7.50mm) | |
E19/8/9-3C92-G100E CORES |
3844 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 19 x 8 x 9 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.317 (8.05mm) | |
E19/8/9-3C92-G200E CORES |
3311 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 19 x 8 x 9 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.317 (8.05mm) | |
B64290P0037X065FERRITE CORE TOROID 1.16UH T65 |
3024 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | TC6.3/3.8/2.5 | Active | Toroid | - | T65 | 0.249 (6.32mm) | 1.16 µH | ±30% | Ungapped | - | 4600 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099 (2.52mm) | |
B66219U0500M141FERRITE CORE |
3186 | 0.26 |
Add To CartInquiry Now |
Datasheet |
Box | E14/8/4 | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - | |
B66305U0160X187FERRITE CORE |
2856 | 0.27 |
Add To CartInquiry Now |
Datasheet |
Box | E13/7/4 | Active | E | E 13 x 7 x 4 | N87 | - | - | - | Gapped | - | 2200 | 2.39 | 29.6 | 12.4 | 12.2 | 367 | Uncoated | 0.256 (6.50mm) | |

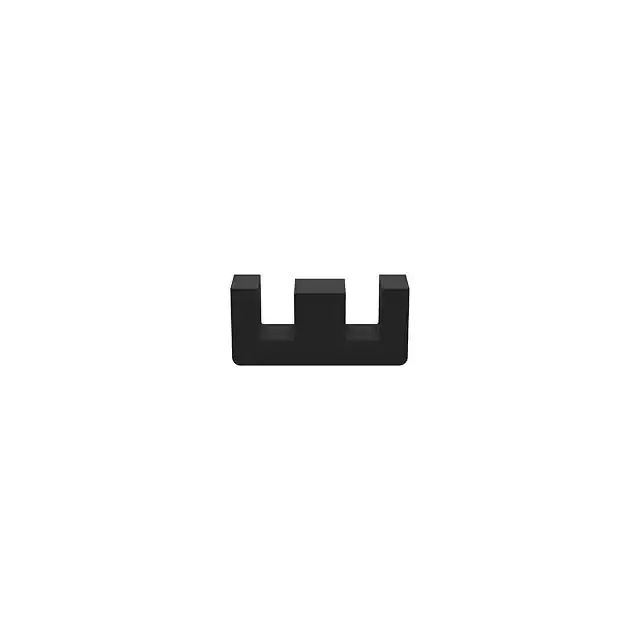

B66379G0000X127FERRITE CORE E N27 1PC |
2725 | 0.27 |
Add To CartInquiry Now |
Datasheet |
Box | E19/8/5 | Active | E | E 19 x 8 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.315 (8.00mm) | |
E25/10/6-3F36E CORES |
3056 | 0.27 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | E | E 25 x 10 x 6 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.380 (9.65mm) | |
B66314G0000X127FERRITE CORE E N27 1PC |
3104 | 0.27 |
Add To CartInquiry Now |
Datasheet |
Box | E21/9/5 | Active | E | E 21 x 9 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.343 (8.70mm) |
