Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

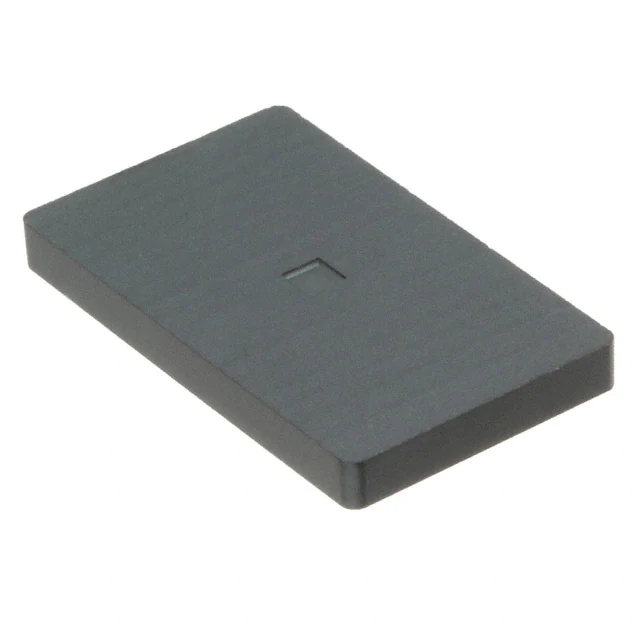

B66481P0000X192 FERRITE CORE I N92 1PC EPCOS - TDK Electronics	298	2.88	- + Add To Cart Inquiry Now	Datasheet	Box	I25/2/18	Active	I	I 25 x 2	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B66483G0000X195 FERRITE CORE EPCOS - TDK Electronics	434	2.96	- + Add To Cart Inquiry Now	Datasheet	Box	EQ20/6.3/14	Active	-	-	N95	-	-	-	-	-	3000	-	-	-	-	-	-	-
B65805J0000R097 FERRITE CORE RM 2UH N97 2PCS EPCOS - TDK Electronics	217	3.46	- + Add To Cart Inquiry Now	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM5	Active	RM	RM 5	N97	-	2 µH	-20%, +30%	Ungapped	1480	2300	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)
T60004L2025W621 NANOCRYSTALLINE CORE, 25X20X10 VACUUMSCHMELZE	3890	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.075 (27.30mm)	9 µH	-	Ungapped	-	-	-	71	19	-	-	Epoxy	0.484 (12.30mm)
T60006L2040W964 NANOCRYSTALLINE CORE, 40X32X15 VACUUMSCHMELZE	3907	83.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.705 (43.30mm)	2.2 µH	-	Ungapped	-	-	-	113	45.6	-	-	Uncoated	0.720 (18.30mm)
B65981A0000R092 FERRITE CORE PQ 4.7UH N92 2PCS EPCOS - TDK Electronics	2868	25.55	- + Add To Cart Inquiry Now	Datasheet	Box	PQ50/50	Active	PQ	PQ 50 x 50	N92	-	4.7 µH	-20%, +30%	Ungapped	1170	-	0.342	113	330	290	37270	Uncoated	0.984 (25.00mm)
T60004L2080W628 NANOCRYSTALLINE CORE, 80X63X20 VACUUMSCHMELZE	2148	5.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	3.268 (83.00mm)	18.5 µH	-	Ungapped	-	-	-	225	124	-	-	Epoxy	0.898 (22.80mm)
FINTR.4900 TOROID CORE 49X49X16MM Enerdoor	2152	14.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	FINTR	Active	Toroid	-	-	1.929 (49.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
FINTR.6300 TOROID CORE 63X63X25MM Enerdoor	2186	21.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	FINTR	Active	Toroid	-	-	2.480 (63.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
FINTR.10000 TOROID CORE 102X102X15MM Enerdoor	2477	42.20	- + Add To Cart Inquiry Now	Datasheet	Bulk	FINTR	Active	Toroid	-	-	4.016 (102.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
FINTR.14000 TOROID CORE 140X140X25MM Enerdoor	2119	123.05	- + Add To Cart Inquiry Now	Datasheet	Bulk	FINTR	Active	Toroid	-	-	5.512 (140.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
PLT38/25/3.8-3C95 FERRITE CORE Ferroxcube	3515	2.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
B66287K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	3906	3.69	- + Add To Cart Inquiry Now	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)

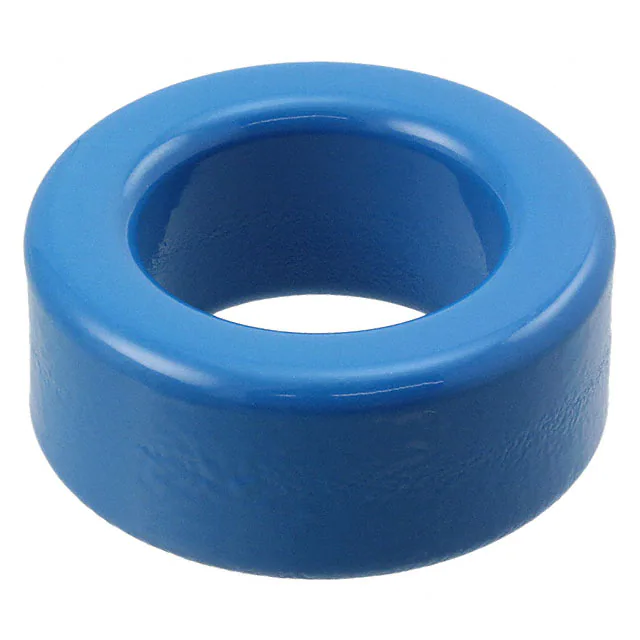

B64290L0674X087 FERRITE CORE TOROID 2.88UH N87 EPCOS - TDK Electronics	2983	5.34	- + Add To Cart Inquiry Now	Datasheet	Box	TX36/23/15	Active	Toroid	-	N87	1.476 (37.50mm)	2.94 µH	±25%	Ungapped	-	2200	0.94	89.65	95.89	-	8597	Epoxy	0.638 (16.20mm)

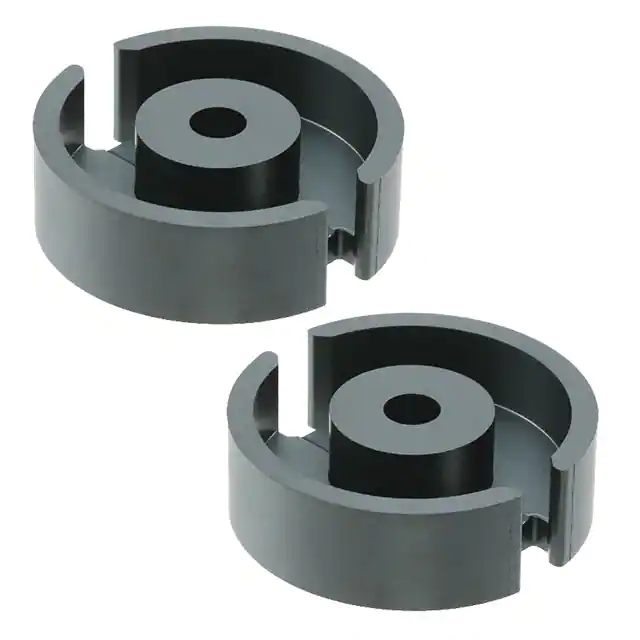

P36/22-3C91 FERRITE CORE 2PC SET Ferroxcube	3197	10.64	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 36 x 22	3C91	1.425 (36.20mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.854 (21.70mm)

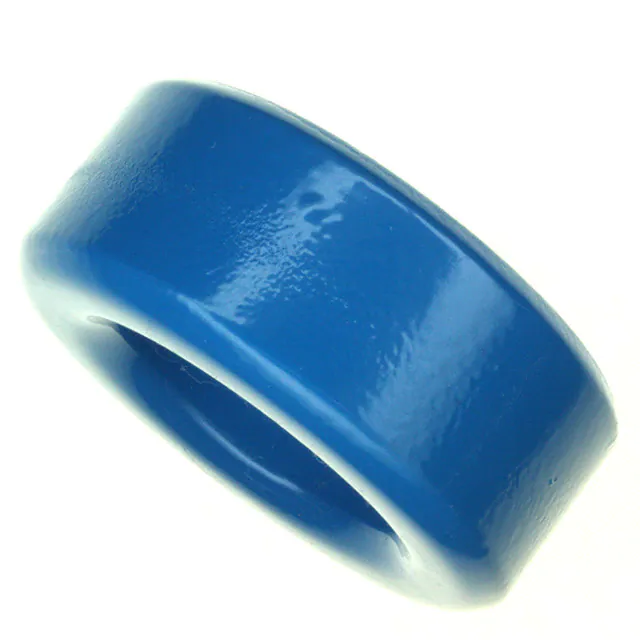

B64290L0082X087 FERRITE CORE TOROID 4.46UH N87 EPCOS - TDK Electronics	3035	13.53	- + Add To Cart Inquiry Now	Datasheet	Tray	TX50/30/20	Active	Toroid	-	N87	2.040 (51.80mm)	4.46 µH	±25%	Ungapped	-	2200	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)
T60006L2045V102 NANOCRYSTALLINE CORE, 45X30X15 VACUUMSCHMELZE	3585	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.906 (48.40mm)	87.6 µH	-	Ungapped	-	-	-	118	85.5	-	-	Uncoated	0.717 (18.20mm)
B64290L0082X830 FERRITE CORE TOROID 8.7UH N30 EPCOS - TDK Electronics	2821	14.69	- + Add To Cart Inquiry Now	Datasheet	Tray	TX50/30/20	Active	Toroid	-	N30	2.040 (51.80mm)	8.7 µH	±25%	Ungapped	-	4300	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)
T60006L2050W516 NANOCRYSTALLINE CORE, 50X40X20 VACUUMSCHMELZE	3347	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	2.106 (53.50mm)	45 µH	-	Ungapped	-	-	-	141	76	-	-	Uncoated	0.921 (23.40mm)

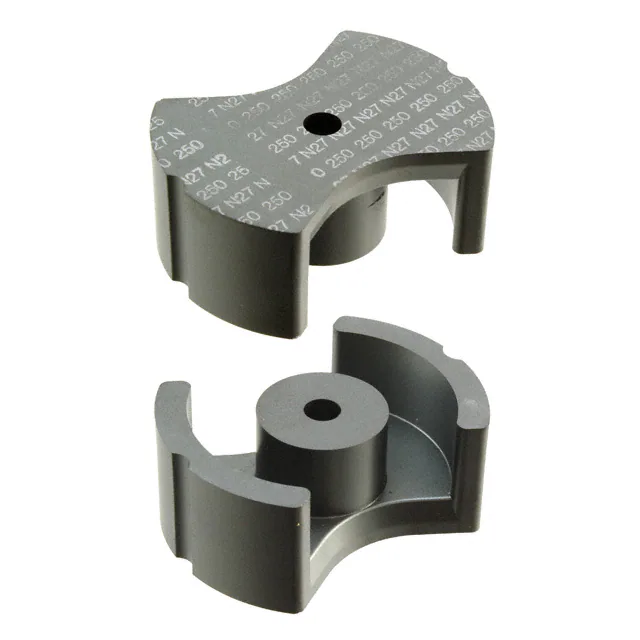

B65646A0250A027 FERRITE CORE PM 250NH N27 2PCS EPCOS - TDK Electronics	2275	24.50	- + Add To Cart Inquiry Now	Datasheet	Box	PM50/39	Active	PM	PM 50 x 39	N27	1.969 (50.00mm)	250 nH	±3%	Gapped	45	2000	0.227	84	370	280	31000	Uncoated	0.768 (19.50mm)
