Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66358G0100X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	341	1.79	- + Add To Cart Inquiry Now	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
TX25/15/13-3E10-M FERRITE CORES ROUND Ferroxcube	493	1.80	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±30%	Ungapped	10000	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
5980001801 80 TOROID Fair-Rite Products Corp.	170	1.81	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	-	0.870 (22.10mm)	355 nH	±25%	Ungapped	-	550	207	54.2	26.1	-	1420	Uncoated	0.250 (6.35mm)

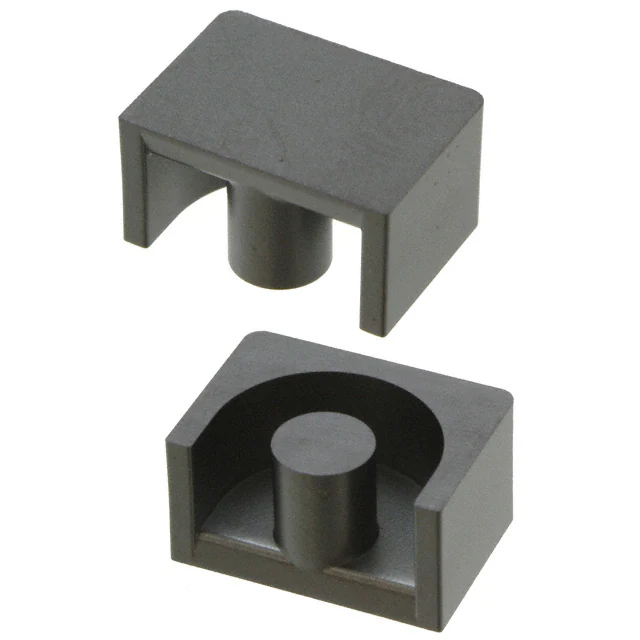

B65843A0000R087 FERRITE CORE EP 1.6UH N87 2PCS EPCOS - TDK Electronics	120	1.81	- + Add To Cart Inquiry Now	Datasheet	Box	EP13	Active	EP	EP 13	N87	-	1.6 µH	-20%, +30%	Ungapped	1580	2200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
HF60T22X10X14 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2482	1.86	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	0.866 (22.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.394 (10.00mm)

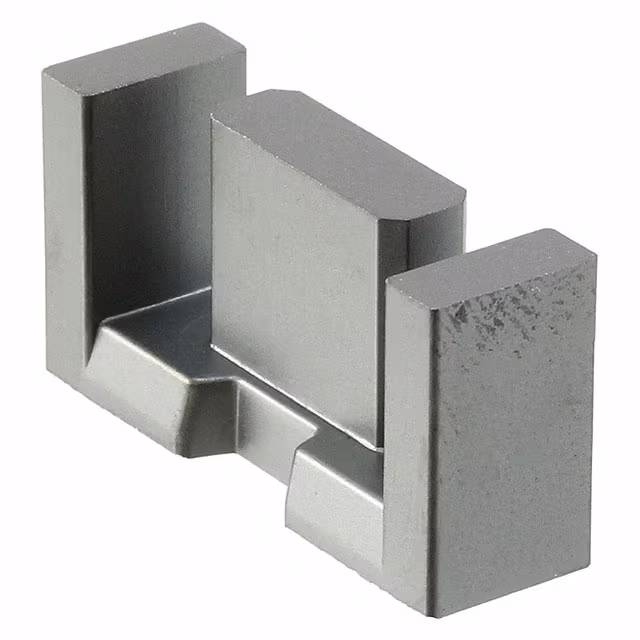

B66423G0000X197 FERRITE CORE EFD N97 1PC EPCOS - TDK Electronics	367	1.88	- + Add To Cart Inquiry Now	Datasheet	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
B65841A0000Y038 FERRITE CORE EP 4.8UH T38 2PCS EPCOS - TDK Electronics	352	1.88	- + Add To Cart Inquiry Now	Datasheet	Box	EP10	Active	EP	EP 10	T38	-	4.8 µH	-30%, +40%	Ungapped	6490	2300	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
P14/8/I-3F46 FERRITE CORE 2PC SET Ferroxcube	2812	1.94	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 14 x 8	3F46	0.553 (14.05mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)
RM7/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	940	1.96	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.386 (9.80mm)
TX25/15/13-3C90 FERRITE CORES ROUND Ferroxcube	341	1.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	3C90	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.539 (13.70mm)
TX25/15/13-3C94 FERRITE CORES ROUND Ferroxcube	288	1.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	3C94	1.007 (25.95mm)	-	±25%	Ungapped	2300	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
B66453K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	227	1.98	- + Add To Cart Inquiry Now	Datasheet	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
TX25/15/10-3E65 FERRITE CORES ROUND Ferroxcube	574	1.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	±25%	Ungapped	5200	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)
TX25/15/10-3E6 FERRITE CORES ROUND Ferroxcube	3178	1.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
B65803J0000R608 RM4-PC200 EPCOS - TDK Electronics	902	2.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	RM4	Active	RM	RM 4	PC200	-	-	-20%, +30%	Ungapped	670	800	1.7	22	13	11.3	286	Uncoated	0.413 (10.50mm)

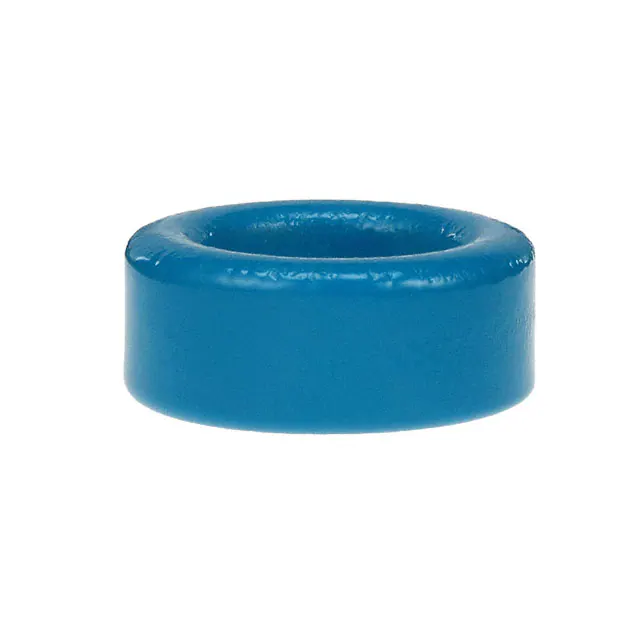

B64290L0626X830 FERRITE CORE TOROID 3.42UH N30 EPCOS - TDK Electronics	116	2.06	- + Add To Cart Inquiry Now	Datasheet	Box	TX22.6/14.7/9.2	Active	Toroid	-	N30	0.937 (23.80mm)	3.42 µH	±25%	Ungapped	-	4300	1.59	56.82	35.78	-	2033	Epoxy	0.402 (10.20mm)
EFD10/5/3-3F36-S FERRITE CORE 2PC SET Ferroxcube	402	2.08	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	EFD 10 x 5 x 3	3F36	-	-	±25%	Ungapped	1020	-	3.29	23.7	7.2	6.5	171	Uncoated	0.205 (5.20mm)
P11/7/I-3F46 FERRITE CORE 2PC SET Ferroxcube	572	2.11	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 11 x 7	3F46	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.260 (6.60mm)
PQ20/20-3F36 FERRITE CORE 2PC SET Ferroxcube	916	2.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 20 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
EP17-3C96 FERRITE CORE 2PC SET Ferroxcube	311	2.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EP	EP 17	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.661 (16.80mm)

Total 5020 Records«Prev 1... 47 48 49 505152 53 54...251 Next»
