Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

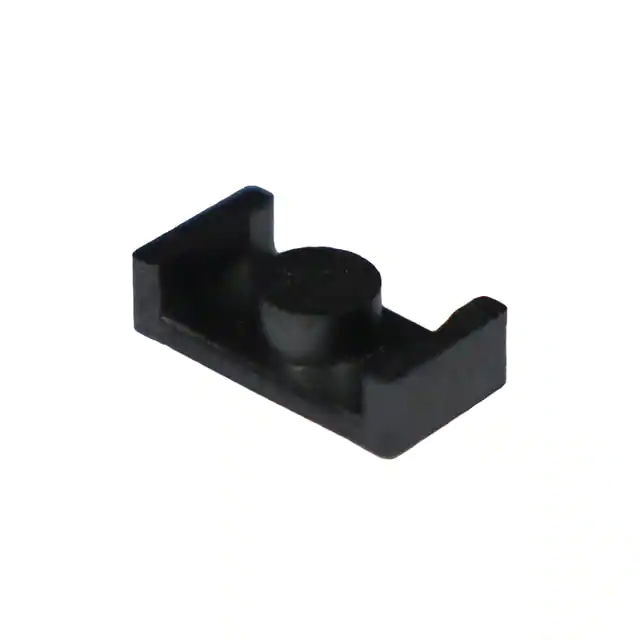

9598100502 98 ER CORE SET Fair-Rite Products Corp.	2112	0.71	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	152	13.6	8.93	7.6	122	Uncoated	-
9578100502 78 ER CORE SET Fair-Rite Products Corp.	2988	0.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	152	13.6	8.93	7.6	122	Uncoated	-
9578110502 78 ER CORE SET SET Fair-Rite Products Corp.	2602	0.79	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	112	14	12.6	10.3	177	Uncoated	-
6578100121 78 EP CORE SET Fair-Rite Products Corp.	2048	0.85	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EP	-	78	-	-	±25%	Ungapped	-	2300	168	18.5	11	8.5	203	Uncoated	-
B66311G0200X187 FERRITE CORE EPCOS - TDK Electronics	2433	0.90	- + Add To Cart Inquiry Now	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Gapped	-	2200	1.44	46.3	32.1	31.9	1490	Uncoated	0.398 (10.10mm)

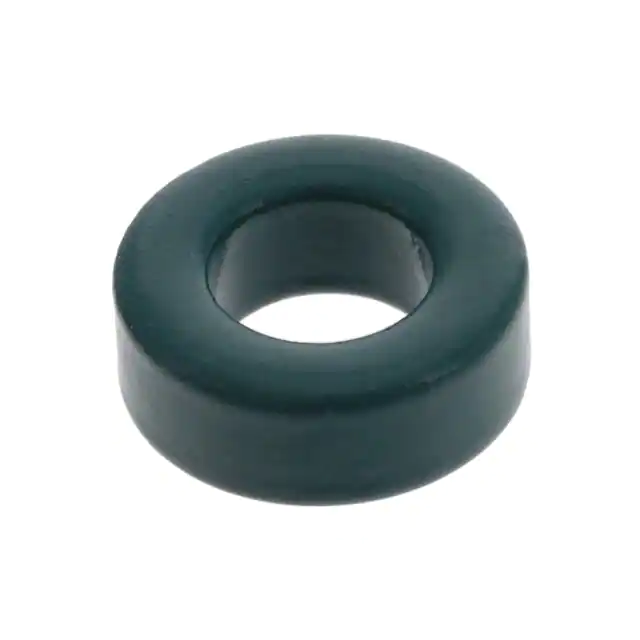

5975000321 75 TOROID PLASTIC COATED Fair-Rite Products Corp.	2020	0.92	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	75	0.530 (13.45mm)	2.725 µH	-25%, +20%	Ungapped	-	5000	2.2904	29.5	12.9	-	381	Plastic	0.213 (5.40mm)
B64290L0652X087 FERRITE CORE TOROID 1.39UH N87 EPCOS - TDK Electronics	2800	0.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	TX17/10.7/6.8	Active	Toroid	-	N87	0.717 (18.20mm)	1.39 µH	±25%	Ungapped	-	2200	2	42	21.04	-	884	Epoxy	0.307 (7.80mm)
5952020401 52 TOROID Fair-Rite Products Corp.	3942	0.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	29	13	-	378	Uncoated	0.188 (4.78mm)

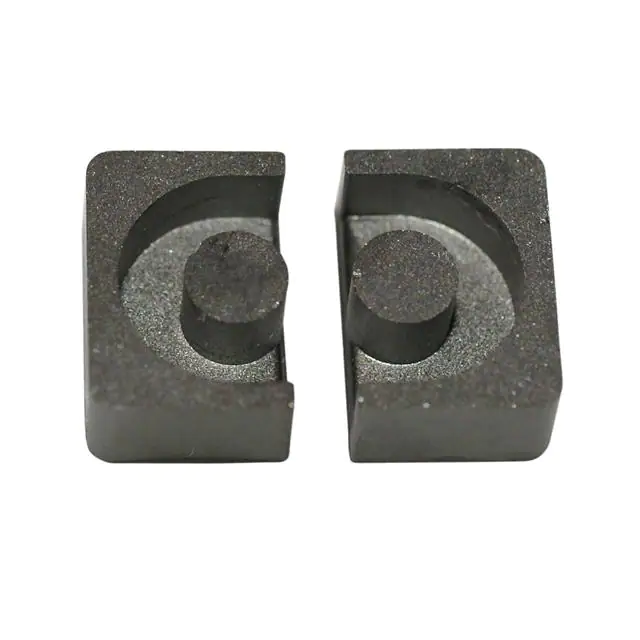

6595070121 95 EP CORE SET Fair-Rite Products Corp.	3309	0.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EP	-	95	-	-	±25%	Ungapped	-	3000	144	14.8	10.3	8.5	152	Uncoated	-
8998202021 98 EFD CORE SET Fair-Rite Products Corp.	2719	0.99	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	-	-	-	-	±25%	Ungapped	-	2400	156	47.4	31	29	1440	Uncoated	-
EFD25/13/9-3C90 EFD CORES Ferroxcube	3668	1.06	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
8995202021 95 EFD CORE CORE Fair-Rite Products Corp.	2184	1.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	156	47.4	31	29	1440	Uncoated	-
EFD30/15/9-3C90 EFD CORES Ferroxcube	3915	1.29	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

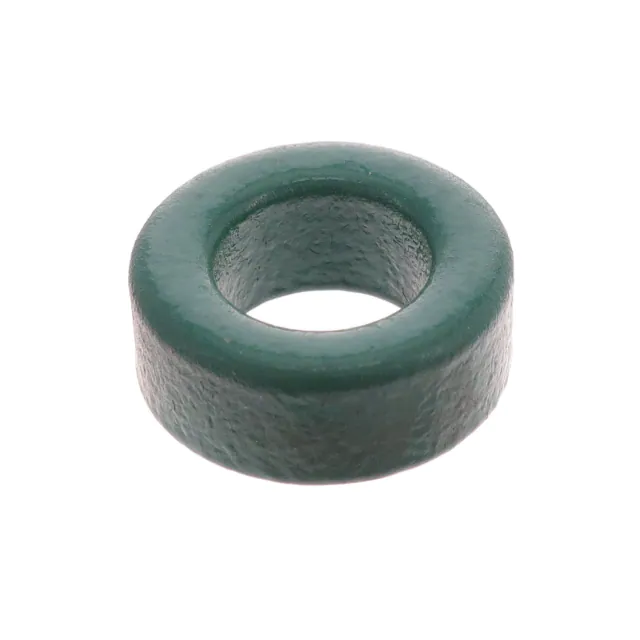

5975004921 75 TOROID PLASTIC COATED Fair-Rite Products Corp.	3022	1.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	75	0.665 (16.90mm)	3.225 µH	-25%, +20%	Ungapped	-	5000	1.937	38.5	19.9	-	766	Plastic	0.280 (7.11mm)
ETD34/17/11-3C96 ER AND ETD CORES Ferroxcube	3367	1.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
3061990891 61 ROD Fair-Rite Products Corp.	3768	1.40	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	61	0.197 (5.00mm)	-	-	Ungapped	24	125	-	-	19.6	-	-	Uncoated	-
B66319G0500X187 FERRITE CORE EPCOS - TDK Electronics	2740	1.44	- + Add To Cart Inquiry Now	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N87	-	-	-	Gapped	-	2200	1.12	67	60	49	4000	Uncoated	0.598 (15.20mm)
B64290A0632X830 FERRITE CORE TOROID 4.16UH N30 EPCOS - TDK Electronics	2394	1.53	- + Add To Cart Inquiry Now	Datasheet	Box	T20/10/7	Active	Toroid	R 20 x 10 x 7	N30	0.787 (20.00mm)	4.16 µH	±25%	Ungapped	-	4300	1.3	43.55	33.63	-	1465	Uncoated	0.275 (7.00mm)

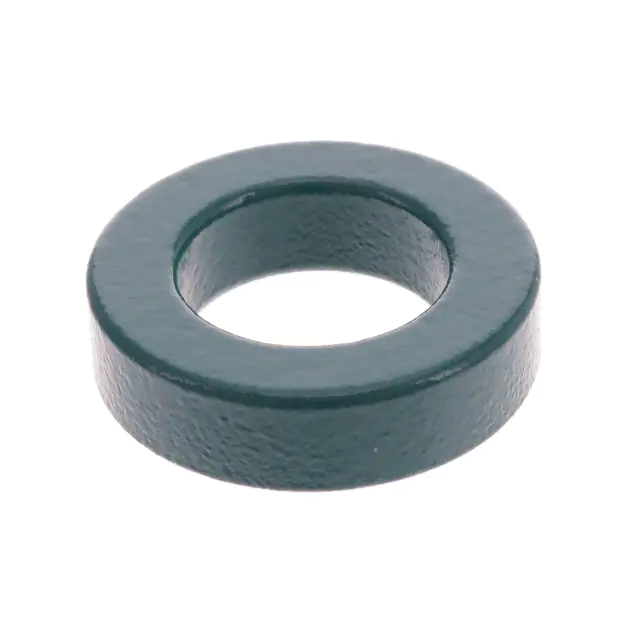

5975000621 75 TOROID PLASTIC COATED Fair-Rite Products Corp.	3749	1.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	75	0.860 (21.84mm)	2.95 µH	-25%, +20%	Ungapped	-	5000	2.13	52	24.3	-	126	Plastic	0.280 (7.11mm)
5977000621 77 TOROID PLASTIC COATED Fair-Rite Products Corp.	3565	1.54	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	77	0.860 (21.84mm)	1.27 µH	-30%, +25%	Ungapped	-	2000	2.131	51.8	24.3	-	1261	Plastic	0.280 (7.11mm)
