Photo Mfr. Part # Stock Price Quantity Datasheet Packaging Series ProductStatus CoreType Material Diameter InductanceFactor(Al) Tolerance Gap EffectivePermeability(µe) InitialPermeability(µi) CoreFactor(ΣI/A)mm-1 EffectiveLength(le)mm EffectiveArea(Ae)mm² MinimumCoreCrossSection(Amin)mm² EffectiveMagneticVolume(Ve)mm³ Finish Height Length
B65651W0000Y038

B65651W0000Y038

FERRITE CORE P 12.6UH T38 2PCS

EPCOS - TDK Electronics

507 5.16
- +

  Add To Cart

  Inquiry Now

B65651W0000Y038

Datasheet

Box P18/11 Active P (Pot Core) P 18 x 11 T38 0.724 (18.40mm) 12.6 µH -30%, +40% Ungapped 5710 10000 0.57 26.6 46.7 33.9 1242 Uncoated 0.209 (5.30mm)

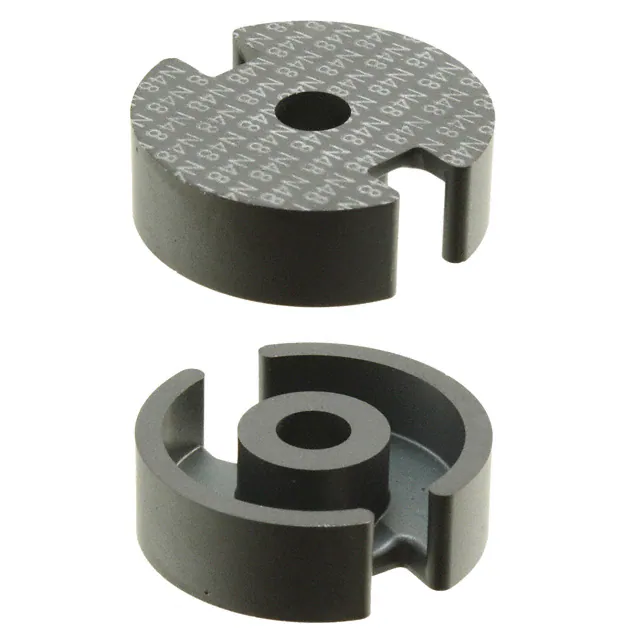

B65661D0000R048

B65661D0000R048

FERRITE CORE P 3.8UH N48 2PCS

EPCOS - TDK Electronics

2268 5.23
- +

  Add To Cart

  Inquiry Now

B65661D0000R048

Datasheet

Box P22/13 Active P (Pot Core) P 22 x 13 N48 0.866 (22.00mm) 3.8 µH -20%, +30% Ungapped 1520 - 0.5 31.6 63 - 1990 Uncoated 0.268 (6.80mm)
B65879A0000R087

B65879A0000R087

FERRITE CORE PQ 6.3UH N87 2PCS

EPCOS - TDK Electronics

480 5.24
- +

  Add To Cart

  Inquiry Now

B65879A0000R087

Datasheet

Box PQ32/20 Active PQ PQ 32 x 20 N87 - 6.3 µH -20%, +30% Ungapped 1580 2200 0.314 48.4 154.2 127.5 7460 Uncoated 0.404 (10.25mm)
B66501G0000X197

B66501G0000X197

FERRITE CORE ER N97 1PC

EPCOS - TDK Electronics

154 5.26
- +

  Add To Cart

  Inquiry Now

B66501G0000X197

Datasheet

Box ER32/5/21 Active ER ER 32 x 5 x 21 N97 - - - Ungapped - - - - - - - Uncoated 0.201 (5.10mm)

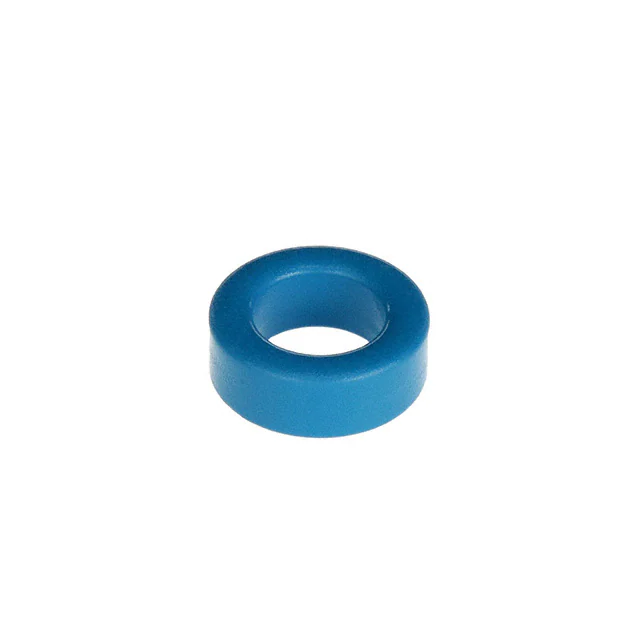

B64290L0048X087

B64290L0048X087

FERRITE CORE TOROID 2.79UH N87

EPCOS - TDK Electronics

3725 5.31
- +

  Add To Cart

  Inquiry Now

B64290L0048X087

Datasheet

Box TX34/20.5/12.5 Active Toroid - N87 1.397 (35.50mm) 2.79 µH ±25% Ungapped - 2200 0.99 82.06 82.6 - 6778 Epoxy 0.535 (13.60mm)
B65875A0000R095

B65875A0000R095

FERRITE CORE PQ 3.3UH N95 2PCS

EPCOS - TDK Electronics

439 5.33
- +

  Add To Cart

  Inquiry Now

B65875A0000R095

Datasheet

Box PQ20/20 Active PQ PQ 20 x 20 N95 - 3.3 µH -20%, +30% Ungapped 1860 2000 0.718 45.2 62.9 54.4 2843 Uncoated 0.398 (10.10mm)
TX42/26/13-3C94

TX42/26/13-3C94

FERRITE CORES ROUND

Ferroxcube

923 5.42
- +

  Add To Cart

  Inquiry Now

TX42/26/13-3C94

Datasheet

Bulk - Active Toroid TX 42 x 26 x 13 3C94 1.697 (43.15mm) - ±25% Ungapped 2300 - 1.076 103 95.8 - 9860 Epoxy 0.531 (13.50mm)

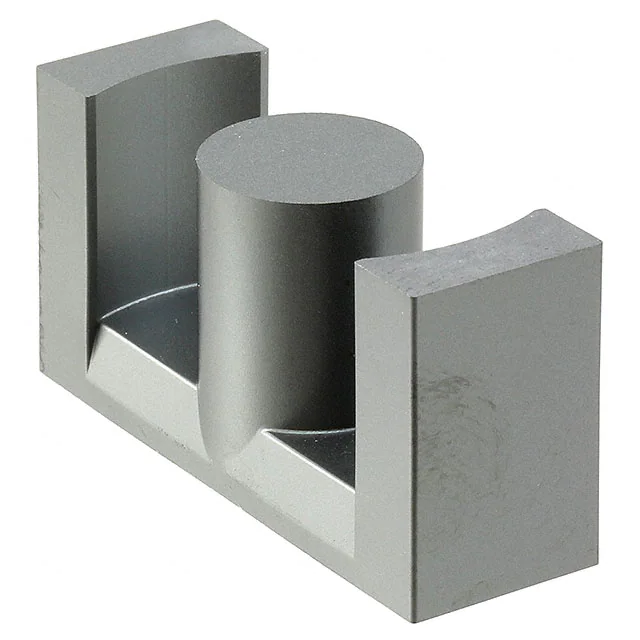

B66367G0500X127

B66367G0500X127

FERRITE CORE ETD N27 1PC

EPCOS - TDK Electronics

120 5.44
- +

  Add To Cart

  Inquiry Now

B66367G0500X127

Datasheet

Box ETD49/25/16 Active ETD ETD 49 x 25 x 16 N27 - - - Gapped - - - - - - - Uncoated 0.980 (24.90mm)

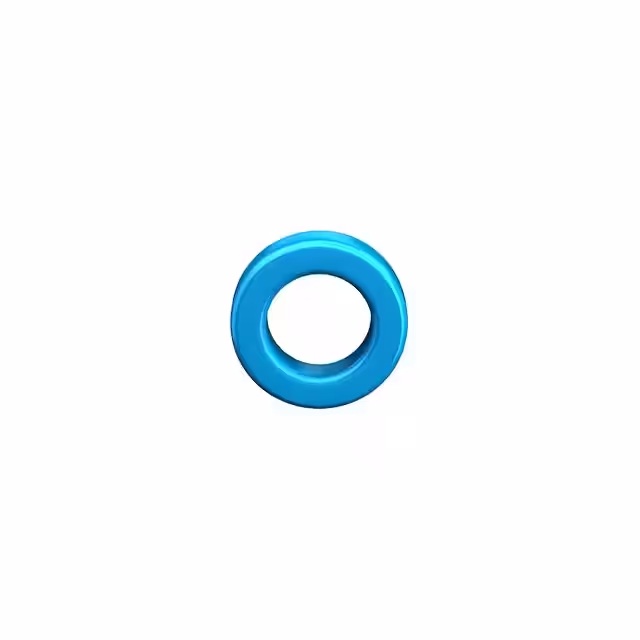

B64290L0048X065

B64290L0048X065

FERRITE CORE TOROID 6.4UH T65

EPCOS - TDK Electronics

367 5.45
- +

  Add To Cart

  Inquiry Now

B64290L0048X065

Datasheet

Box TX34/20.5/12.5 Active Toroid - T65 1.397 (35.50mm) 6.4 µH ±30% Ungapped - 5000 0.99 82.06 82.6 - 6778 Epoxy 0.535 (13.60mm)

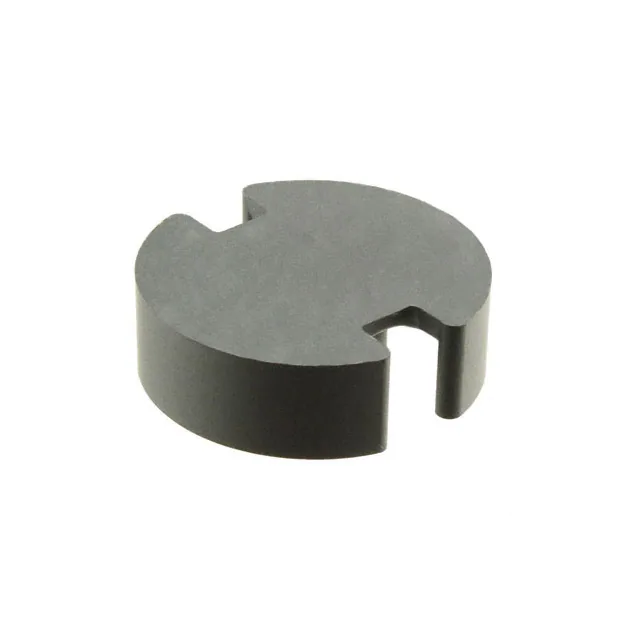

B65661W0000Y038

B65661W0000Y038

FERRITE CORE P 16UH T38 2PCS

EPCOS - TDK Electronics

694 5.46
- +

  Add To Cart

  Inquiry Now

B65661W0000Y038

Datasheet

Box P22/13 Active P (Pot Core) P 22 x 13 T38 0.866 (22.00mm) 16 µH -30%, +40% Ungapped 5820 10000 0.46 33.2 72.6 58.1 2410 Uncoated 0.268 (6.80mm)
ETD54/28/19-3C97

ETD54/28/19-3C97

FERRITE CORE

Ferroxcube

3822 5.51
- +

  Add To Cart

  Inquiry Now

ETD54/28/19-3C97

Datasheet

Bulk - Active ETD ETD 54 x 28 x 19 3C97 - - - - - - - - - - - Uncoated 1.087 (27.60mm)
E56/24/19-3C92

E56/24/19-3C92

FERRITE CORE

Ferroxcube

601 5.52
- +

  Add To Cart

  Inquiry Now

E56/24/19-3C92

Datasheet

Bulk - Active E E 56 x 24 x 19 3C92 - - - - - - - - - - - Uncoated 0.929 (23.60mm)
P26/16-3F3

P26/16-3F3

CORES 2PC SET

Ferroxcube

3933 5.59
- +

  Add To Cart

  Inquiry Now

P26/16-3F3

Datasheet

Bulk - Active P (Pot Core) P 26 x 16 3F3 1.004 (25.50mm) 4.6 µH ±25% Ungapped 1470 - 0.4 37.6 93.9 77.4 3530 Uncoated 0.634 (16.10mm)
B65671W0000R087

B65671W0000R087

FERRITE CORE P 5.5UH N87 2PCS

EPCOS - TDK Electronics

535 5.70
- +

  Add To Cart

  Inquiry Now

B65671W0000R087

Datasheet

Box P26/16 Active P (Pot Core) P 26 x 16 N87 1.024 (26.00mm) 5.5 µH -20%, +30% Ungapped 1620 2200 0.37 40 108 87 4320 Uncoated 0.321 (8.15mm)
PLT58/38/4-3F4

PLT58/38/4-3F4

FERRITE CORE

Ferroxcube

148 5.79
- +

  Add To Cart

  Inquiry Now

PLT58/38/4-3F4

Datasheet

Bulk - Active PLT PLT 58 x 38 x 4 3F4 - - - - - - - - - - - Uncoated 0.161 (4.10mm)

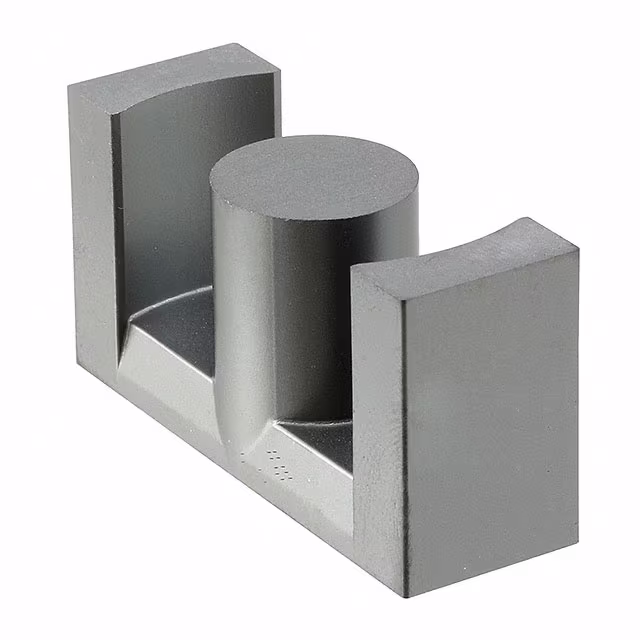

B66367G0200X187

B66367G0200X187

FERRITE CORE ETD N87 1PC

EPCOS - TDK Electronics

254 5.81
- +

  Add To Cart

  Inquiry Now

B66367G0200X187

Datasheet

Box ETD49/25/16 Active ETD ETD 49 x 25 x 16 N87 - - - Gapped - - - - - - - Uncoated 0.980 (24.90mm)
B66367G1000X187

B66367G1000X187

FERRITE CORE ETD N87 1PC

EPCOS - TDK Electronics

240 5.81
- +

  Add To Cart

  Inquiry Now

B66367G1000X187

Datasheet

Box ETD49/25/16 Active ETD ETD 49 x 25 x 16 N87 - - - Gapped - - - - - - - Uncoated 0.980 (24.90mm)

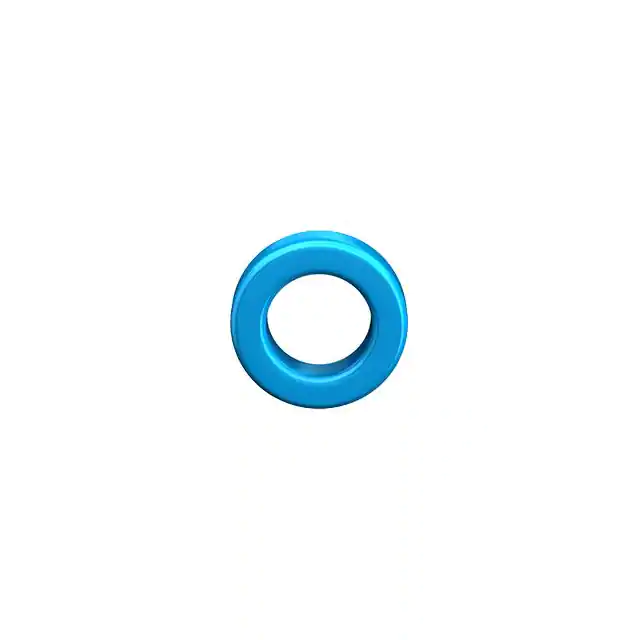

B64290L0022X065

B64290L0022X065

FERRITE CORE TOROID 5.8UH T65

EPCOS - TDK Electronics

378 5.86
- +

  Add To Cart

  Inquiry Now

B64290L0022X065

Datasheet

Box TX42/26/13 Active Toroid - T65 1.717 (43.60mm) 5.8 µH ±30% Ungapped - 5000 1.08 103 95.75 - 9862 Epoxy 0.535 (13.60mm)
PQ35/20-3C97

PQ35/20-3C97

FERRITE CORE 2PC SET

Ferroxcube

531 5.87
- +

  Add To Cart

  Inquiry Now

PQ35/20-3C97

Datasheet

Bulk - Active PQ PQ 35 x 20 3C97 - - - - - - - - - - - Uncoated 0.787 (20.00mm)
PQ35/20-3C95

PQ35/20-3C95

FERRITE CORE 2PC SET

Ferroxcube

121 5.87
- +

  Add To Cart

  Inquiry Now

PQ35/20-3C95

Datasheet

Bulk - Active PQ PQ 35 x 20 3C95 - - - - - - - - - - - Uncoated 0.787 (20.00mm)
Total 5020 Records«Prev1... 2627282930313233...251Next»
