Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66482G0000X187 FERRITE CORE ER N87 1PC EPCOS - TDK Electronics	2227	2.24	- + Add To Cart Inquiry Now	Datasheet	Box	ER23/5/13	Active	ER	ER 23 x 5 x 13	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)

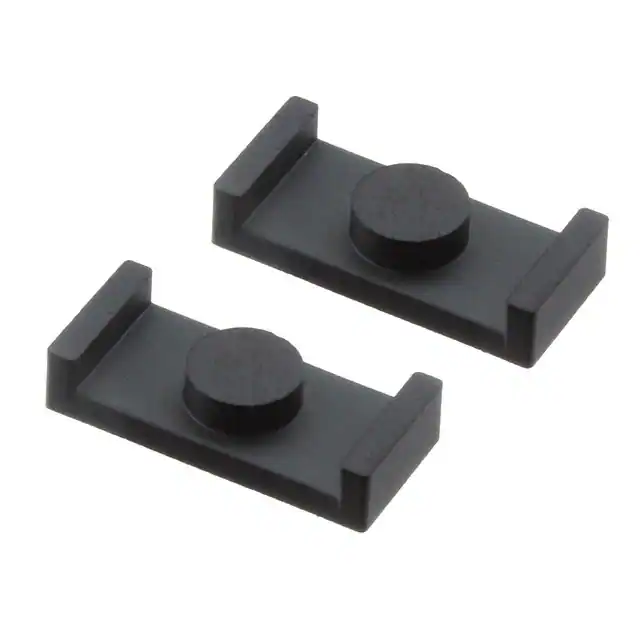

B65513J0000R049 FERRITE CORE ER 1.1UH N49 2PCS EPCOS - TDK Electronics	3961	2.25	- + Add To Cart Inquiry Now	Datasheet	Box	ER14.5	Active	ER	ER 14.5 x 6	N49	-	1.1 µH	-20%, +30%	Ungapped	800	1500	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)

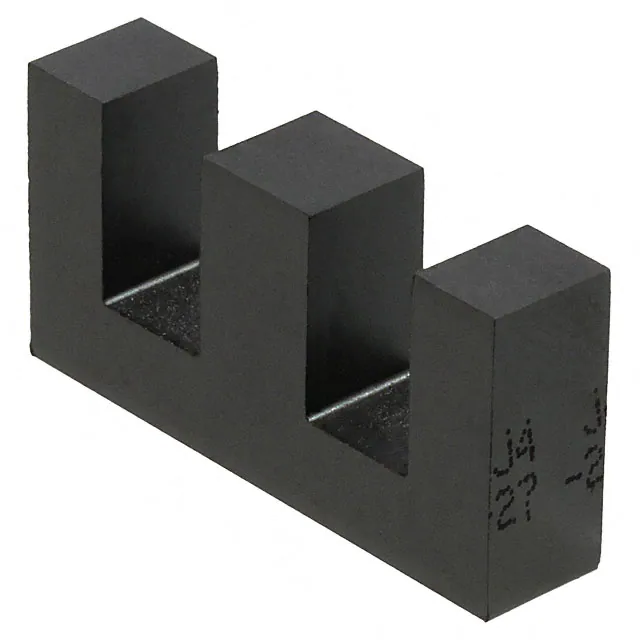

B66381G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3127	2.34	- + Add To Cart Inquiry Now	Datasheet	Box	E40/16/12	Active	E	E 40 x 16 x 12	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.650 (16.50mm)
B65805J0000R030 FERRITE CORE RM 3.5UH N30 2PCS EPCOS - TDK Electronics	3750	2.37	- + Add To Cart Inquiry Now	Datasheet	Box	RM5	Active	RM	RM 5	N30	-	3.5 µH	-20%, +30%	Ungapped	2590	4300	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)
P9/5-3C91 FERRITE CORE 2PC SET Ferroxcube	3368	2.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 9 x 5	3C91	0.366 (9.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.213 (5.40mm)
B65805J0000R041 FERRITE CORE RM 2.6UH N41 2PCS EPCOS - TDK Electronics	3591	2.44	- + Add To Cart Inquiry Now	Datasheet	Box	RM5	Active	RM	RM 5	N41	-	2.6 µH	-20%, +30%	Ungapped	1920	2800	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)

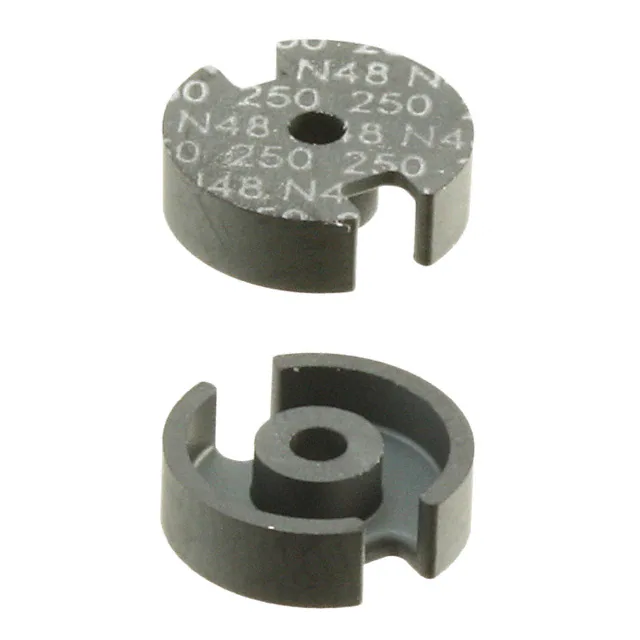

B65531D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	3849	2.55	- + Add To Cart Inquiry Now	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	250 nH	±3%	Gapped	199	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
PLT38/25/2.7-3C95 FERRITE CORE Ferroxcube	2473	2.56	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 2.7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.106 (2.70mm)
PLT38/25/3.8-3F4 FERRITE CORE Ferroxcube	2818	2.68	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

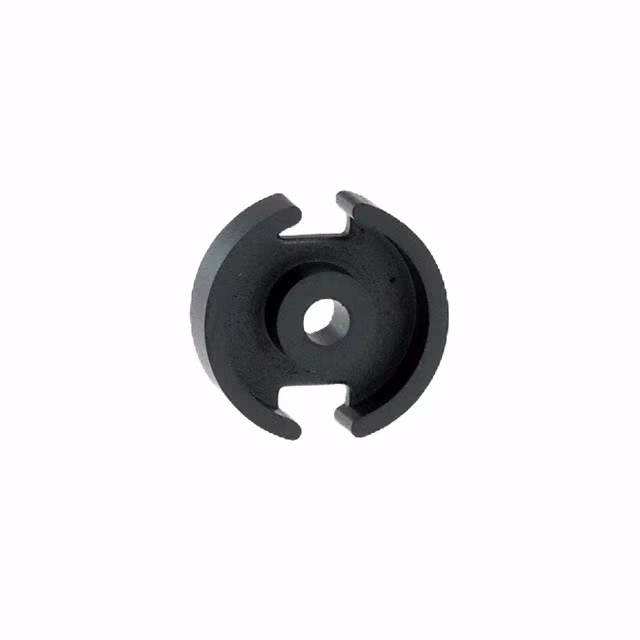

P11/7-3C91 FERRITE CORE 2PC SET Ferroxcube	2672	2.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 11 x 7	3C91	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)
B65803J0000Y038 FERRITE CORE RM 3.7UH T38 2PCS EPCOS - TDK Electronics	2906	2.86	- + Add To Cart Inquiry Now	Datasheet	Box	RM4	Active	RM	RM 4	T38	-	3.7 µH	-30%, +40%	Ungapped	4980	10000	1.7	22	13	11.3	286	Uncoated	0.207 (5.25mm)
EQ38/8/25-3C95 FERRITE CORE Ferroxcube	2513	2.87	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EQ	EQ 38 x 8 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)

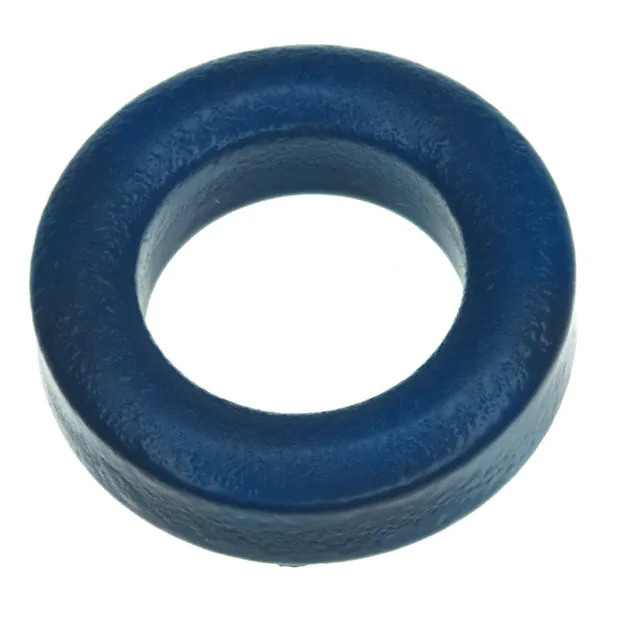

B64290L0651X087 FERRITE CORE TOROID 2.63UH N87 EPCOS - TDK Electronics	3848	2.88	- + Add To Cart Inquiry Now	Datasheet	Box	TX22/14/13	Active	Toroid	-	N87	0.917 (23.30mm)	2.63 µH	±25%	Ungapped	-	2200	1.05	54.15	51.15	-	2789	Epoxy	0.543 (13.80mm)

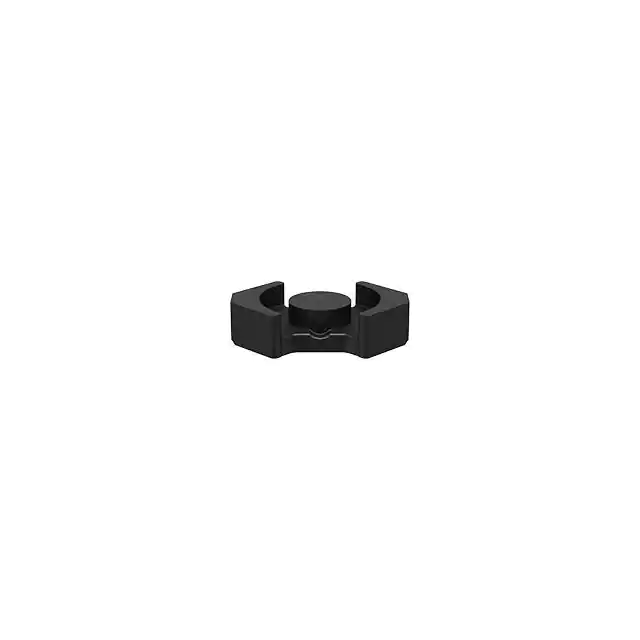

B65813P0000R087 FERRITE CORE RM 5.2UH N87 2PCS EPCOS - TDK Electronics	789	5.19	- + Add To Cart Inquiry Now	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM10/LP	Active	RM	RM 10 LP	N87	-	5.2 µH	-20%, +30%	Ungapped	1410	2200	0.34	33.9	99.1	90	3360	Uncoated	0.207 (5.25mm)

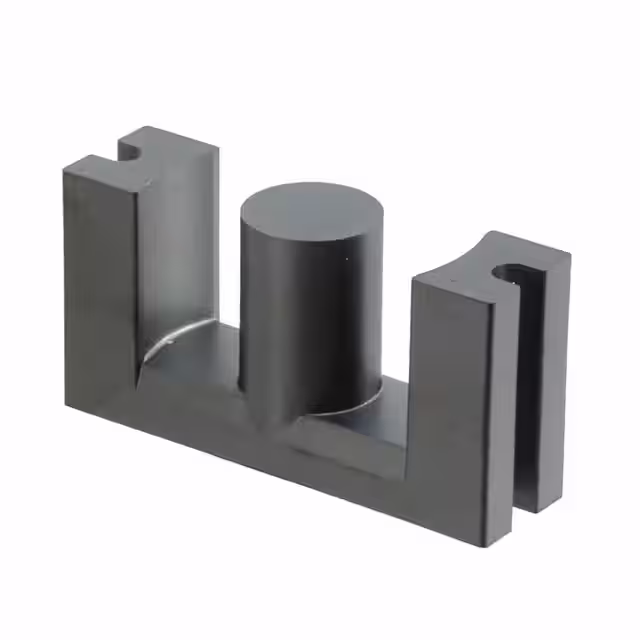

B66337G0000X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	3699	2.93	- + Add To Cart Inquiry Now	Datasheet	Box	EC35/17/10	Active	EC	EC 35 x 17 x 10	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.687 (17.45mm)

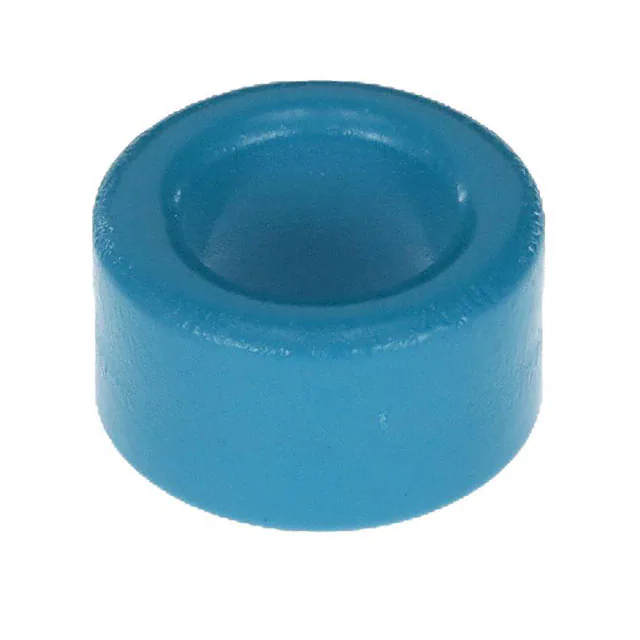

B64290L0651X065 FERRITE CORE TOROID 6.2UH T65 EPCOS - TDK Electronics	2950	2.96	- + Add To Cart Inquiry Now	Datasheet	Box	TX22/14/13	Active	Toroid	-	T65	0.917 (23.30mm)	6.2 µH	±30%	Ungapped	-	5200	1.05	54.15	51.15	-	2789	Epoxy	0.543 (13.80mm)
B66363G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3655	2.97	- + Add To Cart Inquiry Now	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
P22/13/I-3F46 FERRITE CORE 2PC SET Ferroxcube	147	2.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 22 x 13	3F46	0.866 (22.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)
B65807J0000R097 FERRITE CORE RM 2.4UH N97 2PCS EPCOS - TDK Electronics	3426	2.99	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N97	-	2.4 µH	-20%, +30%	Ungapped	1490	2300	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
TX26/15/20-3E27 FERRITE CORES ROUND Ferroxcube	2163	3.01	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	3E27	1.061 (26.95mm)	-	±25%	Ungapped	5500	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
