Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66432G0000X187 FERRITE CORE EV N87 1PC EPCOS - TDK Electronics	3944	1.10	- + Add To Cart Inquiry Now	Datasheet	Box	EV30/16/13	Active	EV	EV 30 x 16 x 13	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
RM7/ILP-3F36-A160 RM CORES 2PC SET Ferroxcube	2026	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 7	3F36	-	160 nH	±3%	Gapped	66	-	0.68	23.5	45.3	39.6	1060	Uncoated	0.528 (13.40mm)
RM4/ILP-3F36-A100 RM CORES 2PC SET Ferroxcube	2299	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 4	3F36	-	100 nH	±3%	Gapped	95	-	1.69	17.3	14.5	11.5	251	Uncoated	0.421 (10.40mm)
RM4/ILP-3F36-A63 RM CORES 2PC SET Ferroxcube	3417	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 4	3F36	-	63 nH	±3%	Gapped	60	-	1.69	17.3	14.5	11.5	251	Uncoated	0.421 (10.40mm)
6695272021 95 PQ CORE SET Fair-Rite Products Corp.	2190	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	37.2	44.8	120.3	113.1	5385	Uncoated	-

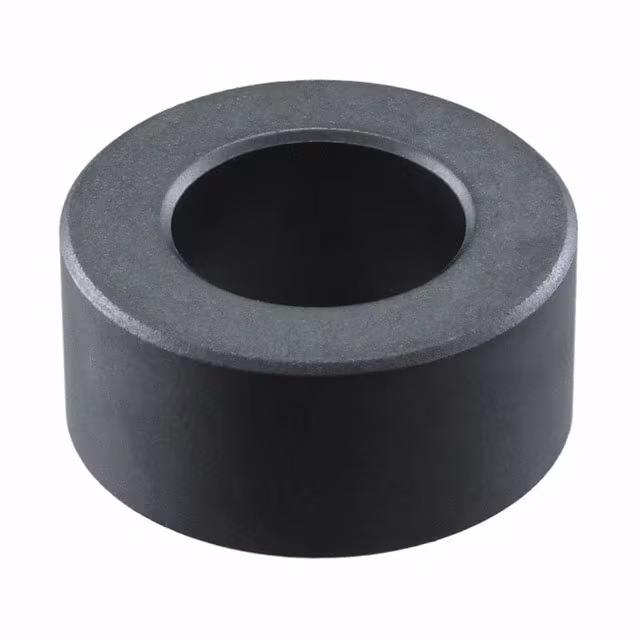

H5AT28X13X16 FERRITE CORE FOR TELECOMMUNICATI TDK Corporation	2697	1.10	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Last Time Buy	Toroid	-	H5A	-	-	±25%	Ungapped	-	-	-	-	-	-	-	Uncoated	0.512 (13.00mm)
PLT38/25/2.7-3C96 EQ CORES Ferroxcube	2914	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 2.7	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
E42/21/15-3C90-A400 E CORES Ferroxcube	2481	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C90-E160 E CORES Ferroxcube	3661	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C90-G1000 E CORES Ferroxcube	2864	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C90-G1500 E CORES Ferroxcube	3336	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C91-G500 E CORES Ferroxcube	2089	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C94-G500 E CORES Ferroxcube	2437	1.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
B65843P0000Y038 FERRITE CORE EPO 6.6UH T38 2PCS EPCOS - TDK Electronics	3916	1.11	- + Add To Cart Inquiry Now	Datasheet	Box	EP13/LP	Active	EPO	EPO 13	T38	-	6.6 µH	-30%, +40%	Ungapped	7020	2300	1.34	25.8	19.3	14.9	498	Uncoated	0.256 (6.50mm)
B65843A0000R035 FERRITE CORE EPCOS - TDK Electronics	2272	1.11	- + Add To Cart Inquiry Now	Datasheet	Box	EP13	Active	EP	EP 13	T35	-	-	-	-	-	6000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65531D0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	3611	1.11	- + Add To Cart Inquiry Now	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	100 nH	±3%	Gapped	80	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)

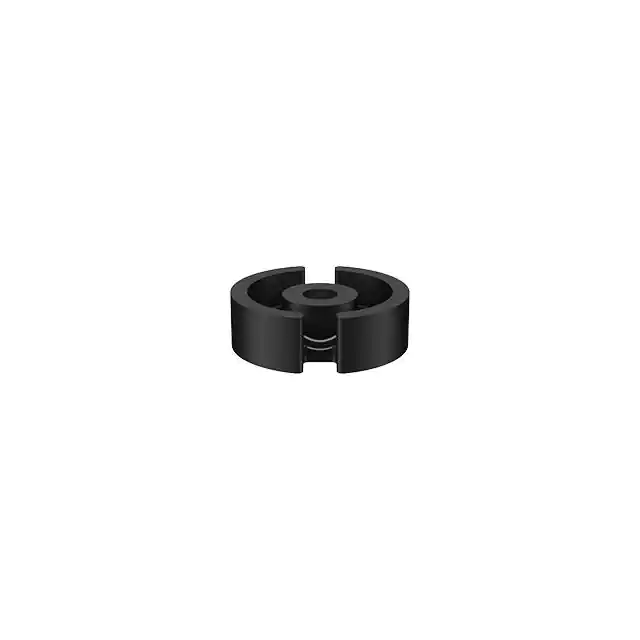

B65531W0000Y038 FERRITE CORE P 7UH T38 2PCS EPCOS - TDK Electronics	3237	1.11	- + Add To Cart Inquiry Now	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	T38	0.445 (11.30mm)	7 µH	-30%, +40%	Ungapped	5130	10000	0.92	16.3	17.7	14.1	289	Uncoated	0.130 (3.30mm)
PLT38/25/2.7-3F4 EQ CORES Ferroxcube	3352	1.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 2.7	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B65843A0100A038 FERRITE CORE EP 100NH T38 2PCS EPCOS - TDK Electronics	3052	1.12	- + Add To Cart Inquiry Now	Datasheet	Box	EP13	Active	EP	EP 13	T38	-	100 nH	±3%	Gapped	99	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0200B038 FERRITE CORE EP 200NH T38 2PCS EPCOS - TDK Electronics	3202	1.12	- + Add To Cart Inquiry Now	Datasheet	Box	EP13	Active	EP	EP 13	T38	-	200 nH	±4%	Gapped	198	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
