Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

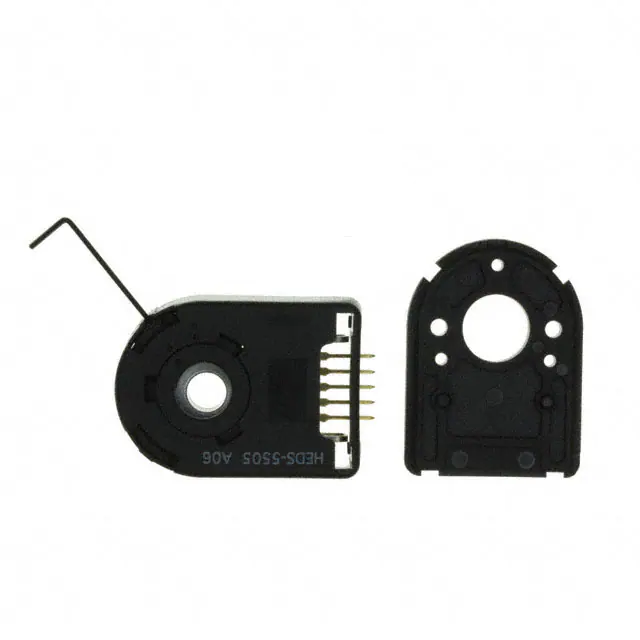

HEDS-5505#A06 ROTARY ENCODER OPTICAL 500PPR Broadcom Limited	136	55.92	- + Add To Cart Inquiry Now	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	500	5V	1/4 Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins

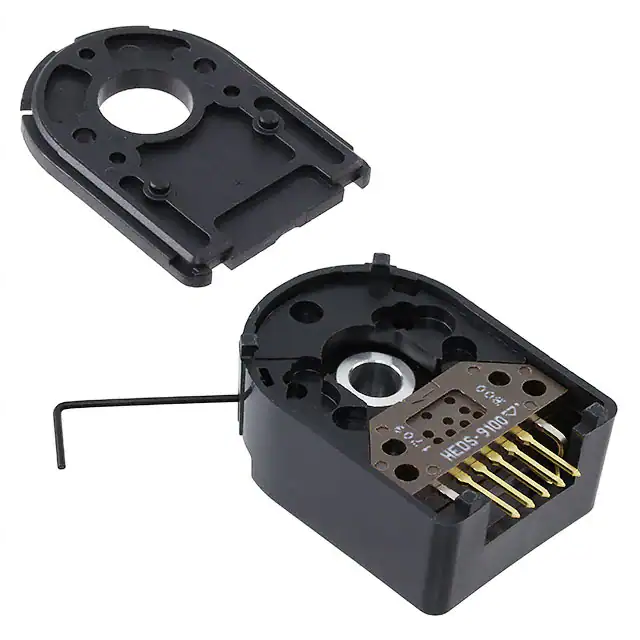

HEDM-5500#B12 ROTARY ENCODER OPTICAL 1000PPR Broadcom Limited	112	56.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	HEDM	Active	Optical	Quadrature (Incremental)	1000	5V	6mm Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins
ENS1J-B28-L00064L ROTARY ENCODER OPTICAL 64PPR Bourns Inc.	123	61.55	- + Add To Cart Inquiry Now	Datasheet	Bulk	EN	Active	Optical	Quadrature (Incremental)	64	5V	1/4 Dia Round End	No	No	Panel, PCB Through Hole	Vertical	PC Pin
PEC16-4115F-N0012 ROTARY ENCODER MECHANICAL 12PPR Bourns Inc.	3221	1.55	- + Add To Cart Inquiry Now	Datasheet	Tray	PEC16	Active	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
PEC12R-4125F-S0012 ROTARY ENCODER MECHANICAL 12PPR Bourns Inc.	2730	1.59	- + Add To Cart Inquiry Now	Datasheet	Tray	PEC12R	Active	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
PEC16-2120F-S0012 ROTARY ENCODER MECHANICAL 12PPR Bourns Inc.	3987	1.88	- + Add To Cart Inquiry Now	Datasheet	Tray	PEC16	Active	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin

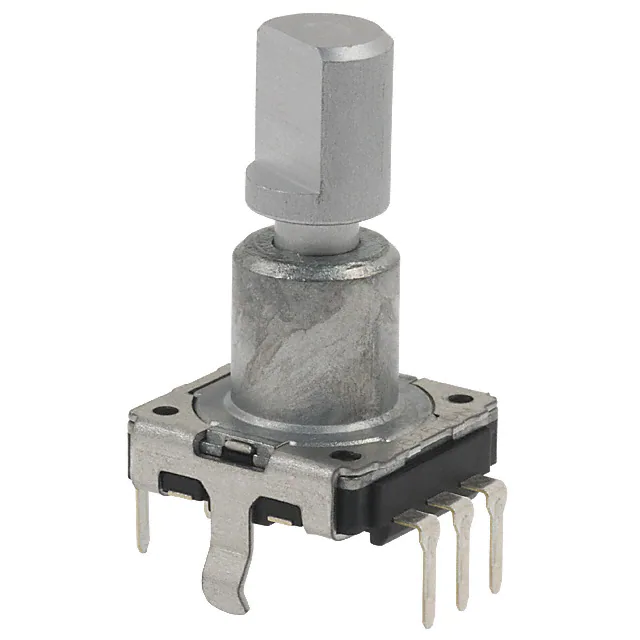

EVE-YFCCL516B ROTARY ENCODER MECHANICAL 16PPR Panasonic Electronic Components	492	3.68	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	Mechanical	Quadrature (Incremental)	16	-	8mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
PES12-42S-N0024 ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	691	3.73	- + Add To Cart Inquiry Now	Datasheet	Tray	PES12	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Slotted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
290VAA5F201A2 ROTARY ENCODER MECHANICAL 20PPR CTS Electrocomponents	3743	3.81	- + Add To Cart Inquiry Now	Datasheet	Bulk	290	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
290VAB0R201A2 ROTARY ENCODER MECHANICAL 20PPR CTS Electrocomponents	338	4.02	- + Add To Cart Inquiry Now	Datasheet	Bulk	290	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Round End	Yes	No	PCB, Through Hole	Vertical	PC Pin

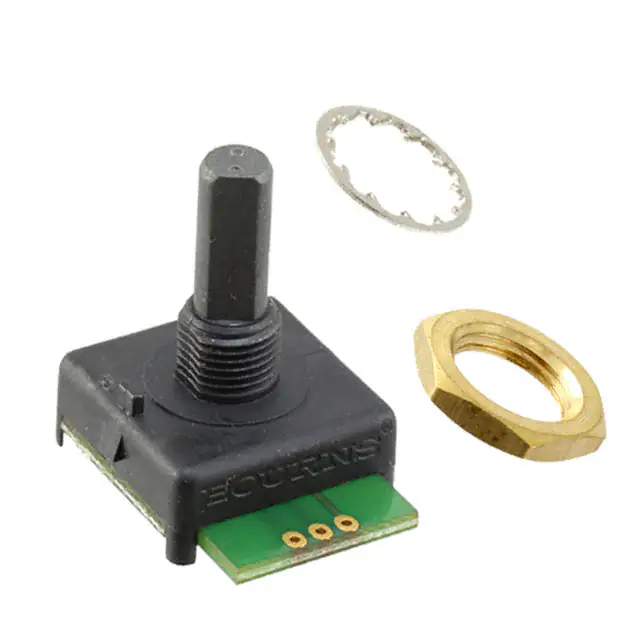

ECW1J-C24-CC0024L ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	262	4.46	- + Add To Cart Inquiry Now	Datasheet	Tray	ECW	Active	Mechanical	Quadrature (Incremental)	24	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	Solder Lug
290VAB0R201B1 ROTARY ENCODER MECHANICAL 20PPR CTS Electrocomponents	3606	4.66	- + Add To Cart Inquiry Now	Datasheet	Bulk	290	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Round End	No	Yes	PCB, Through Hole	Vertical	PC Pin

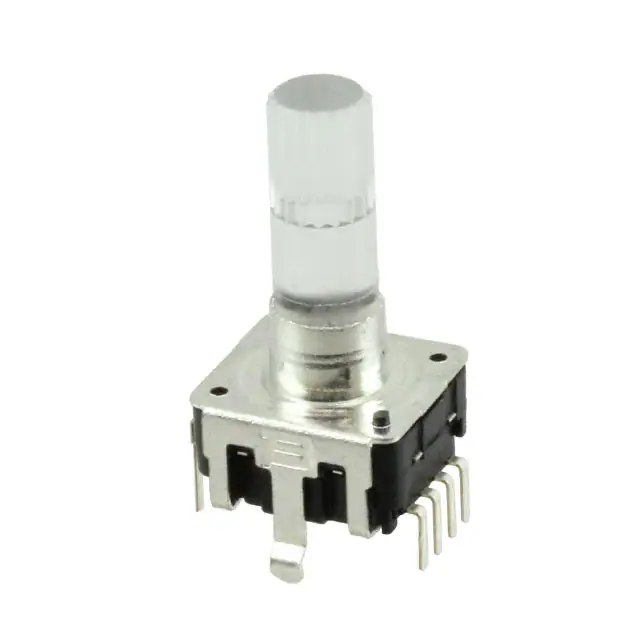

PEL12D-4225S-S1024 ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	3384	4.79	- + Add To Cart Inquiry Now	Datasheet	Tray	PEL12D	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Knurled End, Illuminated	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

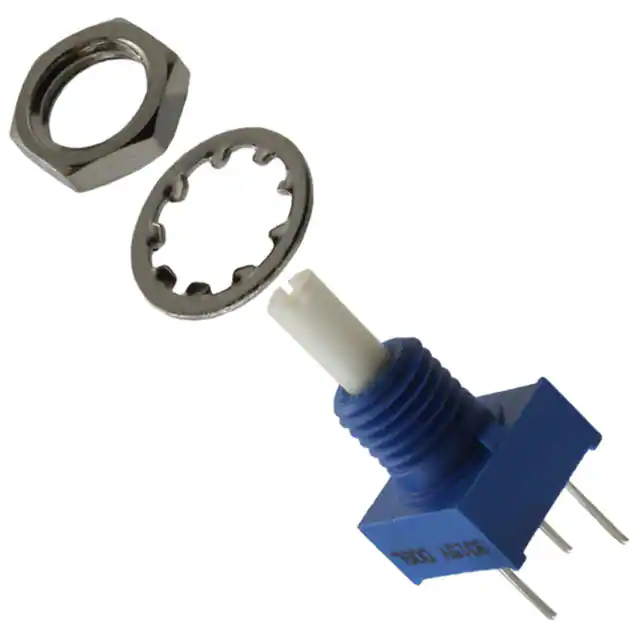

3315Y-001-006L ROTARY ENCODER MECHANICAL 6PPR Bourns Inc.	197	4.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	3315	Active	Mechanical	Quadrature (Incremental)	6	-	1/8 Dia Slotted End	No	No	Panel, PCB Through Hole	Vertical	PC Pin

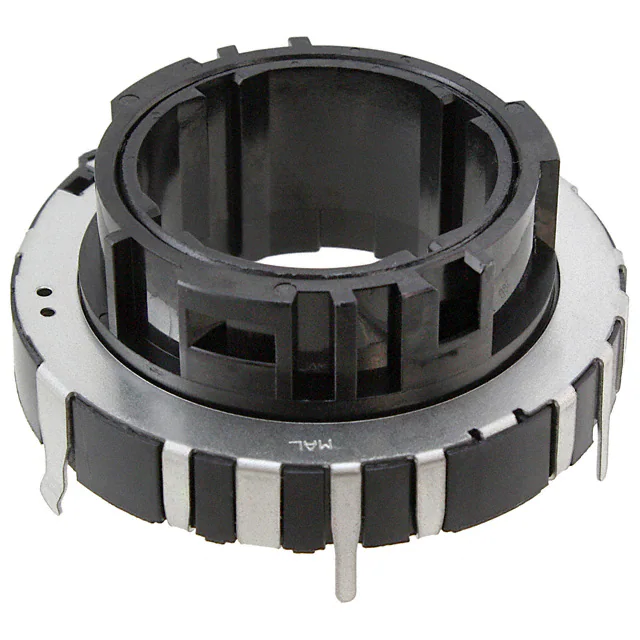

EVQ-V4300418B ROTARY ENCODER MECHANICAL Panasonic Electronic Components	227	5.43	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	Mechanical	Quadrature (Incremental)	-	-	-	-	-	-	-	-

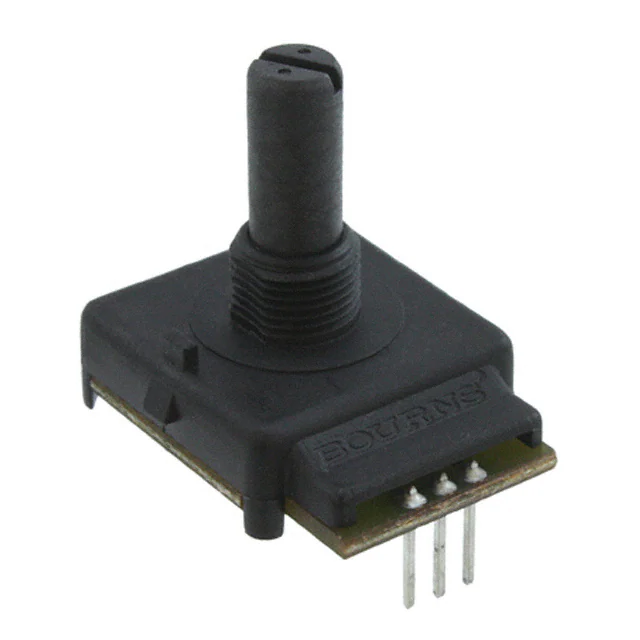

ECW0J-B24-BC0006L ROTARY ENCODER MECHANICAL 6PPR Bourns Inc.	298	5.46	- + Add To Cart Inquiry Now	Datasheet	Tray	ECW	Active	Mechanical	Quadrature (Incremental)	6	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

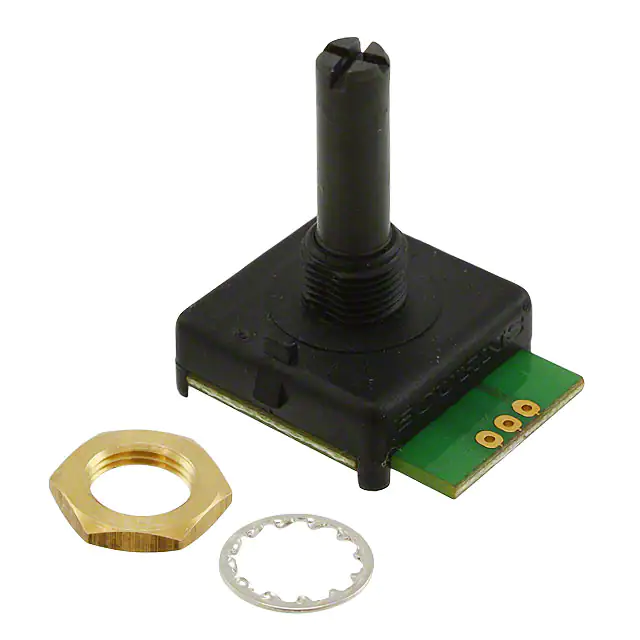

ECW1J-R24-CC0024L ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	274	5.46	- + Add To Cart Inquiry Now	Datasheet	Tray	ECW	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Slotted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

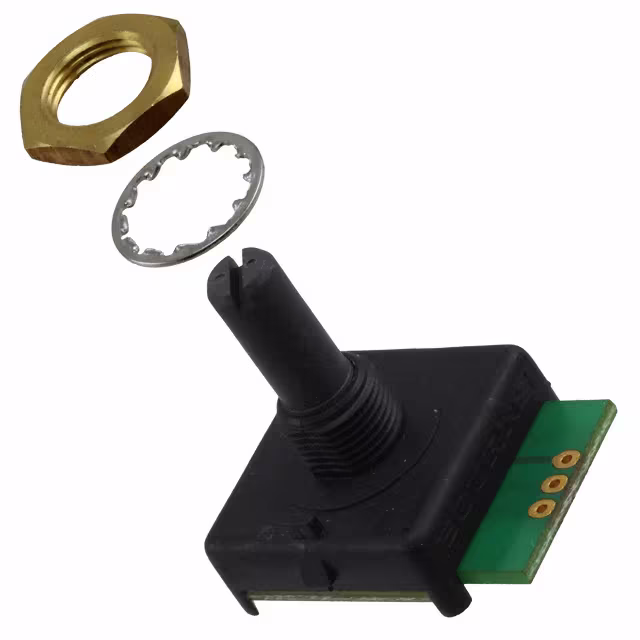

ECW1J-R19-CC0024L ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	120	5.46	- + Add To Cart Inquiry Now	Datasheet	Tray	ECW	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Slotted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

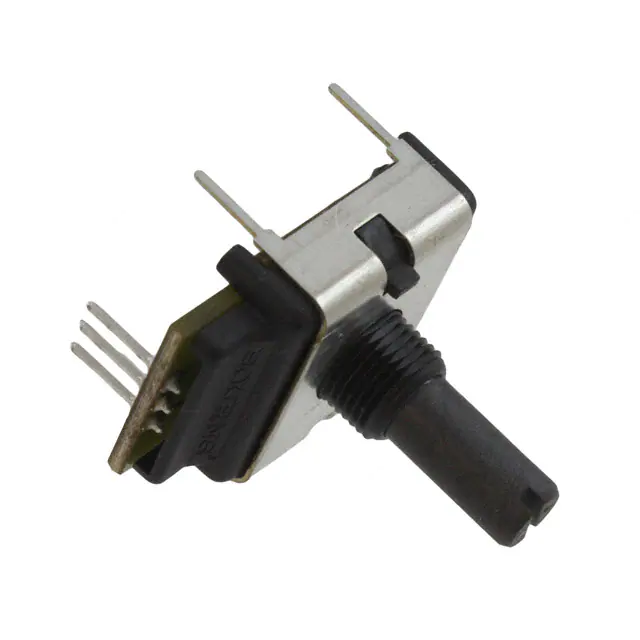

ECW0J-B24-BD0009L ROTARY ENCODER MECHANICAL 9PPR Bourns Inc.	153	5.46	- + Add To Cart Inquiry Now	Datasheet	Tray	ECW	Active	Mechanical	Quadrature (Incremental)	9	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

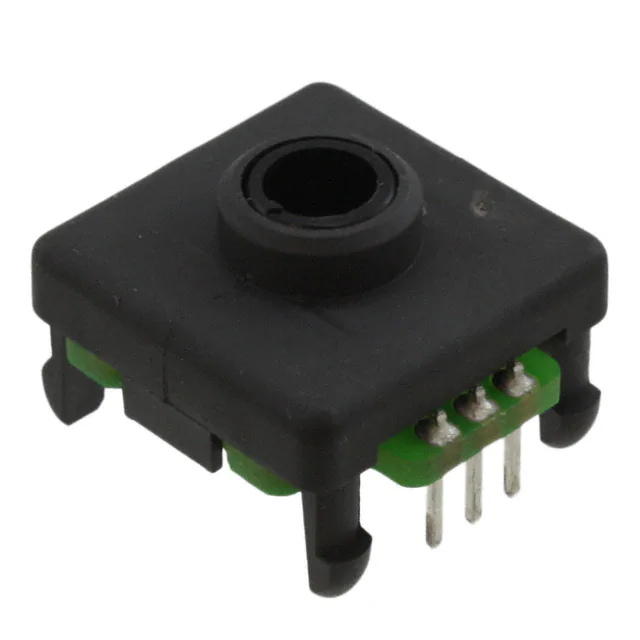

ESD1D-S00-GC0024L ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	272	9.60	- + Add To Cart Inquiry Now	Datasheet	Tray	ES	Active	Mechanical	Quadrature (Incremental)	24	-	-	Yes	No	PCB, Surface Mount	Vertical	PC Pin

Total 4821 Records«Prev 1... 5 6 7 8910 11 12...242 Next»
