Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
770-B-S-4096-R-HV-D-P-N-N-N NEMA 56C C-FACE,THROUGH-BORE, IN Encoder Products Company	3523	1264.00	- + Add To Cart Inquiry Now	Datasheet	Tray	770	Active	Incremental	Quadrature Line Driver with Index (Incremental)	4096	4.75V ~ 28V	1 Open Center	No	No	Chassis Mount, Motors	User Selectable	Cable
770-B-S-4096-R-HV-A-P-N-N-N NEMA 56C C-FACE,THROUGH-BORE, IN Encoder Products Company	3397	1264.00	- + Add To Cart Inquiry Now	Datasheet	Tray	770	Active	Incremental	Quadrature Line Driver with Index (Incremental)	4096	4.75V ~ 28V	5/8 Open Center	No	No	Chassis Mount, Motors	User Selectable	Cable
770-B-S-4096-R-HV-C-P-N-N-N NEMA 56C C-FACE,THROUGH-BORE, IN Encoder Products Company	2418	1264.00	- + Add To Cart Inquiry Now	Datasheet	Tray	770	Active	Incremental	Quadrature Line Driver with Index (Incremental)	4096	4.75V ~ 28V	7/8 Open Center	No	No	Chassis Mount, Motors	User Selectable	Cable

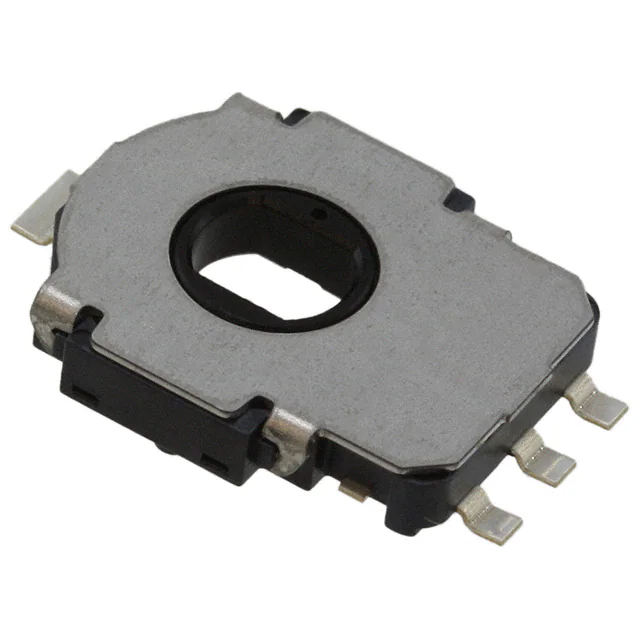

EVQ-VVD00203B ROTARY ENCODER MECHANICAL 3PPR Panasonic Electronic Components	439	1.93	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Mechanical	-	3	-	-	No	No	Surface Mount	Horizontal	PC Pin

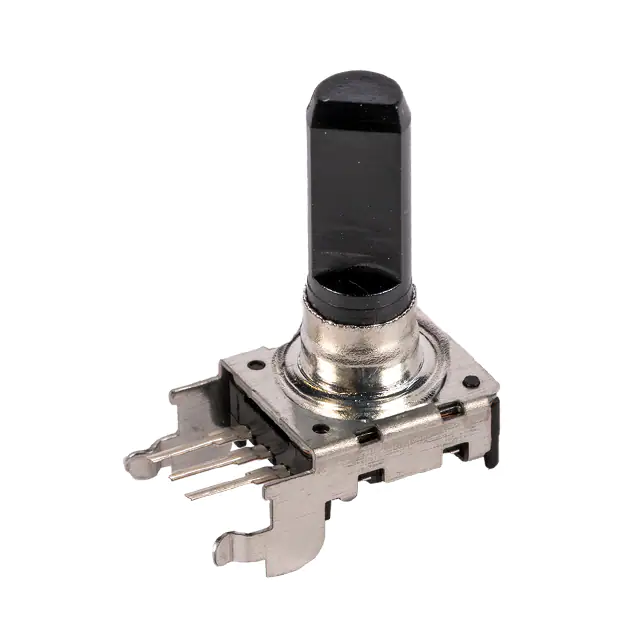

11CEM20F121A ROTARY ENCODER MECHANICAL 12PPR CTS Electrocomponents	477	2.40	- + Add To Cart Inquiry Now	Datasheet	Tray	11CE	Active	Mechanical	Quadrature, 2-Bit	12	5V	6mm Dia Flatted End	No	No	Panel, PCB Through Hole	Right Angle	PC Pin

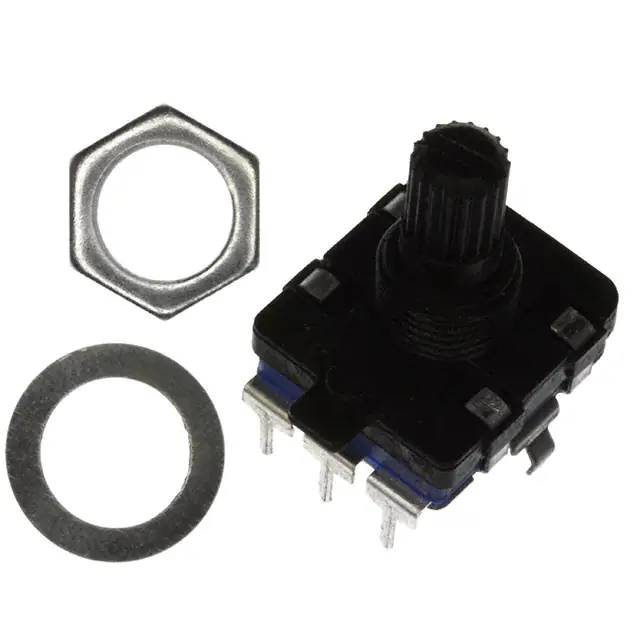

ACZ16NBR1E-15KQD1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	167	2.79	- + Add To Cart Inquiry Now	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

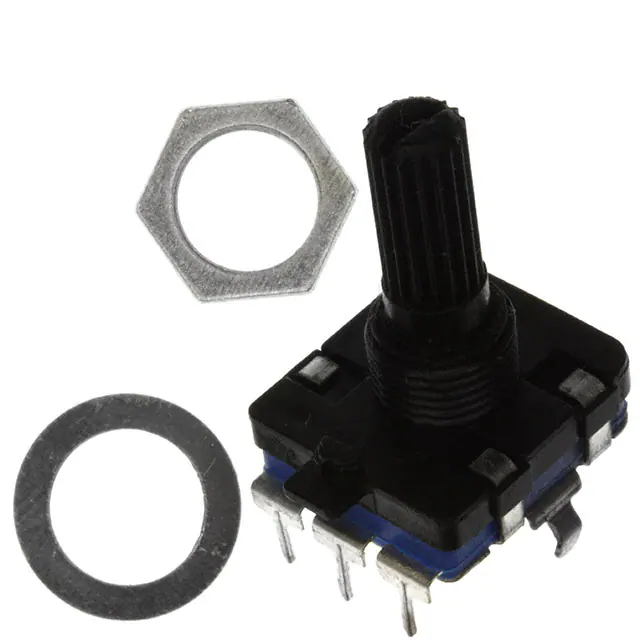

ACZ16NBR1E-20KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	158	2.79	- + Add To Cart Inquiry Now	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

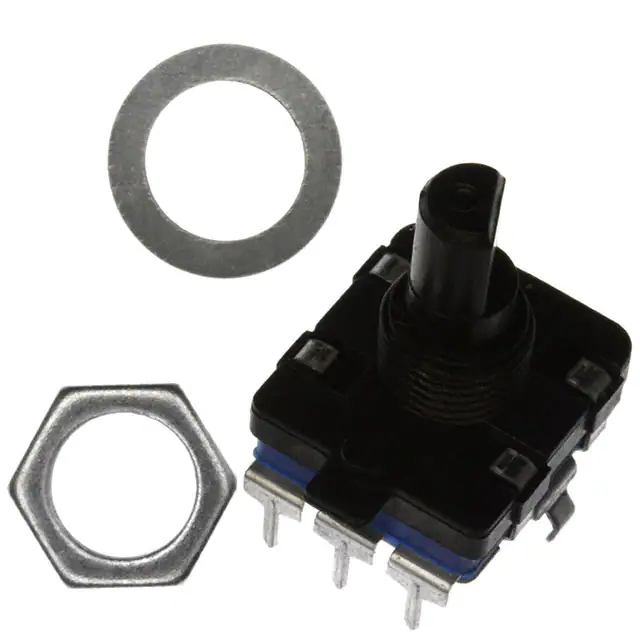

ACZ16NBR1E-15FD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2571	2.79	- + Add To Cart Inquiry Now	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

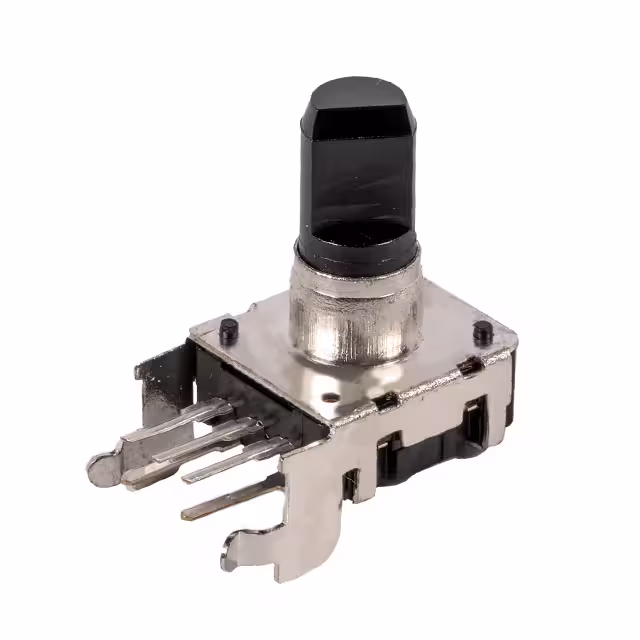

11CEM20F121B ROT ENCODER MECHANICAL 12PPR WSW CTS Electrocomponents	484	3.28	- + Add To Cart Inquiry Now	Datasheet	Tray	11CE	Active	Mechanical	Quadrature, 2-Bit	12	5V	6mm Dia Flatted End	No	Yes	Panel, PCB Through Hole	Right Angle	PC Pin

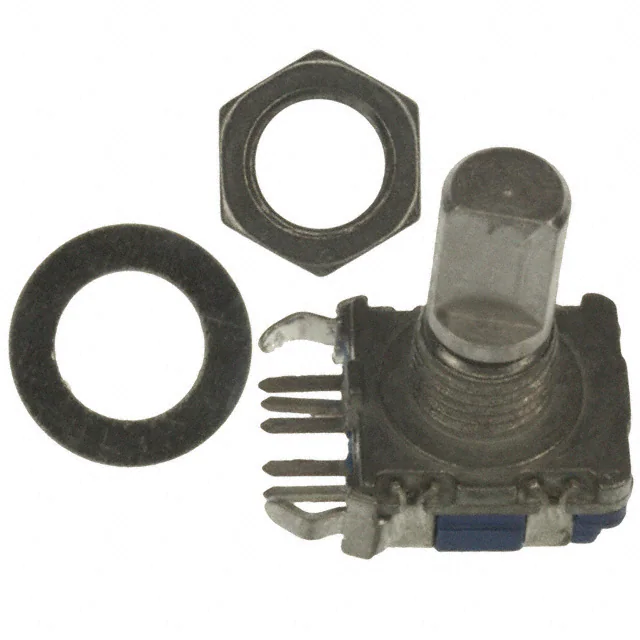

ACZ11BR1E-15FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3394	3.51	- + Add To Cart Inquiry Now	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
25BSR22-G-1-16C ROTARY ENCODER MECHANICAL 16PPR Grayhill Inc.	2815	47.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	25	Active	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	No	No	PCB, Through Hole	Right Angle	PC Pin
510E1A48F416PB ROTARY ENCODER MECHANICAL 16PPR Honeywell Sensing and Productivity Solutions	2117	12.65	- + Add To Cart Inquiry Now	Datasheet	Box	510	Obsolete	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
291V1022S624AA ROTARY ENCODER OPTICAL 6PPR CTS Electrocomponents	2331	16.88	- + Add To Cart Inquiry Now	Datasheet	Tray	291	Active	Optical	Quadrature (Incremental)	6	4.75V ~ 5.25V	1/4 Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
510E1A48F416PC ROTARY ENCODER MECHANICAL 16PPR Honeywell Sensing and Productivity Solutions	2616	20.83	- + Add To Cart Inquiry Now	Datasheet	Bulk	510	Obsolete	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

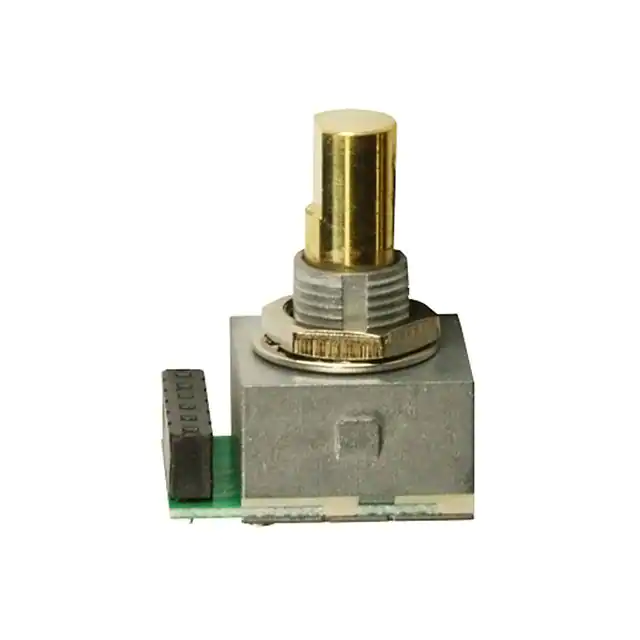

REC16K25-205-B 16MM MANUAL ENCODER, SINGLE SHAF Nidec Copal Electronics	3628	22.66	- + Add To Cart Inquiry Now	Datasheet	Box	REC16K	Active	Optical	Digital, Open Collector	25	5V	6.35mm Dia Flatted End	No	Yes	PCB, Through Hole	Vertical	PC Pin

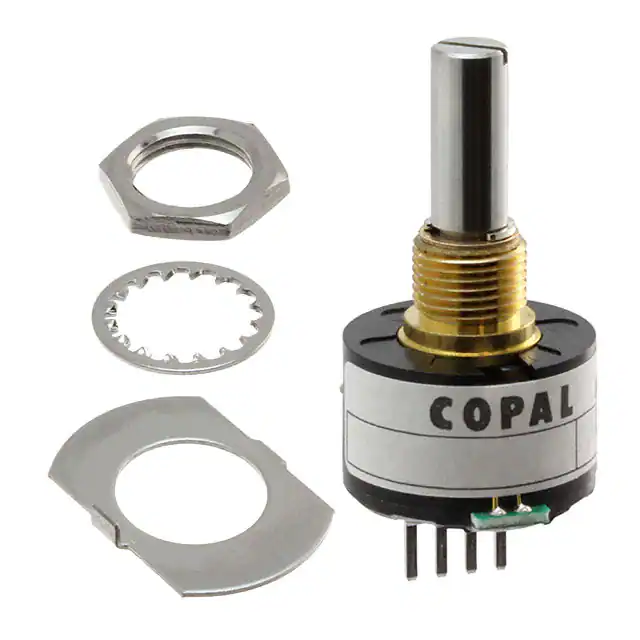

RES20-50-200 ROTARY ENCODER OPTICAL 50PPR Nidec Copal Electronics	2035	28.48	- + Add To Cart Inquiry Now	Datasheet	Tray	RE	Active	Optical	Quadrature (Incremental)	50	5V	Shaft	No	No	Panel, PCB Through Hole	User Selectable	PC Pin
RES20-50-200-Z ROTARY ENCODER OPTICAL 50PPR Nidec Copal Electronics	2278	30.16	- + Add To Cart Inquiry Now	Datasheet	Tray	RE	Active	Optical	Quadrature (Incremental)	50	5V	Shaft	No	No	Panel Mount	User Selectable	PC Pin

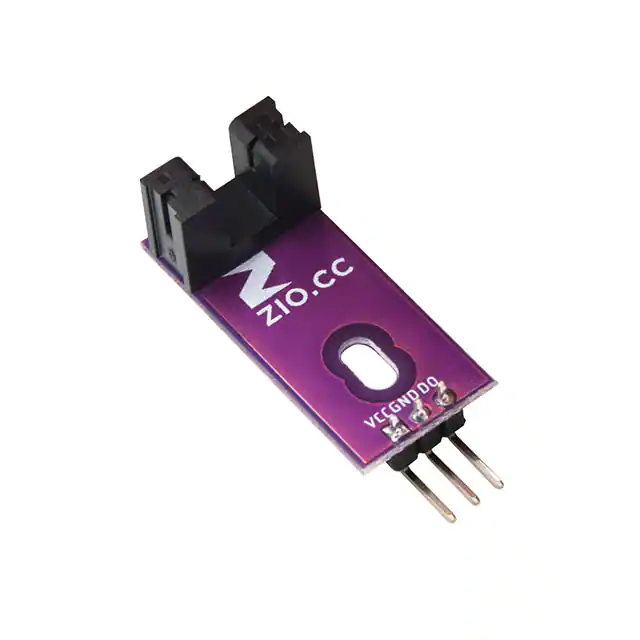

ZIO-101905 ZIO ROTARY ENCODER SENSOR Smart Prototyping	100	3.60	- + Add To Cart Inquiry Now	Datasheet	Bag	-	Active	-	-	-	-	-	-	-	PCB, Through Hole	-	PC Pin
512-14020000002 HOLLOW-SHAFT ENCODER, SMD ddm hopt+schuler	3430	12.73	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Incremental	Pulse	2	24V	Hole for Shaft	Yes	No	Surface Mount	Vertical	SMD (SMT) Tab

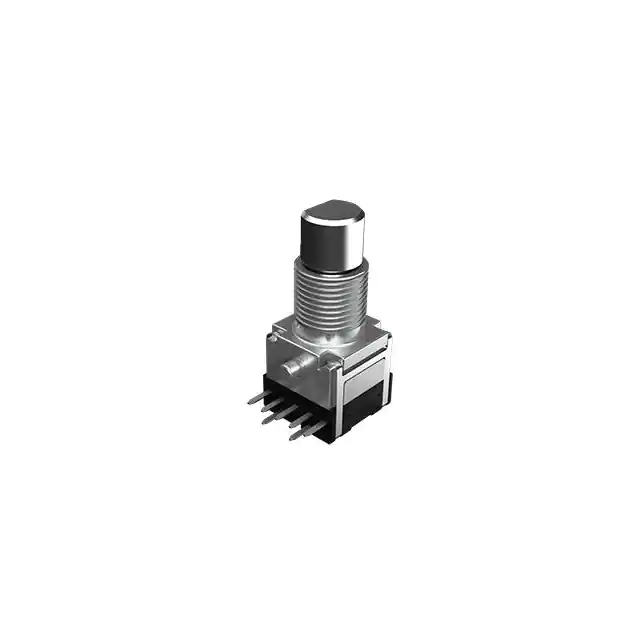

488-1121101B101 16POS., 2-BIT-ENCODER, THT ddm hopt+schuler	2617	25.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Incremental	Pulse	2	5V	5mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Horizontal

Total 4821 Records«Prev 1... 34 35 36 373839 40 41...242 Next»
