Mfr. Part #	Stock	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	ProgrammableType	DelayTimetpd(1)Max	VoltageSupply-Internal	NumberofLogicElements/Blocks	NumberofMacrocells	NumberofGates	NumberofI/O	OperatingTemperature	MountingType
ISPLSI 1024EA-200LT100 IC CPLD 64MC 4.5NS 100TQFP Lattice Semiconductor Corporation	3907	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000EA	Obsolete	In System Programmable	4.5 ns	4.75V ~ 5.25V	24	64	4000	48	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1032-60LT IC CPLD 128MC 20NS 100TQFP Lattice Semiconductor Corporation	2429	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	20 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1032-60LTI IC CPLD 128MC 20NS 100TQFP Lattice Semiconductor Corporation	2425	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	20 ns	4.5V ~ 5.5V	32	128	6000	64	-40°C ~ 85°C (TA)	Surface Mount
ISPLSI 1032-80LT IC CPLD 128MC 15NS 100TQFP Lattice Semiconductor Corporation	2840	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	15 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1032-90LT IC CPLD 128MC 12NS 100TQFP Lattice Semiconductor Corporation	2921	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	12 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount

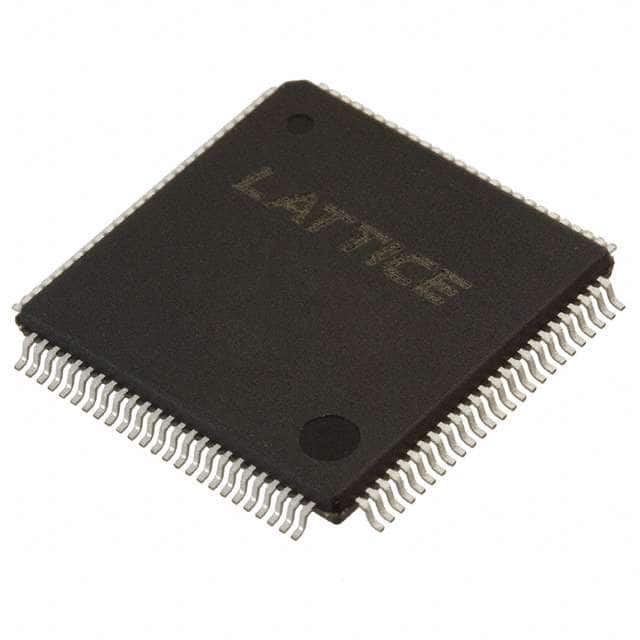

ISPLSI 1032E-100LTN IC CPLD 128MC 10NS 100TQFP Lattice Semiconductor Corporation	2088	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000E	Obsolete	In System Programmable	10 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1032E-125LTN IC CPLD 128MC 7.5NS 100TQFP Lattice Semiconductor Corporation	3677	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000E	Obsolete	In System Programmable	7.5 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1032EA-200LT100 IC CPLD 128MC 4.5NS 100TQFP Lattice Semiconductor Corporation	2119	0.00	- + Add To Cart Inquiry Now	Datasheet	100-LQFP	Tray	ispLSI® 1000EA	Obsolete	In System Programmable	4.5 ns	4.75V ~ 5.25V	32	128	6000	64	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1048-50LQ IC CPLD 192MC 24NS 120QFP Lattice Semiconductor Corporation	3564	0.00	- + Add To Cart Inquiry Now	Datasheet	120-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	24 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1048-50LQI IC CPLD 192MC 24NS 120QFP Lattice Semiconductor Corporation	3462	0.00	- + Add To Cart Inquiry Now	Datasheet	120-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	24 ns	4.5V ~ 5.5V	48	192	8000	96	-40°C ~ 85°C (TA)	Surface Mount
ISPLSI 1048-70LQ IC CPLD 192MC 18NS 120QFP Lattice Semiconductor Corporation	2620	0.00	- + Add To Cart Inquiry Now	Datasheet	120-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	18 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1048C-50LQ IC CPLD 192MC 24NS 128QFP Lattice Semiconductor Corporation	2715	0.00	- + Add To Cart Inquiry Now	Datasheet	128-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	24 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1048C-50LQI IC CPLD 192MC 24NS 128QFP Lattice Semiconductor Corporation	3715	0.00	- + Add To Cart Inquiry Now	Datasheet	128-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	24 ns	4.5V ~ 5.5V	48	192	8000	96	-40°C ~ 85°C (TA)	Surface Mount
ISPLSI 1048C-70LQ IC CPLD 192MC 18NS 128QFP Lattice Semiconductor Corporation	2428	0.00	- + Add To Cart Inquiry Now	Datasheet	128-BQFP	Tray	ispLSI® 1000	Obsolete	In System Programmable	18 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount

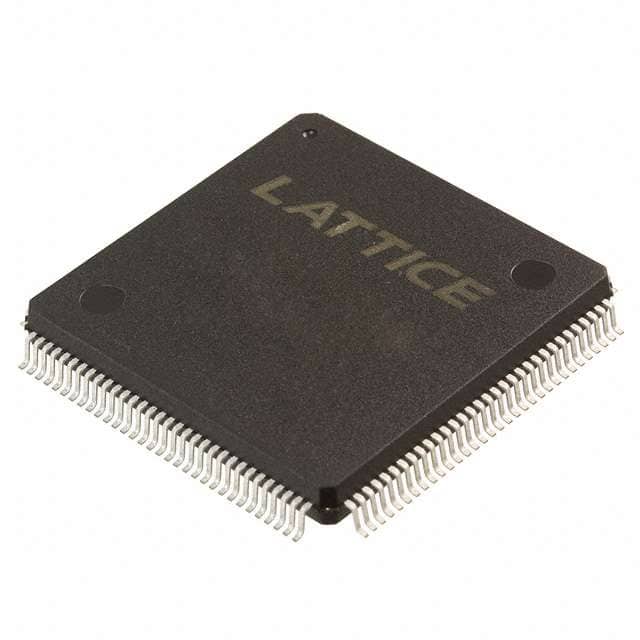

ISPLSI 1048E-100LQN IC CPLD 192MC 10NS 128QFP Lattice Semiconductor Corporation	2995	0.00	- + Add To Cart Inquiry Now	Datasheet	128-BQFP	Tray	ispLSI® 1000E	Obsolete	In System Programmable	10 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount

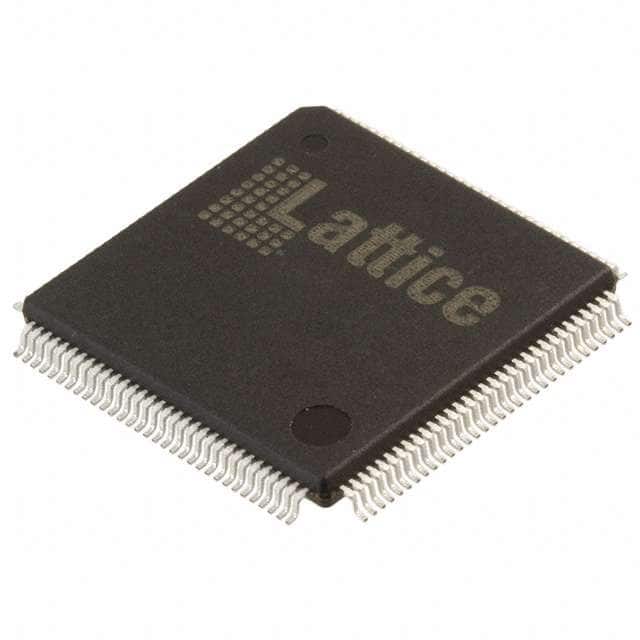

ISPLSI 1048E-100LTN IC CPLD 192MC 10NS 128TQFP Lattice Semiconductor Corporation	3693	0.00	- + Add To Cart Inquiry Now	Datasheet	128-LQFP	Tray	ispLSI® 1000E	Obsolete	In System Programmable	10 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 1048E-125LQN IC CPLD 192MC 7.5NS 128QFP Lattice Semiconductor Corporation	3478	0.00	- + Add To Cart Inquiry Now	Datasheet	128-BQFP	Tray	ispLSI® 1000E	Obsolete	In System Programmable	7.5 ns	4.75V ~ 5.25V	48	192	8000	96	0°C ~ 70°C (TA)	Surface Mount

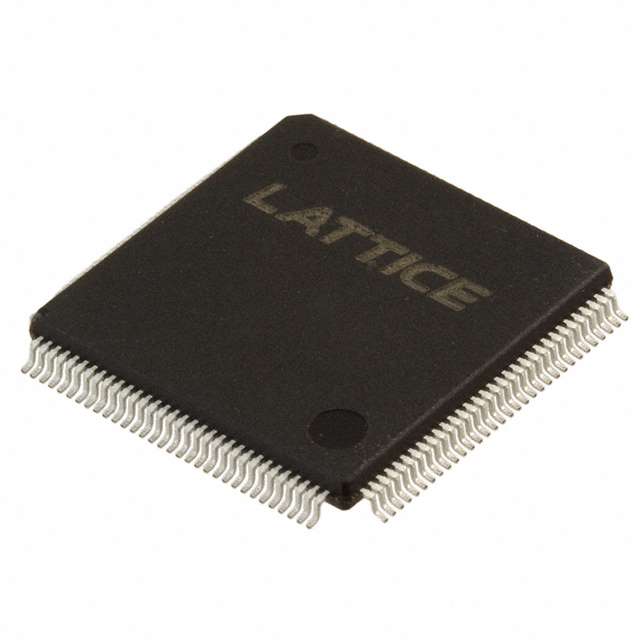

ISPLSI 5256VE-165LT128 IC CPLD 256MC 6NS 128TQFP Lattice Semiconductor Corporation	2313	0.00	- + Add To Cart Inquiry Now	Datasheet	128-LQFP	Tray	ispLSI® 5000VE	Obsolete	In System Programmable	6 ns	3V ~ 3.6V	8	256	12000	96	0°C ~ 70°C (TA)	Surface Mount
ISPLSI 5256VE-80LB272I IC CPLD 256MC 12NS 272BGA Lattice Semiconductor Corporation	3130	0.00	- + Add To Cart Inquiry Now	Datasheet	272-BBGA	Tray	ispLSI® 5000VE	Obsolete	In System Programmable	12 ns	3V ~ 3.6V	8	256	12000	144	-40°C ~ 85°C (TA)	Surface Mount
ISPLSI 5256VE-80LF256I IC CPLD 256MC 12NS 256FBGA Lattice Semiconductor Corporation	1128	131.14	- + Add To Cart Inquiry Now	Datasheet	256-BGA	Tray,Tray	ispLSI® 5000VE	Obsolete	In System Programmable	12 ns	3V ~ 3.6V	8	256	12000	144	-40°C ~ 85°C (TA)	Surface Mount

Total 5034 Records«Prev 1... 122 123 124 125126127 128 129...252 Next»
