Electric Actuators-Cylinders

Home / Electric Actuators-Cylinders/

Manufacturer	Packaging	Series	ProductStatus	Type	MotorType	StrokeLength	LoadForce(Dynamic)	LoadForce(Static)	Speed	DutyCycle	Voltage-Rated	Construction	Accuracy	Acceleration	Features	GearReductionRatio	FeedbackType	TerminationStyle	OperatingTemperature	IngressProtection
	- Box Bulk Retail Package	- 12D (Limit Switch) 12L (Limit Switch) 12Lf (Force Control) 20DAM-K 20DAM-L 26DBM-K 26DBM-L 35DBM-K 35DBM-L 80510 80910 Accurax AE AER AHB ASB ASL B5804 Dash4™ Electric slide drive Glideforce L12 L16 MigaOne® Mini slide MMP LA3 NanoMuscle P16 P8 PA PFCL25 PFL20 PFL35T PQ12 S20 T16 X-LSM-E X-LSQ-E	Active Obsolete	Linear Actuator Linear Actuator (Without Motor) Linear Axis Linear Axis (Without Motor) Rotary Actuator	- Brushed Brushed (Coreless) Piezoelectric Shape Memory Alloy (SMA) Stepper Stepper, Bipolar Stepper, Unipolar Synchronous	- 0.0002 (4.60µm) 0.0003 (8.00µm) 0.0003 (8.50µm) 0.0003 (8.70µm) 0.0004 (10.00µm) 0.0004 (9.00µm) 0.0004 (9.10µm) 0.0005 (13.20µm) 0.0006 (15.60µm) 0.0007 (17.00µm) 0.0007 (17.40µm) 0.0007 (18.40µm) 0.0007 (19.00µm) 0.0008 (20.00µm) 0.0012 (30.00µm) 0.0013 (34.00µm) 0.0015 (39.00µm) 0.0016 (40.00µm) 0.0017 (42.00µm) 0.0020 (50.00µm) 0.0020 (51.00µm) 0.0020 (52.00µm) 0.0022 (55.00µm) 0.0023 (58.00µm) 0.0023 (59.00µm) 0.0024 (60.00µm) 0.0027 (68.00µm) 0.0028 (70.00µm) 0.0030 (77.00µm) 0.0031 (80.00µm) 0.0035 (90.00µm) 0.0037 (95.00µm) 0.0039 (100.00µm) 0.0041 (103.00µm) 0.0043 (110.00µm) 0.0047 (120.00µm) 0.0051 (130.00µm) 0.0055 (140.00µm) 0.160 (4.07mm) 0.197 (5.00mm) 0.228 (5.80mm) 0.236 (6.00mm) 0.354 (9.00mm) 0.394 (10.00mm) 0.520 (13.20mm) 0.591 (15.00mm) 0.705 (17.90mm) 0.787 (20.00mm) 0.866 (22.00mm) 0.984 (25.00mm) 1.063 (27.00mm) 1.181 (30.00mm) 1.575 (40.00mm) 1.890 (48.00mm) 1.969 (50.00mm) 10.000 (254.00mm) 11.811 (300.00mm) 12.000 (304.80mm) 15.748 (400.00mm) 18.000 (457.20mm) 19.685 (500.00mm) 2.000 (50.80mm) 2.087 (53.00mm) 2.500 (63.50mm) 2.953 (75.00mm) 23.622 (600.00mm) 24.000 (609.60mm) 27.008 (686.00mm) 3.150 (80.00mm) 3.563 (90.50mm) 3.937 (100.00mm) 4.000 (101.60mm) 4.921 (125.00mm) 5.512 (140.00mm) 5.906 (150.00mm) 6.000 (152.40mm) 7.874 (200.00mm) 8.000 (203.20mm) 9.843 (250.00mm) ±60°	- 0.17ozin (1.2mN) 0.35ozf (98.1mN) 0.53ozf (147.0mN) 0.71ozf (196.0mN) 1.75lbf (7.8N) 10.12lbf (45.0N) 11.02lbf (49.0N) 11.24lbf (50.0N) 112.40lbf (500.0N) 12.14lbf (54.0N) 12.36lbf (55.0N) 123.46lbf (549.2N) 13.04lbf (58.0N) 13.48lbf (60.0N) 132.28lbf (588.4N) 137.13lbf (610.0N) 15.74lbf (70.0N) 1573.66lbf (7000.0N) 17.99lbf (80.0N) 179.85lbf (800.0N) 18.88lbf (84.0N) 191.09lbf (850.0N) 2.00lbf (8.9N) 2.00ozf (566.0mN) 2.20lbf (9.8N) 2.50lbf (11.1N) 2.70lbf (12.0N) 2.82ozf (785.0mN) 20.23lbf (90.0N) 22.48lbf (100.0N) 224.81lbf (1000.0N) 23.61lbf (105.0N) 24.73lbf (110.0N) 26.97lbf (120.0N) 264.55lbf (1176.8N) 28.78lbf (128.0N) 33.72lbf (150.0N) 35.07lbf (156.0N) 382.18lbf (1700.0N) 4.05lbf (18.0N) 4.50lbf (20.0N) 4.95lbf (22.0N) 44.96lbf (200.0N) 4496.18lbf (20000.0N) 494.58lbf (2200.0N) 5.40lbf (24.0N) 52.91lbf (235.4N) 56.20lbf (250.0N) 562.02lbf (2500.0N) 6.07lbf (27.0N) 67.44lbf (300.0N) 674.43lbf (3000.0N) 7.64lbf (34.0N) 7.87lbf (35.0N) 786.83lbf (3500.0N) 8.54lbf (38.0N) 8.99lbf (40.0N) 809.31lbf (3600.0N) 88.19lbf (392.3N) 9.44lbf (42.0N) 92.17lbf (410.0N) 944.20lbf (4200.0N)	- 0.33lbf (1.5N) 0.55lbf (2.5N) 101.16lbf (450.0N) 1011.64lbf (4500.0N) 11.24lbf (50.0N) 122.40lbf (500.0N) 15.74lbf (70.0N) 19.11lbf (85.0N) 22.48lbf (100.0N) 224.81lbf (1000.0N) 24.73lbf (110.0N) 33.72lbf (150.0N) 4.70lbf (20.9N) 44.96lbf (200.0N) 5.40lbf (24.0N) 517.06lbf (2300.0N) 56.20lbf (250.0N) 562.02lbf (2500.0N) 7.69lbf (34.2N)	- 0.13 in/s (3.3 mm/s) 0.19 in/s (4.8 mm/s) 0.26 in/s (6.6 mm/s) 0.28 in/s (7.0 mm/s) 0.30 in/s (7.7 mm/s) 0.32 in/s (8.0 mm/s) 0.34 in/s (8.5 mm/s) 0.39 in/s (10.0 mm/s) 0.51 in/s (13.0 mm/s) 0.57 in/s (14.5 mm/s) 0.58 in/s (14.7 mm/s) 0.59 in/s (15.0 mm/s) 0.66 in/s (16.8 mm/s) 0.67 in/s (17.1 mm/s) 0.71 in/s (18.0 mm/s) 0.79 in/s (20.0 mm/s) 0.98 in/s (25.0 mm/s) 1.02 in/s (26.0 mm/s) 1.10 in/s (28.0 mm/s) 1.26 in/s (32.0 mm/s) 1.73 in/s (43.9 mm/s) 1.81 in/s (46.0 mm/s) 15.75 in/s (400.0 mm/s) 16.40 ft/s (5.0 m/s) 17.32 in/s (440.0 mm/s) 19.69 in/s (500.0 mm/s) 2.00 in/s (50.8 mm/s) 2.91 in/s (74.0 mm/s) 23.62 in/s (600.0 mm/s) 3.54 in/s (90.0 mm/s) 3.64 in/s (92.4 mm/s) 31.496 in/s (800 mm/s) 31.50 in/s (800.0 mm/s) 4.85 in/s (123.2 mm/s) 5.24 in/s (133.0 mm/s) 7.09 in/s (180.0 mm/s) 7.165 in/s (182 mm/s) 7.40 in/s (188.0 mm/s) 7.48 in/s (190.0 mm/s) 8.27 in/s (210.0 mm/s) 8.66 in/s (220.0 mm/s) 9.06 in/s (230.0 mm/s) 9.45 in/s (240.0 mm/s) 9.84 in/s (250.0 mm/s)	- 100% 20% 25% 50%	- 115VAC 12.7VDC 12VDC 150VDC 160VDC 230, 400VAC 230VAC 24 ~ 48VDC 24VDC 3.3 ~ 5VDC 3.9VDC 3VDC 4.2VDC 4.5 ~ 6VDC 4.8 ~ 6VDC 4VDC 5 ~ 30VDC 5.6VDC 5VDC 6VDC 7VDC	- ACME Screw Ball Screw Belt Driven Linear Motor Rack and Pinion	- 100µm 15µm 230µm ±0.10mm ±0.20mm ±0.30mm ±0.40mm ±0.50mm ±0.60mm ±0.80mm ±1.20mm ±10µm ±15µm ±1um ±20µm ±2µm ±50µm ±60µm ±80µm	- 1.50 m/s² 15.00 m/s² 5.00 m/s² 9.00 m/s²	- Includes Controller Integrated Controller Integrated Controller, Limit Switches Limit Switches RC Linear Servo	- 10 100 150 165 20 210 22 256 30 35 49 5 50 63 64	- Absolute Encoder Incremental Encoder Potentiometer	- Cable Leads Cable with Connector Connector FPCB Pin Header Solder Solder Tab Wire Leads Wire Leads with Connector	- -10°C ~ 40°C -10°C ~ 50°C -10°C ~ 60°C -20°C ~ 50°C -20°C ~ 70°C -25°C ~ 65°C -25°C ~ 85°C -26°C ~ 65°C -29°C ~ 60°C -40°C ~ 150°C -5°C ~ 75°C 0°C ~ 50°C 0°C ~ 60°C	- IP40 IP54 - Dust Protected, Water Resistant IP65 - Dust Tight, Water Resistant

Reset All

Apply All

Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	MotorType	StrokeLength	LoadForce(Dynamic)	LoadForce(Static)	Speed	DutyCycle	Voltage-Rated	Construction	Accuracy	Acceleration	Features	GearReductionRatio	FeedbackType	TerminationStyle	OperatingTemperature	IngressProtection

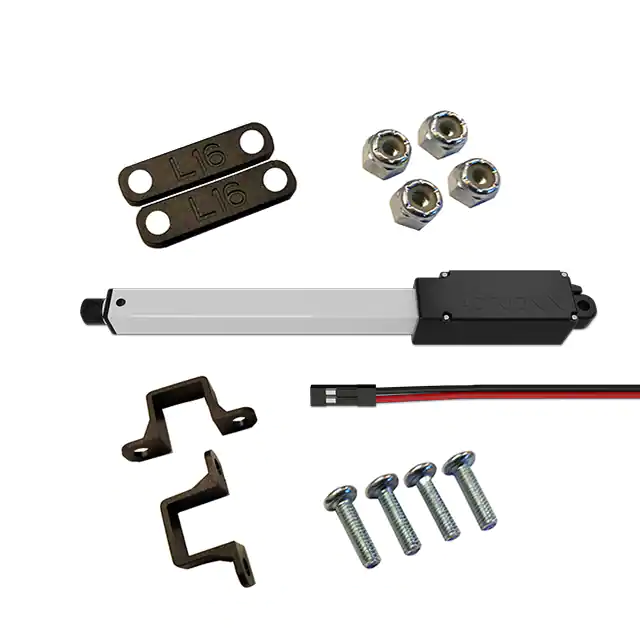

L16-100-150-12-S L16-S MINIATURE LINEAR ACTUATOR Actuonix Motion Devices Inc	2220	90.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	L16	Active	Linear Actuator	Brushed	3.937 (100.00mm)	44.96lbf (200.0N)	56.20lbf (250.0N)	0.32 in/s (8.0 mm/s)	20%	12VDC	Ball Screw	±0.40mm	-	Limit Switches	150	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant

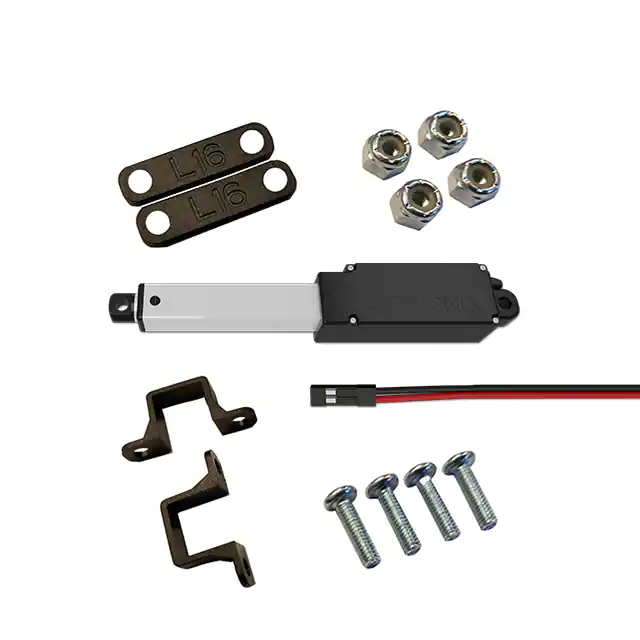

L16-50-35-12-S L16-S MINIATURE LINEAR ACTUATOR Actuonix Motion Devices Inc	3751	90.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	L16	Active	Linear Actuator	Brushed	1.969 (50.00mm)	11.24lbf (50.0N)	56.20lbf (250.0N)	1.26 in/s (32.0 mm/s)	20%	12VDC	Ball Screw	±0.30mm	-	Limit Switches	35	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant

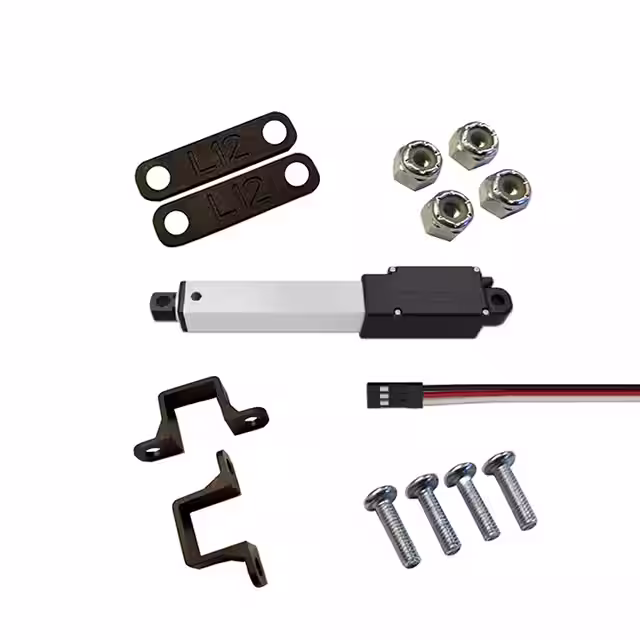

L12-50-210-6-R L12 -R MICRO LINEAR SERVO Actuonix Motion Devices Inc	2097	90.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	L12	Active	Linear Actuator	Brushed	1.969 (50.00mm)	17.99lbf (80.0N)	44.96lbf (200.0N)	0.26 in/s (6.6 mm/s)	20%	6VDC	Ball Screw	±0.30mm	-	RC Linear Servo	210	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant

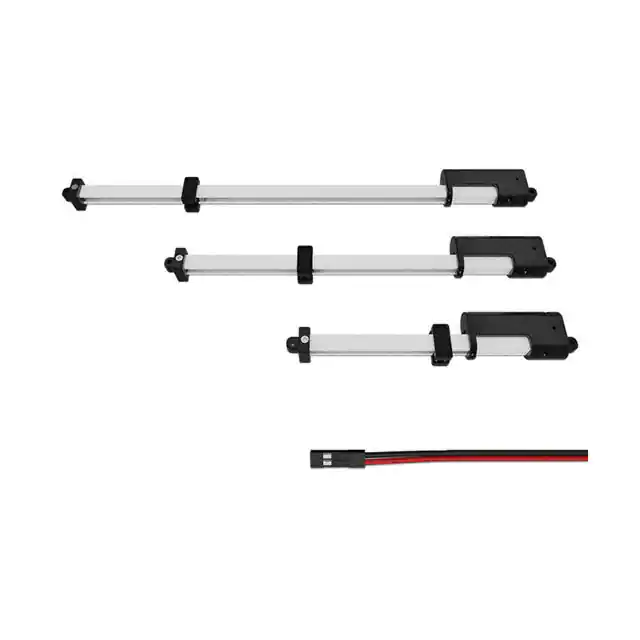

T16-100-64-12-S T16-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3230	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	T16	Active	Linear Actuator	Brushed	3.937 (100.00mm)	20.23lbf (90.0N)	122.40lbf (500.0N)	0.71 in/s (18.0 mm/s)	20%	12VDC	Ball Screw	±0.40mm	-	Limit Switches	64	-	Wire Leads with Connector	-10°C ~ 50°C	-
L12-100-210-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3860	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	3.937 (100.00mm)	17.99lbf (80.0N)	44.96lbf (200.0N)	0.26 in/s (6.6 mm/s)	20%	6VDC	Ball Screw	±0.50mm	-	Limit Switches	210	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-30-100-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3609	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	1.181 (30.00mm)	9.44lbf (42.0N)	44.96lbf (200.0N)	0.51 in/s (13.0 mm/s)	20%	6VDC	Ball Screw	±0.20mm	-	Limit Switches	100	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
T16-200-256-12-S T16-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	2464	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	T16	Active	Linear Actuator	Brushed	7.874 (200.00mm)	67.44lbf (300.0N)	122.40lbf (500.0N)	0.19 in/s (4.8 mm/s)	20%	12VDC	Ball Screw	±0.80mm	-	Limit Switches	256	-	Wire Leads with Connector	-10°C ~ 50°C	-
L12-100-50-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3493	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	3.937 (100.00mm)	4.95lbf (22.0N)	44.96lbf (200.0N)	0.98 in/s (25.0 mm/s)	20%	6VDC	Ball Screw	±0.50mm	-	Limit Switches	50	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-10-50-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	2075	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	0.394 (10.00mm)	4.95lbf (22.0N)	44.96lbf (200.0N)	0.98 in/s (25.0 mm/s)	20%	6VDC	Ball Screw	±0.10mm	-	Limit Switches	50	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
T16-100-64-12-P T16-P MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3895	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	T16	Active	Linear Actuator	Brushed	3.937 (100.00mm)	20.23lbf (90.0N)	122.40lbf (500.0N)	0.71 in/s (18.0 mm/s)	20%	12VDC	Ball Screw	±0.40mm	-	-	64	Potentiometer	Wire Leads with Connector	-10°C ~ 50°C	-
PQ12-100-6-P PQ12-P MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3250	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	PQ12	Active	Linear Actuator	Brushed	0.787 (20.00mm)	11.24lbf (50.0N)	-	0.39 in/s (10.0 mm/s)	20%	6VDC	Ball Screw	±0.10mm	-	-	100	Potentiometer	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-50-50-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	2563	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	1.969 (50.00mm)	4.95lbf (22.0N)	44.96lbf (200.0N)	0.98 in/s (25.0 mm/s)	20%	6VDC	Ball Screw	±0.30mm	-	Limit Switches	50	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-100-100-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3066	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	3.937 (100.00mm)	9.44lbf (42.0N)	44.96lbf (200.0N)	0.51 in/s (13.0 mm/s)	20%	6VDC	Ball Screw	±0.50mm	-	Limit Switches	100	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-50-210-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3641	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	1.969 (50.00mm)	17.99lbf (80.0N)	44.96lbf (200.0N)	0.26 in/s (6.6 mm/s)	20%	6VDC	Ball Screw	±0.30mm	-	Limit Switches	210	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-30-50-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3008	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	1.181 (30.00mm)	4.95lbf (22.0N)	44.96lbf (200.0N)	0.98 in/s (25.0 mm/s)	20%	6VDC	Ball Screw	±0.20mm	-	Limit Switches	50	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-10-100-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	2116	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	0.394 (10.00mm)	9.44lbf (42.0N)	44.96lbf (200.0N)	0.51 in/s (13.0 mm/s)	20%	6VDC	Ball Screw	±0.10mm	-	Limit Switches	100	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
L12-30-210-6-S L12-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3555	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	L12	Active	Linear Actuator	Brushed	1.181 (30.00mm)	17.99lbf (80.0N)	44.96lbf (200.0N)	0.26 in/s (6.6 mm/s)	20%	6VDC	Ball Screw	±0.20mm	-	Limit Switches	210	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant
T16-100-256-12-S T16-S MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	3428	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	T16	Active	Linear Actuator	Brushed	3.937 (100.00mm)	67.44lbf (300.0N)	122.40lbf (500.0N)	0.19 in/s (4.8 mm/s)	20%	12VDC	Ball Screw	±0.40mm	-	Limit Switches	256	-	Wire Leads with Connector	-10°C ~ 50°C	-
T16-200-256-12-P T16-P MICRO LINEAR ACTUATOR Actuonix Motion Devices Inc	2475	90.00	- + Add To Cart Inquiry Now	Datasheet	Retail Package	T16	Active	Linear Actuator	Brushed	7.874 (200.00mm)	67.44lbf (300.0N)	122.40lbf (500.0N)	0.19 in/s (4.8 mm/s)	20%	12VDC	Ball Screw	±0.80mm	-	-	256	Potentiometer	Wire Leads with Connector	-10°C ~ 50°C	-

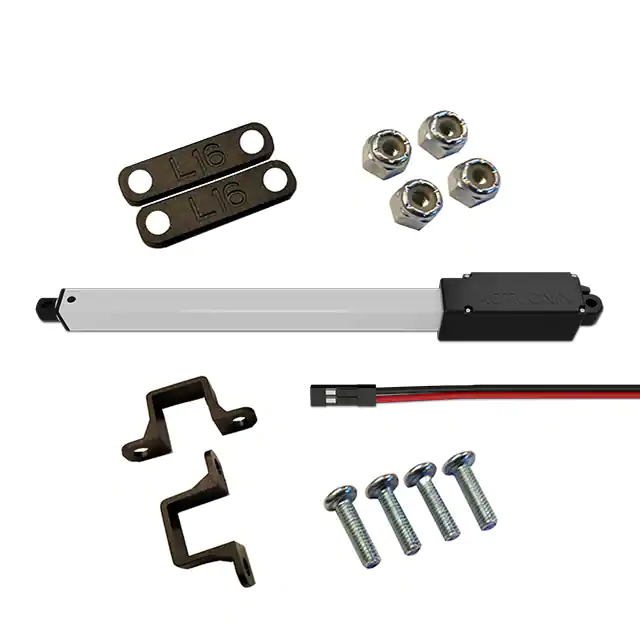

L16-140-35-12-S L16-S MINIATURE LINEAR ACTUATOR Actuonix Motion Devices Inc	2093	90.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	L16	Active	Linear Actuator	Brushed	5.512 (140.00mm)	11.24lbf (50.0N)	56.20lbf (250.0N)	1.26 in/s (32.0 mm/s)	20%	12VDC	Ball Screw	±0.50mm	-	Limit Switches	35	-	Wire Leads with Connector	-10°C ~ 50°C	IP54 - Dust Protected, Water Resistant

Total 544 Records«Prev 1 234 5 6...28 Next»
