Electric Actuators-Cylinders

Home / Electric Actuators-Cylinders/

Manufacturer	Packaging	Series	ProductStatus	Type	MotorType	StrokeLength	LoadForce(Dynamic)	LoadForce(Static)	Speed	DutyCycle	Voltage-Rated	Construction	Accuracy	Acceleration	Features	GearReductionRatio	FeedbackType	TerminationStyle	OperatingTemperature	IngressProtection
	- Box Bulk Retail Package	- 12D (Limit Switch) 12L (Limit Switch) 12Lf (Force Control) 20DAM-K 20DAM-L 26DBM-K 26DBM-L 35DBM-K 35DBM-L 80510 80910 Accurax AE AER AHB ASB ASL B5804 Dash4™ Electric slide drive Glideforce L12 L16 MigaOne® Mini slide MMP LA3 NanoMuscle P16 P8 PA PFCL25 PFL20 PFL35T PQ12 S20 T16 X-LSM-E X-LSQ-E	Active Obsolete	Linear Actuator Linear Actuator (Without Motor) Linear Axis Linear Axis (Without Motor) Rotary Actuator	- Brushed Brushed (Coreless) Piezoelectric Shape Memory Alloy (SMA) Stepper Stepper, Bipolar Stepper, Unipolar Synchronous	- 0.0002 (4.60µm) 0.0003 (8.00µm) 0.0003 (8.50µm) 0.0003 (8.70µm) 0.0004 (10.00µm) 0.0004 (9.00µm) 0.0004 (9.10µm) 0.0005 (13.20µm) 0.0006 (15.60µm) 0.0007 (17.00µm) 0.0007 (17.40µm) 0.0007 (18.40µm) 0.0007 (19.00µm) 0.0008 (20.00µm) 0.0012 (30.00µm) 0.0013 (34.00µm) 0.0015 (39.00µm) 0.0016 (40.00µm) 0.0017 (42.00µm) 0.0020 (50.00µm) 0.0020 (51.00µm) 0.0020 (52.00µm) 0.0022 (55.00µm) 0.0023 (58.00µm) 0.0023 (59.00µm) 0.0024 (60.00µm) 0.0027 (68.00µm) 0.0028 (70.00µm) 0.0030 (77.00µm) 0.0031 (80.00µm) 0.0035 (90.00µm) 0.0037 (95.00µm) 0.0039 (100.00µm) 0.0041 (103.00µm) 0.0043 (110.00µm) 0.0047 (120.00µm) 0.0051 (130.00µm) 0.0055 (140.00µm) 0.160 (4.07mm) 0.197 (5.00mm) 0.228 (5.80mm) 0.236 (6.00mm) 0.354 (9.00mm) 0.394 (10.00mm) 0.520 (13.20mm) 0.591 (15.00mm) 0.705 (17.90mm) 0.787 (20.00mm) 0.866 (22.00mm) 0.984 (25.00mm) 1.063 (27.00mm) 1.181 (30.00mm) 1.575 (40.00mm) 1.890 (48.00mm) 1.969 (50.00mm) 10.000 (254.00mm) 11.811 (300.00mm) 12.000 (304.80mm) 15.748 (400.00mm) 18.000 (457.20mm) 19.685 (500.00mm) 2.000 (50.80mm) 2.087 (53.00mm) 2.500 (63.50mm) 2.953 (75.00mm) 23.622 (600.00mm) 24.000 (609.60mm) 27.008 (686.00mm) 3.150 (80.00mm) 3.563 (90.50mm) 3.937 (100.00mm) 4.000 (101.60mm) 4.921 (125.00mm) 5.512 (140.00mm) 5.906 (150.00mm) 6.000 (152.40mm) 7.874 (200.00mm) 8.000 (203.20mm) 9.843 (250.00mm) ±60°	- 0.17ozin (1.2mN) 0.35ozf (98.1mN) 0.53ozf (147.0mN) 0.71ozf (196.0mN) 1.75lbf (7.8N) 10.12lbf (45.0N) 11.02lbf (49.0N) 11.24lbf (50.0N) 112.40lbf (500.0N) 12.14lbf (54.0N) 12.36lbf (55.0N) 123.46lbf (549.2N) 13.04lbf (58.0N) 13.48lbf (60.0N) 132.28lbf (588.4N) 137.13lbf (610.0N) 15.74lbf (70.0N) 1573.66lbf (7000.0N) 17.99lbf (80.0N) 179.85lbf (800.0N) 18.88lbf (84.0N) 191.09lbf (850.0N) 2.00lbf (8.9N) 2.00ozf (566.0mN) 2.20lbf (9.8N) 2.50lbf (11.1N) 2.70lbf (12.0N) 2.82ozf (785.0mN) 20.23lbf (90.0N) 22.48lbf (100.0N) 224.81lbf (1000.0N) 23.61lbf (105.0N) 24.73lbf (110.0N) 26.97lbf (120.0N) 264.55lbf (1176.8N) 28.78lbf (128.0N) 33.72lbf (150.0N) 35.07lbf (156.0N) 382.18lbf (1700.0N) 4.05lbf (18.0N) 4.50lbf (20.0N) 4.95lbf (22.0N) 44.96lbf (200.0N) 4496.18lbf (20000.0N) 494.58lbf (2200.0N) 5.40lbf (24.0N) 52.91lbf (235.4N) 56.20lbf (250.0N) 562.02lbf (2500.0N) 6.07lbf (27.0N) 67.44lbf (300.0N) 674.43lbf (3000.0N) 7.64lbf (34.0N) 7.87lbf (35.0N) 786.83lbf (3500.0N) 8.54lbf (38.0N) 8.99lbf (40.0N) 809.31lbf (3600.0N) 88.19lbf (392.3N) 9.44lbf (42.0N) 92.17lbf (410.0N) 944.20lbf (4200.0N)	- 0.33lbf (1.5N) 0.55lbf (2.5N) 101.16lbf (450.0N) 1011.64lbf (4500.0N) 11.24lbf (50.0N) 122.40lbf (500.0N) 15.74lbf (70.0N) 19.11lbf (85.0N) 22.48lbf (100.0N) 224.81lbf (1000.0N) 24.73lbf (110.0N) 33.72lbf (150.0N) 4.70lbf (20.9N) 44.96lbf (200.0N) 5.40lbf (24.0N) 517.06lbf (2300.0N) 56.20lbf (250.0N) 562.02lbf (2500.0N) 7.69lbf (34.2N)	- 0.13 in/s (3.3 mm/s) 0.19 in/s (4.8 mm/s) 0.26 in/s (6.6 mm/s) 0.28 in/s (7.0 mm/s) 0.30 in/s (7.7 mm/s) 0.32 in/s (8.0 mm/s) 0.34 in/s (8.5 mm/s) 0.39 in/s (10.0 mm/s) 0.51 in/s (13.0 mm/s) 0.57 in/s (14.5 mm/s) 0.58 in/s (14.7 mm/s) 0.59 in/s (15.0 mm/s) 0.66 in/s (16.8 mm/s) 0.67 in/s (17.1 mm/s) 0.71 in/s (18.0 mm/s) 0.79 in/s (20.0 mm/s) 0.98 in/s (25.0 mm/s) 1.02 in/s (26.0 mm/s) 1.10 in/s (28.0 mm/s) 1.26 in/s (32.0 mm/s) 1.73 in/s (43.9 mm/s) 1.81 in/s (46.0 mm/s) 15.75 in/s (400.0 mm/s) 16.40 ft/s (5.0 m/s) 17.32 in/s (440.0 mm/s) 19.69 in/s (500.0 mm/s) 2.00 in/s (50.8 mm/s) 2.91 in/s (74.0 mm/s) 23.62 in/s (600.0 mm/s) 3.54 in/s (90.0 mm/s) 3.64 in/s (92.4 mm/s) 31.496 in/s (800 mm/s) 31.50 in/s (800.0 mm/s) 4.85 in/s (123.2 mm/s) 5.24 in/s (133.0 mm/s) 7.09 in/s (180.0 mm/s) 7.165 in/s (182 mm/s) 7.40 in/s (188.0 mm/s) 7.48 in/s (190.0 mm/s) 8.27 in/s (210.0 mm/s) 8.66 in/s (220.0 mm/s) 9.06 in/s (230.0 mm/s) 9.45 in/s (240.0 mm/s) 9.84 in/s (250.0 mm/s)	- 100% 20% 25% 50%	- 115VAC 12.7VDC 12VDC 150VDC 160VDC 230, 400VAC 230VAC 24 ~ 48VDC 24VDC 3.3 ~ 5VDC 3.9VDC 3VDC 4.2VDC 4.5 ~ 6VDC 4.8 ~ 6VDC 4VDC 5 ~ 30VDC 5.6VDC 5VDC 6VDC 7VDC	- ACME Screw Ball Screw Belt Driven Linear Motor Rack and Pinion	- 100µm 15µm 230µm ±0.10mm ±0.20mm ±0.30mm ±0.40mm ±0.50mm ±0.60mm ±0.80mm ±1.20mm ±10µm ±15µm ±1um ±20µm ±2µm ±50µm ±60µm ±80µm	- 1.50 m/s² 15.00 m/s² 5.00 m/s² 9.00 m/s²	- Includes Controller Integrated Controller Integrated Controller, Limit Switches Limit Switches RC Linear Servo	- 10 100 150 165 20 210 22 256 30 35 49 5 50 63 64	- Absolute Encoder Incremental Encoder Potentiometer	- Cable Leads Cable with Connector Connector FPCB Pin Header Solder Solder Tab Wire Leads Wire Leads with Connector	- -10°C ~ 40°C -10°C ~ 50°C -10°C ~ 60°C -20°C ~ 50°C -20°C ~ 70°C -25°C ~ 65°C -25°C ~ 85°C -26°C ~ 65°C -29°C ~ 60°C -40°C ~ 150°C -5°C ~ 75°C 0°C ~ 50°C 0°C ~ 60°C	- IP40 IP54 - Dust Protected, Water Resistant IP65 - Dust Tight, Water Resistant

Reset All

Apply All

Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	MotorType	StrokeLength	LoadForce(Dynamic)	LoadForce(Static)	Speed	DutyCycle	Voltage-Rated	Construction	Accuracy	Acceleration	Features	GearReductionRatio	FeedbackType	TerminationStyle	OperatingTemperature	IngressProtection

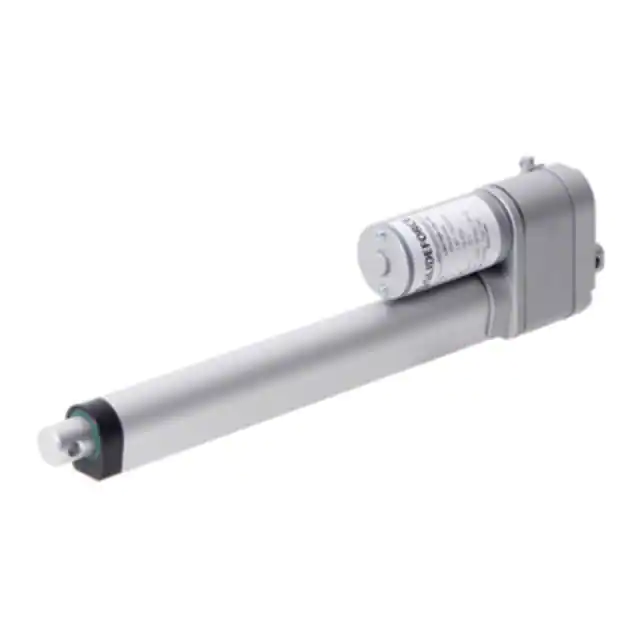

2309 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2085	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	8.000 (203.20mm)	112.40lbf (500.0N)	562.02lbf (2500.0N)	0.57 in/s (14.5 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2321 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3989	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	6.000 (152.40mm)	33.72lbf (150.0N)	562.02lbf (2500.0N)	1.73 in/s (43.9 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	5	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3653 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2319	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	12.000 (304.80mm)	56.20lbf (250.0N)	562.02lbf (2500.0N)	1.10 in/s (28.0 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	10	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2313 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2931	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	12.000 (304.80mm)	112.40lbf (500.0N)	562.02lbf (2500.0N)	0.57 in/s (14.5 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2317 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2685	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	2.000 (50.80mm)	33.72lbf (150.0N)	562.02lbf (2500.0N)	1.73 in/s (43.9 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	5	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3649 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3047	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	8.000 (203.20mm)	56.20lbf (250.0N)	562.02lbf (2500.0N)	1.10 in/s (28.0 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	10	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3645 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3905	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	4.000 (101.60mm)	56.20lbf (250.0N)	562.02lbf (2500.0N)	1.10 in/s (28.0 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	10	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3651 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3088	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	10.000 (254.00mm)	56.20lbf (250.0N)	562.02lbf (2500.0N)	1.10 in/s (28.0 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	10	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2323 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3064	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	8.000 (203.20mm)	33.72lbf (150.0N)	562.02lbf (2500.0N)	1.73 in/s (43.9 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	5	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3643 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2058	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	2.000 (50.80mm)	56.20lbf (250.0N)	562.02lbf (2500.0N)	1.10 in/s (28.0 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	10	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2307 SERVOMOTOR RC 6V GLIDEFORCE Pololu Corporation	3268	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	6.000 (152.40mm)	112.40lbf (500.0N)	562.02lbf (2500.0N)	0.57 in/s (14.5 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
2325 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3979	185.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	10.000 (254.00mm)	33.72lbf (150.0N)	562.02lbf (2500.0N)	1.73 in/s (43.9 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	5	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant

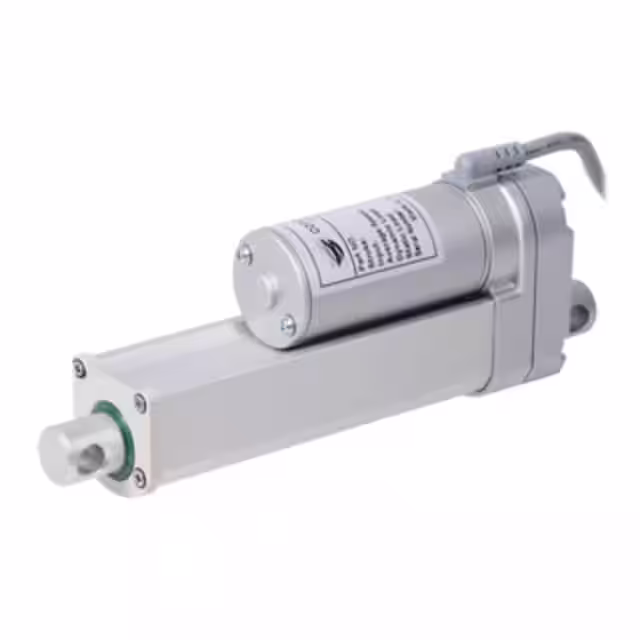

3613 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3098	257.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	4.000 (101.60mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	-	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3615 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3725	261.75	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	6.000 (152.40mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	-	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant

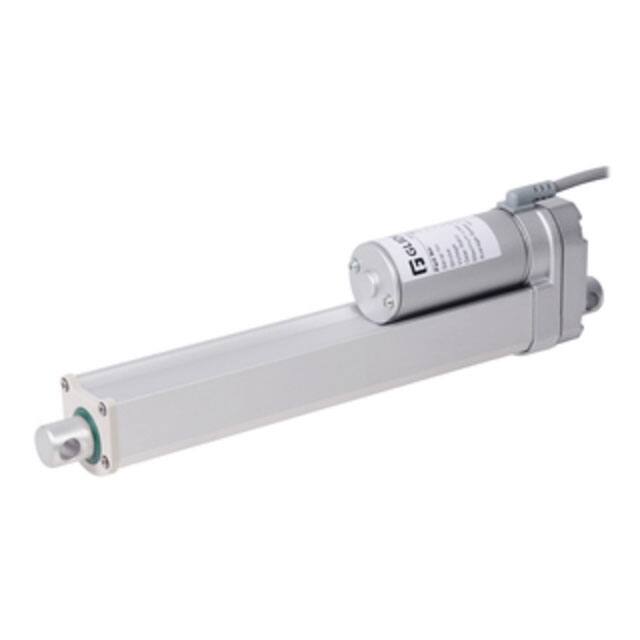

3617 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3363	267.45	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	8.000 (203.20mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	-	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant

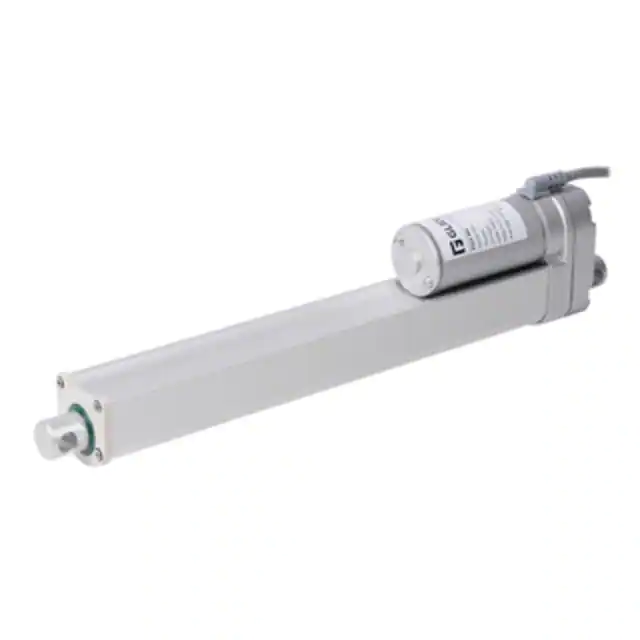

3619 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3637	269.75	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	10.000 (254.00mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	-	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
AE0505D04D-H0F PIEZO ACTUATOR, AE, RESIN, 4.6M KEMET	2149	7.00	- + Add To Cart Inquiry Now	Datasheet	Box	AE	Active	Linear Actuator	Piezoelectric	0.0002 (4.60µm)	137.13lbf (610.0N)	-	-	-	150VDC	-	-	-	-	-	-	Wire Leads	-25°C ~ 85°C

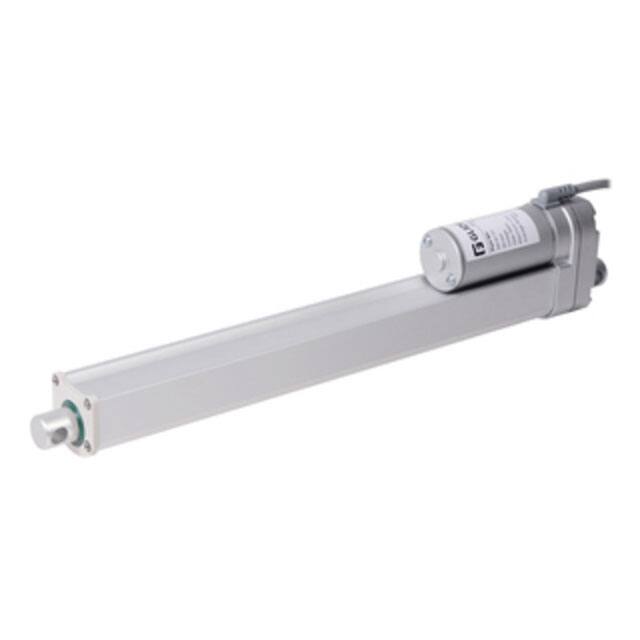

3621 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	2098	275.45	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	12.000 (304.80mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	-	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant

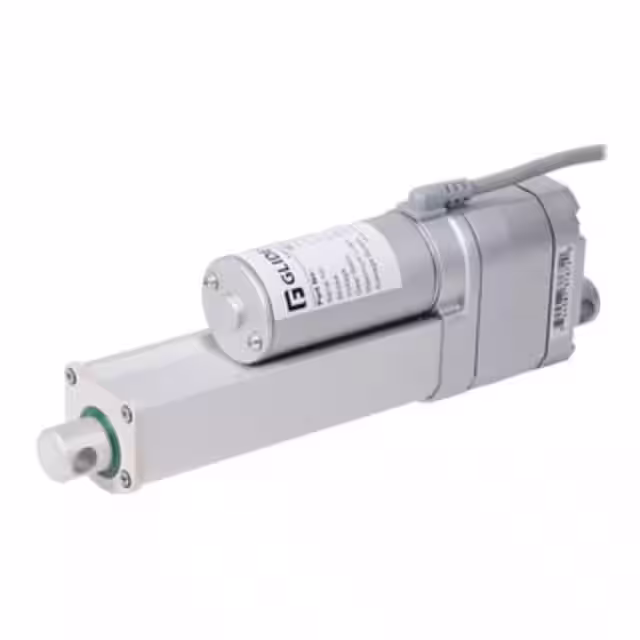

3612 LINEAR ACTUATOR MOTOR 12V Pololu Corporation	3316	294.75	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	4.000 (101.60mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant
3614 SERVOMOTOR RC 120 RPM 6V Pololu Corporation	3577	298.25	- + Add To Cart Inquiry Now	Datasheet	-	Glideforce	Active	Linear Actuator	Brushed	6.000 (152.40mm)	224.81lbf (1000.0N)	1011.64lbf (4500.0N)	0.58 in/s (14.7 mm/s)	25%	12VDC	Ball Screw	-	-	Limit Switches	20	Potentiometer	Cable with Connector	-25°C ~ 65°C	IP65 - Dust Tight, Water Resistant

Total 544 Records«Prev 1... 10 11 12 131415 16 17...28 Next»
