Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Circuit	NumberofPositions	CurrentRating(Amps)	VoltageRating	ActuatorType	ActuatorLevel	ContactMaterial	ContactFinish	HeightAboveBoard	MountingType	TerminationStyle	Pitch	Washable	Features
DS04-254-1-01BK-SMT DIP SWITCH SPST 2.54 PITCH CUI Devices	2942	0.76	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254-SMT	Active	SPST	1	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.189 (4.80mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	No	-
DS04-254-1-03BK-SMT DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	1411	0.80	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254-SMT	Active	SPST	3	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.189 (4.80mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	No	-
206-7 SWITCH SLIDE DIP SPST 50MA 24V CTS Electrocomponents	4970	1.01	- + Add To Cart Inquiry Now	Datasheet	Tube	206	Active	SPST	7	50mA	24VDC	Slide (Standard)	Raised	-	Gold	0.334 (8.48mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-
7814J-1-023E SWITCH ROTARY DIP SPDT 100MA 16V Bourns Inc.	3714	1.70	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	7814	Active	SPDT	2	100mA	16VAC/DC	Rotary for Tool	Flush, Recessed	-	-	0.100 (2.54mm)	Surface Mount	J Lead	-	No	-

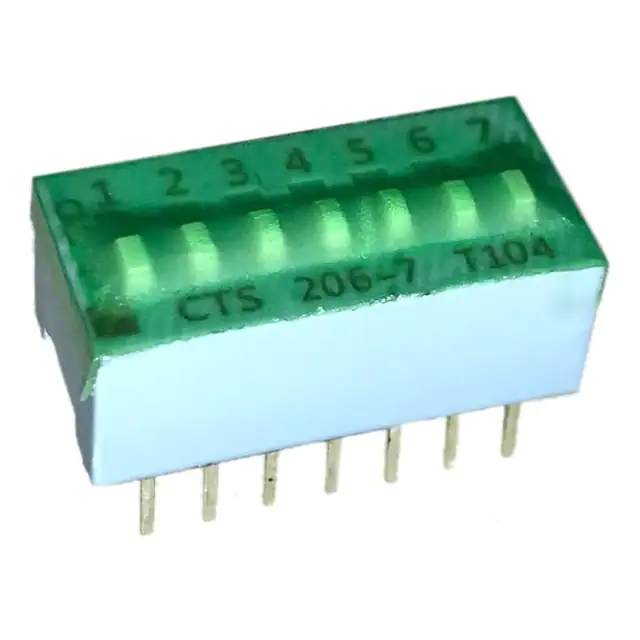

206-7ST SWITCH SLIDE DIP SPST 50MA 24V CTS Electrocomponents	9256	1.13	- + Add To Cart Inquiry Now	Datasheet	Tube	206	Active	SPST	7	50mA	24VDC	Slide (Standard)	Raised	-	Gold	0.334 (8.48mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	Yes	Epoxy Sealed Terminals, Tape Seal

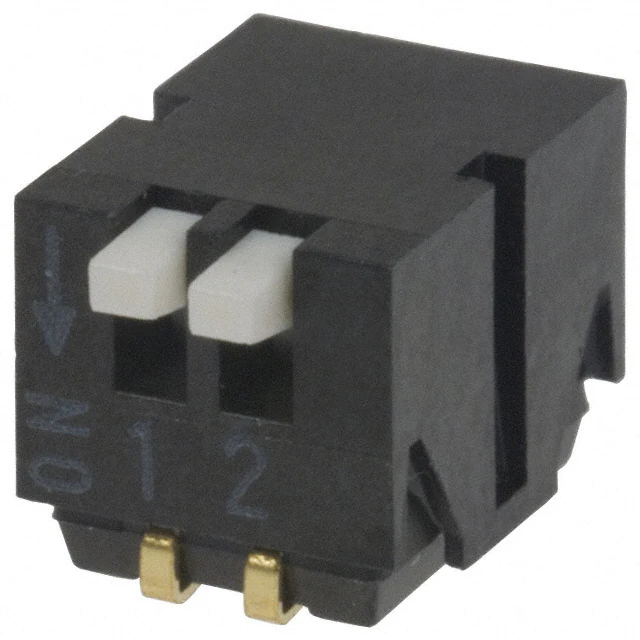

CHP-021TA SWITCH PIANO DIP SPST 100MA 6V Nidec Copal Electronics	2738	1.80	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CHP	Active	SPST	2	100mA	6VDC	Piano	Raised	Copper Alloy	Gold	0.181 (4.60mm)	Surface Mount, Right Angle	J Lead	0.050 (1.27mm), Half	No	-

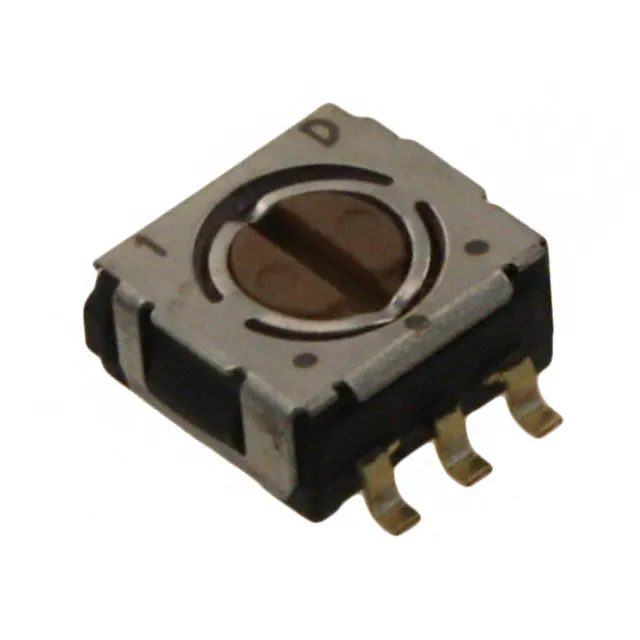

CS-4-13NTB SWITCH ROTARY DIP SP3T 100MA 16V Nidec Copal Electronics	3074	1.83	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CS-4	Active	SP3T	3	100mA	16VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.091 (2.30mm)	Surface Mount	Gull Wing	0.051 (1.30mm)	Yes	-

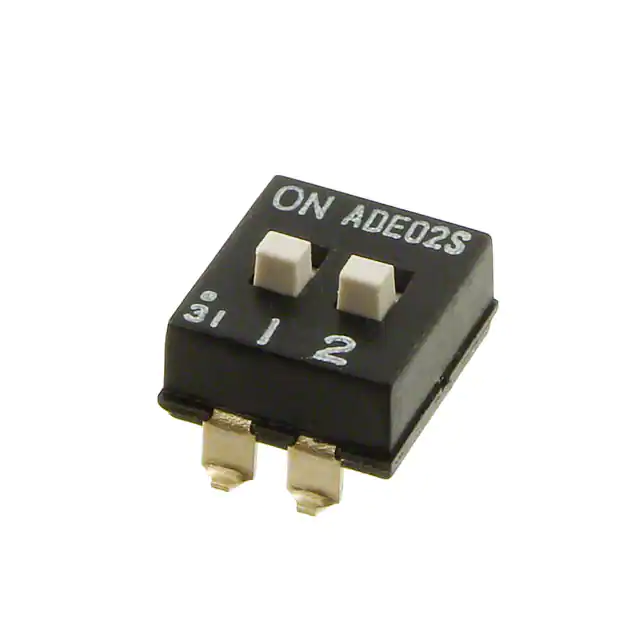

1825058-1 SWITCH SLIDE DIP SPST 100MA 24V TE Connectivity ALCOSWITCH Switches	35418	1.29	- + Add To Cart Inquiry Now	Datasheet	Bulk	ADE	Active	SPST	2	100mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.217 (5.50mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	-

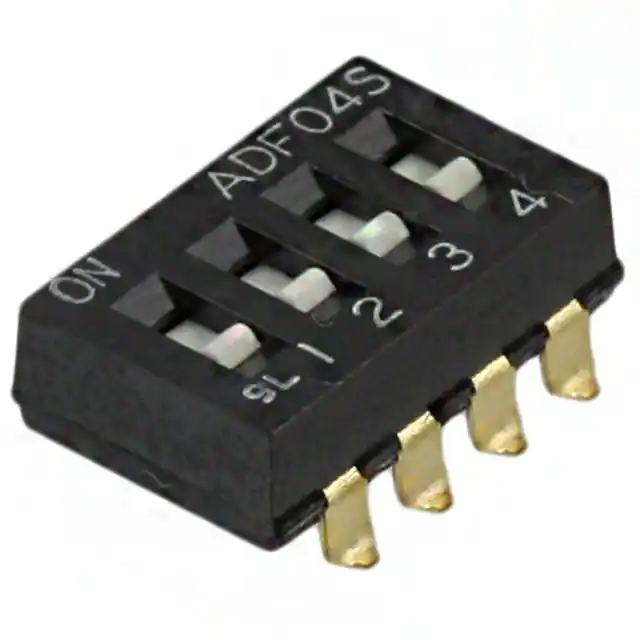

1-1825059-7 SWITCH SLIDE DIP SPST 25MA 24V TE Connectivity ALCOSWITCH Switches	20608	1.33	- + Add To Cart Inquiry Now	Datasheet	Tube	ADF	Active	SPST	4	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.177 (4.50mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	Tape Seal

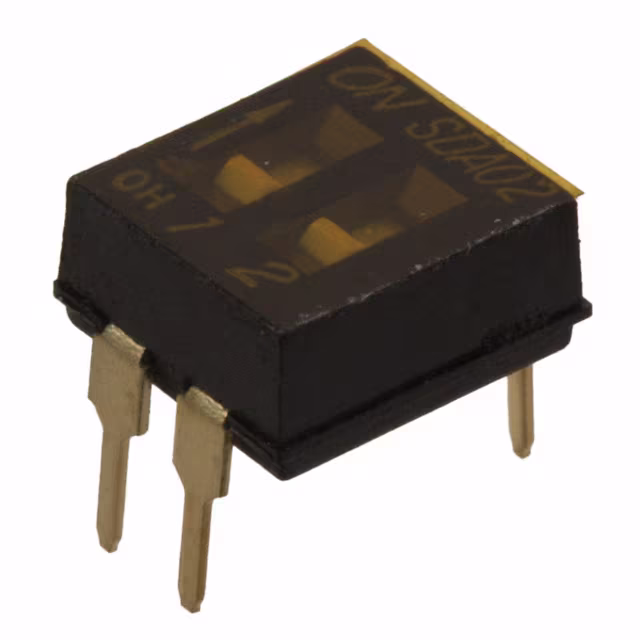

SDA02H0B SWITCH SLIDE DIP SPST 25MA 24V C&K	4920	1.44	- + Add To Cart Inquiry Now	Datasheet	Tube	SDA	Active	SPST	2	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.183 (4.65mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	Yes	Tape Seal

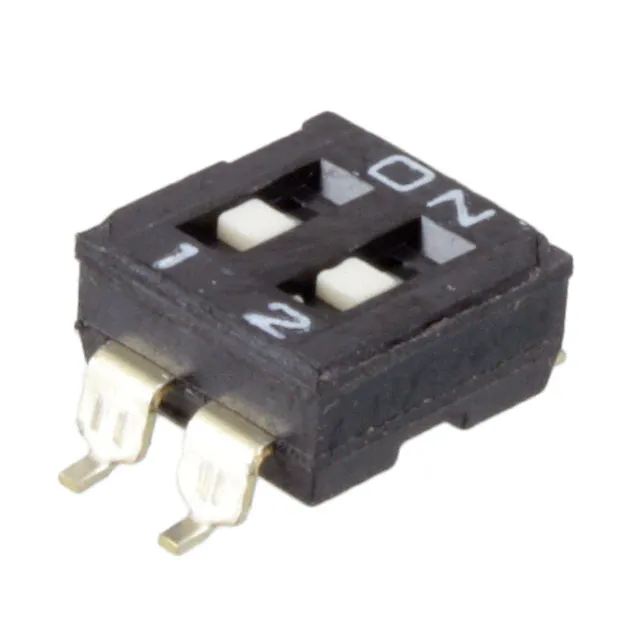

KAE02TGGT SWITCH SLIDE DIP SPST 25MA 24V E-Switch	1064	1.40	- + Add To Cart Inquiry Now	Datasheet	Tube	KAE	Active	SPST	2	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper	Gold	0.148 (3.75mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	Tape Seal

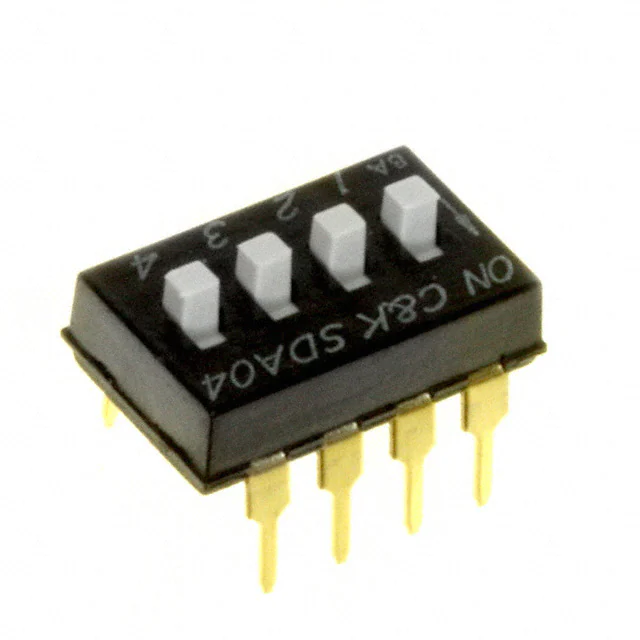

SDA04H1BD SWITCH SLIDE DIP SPST 25MA 24V C&K	4913	1.63	- + Add To Cart Inquiry Now	Datasheet	Tube	SDA	Active	SPST	4	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.228 (5.80mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

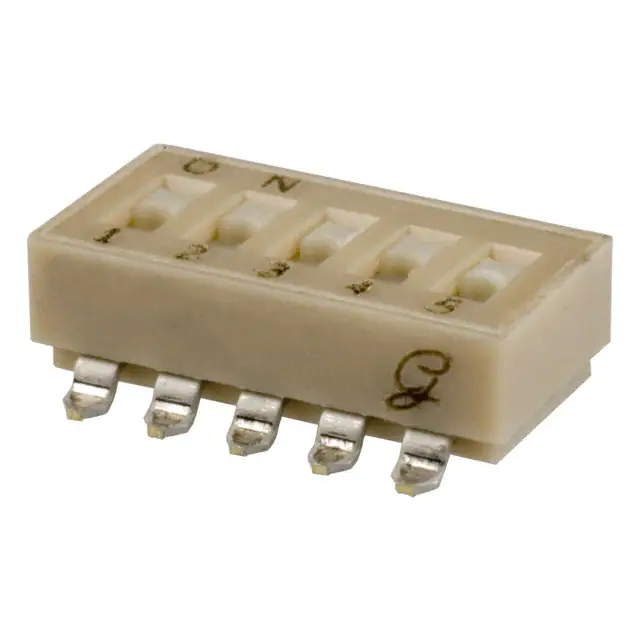

90HBW05PT SWITCH SLIDE DIP SPST 25MA 24V Grayhill Inc.	183	1.55	- + Add To Cart Inquiry Now	Datasheet	Bulk,Tube	90HB	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.190 (4.83mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	Tape Seal

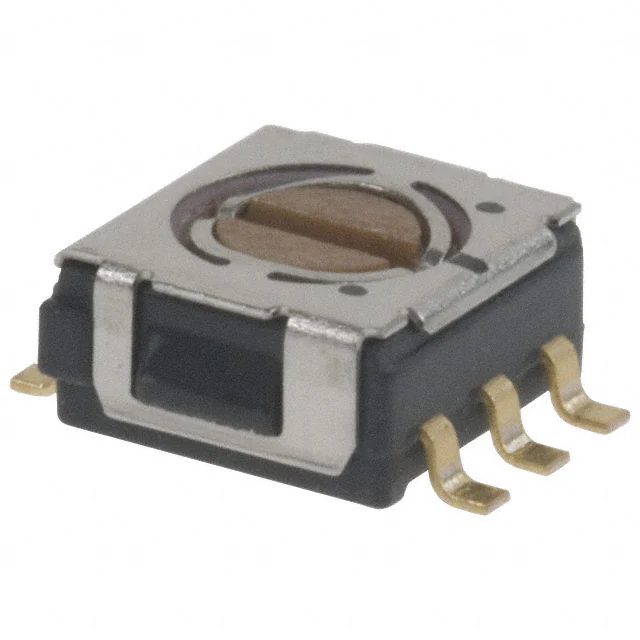

CS-4-22YTB SWITCH ROTARY DIP DPDT 100MA 16V Nidec Copal Electronics	5610	2.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CS-4	Active	DPDT	2	100mA	16VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.091 (2.30mm)	Surface Mount	Gull Wing	0.051 (1.30mm)	Yes	-
1571999-1 SWITCH PIANO DIP SPST 25MA 24V TE Connectivity ALCOSWITCH Switches	3679	0.89	- + Add To Cart Inquiry Now	Datasheet	Bulk,Bulk	ADP	Active	SPST	2	25mA	24VDC	Piano	Raised	Copper Alloy	Gold	0.287 (7.30mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	Yes	-
CES-0402MC SWITCH SLIDE DIP SPST 100MA 6V Nidec Copal Electronics	4664	1.63	- + Add To Cart Inquiry Now	Datasheet	Tube	CES	Active	SPST	4	100mA	6VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.472 (12.00mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

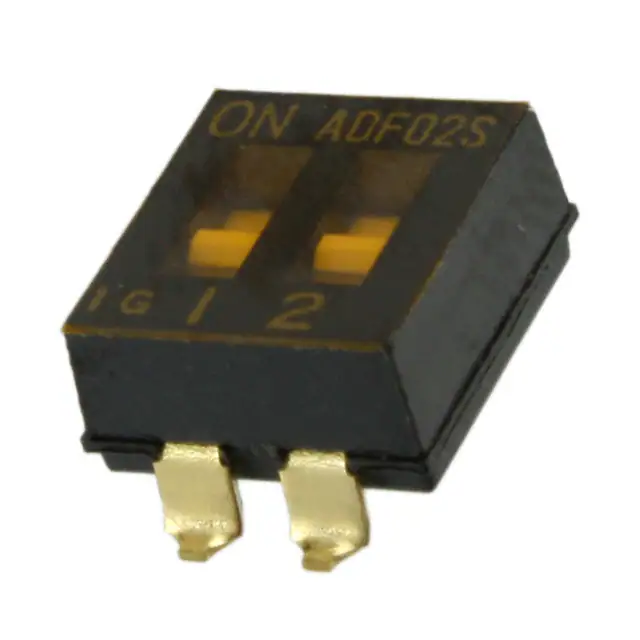

1825059-5 SWITCH SLIDE DIP SPST 25MA 24V TE Connectivity ALCOSWITCH Switches	2229	1.63	- + Add To Cart Inquiry Now	Datasheet	Tube	ADF	Active	SPST	2	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.177 (4.50mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	Tape Seal
BPA02B SWITCH PIANO DIP SPST 100MA 5V C&K	3922	1.64	- + Add To Cart Inquiry Now	Datasheet	Tube	BPA	Active	SPST	2	100mA	5VDC	Piano	Raised	Beryllium Copper	Gold	0.287 (7.30mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	Yes	-

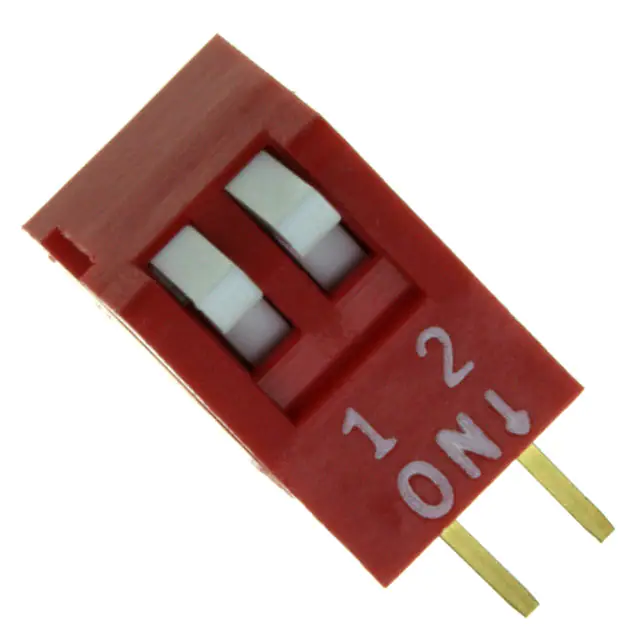

KAP1102E SWITCH PIANO DIP SPST 25MA 24V E-Switch	2923	1.64	- + Add To Cart Inquiry Now	Datasheet	Tube	KAP	Active	SPST	2	25mA	24VDC	Piano	Raised	Phosphor Bronze	Gold	0.402 (10.20mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	No	-
KAP1103E SWITCH PIANO DIP SPST 25MA 24V E-Switch	998	1.65	- + Add To Cart Inquiry Now	Datasheet	Tube	KAP	Active	SPST	3	25mA	24VDC	Piano	Raised	Phosphor Bronze	Gold	0.402 (10.20mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	No	-

Total 7054 Records«Prev 1... 80 81 82 838485 86 87...353 Next»
