Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Circuit	NumberofPositions	CurrentRating(Amps)	VoltageRating	ActuatorType	ActuatorLevel	ContactMaterial	ContactFinish	HeightAboveBoard	MountingType	TerminationStyle	Pitch	Washable	Features

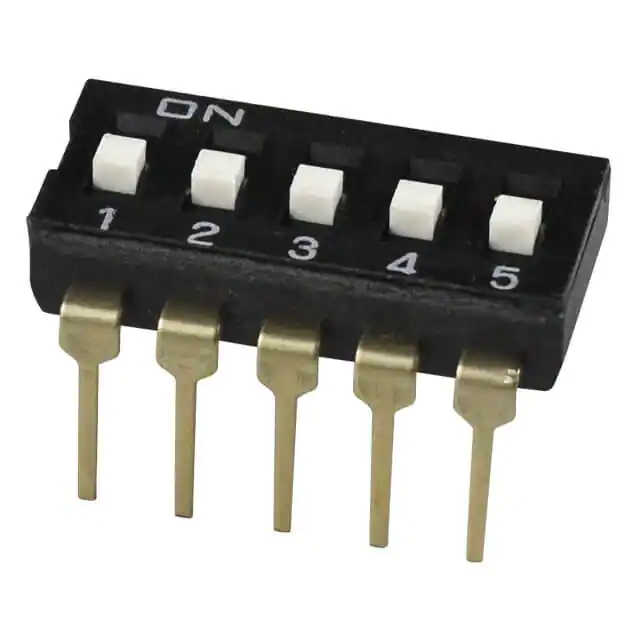

DS04-254-2L-05BK DIP SWITCH, SPST, 2.54 PITCH, FL CUI Devices	799	0.79	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254	Active	SPST	5	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.144 (3.66mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

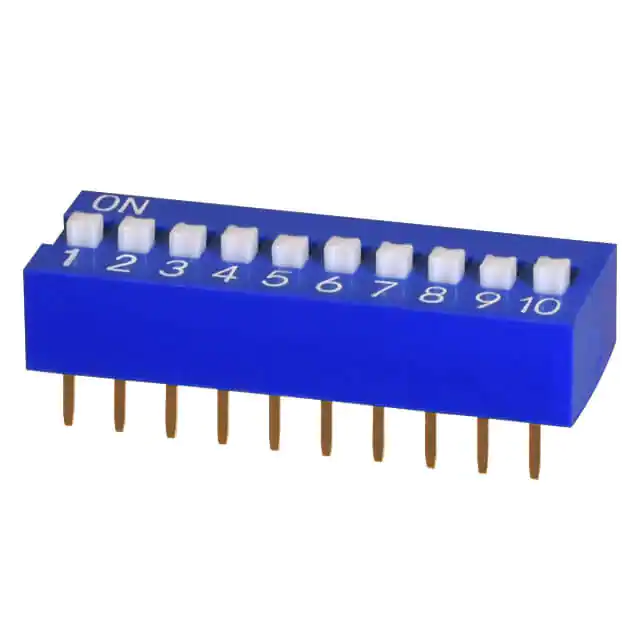

DS01C-254-S-10BE DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	216	0.92	- + Add To Cart Inquiry Now	Datasheet	Tube	DS01-254	Active	SPST	10	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.264 (6.70mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

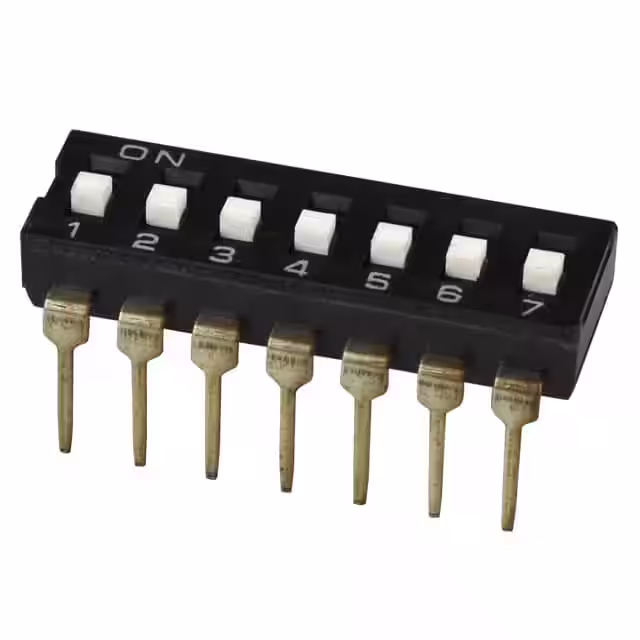

DS04-254-1L-07BK DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	941	1.01	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254	Active	SPST	7	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.166 (4.21mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-
DS04-254-2L-07BK DIP SWITCH, SPST, 2.54 PITCH, FL CUI Devices	934	1.06	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254	Active	SPST	7	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.144 (3.66mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

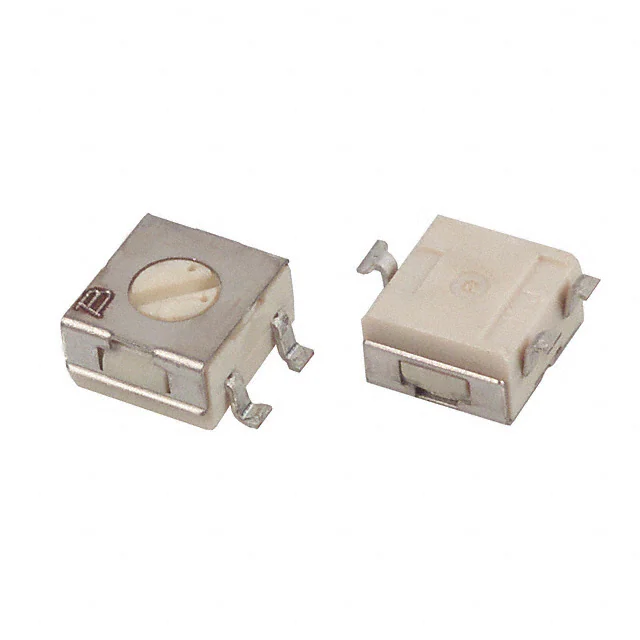

7814G-1-023E SWITCH ROTARY DIP SPDT 100MA 16V Bourns Inc.	534	1.70	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	7814	Active	SPDT	2	100mA	16VAC/DC	Rotary for Tool	Flush, Recessed	-	-	0.100 (2.54mm)	Surface Mount	Gull Wing	-	No	-
DS02C-254-1L-07BE DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	264	1.17	- + Add To Cart Inquiry Now	Datasheet	Tube	DS02-254	Active	SPST	7	25mA	24VDC	Piano	Raised	Copper Alloy	Gold	0.378 (9.60mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	No	-

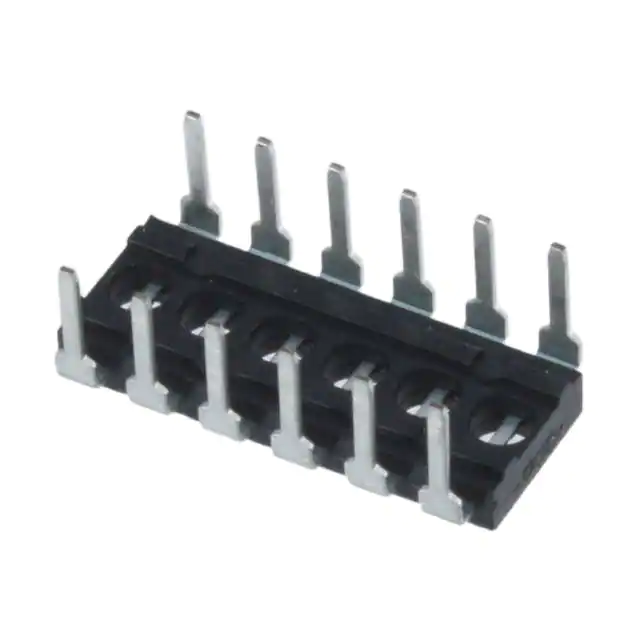

1825190-5 SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches	264	1.26	- + Add To Cart Inquiry Now	Datasheet	Tube	7600	Active	Programmable	6	-	-	Breakable (Shunt)	Flush, Recessed	Copper Alloy	Tin	0.079 (2.00mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	Yes	-

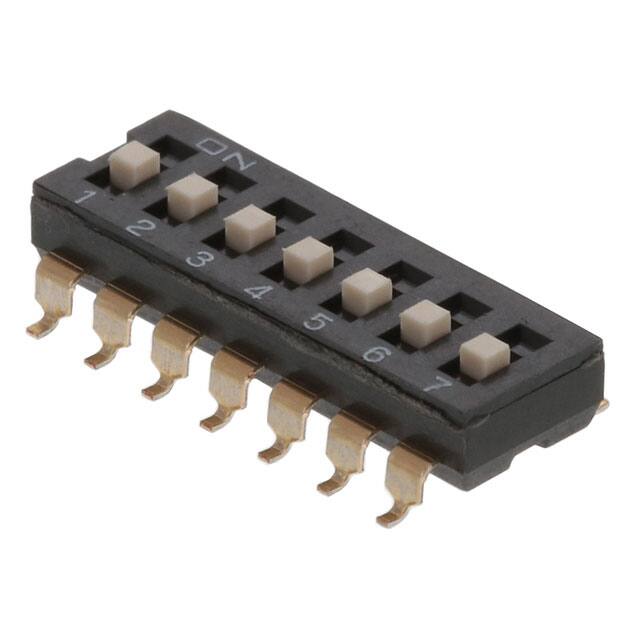

DS04-254-1-07BK-SMT DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	798	1.32	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254-SMT	Active	SPST	7	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.189 (4.80mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	No	-

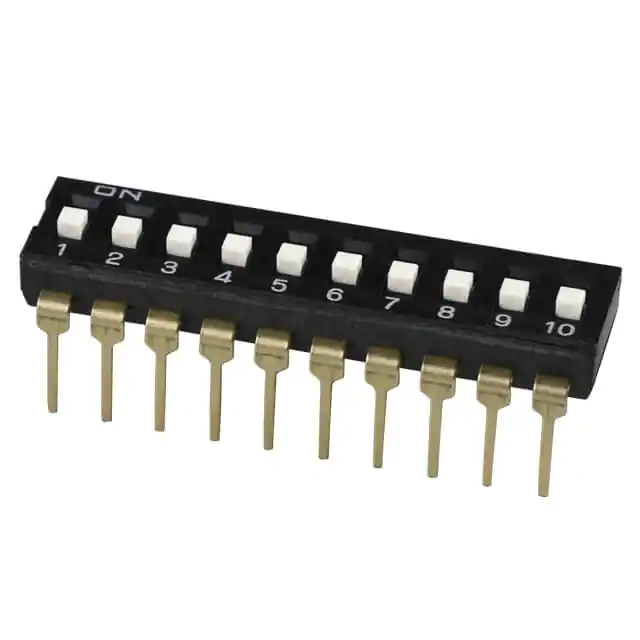

DS04-254-2L-10BK DIP SWITCH, SPST, 2.54 PITCH, FL CUI Devices	465	1.38	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254	Active	SPST	10	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.144 (3.66mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-
DS04-254-2L-12BK DIP SWITCH, SPST, 2.54 PITCH, FL CUI Devices	444	1.47	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254	Active	SPST	12	25mA	24VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.144 (3.66mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

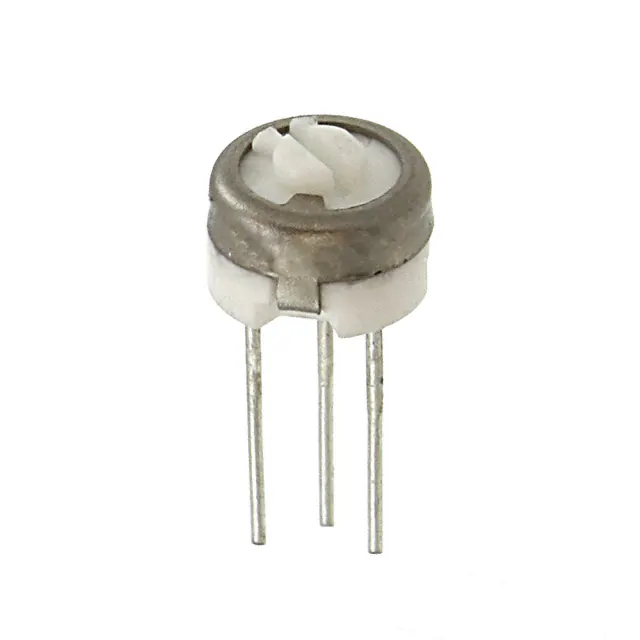

7829H-1-023LF SWITCH ROTARY DIP SPDT 100MA 16V Bourns Inc.	205	1.47	- + Add To Cart Inquiry Now	Datasheet	Tube	7829	Active	SPDT	2	100mA	16VAC/DC	Rotary for Tool	Raised	-	-	0.180 (4.57mm)	Through Hole	PC Pin	-	Yes	-

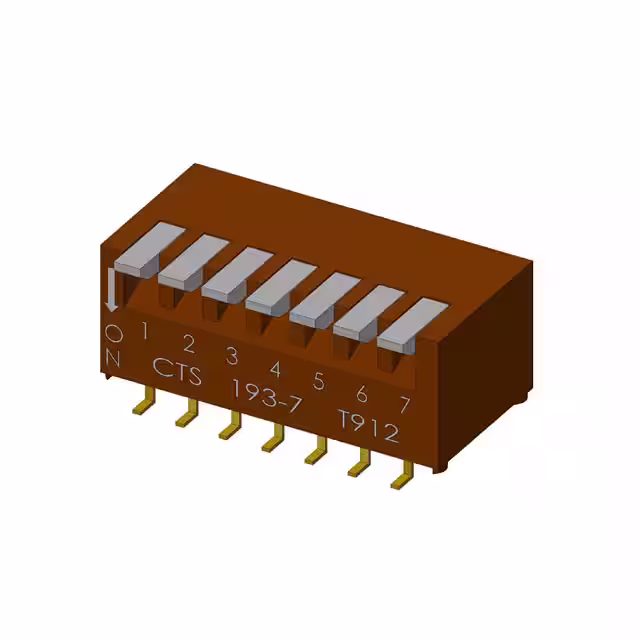

193-7MS SWITCH PIANO DIP SPST 50MA 24V CTS Electrocomponents	2155	1.53	- + Add To Cart Inquiry Now	Datasheet	Tube	193	Active	SPST	7	50mA	24VDC	Piano	Raised	-	Gold	0.359 (9.12mm)	Surface Mount, Right Angle	Gull Wing	0.100 (2.54mm), Full	No	Epoxy Sealed Terminals

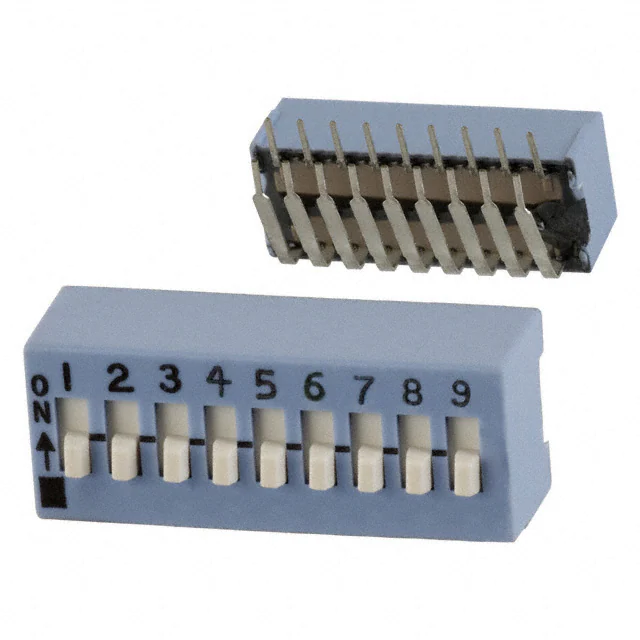

206-9RAST SWITCH SLIDE DIP SPST 50MA 24V CTS Electrocomponents	316	1.56	- + Add To Cart Inquiry Now	Datasheet	Tube	206RA	Active	SPST	9	50mA	24VDC	Slide (Standard)	Raised	-	Gold	0.400 (10.16mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	Yes	Epoxy Sealed Terminals, Tape Seal

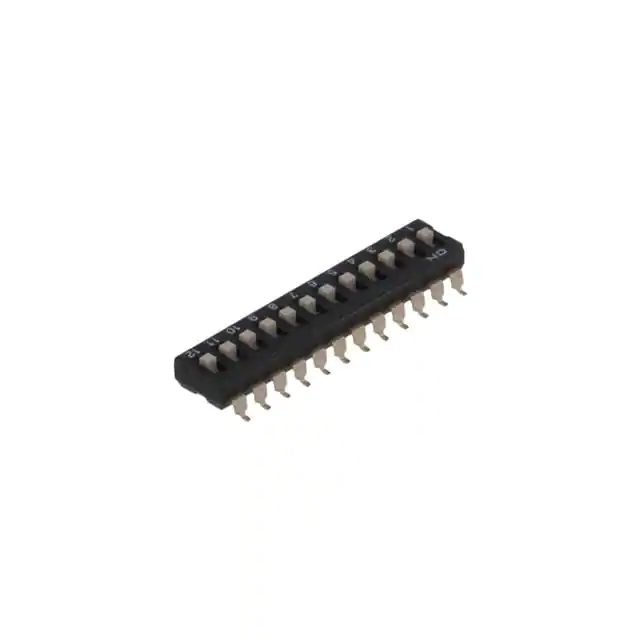

DS04-254-1-12BK-SMT DIP SWITCH, SPST, 2.54 PITCH, RA CUI Devices	482	1.74	- + Add To Cart Inquiry Now	Datasheet	Tube	DS04-254-SMT	Active	SPST	12	25mA	24VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.189 (4.80mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	No	-

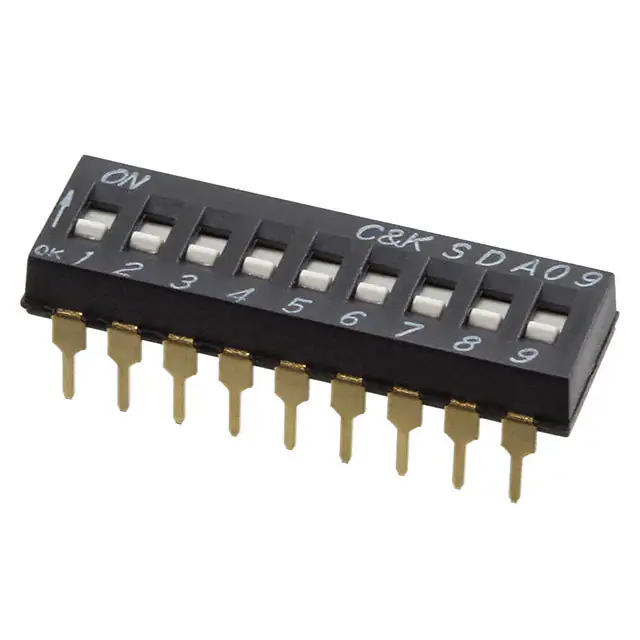

SDA09H0BD SWITCH SLIDE DIP SPST 25MA 24V C&K	172	2.10	- + Add To Cart Inquiry Now	Datasheet	Tube	SDA	Active	SPST	9	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.183 (4.65mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-
76RSB05T SWITCH ROCKER DIP SPST 150MA 30V Grayhill Inc.	2105	2.12	- + Add To Cart Inquiry Now	Datasheet	Tube	76	Active	SPST	5	150mA	30VDC	Rocker	Flush, Recessed	Copper Alloy	Gold	0.292 (7.41mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	No	-

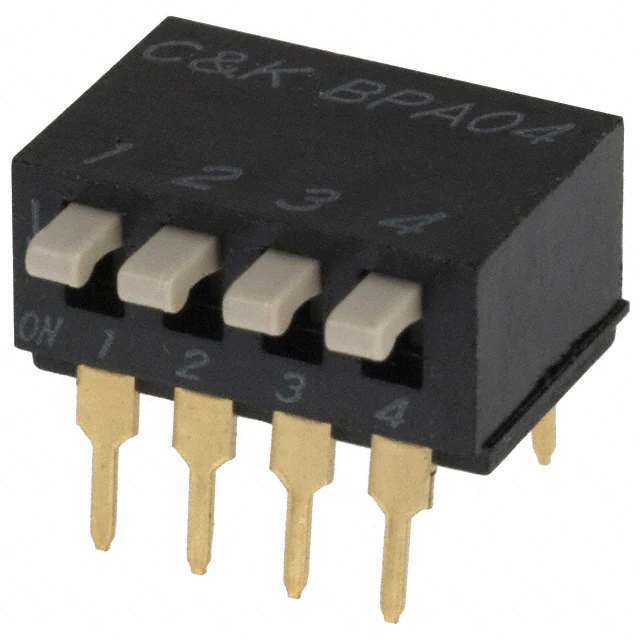

BPA04RB SWITCH PIANO DIP SPST 100MA 5V C&K	2209	2.30	- + Add To Cart Inquiry Now	Datasheet	Tube	BPA	Active	SPST	4	100mA	5VDC	Piano	Raised	Beryllium Copper	Gold	0.287 (7.30mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	Yes	-

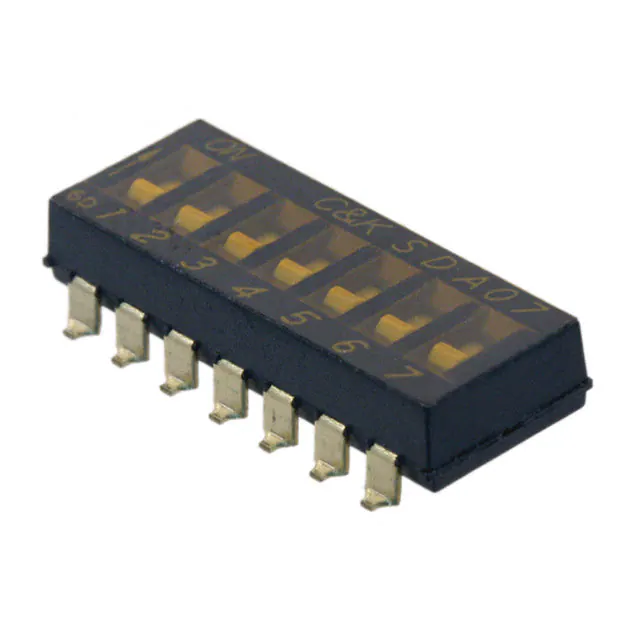

SDA07H0SB SWITCH SLIDE DIP SPST 25MA 24V C&K	155	2.56	- + Add To Cart Inquiry Now	Datasheet	Tube	SDA	Active	SPST	7	25mA	24VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.175 (4.45mm)	Surface Mount	Gull Wing	0.100 (2.54mm), Full	Yes	Tape Seal

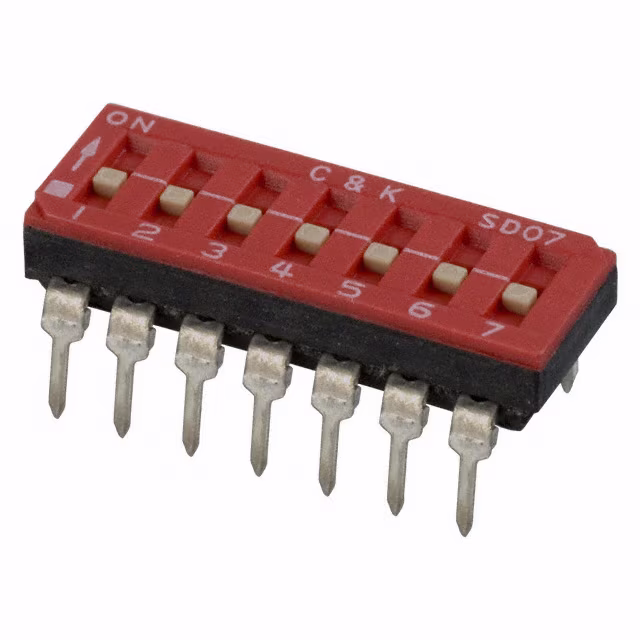

SD07H0B SWITCH SLIDE DIP SPST 100MA 25V C&K	131	2.61	- + Add To Cart Inquiry Now	Datasheet	Tube	SD	Active	SPST	7	100mA	25VDC	Slide (Standard)	Flush, Recessed	Beryllium Copper	Gold	0.178 (4.52mm)	Through Hole	PC Pin	0.100 (2.54mm), Full	Yes	Tape Seal
76PSB12T SWITCH PIANO DIP SPST 150MA 30V Grayhill Inc.	119	2.65	- + Add To Cart Inquiry Now	Datasheet	Tube	76	Active	SPST	12	150mA	30VDC	Piano	Raised	Copper Alloy	Gold	0.301 (7.65mm)	Through Hole, Right Angle	PC Pin	0.100 (2.54mm), Full	No	-

Total 7054 Records«Prev 1... 64 65 66 676869 70 71...353 Next»
