Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEM2-S24-S15-DDC DC CONVERTER 15V 2W |
104 | 8.94 |
Add To CartInquiry Now |
Datasheet |
14-DIP Module, 6 Leads | Tube | PEM2-D (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | Through Hole | 0.79 L x 0.39 W x 0.32 H (20.1mm x 9.9mm x 8.2mm) | |||
EC2SA15NHDC DC CONVERTER +/-15V 2W |
110 | 9.04 |
Add To CartInquiry Now |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC2SANH (2W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
EC2SA14NHDC DC CONVERTER +/-12V 2W |
108 | 9.04 |
Add To CartInquiry Now |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC2SANH (2W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
SPAN02B-15DC DC CONVERTER 15V 2W |
636 | 9.09 |
Add To CartInquiry Now |
Datasheet |
8-SIP Module, 7 Leads | - | SPAN02 (2W) | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 134mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 83% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | |||

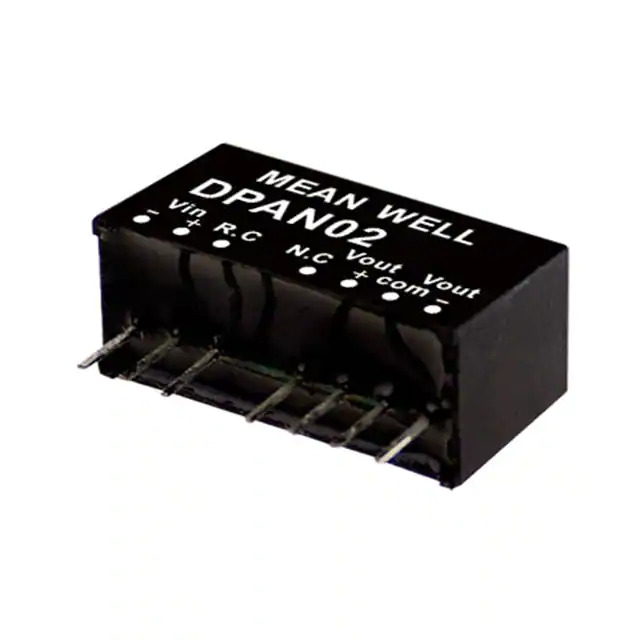

DPAN02A-15DC DC CONVERTER +/-15V 2W |
3551 | 9.09 |
Add To CartInquiry Now |
Datasheet |
8-SIP Module, 7 Leads | - | DPAN02 (2W) | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 83% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | |||
EC2SA11NDC DC CONVERTER 5V 2W |
290 | 9.70 |
Add To CartInquiry Now |
Datasheet |
6-SIP Module, 5 Leads | Tube | EC2SAN (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
EC2SA12NDC DC CONVERTER 12V 2W |
167 | 9.70 |
Add To CartInquiry Now |
Datasheet |
6-SIP Module, 5 Leads | Tube | EC2SAN (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||
EC2SA01NDC DC CONVERTER 5V 2W |
140 | 9.70 |
Add To CartInquiry Now |
Datasheet |
6-SIP Module, 5 Leads | Tube | EC2SAN (2W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||

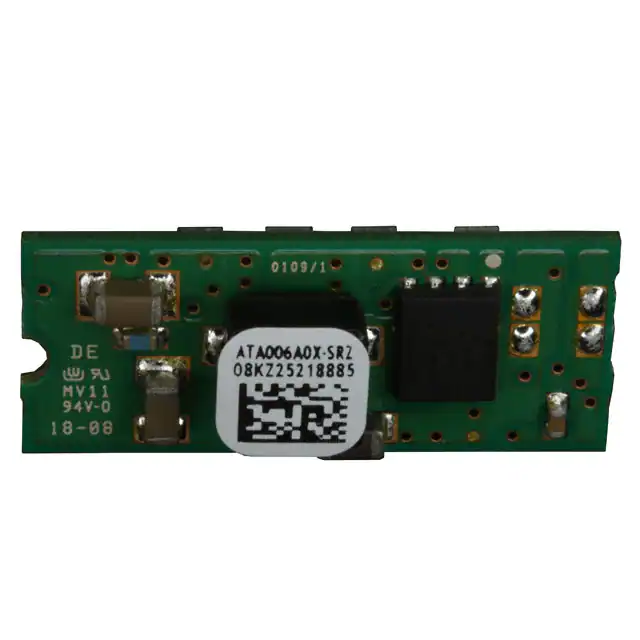

ATA006A0X-SRZDC DC CONVERTER 0.8-5.5V 33W |
481 | 11.93 |
Add To CartInquiry Now |
Datasheet |
6-SMD Module | Tape & Reel (TR),Cut Tape (CT) | Austin MicroLynx™ II | Active | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.8 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 89% | Surface Mount | 1.10 L x 0.45 W x 0.29 H (27.9mm x 11.4mm x 7.2mm) | |||
SB01S0512ADC DC CONVERTER 12V 1W |
1232 | 10.01 |
Add To CartInquiry Now |
Datasheet |
12-SMD Module, 10 Leads | Tube | SB01S/D (2W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 78% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.0mm) | |||
EC2SA26NHDC DC CONVERTER +/-5V 2W |
112 | 10.83 |
Add To CartInquiry Now |
Datasheet |
7-SIP Module, 5 Leads | Tube | EC2SANH (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | |||

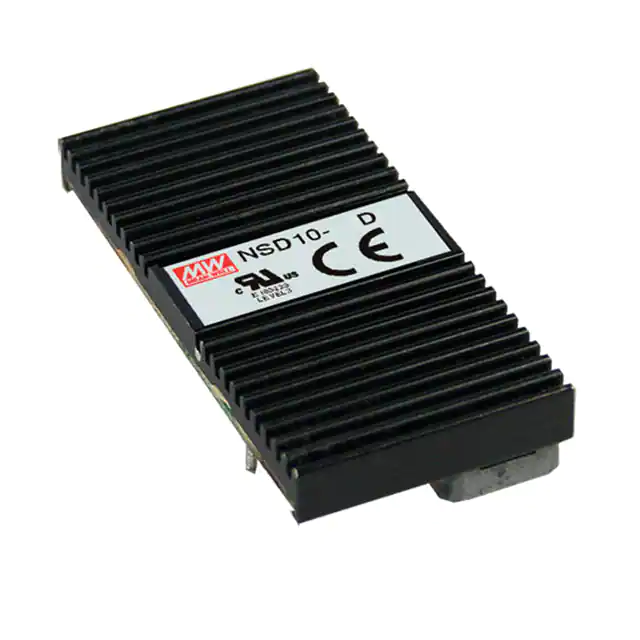

NSD10-12D12DC DC CONVERTER +/-12V 10W |
280 | 14.69 |
Add To CartInquiry Now |
Datasheet |
6-DIP Module | Tray | NSD10-D (10W) | Active | Isolated Module | 2 | 9.8V | 36V | 12V | -12V | - | - | 420mA, 420mA | 10 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 77% | Through Hole | 2.00 L x 1.00 W x 0.41 H (50.8mm x 25.4mm x 10.5mm) | |||
MPM0527SJAC/DC CONVERTER 5V 14W |
109 | 15.00 |
Add To CartInquiry Now |
Datasheet |
- | Tray | - | Active | - | 1 | 100V | 420V | 5V | - | - | - | 4A | 20 W | - | ITE (Commercial) | Adjustable Output, Standby Output | -20°C ~ 80°C | 82% | Surface Mount | 1.60 L x 1.25 W x 0.93 H (40.6mm x 31.7mm x 23.6mm) | |||

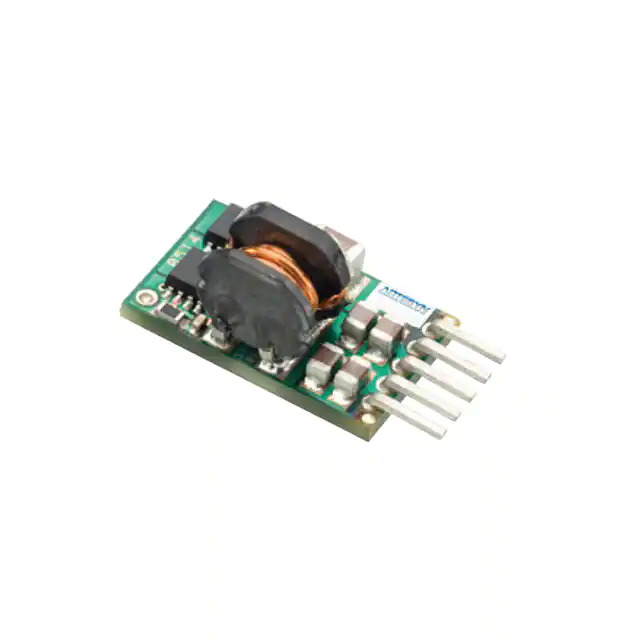

LDO10C-005W05-VJDC DC CONVERTER 0.59-5.1V 50W |
3835 | 15.32 |
Add To CartInquiry Now |
Datasheet |
5-SIP Module | Tray | LDO10C (50W) | Active | Non-Isolated PoL Module | 1 | 3V | 13.8V | 0.59 ~ 5.1V | - | - | - | 10A | 50 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 94% | Through Hole | 0.46 L x 0.41 W x 0.65 H (11.7mm x 10.4mm x 16.5mm) | |||
R2S-2415/HPDC DC CONVERTER 15V 2W |
1412 | 17.31 |
Add To CartInquiry Now |
Datasheet |
8-SMD Module, 5 Leads | Tube | ECONOLINE R2S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | Surface Mount | 0.50 L x 0.42 W x 0.35 H (12.8mm x 10.7mm x 9.0mm) | |||
AYA01B05-LDC DC CONVERTER 12V 3W |
148 | 17.90 |
Add To CartInquiry Now |
Datasheet |
7-DIP Module, 4 Leads | Tube | AYA (3W) | Active | Isolated Module | 1 | 4.5V | 10V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | Through Hole | 0.55 L x 0.55 W x 0.31 H (14.0mm x 14.0mm x 8.0mm) | |||
PKM7113APIPLHSDC DC CONVERTER 12V 100W |
2029 | 118.61 |
Add To CartInquiry Now |
Datasheet |
Quarter Brick | Tray | PKM 7000A (150W) | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 1.01 H (57.9mm x 36.8mm x 25.6mm) | |||
PKM7116ZAPIPLHSDC DC CONVERTER 24V 100W |
3533 | 118.61 |
Add To CartInquiry Now |
Datasheet |
Quarter Brick | Tray | PKM 7000A (150W) | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 89% | Through Hole | 2.28 L x 1.45 W x 1.01 H (57.9mm x 36.8mm x 25.6mm) | |||
PKM7116JAPIPLHSDC DC CONVERTER 48V 100W |
3217 | 118.61 |
Add To CartInquiry Now |
Datasheet |
Quarter Brick | Tray | PKM 7000A (150W) | Active | Isolated Module | 1 | 66V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 1.01 H (57.9mm x 36.8mm x 25.6mm) | |||
PKM7116ZAPIPHSDC DC CONVERTER 24V 100W |
104 | 119.04 |
Add To CartInquiry Now |
Datasheet |
Quarter Brick | Tray | PKM 7000A (150W) | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 89% | Through Hole | 2.28 L x 1.45 W x 1.29 H (57.9mm x 36.8mm x 32.7mm) |
