Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-Rated | Size/Dimension | Width | AirFlow | StaticPressure | BearingType | FanType | Features | Noise | Power(Watts) | RPM | Termination | IngressProtection | OperatingTemperature | ApprovalAgency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

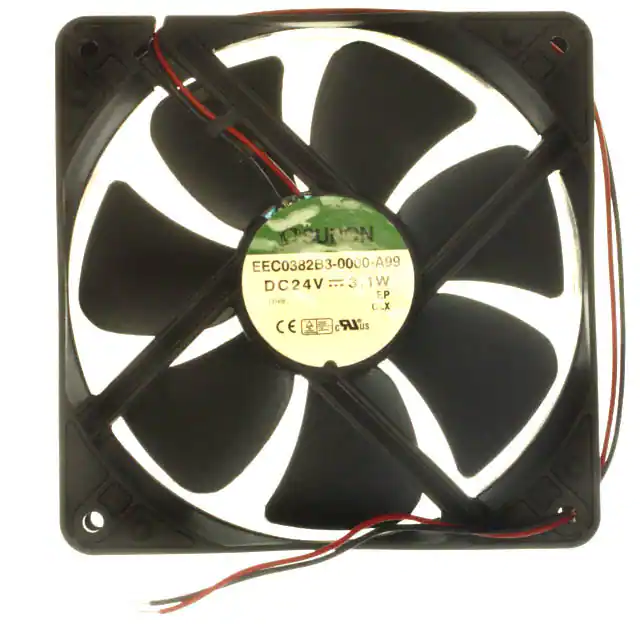

EEC0382B3-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
402 | 14.91 |
Add To CartInquiry Now |
Datasheet |
Bulk | EEC | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 3.1 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | |
CFM-A225V-222-340-20FAN AXIAL 120X25MM 24VDC WIRE |
200 | 14.91 |
Add To CartInquiry Now |
Datasheet |
Tray | CFM-120V | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | |

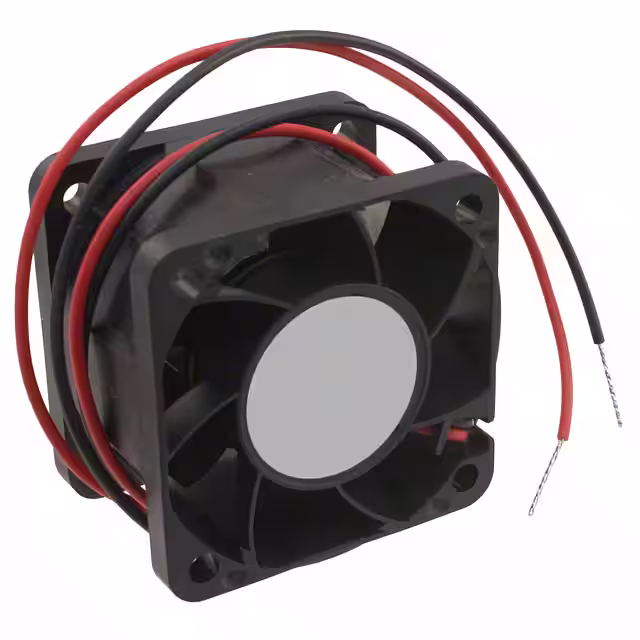

FFB0412HHNFAN AXIAL 40X28MM 12VDC WIRE |
855 | 15.08 |
Add To CartInquiry Now |
Datasheet |
Bulk | FFB | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.2 CFM (0.370m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 1.32 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | |
109P0424F6D01FAN 40X20MM 24VDC LOCK |
137 | 14.53 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.44 W | 6500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
F8025M05B-FSR-EMFAN AXIAL 80X25MM BALL 5VDC WIRE |
373 | 15.25 |
Add To CartInquiry Now |
Datasheet |
Bulk | F8025 | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 26.0dB(A) | - | 2100 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | |
F8025X12B-FHR-EMFAN AXIAL 80X25MM 12VDC |
234 | 15.25 |
Add To CartInquiry Now |
Datasheet |
Bulk | F8025-H | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 4200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | |
F8025H12B-FHR-EMFAN AXIAL 80X25MM IP57 12VDC |
115 | 15.25 |
Add To CartInquiry Now |
Datasheet |
Bulk | F8025-H | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | |
109R0812G4D01FAN 80X25MM 12VDC LOCK |
120 | 14.69 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 80 | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.44 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |

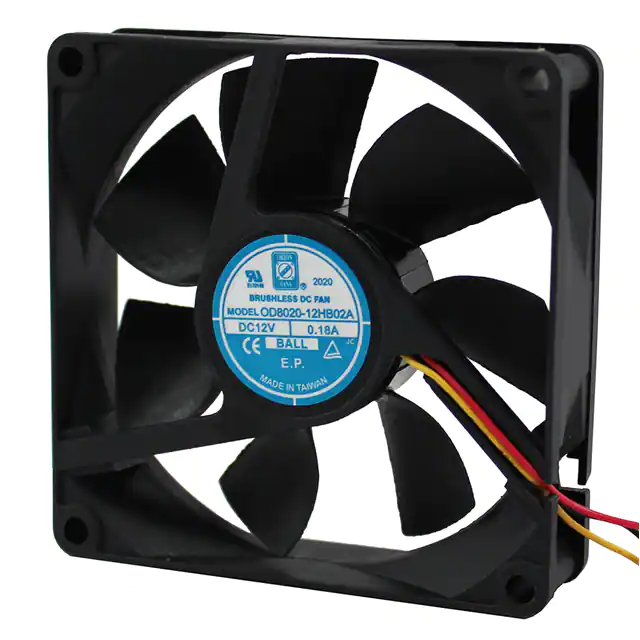

OD8020-12HB02AFAN AXIAL 80X20MM 12VDC WIRE |
534 | 15.69 |
Add To CartInquiry Now |
Datasheet |
Bulk | OD8020 | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | |
OD6020-12HB02AFAN AXIAL 60X20MM 12VDC WIRE |
384 | 15.69 |
Add To CartInquiry Now |
Datasheet |
Bulk | OD6020 | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | |
OD8015-12HB01AFAN AXIAL 80X15MM 12VDC WIRE |
179 | 15.69 |
Add To CartInquiry Now |
Datasheet |
Bulk | OD8015 | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | |
109R0612J402FAN 60X25MM 12VDC |
297 | 15.19 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 60 | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.64 W | 7600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
F6025X12B1-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
102 | 15.99 |
Add To CartInquiry Now |
Datasheet |
Bulk | F6025-H | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | |
109R0612J4D01FAN 60X25MM 12VDC LOCK |
159 | 15.50 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 60 | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 5.64 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
109R0612J4011FAN 60X25MM 12VDC RBLS TACH |
157 | 15.50 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 60 | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.64 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |

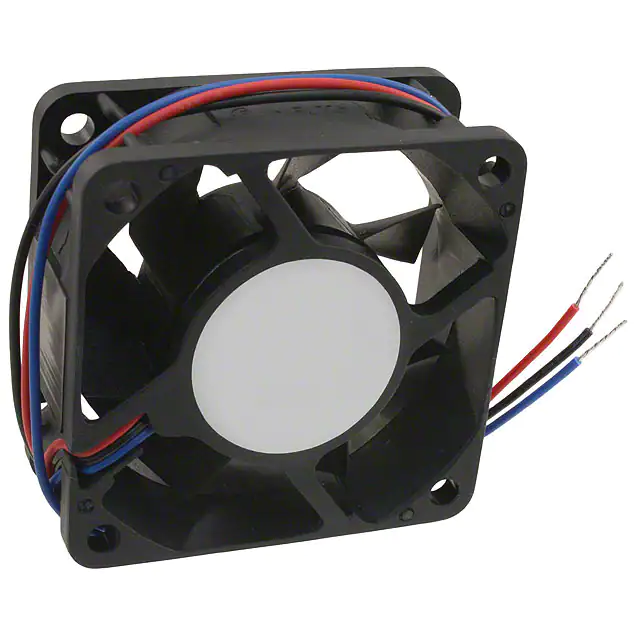

AFB0624EH-AF00FAN AXIAL 60X25.4MM 24VDC WIRE |
2934 | 16.15 |
Add To CartInquiry Now |
Datasheet |
Bulk | AFB | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.5dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | |
109R0848S401FAN 80X25MM 48VDC TACH |
154 | 16.32 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 80 | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.88 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
CFM-A238V-226-440FAN AXIAL 120X38MM 24VDC WIRE |
394 | 16.35 |
Add To CartInquiry Now |
Datasheet |
Tray | CFM-120V | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 6.18 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | |
FAD1-12038CBJW12FAN AXIAL 120X38.5MM 12VDC WIRE |
520 | 16.41 |
Add To CartInquiry Now |
Datasheet |
Bulk | FAD1-12038 | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 7.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | |

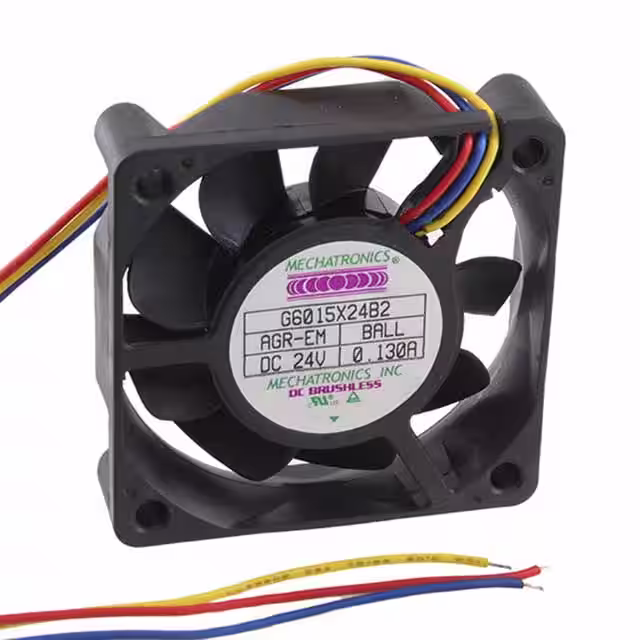

G6015X24B2-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
191 | 16.54 |
Add To CartInquiry Now |
Datasheet |
Bulk | G6015-G | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL |
