Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-Rated | Size/Dimension | Width | AirFlow | StaticPressure | BearingType | FanType | Features | Noise | Power(Watts) | RPM | Termination | IngressProtection | OperatingTemperature | ApprovalAgency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

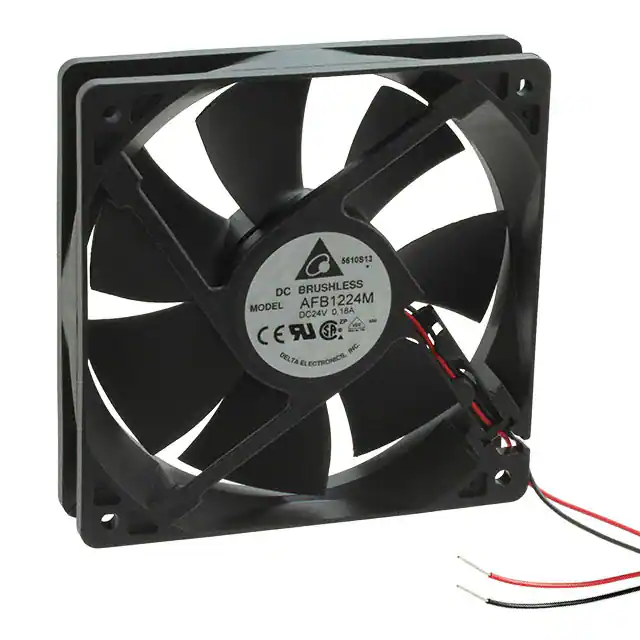

AFB1224MFAN AXIAL 120X25.4MM 24VDC WIRE |
428 | 19.24 |
Add To CartInquiry Now |
Datasheet |
Box | AFB | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.5dB(A) | 2.88 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | |
F6025X12B1+6-FHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
200 | 19.35 |
Add To CartInquiry Now |
Datasheet |
Bulk | F6025-H | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 4 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | |
UF3H3-500TCFAN AXIAL 17X3 3VDC VAPO |
785 | 19.45 |
Add To CartInquiry Now |
Datasheet |
Tray | MagLev® UF, Mighty Mini | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | |
PMD1209PMB1-A.(2).GNFAN AXIAL 92X38MM 12VDC WIRE |
908 | 19.51 |
Add To CartInquiry Now |
Datasheet |
Box | PMD | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | - | 57.6dB(A) | 12.5 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | |
B1232H24B-BSR-EFAN BLOWER 120X32MM 24VDC WIRE |
103 | 19.53 |
Add To CartInquiry Now |
Datasheet |
Bulk | B1232 | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | |
DC0402812V2B-2T0FAN 12VDC 40X28MM 2WIRES |
168 | 19.73 |
Add To CartInquiry Now |
Datasheet |
Box | - | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 13.2 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | |

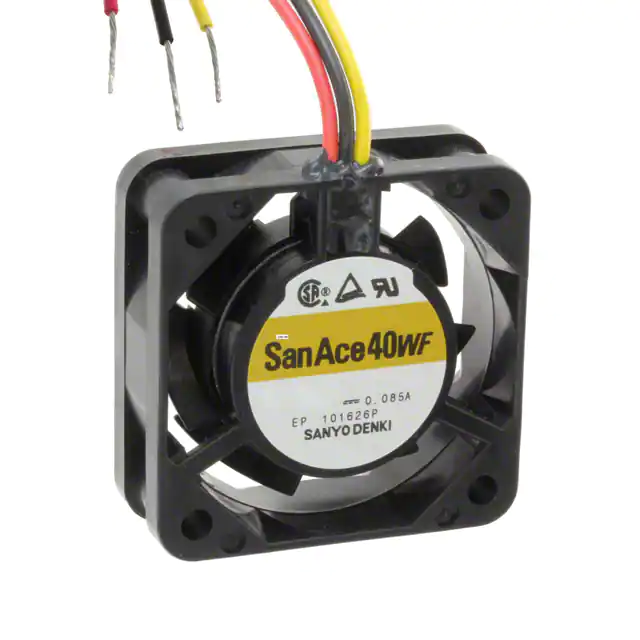

9WF0424H601FAN 40X20MM 24VDC OIL PROOF TACH |
792 | 19.75 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40WF | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.0dB(A) | 2.64 W | 13100 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
9WF0424H6D01FAN 40X20MM 24VDC OIL PROOF LOCK |
158 | 19.75 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40WF | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.361 in H2O (89.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 2.64 W | 13100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
G1225H24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
226 | 19.80 |
Add To CartInquiry Now |
Datasheet |
Bulk | G1225 | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 87.0 CFM (2.44m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | |

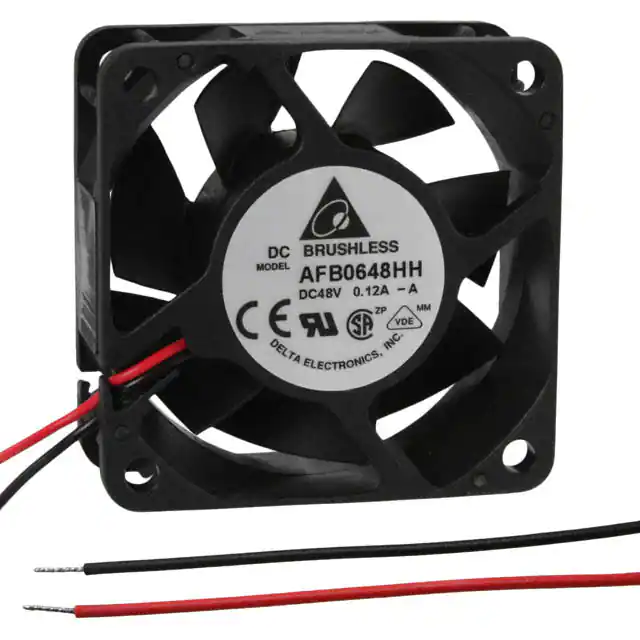

AFB0648HH-AFAN AXIAL 60X25.4MM 48VDC WIRE |
2830 | 19.89 |
Add To CartInquiry Now |
Datasheet |
Bulk | AFB | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 27.5 CFM (0.770m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 3.84 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | |
9A0812G4D011FAN 80X25MM 12VDC RBLS LOCK |
135 | 13.07 |
Add To CartInquiry Now |
Datasheet |
Box | San Cooler 80 | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | |
MR1225E24B1+6-FSRFAN AXIAL 120X25MM 24VDC WIRE |
229 | 19.98 |
Add To CartInquiry Now |
Datasheet |
Box | MR1225 | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 151.0 CFM (4.23m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.6dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | |
9G0812G101FAN 80X38MM 12VDC TACH |
3895 | 20.05 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 80 | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13.2 W | 6300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
MR3010H05B1+6-RSRDC FAN AXIAL 30X30X10MM 5V W/TAC |
283 | 20.07 |
Add To CartInquiry Now |
Datasheet |
Bulk | MA3010 | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | 4 Wire Leads | - | - | - | |

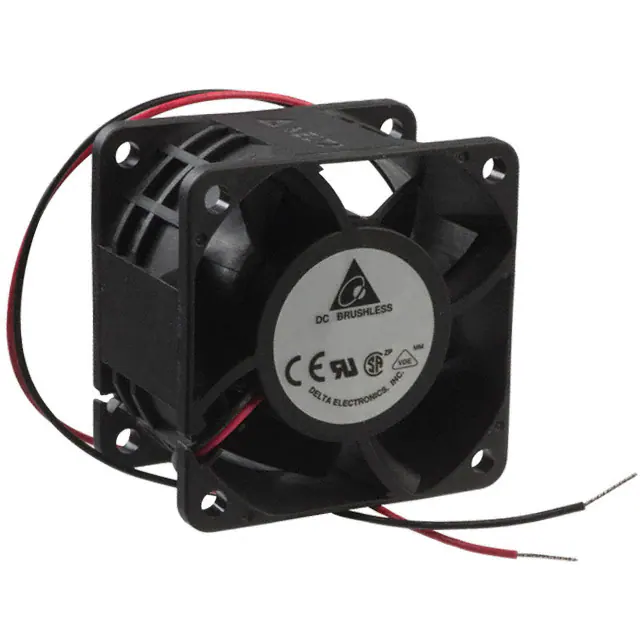

AFB0612VHE-AFAN AXIAL 60X38MM 12VDC WIRE |
193 | 20.65 |
Add To CartInquiry Now |
Datasheet |
Tray | AFB | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 49.5 CFM (1.39m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | |
CFM-A238V-131-480FAN AXIAL 120X38MM 12VDC WIRE |
2982 | 13.68 |
Add To CartInquiry Now |
Datasheet |
Tray | CFM-120V | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | |

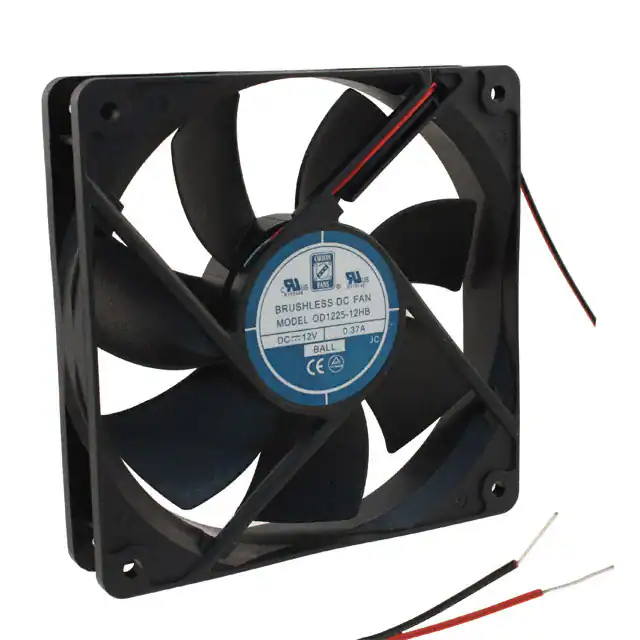

OD1225-12HBFAN AXIAL 120X25MM 12VDC WIRE |
223 | 20.93 |
Add To CartInquiry Now |
Datasheet |
Box | OD1225 | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | |
AFB0812LBFAN AXIAL 80X15MM 12VDC WIRE |
112 | 13.91 |
Add To CartInquiry Now |
Datasheet |
Box | AFB | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.5dB(A) | 1.08 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | |
109P0412H3013FAN 40X28MM 12VDC TACH |
3225 | 14.04 |
Add To CartInquiry Now |
Datasheet |
Box | San Ace 40 | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.34 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | |
MS8038H24B1+6-FHRFAN AXIAL 80X80X38MM 24VDC W/TAC |
220 | 22.25 |
Add To CartInquiry Now |
Datasheet |
Bulk | MS8038-H | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | - | 10000 RPM | 4 Wire Leads | - | - | - |
