Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)
TTC-108N TRANSFORMER 600CT:600CT 0MADC Tamura	495	6.94	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Active	1:1	600CT	600CT	44Ohm	56Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.4dB Max @ 1kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.815 L x 0.650 W (20.70mm x 16.50mm)	0.736 (18.70mm)
MET-28 TRANSFORMER 1K:50 3.0MADC Tamura	416	11.70	- + Add To Cart Inquiry Now	Datasheet	Tube	MET	Active	4.47:1	1k	50	110Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

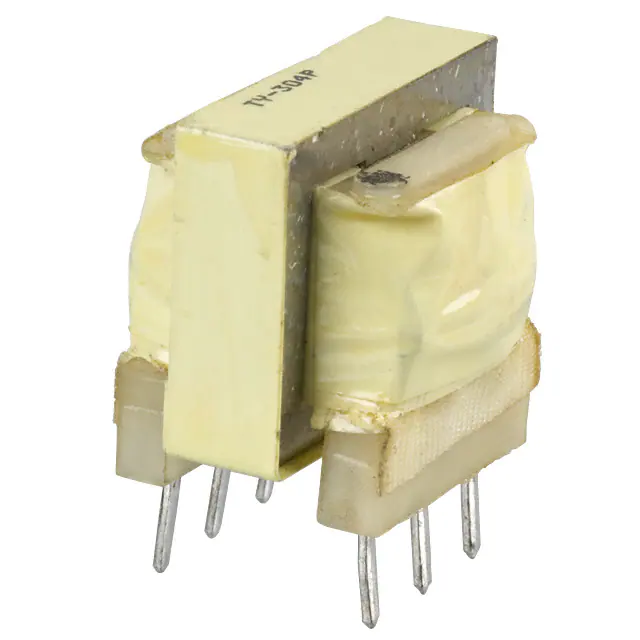

TY-304P TRANSF 600 CT OHM 0MA DC TEL Triad Magnetics	3453	6.59	- + Add To Cart Inquiry Now	Datasheet	Bulk	TY	Active	1:1.05	600CT	600CT	42Ohm	60Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.790 L x 0.812 W (20.07mm x 20.62mm)	0.740 (18.80mm)
619391LF RANGING TRANSFORMER SensComp, Inc.	2238	3.70	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	-	-	-	65mOhm	100Ohm	General Purpose	-	-	-	-	-	-	-34°C ~ 85°C	-	Through Hole	0.333 L x 0.315 W (8.45mm x 8.00mm)	0.331 (8.40mm)

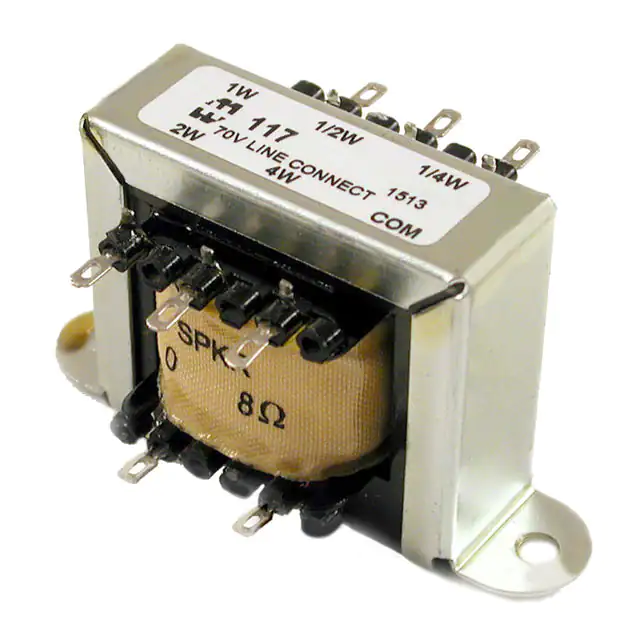

117F4 TRANSF LINE MATCHING 4W 8 OHM Hammond Manufacturing	2657	25.77	- + Add To Cart Inquiry Now	Datasheet	Bulk	117	Active	-	8	70V	-	-	Sound Distribution	100Hz ~ 9kHz	1dB	-	2dB	-	4W	-	-	Chassis Mount	2.810 L x 1.500 W (71.37mm x 38.10mm)	1.690 (42.93mm)
117K4 TRANSF LINE MATCHING 4W 8 OHM Hammond Manufacturing	3530	26.32	- + Add To Cart Inquiry Now	Datasheet	Bulk	117	Active	-	8	25V	-	-	Sound Distribution	100Hz ~ 9kHz	1dB	-	2dB	-	4W	-	-	Chassis Mount	2.810 L x 1.500 W (71.37mm x 38.10mm)	1.690 (42.93mm)

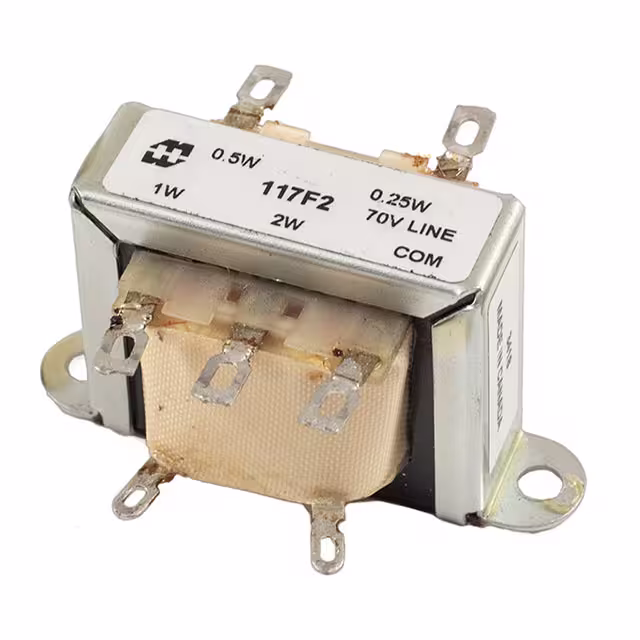

117F2 TRANSF LINE MATCHING 2W 8 OHM Hammond Manufacturing	2736	26.87	- + Add To Cart Inquiry Now	Datasheet	Bulk	117	Active	-	8	70V	-	-	Sound Distribution	100Hz ~ 9kHz	1dB	-	2dB	-	2W	-	-	Chassis Mount	2.380 L x 1.380 W (60.45mm x 35.05mm)	1.380 (35.05mm)

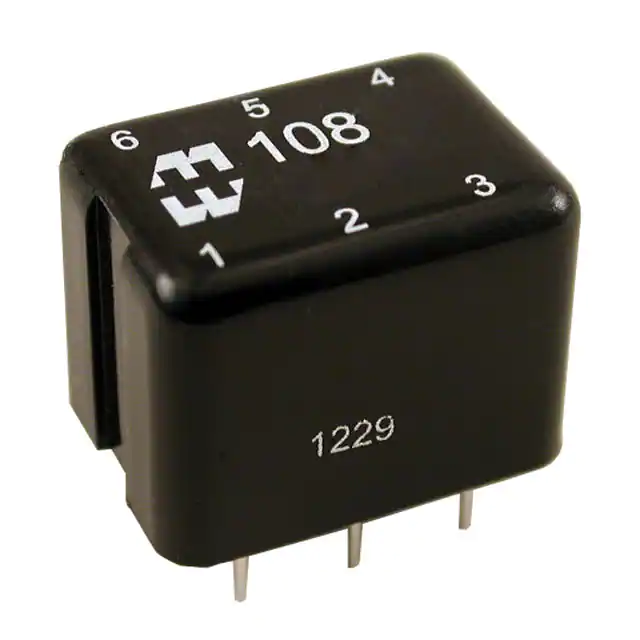

108T TRANSFORMER AUDIO 10KCT/10KCT Hammond Manufacturing	2112	27.39	- + Add To Cart Inquiry Now	Datasheet	Bulk	108	Active	1:1	10kCT	10kCT	424Ohm	426Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	500Vrms	-	-	150mW	-	-	Through Hole	1.030 L x 0.770 W (26.16mm x 19.56mm)	0.770 (19.56mm)
108J TRANSFORMER AUDIO 1KCT/600CT Hammond Manufacturing	2447	27.39	- + Add To Cart Inquiry Now	Datasheet	Bulk	108	Active	1.29:1	1kCT	600CT	88Ohm	66Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	1.030 L x 0.770 W (26.16mm x 19.56mm)	0.770 (19.56mm)
619391SMTLF RANGING TRANSFORMER SMT SensComp, Inc.	2829	3.92	- + Add To Cart Inquiry Now	Datasheet	Tape & Box (TB)	-	Active	-	-	-	65mOhm	100Ohm	General Purpose	-	-	-	-	-	-	-34°C ~ 185°C	-	Surface Mount	0.335 L x 0.330 W (8.51mm x 8.38mm)	0.340 (8.64mm)

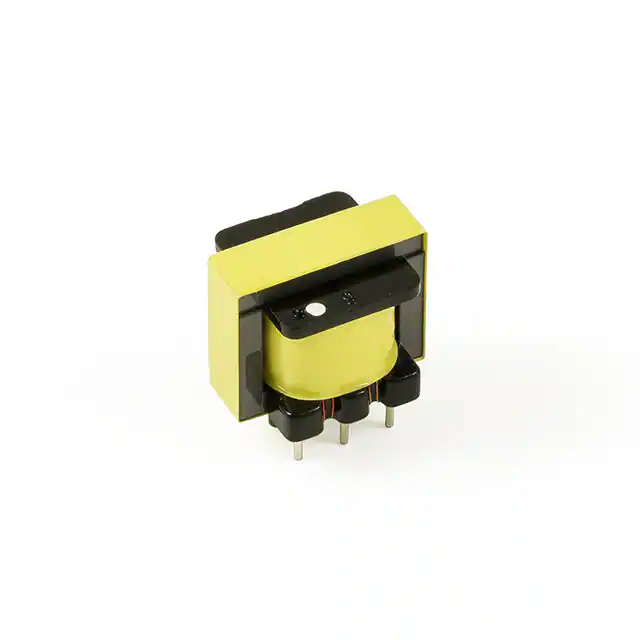

AT4412 EI19, TRANSFORMER Allied Components International	3434	9.85	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	1:1	-	-	44Ohm	56Ohm	Data/Voice Coupling	-	±0.5dB	1500V	1.4dB	-	-	-40°C ~ 85°C	-	Through Hole	0.815 L x 0.650 W (20.70mm x 16.50mm)	0.736 (18.70mm)

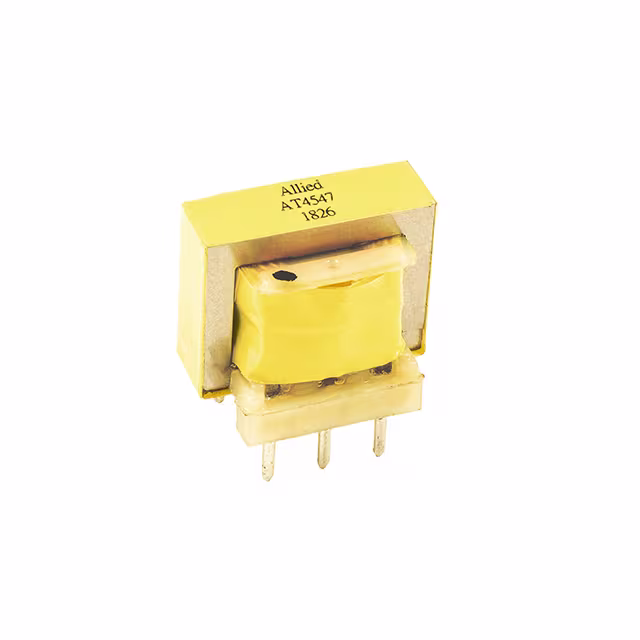

AT4547 AUDIO TRANSFORMER Allied Components International	181	9.95	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	1.35:1:1	600	-	56.5Ohm	40.7Ohm, 40.7Ohm	Data/Voice	-	±1dB	1500VAC	0.8dB Typ	30dB Typ	-	0°C ~ 105°C	-	Through Hole	0.812 L x 0.715 W (20.62mm x 18.16mm)	0.740 (18.80mm)
101D TRANSFORMER AUDIO 300CT/600CT Hammond Manufacturing	126	21.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	101	Active	-	300CT	600CT	20.4Ohm	54Ohm	Miniature Epoxy Potted	200Hz ~ 100kHz	±0.5dB	-	-	-	100mW	-	-	Through Hole	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.480 (12.19mm)

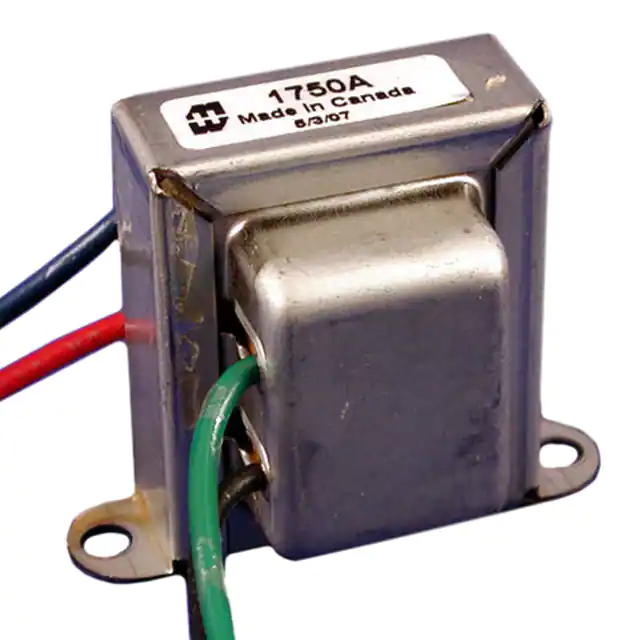

1750A TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3159	36.31	- + Add To Cart Inquiry Now	Datasheet	Box	1750	Active	53.11:1	22.8k	8	1.065kOhm	1.02Ohm	Single Ended Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	3.5W	-	-	Chassis Mount	2.000 L x 1.440 W (50.80mm x 36.58mm)	1.773 (45.03mm)

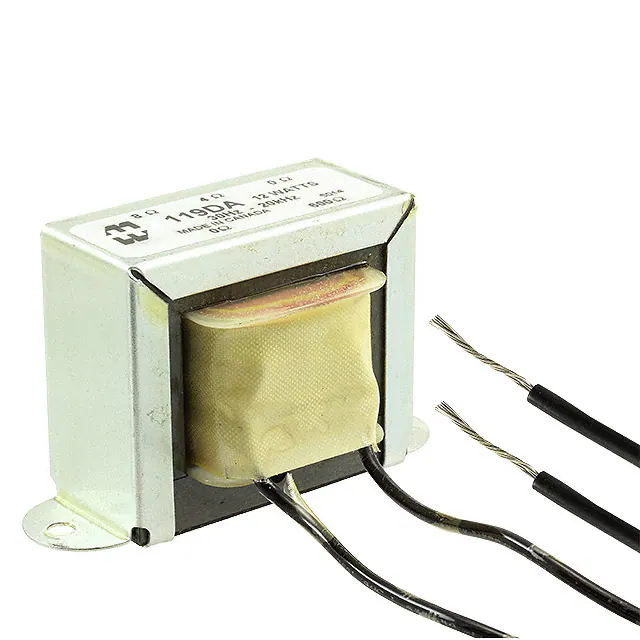

119DA TRANSFORMER AUDIO 600 TO 8CT Hammond Manufacturing	2287	41.57	- + Add To Cart Inquiry Now	Datasheet	Bulk	119	Active	-	600	4, 8	-	-	Tube Driver and Speaker Matching	30Hz ~ 20kHz	±1dB	-	-	-	12W	-	-	Chassis Mount	3.280 L x 2.350 W (83.31mm x 59.69mm)	2.000 (50.80mm)
1760C TRANSFORMER TUBE GUITAR AMP Hammond Manufacturing	3428	48.92	- + Add To Cart Inquiry Now	Datasheet	Box	1760	Active	44.61:1	5k, 8k	3.2, 8, 16	284.2Ohm	292mOhm	Single Ended Audiophile, Ultra-Linear - Tube Output	70Hz ~ 15kHz	±1dB	-	-	-	5W	-	-	Chassis Mount	2.813 L x 1.560 W (71.45mm x 39.62mm)	1.746 (44.35mm)

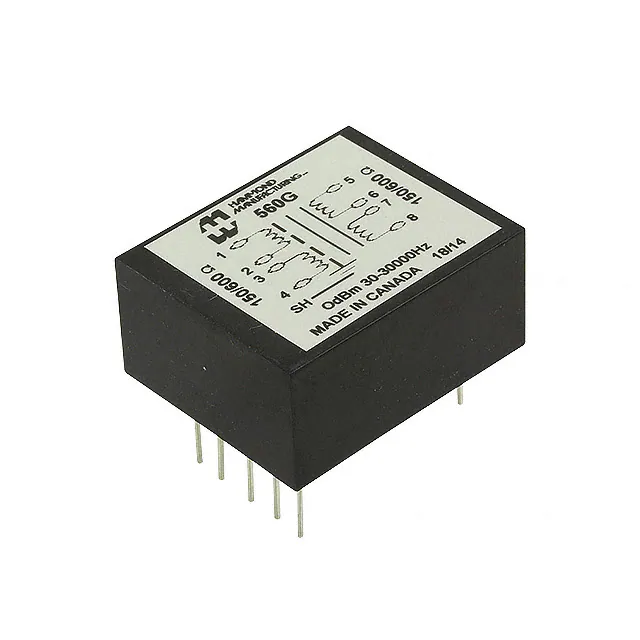

560G TRANSF AUDIO 150/600 150/600 IMP Hammond Manufacturing	2107	66.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	560	Active	-	600, 150/150	600, 150/150	-	-	Broadcast Quality	30Hz ~ 30kHz	±1dB	-	1dB Max	-	-	-	-	Through Hole	1.330 L x 1.640 W (33.78mm x 41.66mm)	0.850 (21.59mm)
1140-LN-B LINE INPUT TRANSFORMER Hammond Manufacturing	3816	76.02	- + Add To Cart Inquiry Now	Datasheet	Bulk	1140	Active	1:1	10k	10k	-	-	Impedance Matching	20Hz ~ 20kHz	±0.35dB	-	-	-	-	-	-	Chassis Mount	-	-

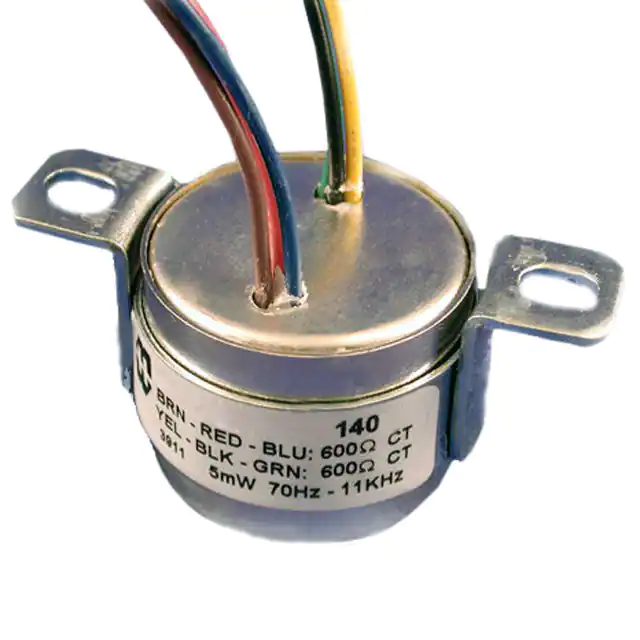

140QEX TRANSFORMER AUDIO Hammond Manufacturing	2436	87.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	140EX	Active	1:1	600CT	600CT	72.4Ohm	72.4Ohm	-	20Hz ~ 20kHz	±1dB	500Vrms	1.1dB Typ	20dB Typ	10dB	-	-	Chassis Mount	1.250 Dia (31.75mm)	1.000 (25.40mm)

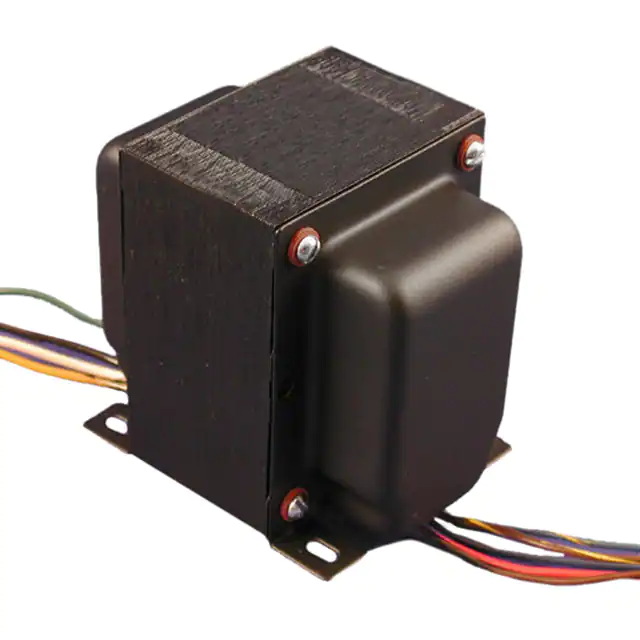

1650PA AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	2268	169.86	- + Add To Cart Inquiry Now	Datasheet	Box	A	Active	-	6.6kCT	4, 8, 16	71.34Ohm, 80.42Ohm	237mOhm, 364mOhm, 473mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	60W	-	-	Chassis Mount	4.250 L x 3.130 W (107.95mm x 79.50mm)	3.810 (96.77mm)
