Mfr. Part #	Stock	Quantity	Datasheet	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)
802 TRANSFR AUDIO 60/240 150/600 IMP Hammond Manufacturing	2626	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	200, 50/50	600, 150/150	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
808 TRANSFR AUDIO 50/200 10K/40K IMP Hammond Manufacturing	2382	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Active	-	200, 50/50	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
835 TRANSF AUDIO 10K/40K 10K/40K IMP Hammond Manufacturing	2033	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	1:1	40k, 10k/10k	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
841 TRANSFMR AUDIO 5K/20K 50/200 IMP Hammond Manufacturing	3019	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	20k, 5k/5k	200, 50/50	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
844 TRANSF AUDIO 12K/48K 150/600 IMP Hammond Manufacturing	2996	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	40k, 10k/10k	500, 125/125	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
842 TRANSFR AUDIO 6K/24K 150/600 IMP Hammond Manufacturing	3924	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	20k, 5k/5k	500, 125/125	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	20dB Max	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
813 TRANS AUDIO 150/600 720/2880 IMP Hammond Manufacturing	2632	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	600, 150/150	2.4k, 600/600	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
140C TRANSFORMER AUDIO 50/60K IMPED Hammond Manufacturing	3388	- + Add To Cart Inquiry Now	Datasheet	Bulk	140	Obsolete	1:34:5	50	60k	-	-	Shielded	70Hz ~ 11kHz	±1dB	-	-	-	-	-	-	Chassis Mount	1.250 Dia (31.75mm)	1.000 (25.40mm)
806 TRANSFR AUDIO 7.5/30 10K/40K IMP Hammond Manufacturing	3045	- + Add To Cart Inquiry Now	Datasheet	Bulk	800	Obsolete	-	30, 7.5/7.5	40k, 10k/10k	-	-	Broadcast Quality	50Hz ~ 15kHz	±0.5dB	-	1dB	-	15dB	-	-	Chassis Mount	1.752 L x 1.252 W (44.50mm x 31.80mm)	2.559 (65.00mm)
1620A AUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing	3059	- + Add To Cart Inquiry Now	Datasheet	Box	A	Obsolete	-	6.6kCT	4, 8, 16	66.16Ohm, 74.93Ohm	170mOhm, 300mOhm, 440mOhm	Push-Pull Audiophile, Ultra-Linear - Tube Output	30Hz ~ 30kHz	±1dB	2000V @ 1 Second	-	-	20W	-	-	Chassis Mount	3.500 L x 2.500 W (88.90mm x 63.50mm)	3.060 (77.72mm)
140HEX TRANSFORMER AUDIO Hammond Manufacturing	2162	- + Add To Cart Inquiry Now	Datasheet	Bulk	140EX	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Chassis Mount	1.250 Dia (31.75mm)	1.000 (25.40mm)
616G TRANSFORMER Hammond Manufacturing	3634	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

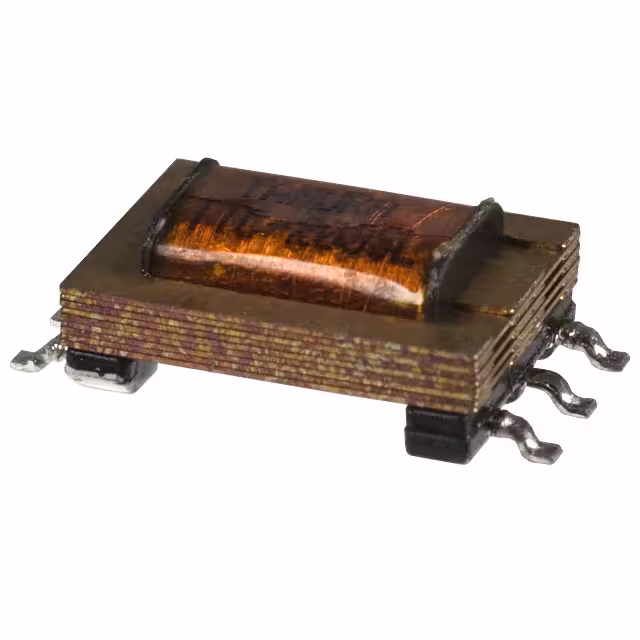

TTC-203SL TRANSF TELE PCMCIA TOP MNT SMD Tamura	3682	- + Add To Cart Inquiry Now	Datasheet	-	TTC	Obsolete	1:1	600	346	127Ohm	150Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-0.35dB ~ 0.15dB	1000VRMS @ 1 Minute	2.7dB @ 1kHz	25dB Min @ 300Hz ~ 3.5kHz	10mW	-	CSA-C22.2 No. 950-M89, UL1459, UL1950	Surface Mount	0.330 L x 0.402 W (8.38mm x 10.20mm)	0.164 (4.16mm)

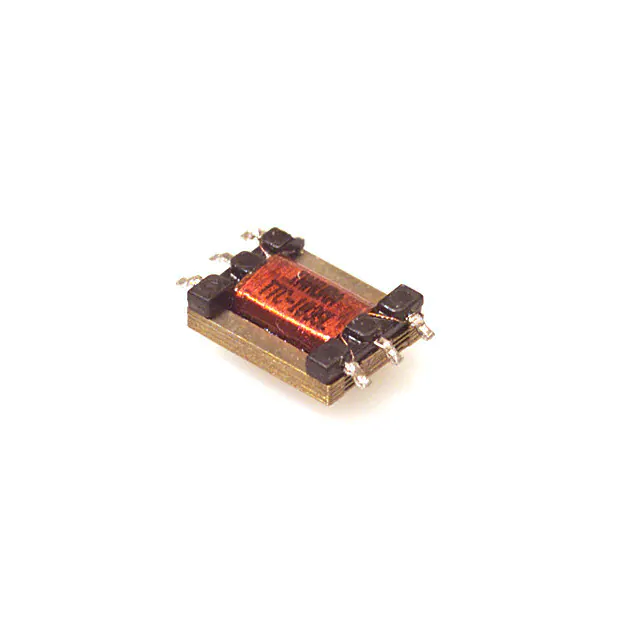

TTC-103SL TRANSFORMER PCMCIA MODEM Tamura	3508	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Obsolete	1:1	600	346	127Ohm	150Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	-0.35dB ~ 0.15dB	1000VRMS @ 1 Minute	2.7dB @ 1kHz	25dB Min @ 300Hz ~ 3.5kHz	10mW	-	CSA-C22.2 No. 950-M89, UL1459, UL1950	Surface Mount	0.330 L x 0.402 W (8.38mm x 10.20mm)	0.164 (4.16mm)

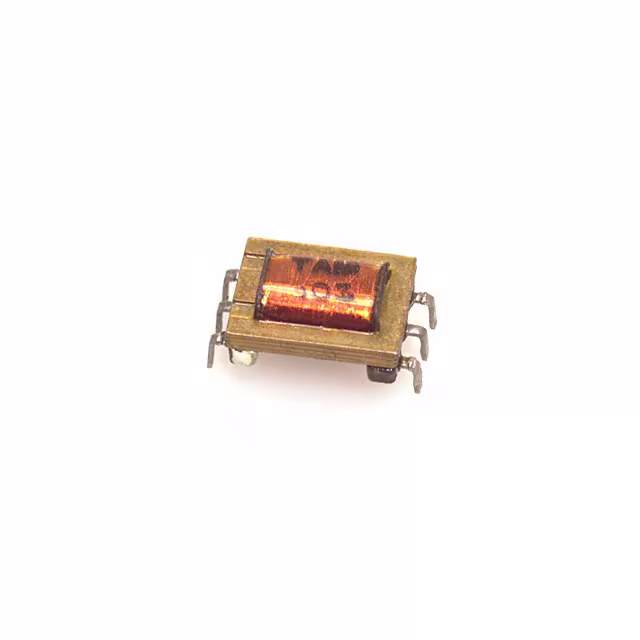

TTC-303SL TRANSF TELE COUP MINI 600 OHM Tamura	2493	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Obsolete	-	-	-	-	-	Data/Voice Coupling	-	-	-	-	-	-	-	-	Through Hole	-	-
TV105 TRANS TEL 600 OHM 1.15 INS.LOSS Tamura	3940	- + Add To Cart Inquiry Now	Datasheet	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TV106 TRANS TEL 600 OHM .60 INS.LOSS Tamura	2223	- + Add To Cart Inquiry Now	Datasheet	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

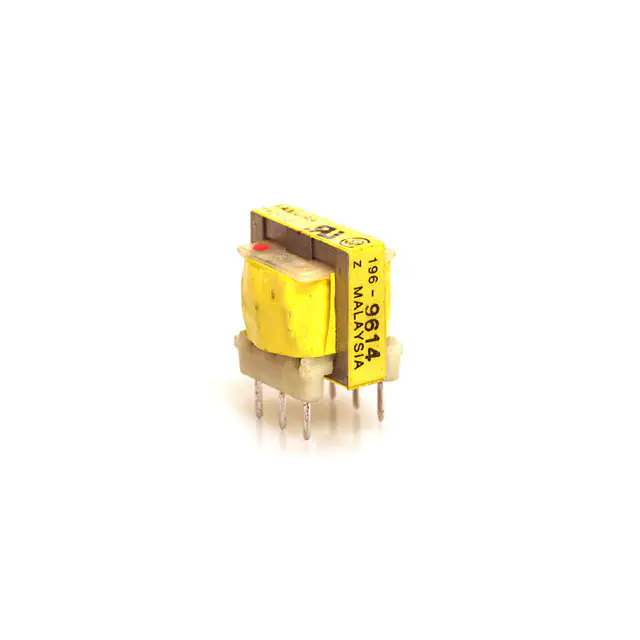

TTC-10 TRANSF TELE COUP 600 OHM 0 MADC Tamura	3296	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Obsolete	1:0.736	600	600/600	57Ohm	42Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VRMS @ 1 Minute	1.2dB Max @ 1kHz	-	7dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.799 L x 0.689 W (20.30mm x 17.50mm)	0.752 (19.10mm)

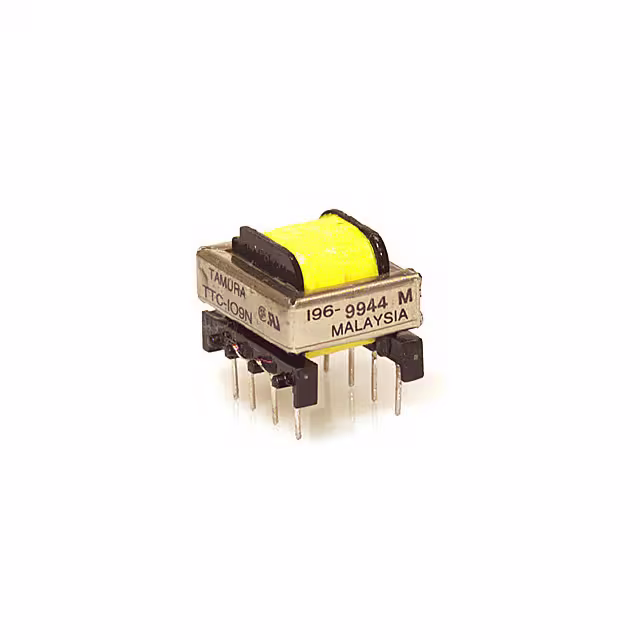

TTC-109N TRANSF TELE COUP 600 OHM 90MADC Tamura	3810	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Obsolete	1:1	600	600	71Ohm	117Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1dB ~ 0.7dB	1500VRMS @ 1 Minute	3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz	-	-45dB ~ 10dB	-	CSA-C22.2 No. 66-M1988, UL1862	Through Hole	0.823 L x 0.752 W (20.90mm x 19.10mm)	0.630 (16.00mm)

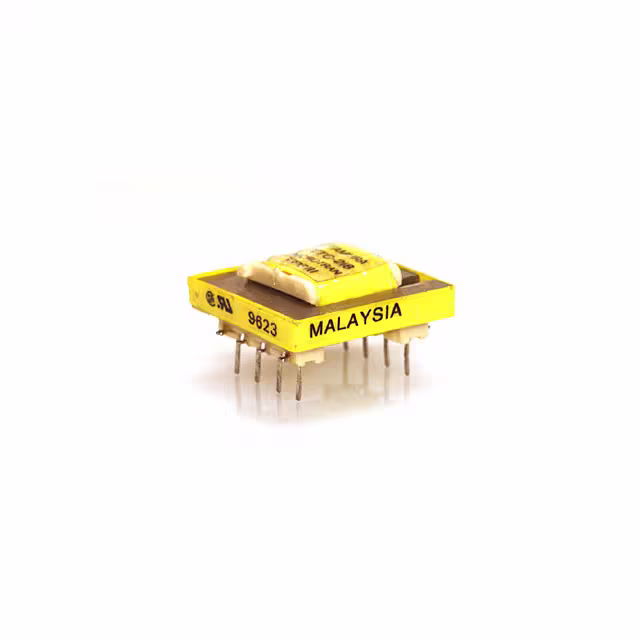

TTC-218 TRANSF TELE COUP 600 OHM 50MADC Tamura	3164	- + Add To Cart Inquiry Now	Datasheet	Bulk	TTC	Obsolete	1:1	600	600	49Ohm	76Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1.8dB ~ 0.5dB	1500VRMS @ 1 Minute	1.8dB Max @ 2kHz	-	-45dB ~ 7dB	-	CSA-C22.2 No. 66-M1988, UL1863	Through Hole	0.839 L x 0.760 W (21.30mm x 19.30mm)	0.346 (8.80mm)
