Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RNS1C151MDN1PHCAP ALUM POLY 150UF 20% 16V T/H |
1946 | 1.10 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNS | Active | Polymer | 150 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 550 mA @ 120 Hz | 5.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole | |

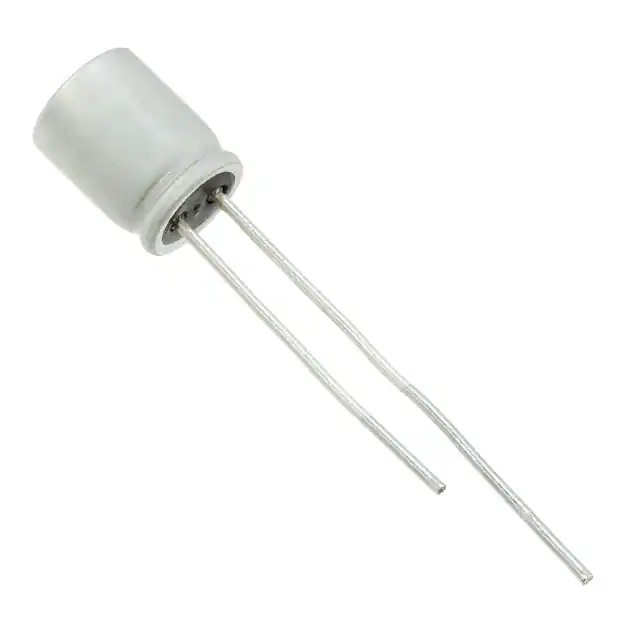

PLS0E331MCO8TDCAP ALUM POLY 330UF 20% 2.5V T/H |
2000 | 1.39 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 330 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
PLS0J561MCO8TDCAP ALUM POLY 560UF 20% 6.3V T/H |
2808 | 1.51 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 560 µF | ±20% | 6.3 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.3 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
PLS0E821MCO8TDCAP ALUM POLY 820UF 20% 2.5V T/H |
3557 | 1.52 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.8 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
PLF1E220MCL7TDCAP ALUM POLY 22UF 20% 25V T/H |
2408 | 1.43 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | PLF | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole | |
EEF-HX1E150RCAP ALUM POLY 15UF 20% 25V SMD |
6505 | 1.61 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap HX | Not For New Designs | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | - | Surface Mount | |
4SVPS33MCAP ALUM POLY 33UF 20% 4V SMD |
5983 | 1.64 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPS | Active | Polymer | 33 µF | ±20% | 4 V | 200mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 37 mA @ 120 Hz | 740 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount | |

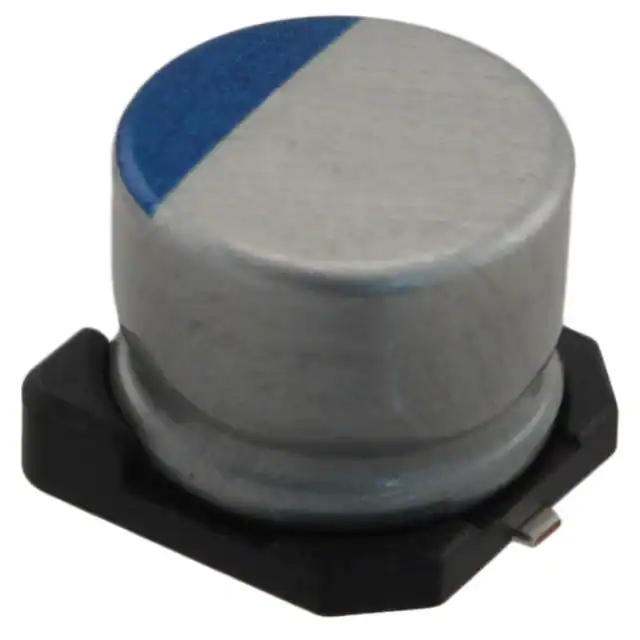

PCK0E561MCO1GSCAP ALUM POLY 560UF 20% 2.5V SMD |
2111 | 1.54 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PCK | Active | Polymer | 560 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount | |
A758EK337M0JAAE016CAP ALUM POLY 330UF 20% 6.3V T/H |
1043 | 0.61 |
Add To CartInquiry Now |
Datasheet |
Bulk | A758 | Active | Polymer | 330 µF | ±20% | 6.3 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
HHXB160ARA151MF80GCAP ALUM POLY HYB 150UF 16V SMD |
2195 | 1.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HXB | Not For New Designs | Hybrid | 150 µF | ±20% | 16 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.2 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount | |
A767KN566M1VLAE031CAP ALUM POLY 56UF 20% 35V SMD |
3368 | 1.44 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | A767 | Active | Polymer | 56 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount | |
PCX1E560MCL1GSCAP ALUM POLY 56UF 20% 25V SMD |
6300 | 1.55 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PCX | Active | Polymer | 56 µF | ±20% | 25 V | 35mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.319 (8.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount | |
A750KK567M1AAAE016CAP ALUM POLY 560UF 20% 10V T/H |
4254 | 0.69 |
Add To CartInquiry Now |
Datasheet |
Bulk | A750 | Active | Polymer | 560 µF | ±20% | 10 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | - | Through Hole | |
A758EK567M0EAAE016CAP ALUM POLY 560UF 20% 2.5V T/H |
1908 | 0.69 |
Add To CartInquiry Now |
Datasheet |
Bulk | A758 | Active | Polymer | 560 µF | ±20% | 2.5 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
EEF-SR0G121RCAP ALUM POLY 120UF 20% 4V SMD |
6740 | 1.90 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap, SR | Active | Polymer | 120 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.039 (1.00mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount | |
A758EK567M0GAAE016CAP ALUM POLY 560UF 20% 4V T/H |
1910 | 0.70 |
Add To CartInquiry Now |
Datasheet |
Bulk | A758 | Active | Polymer | 560 µF | ±20% | 4 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.354 (9.00mm) | - | Through Hole | |
EEF-CS1C150RCAP ALUM POLY 15UF 20% 16V SMD |
11030 | 2.00 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CS | Not For New Designs | Polymer | 15 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.047 (1.20mm) | - | Surface Mount | |
A758KK567M0JAAE014CAP ALUM POLY 560UF 20% 6.3V T/H |
2340 | 0.74 |
Add To CartInquiry Now |
Datasheet |
Bulk | A758 | Active | Polymer | 560 µF | ±20% | 6.3 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.1 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | - | Through Hole | |
EEF-CX0D391RCAP ALUM POLY 390UF 20% 2V SMD |
8665 | 2.01 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CX | Active | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.075 (1.90mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount | |
EEF-SX0D471RCAP ALUM POLY 470UF 20% 2V SMD |
4505 | 2.07 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap SX | Not For New Designs | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.079 (2.00mm) | - | Surface Mount |
