Photo	Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

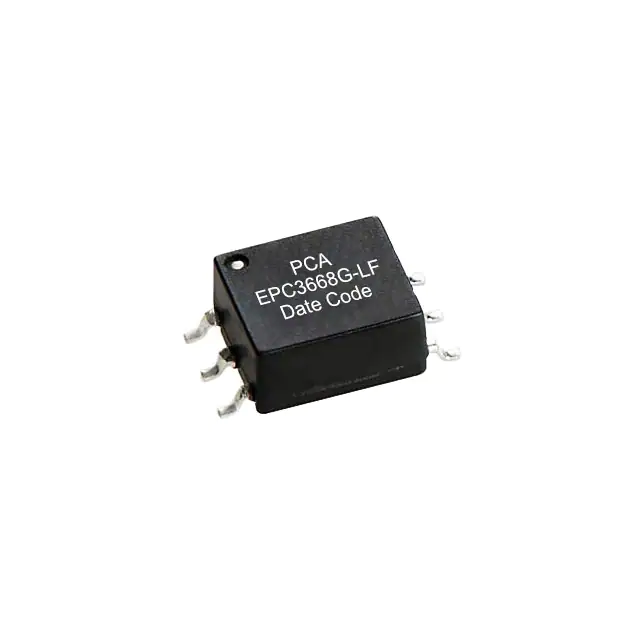

	EPC3668G-LF PUSH-PULL XFM. 0.75W PCA Electronics, Inc.	3656	1.90	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EPC-SMT6	Active	For DC/DC Converters	Push-Pull Converters	SN6501, SN6505B	Texas Instruments	5V	5V	2500Vrms	1mH @ 10KHz	300 ~ 620kHz	-40°C ~ 125°C	Surface Mount	-	0.165 (4.19mm)	0.276 L x 0.433 W (7.01mm x 11.00mm)
	EPC3410G-LF POE FLYBACK XFM 12V, 25W PCA Electronics, Inc.	180	2.80	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EPC-EP13	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	12V	1500Vrms	37µH @ 100KHz	250kHz	-40°C ~ 85°C	Surface Mount	-	0.500 (12.70mm)	0.550 L x 0.669 W (13.97mm x 17.00mm)
	EPC3409G-LF POE FLYBACK XFM 5V, 25W PCA Electronics, Inc.	165	2.98	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EPC-EP13	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	5V	1500Vrms	39µH @ 100KHz	250kHz	-40°C ~ 85°C	Surface Mount	-	0.500 (12.70mm)	0.550 L x 0.669 W (13.97mm x 17.00mm)

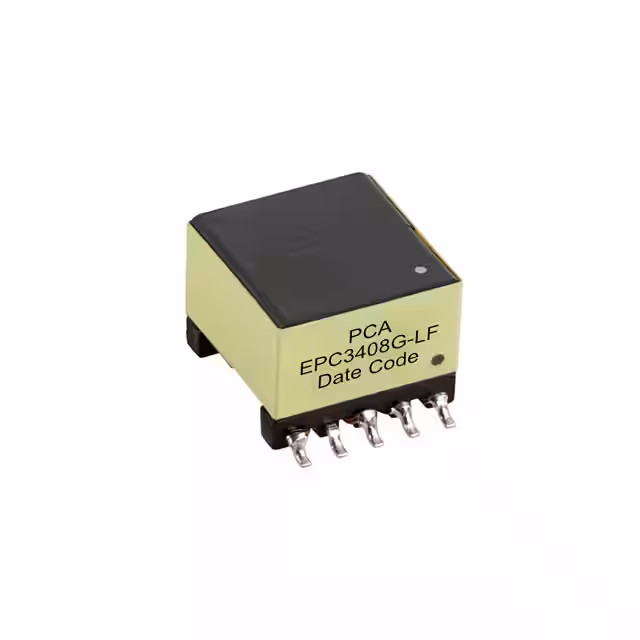

	EPC3408G-LF POE FLYBACK XFM 3.3V, 25W PCA Electronics, Inc.	195	3.22	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EPC-EP13	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	3.3V	1500Vrms	37.5µH @ 100KHz	250kHz	-40°C ~ 85°C	Surface Mount	-	0.500 (12.70mm)	0.550 L x 0.669 W (13.97mm x 17.00mm)

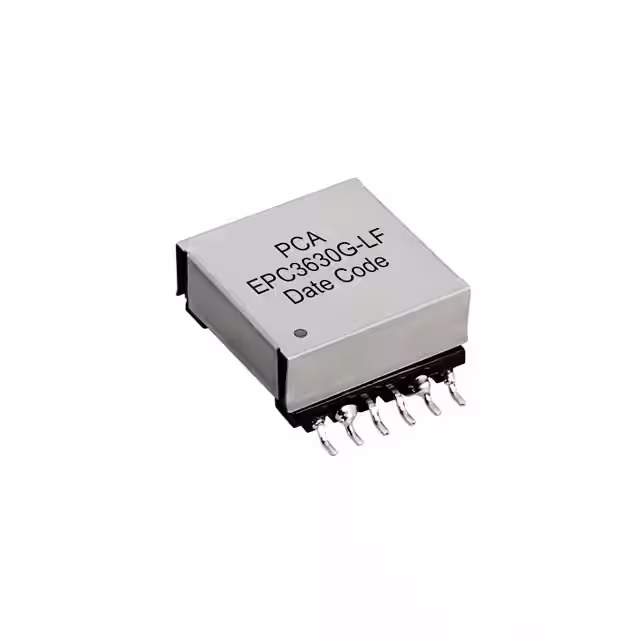

	EPC3630G-LF POE FLYBACK XFM 24V, 84W PCA Electronics, Inc.	238	12.67	- + Add To Cart Inquiry Now	Datasheet	Tray	EPC-EFD25	Active	For DC/DC Converters	Flyback Converters	LT4295	Analog Devices	40 ~ 57V	24V	1500Vrms	15µH @ 100KHz	250kHz	-40°C ~ 125°C	Surface Mount	-	0.540 (13.72mm)	1.036 L x 1.250 W (26.31mm x 31.75mm)

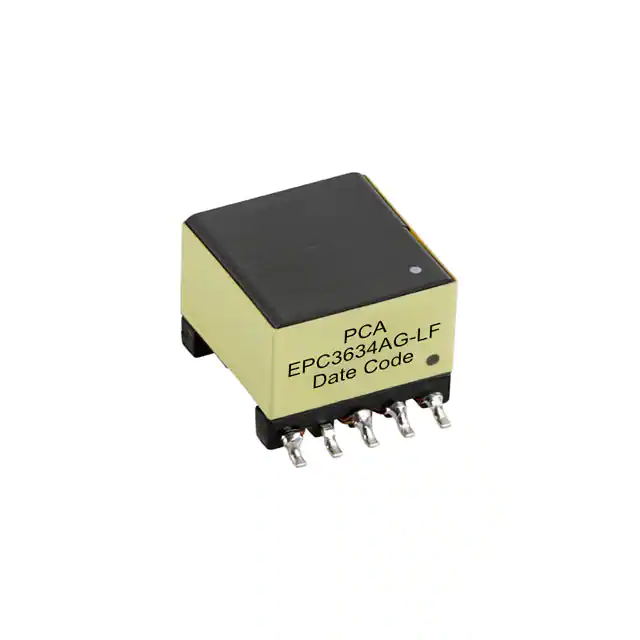

	EPC3634AG-LF POE FLYBACK XFM 12V, 36W PCA Electronics, Inc.	3321	0.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EPC-EP13	Active	For DC/DC Converters	Flyback Converters	LT4295	Analog Devices	42 ~ 57V	12V	1500Vrms	26µH @ 100KHz	250kHz	-40°C ~ 85°C	Surface Mount	-	0.485 (12.32mm)	0.550 L x 0.695 W (13.97mm x 17.65mm)

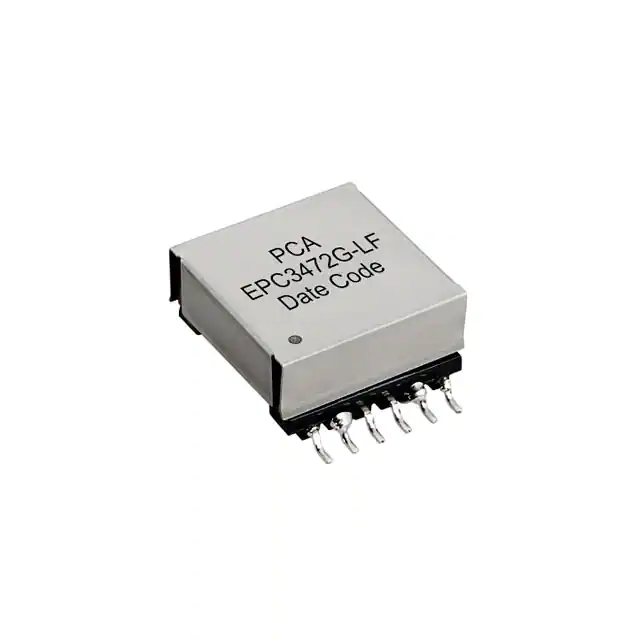

	EPC3472G-LF POE FLYBACK XFM 5V, 25W PCA Electronics, Inc.	2426	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	EPC-EFD20	Active	For DC/DC Converters	Flyback Converters	LTC4278	Analog Devices	9 ~ 57V	5V	1500Vrms	9µH @ 100KHz	250kHz	-40°C ~ 85°C	Surface Mount	-	0.453 (11.51mm)	0.866 L x 1.140 W (22.00mm x 28.96mm)
	EPC3577G-LF POE FORWARD XFM 12V, 90W PCA Electronics, Inc.	3305	0.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EFC-EFD20	Active	For DC/DC Converters	Forward Converters	LT4276A, LT4295	Analog Devices	33 ~ 57V	12V	1500Vrms	180µH @ 100KHz	200kHz	-40°C ~ 125°C	Surface Mount	-	0.453 (11.51mm)	0.830 L x 1.140 W (21.08mm x 28.86mm)
