Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
ZB1052-AED TRANSFORMER COILCRAFT	784	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9672-BED TRANSFORMER COILCRAFT	722	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	7µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
YA9035-ALD TRANSFORMER COILCRAFT	587	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	30µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZA9671-BED TRANSFORMER COILCRAFT	761	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)

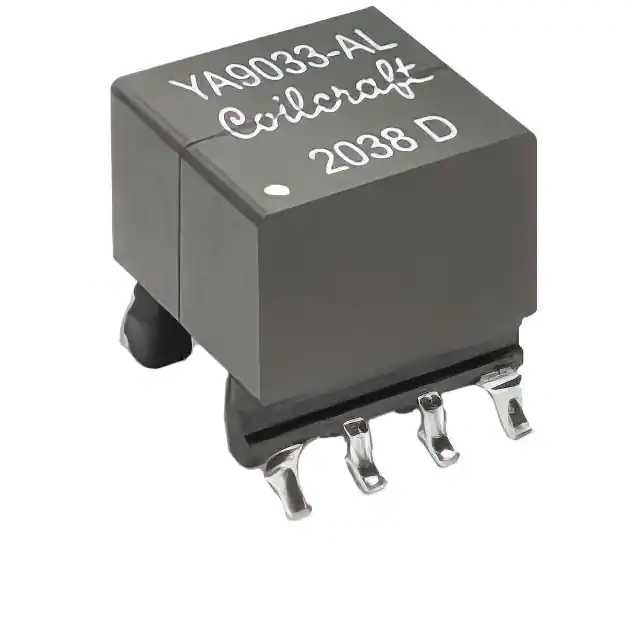

YA9033-ALD TRANSFORMER COILCRAFT	723	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	32µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
YA9034-ALD TRANSFORMER COILCRAFT	647	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	36µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZB1175-AED TRANSFORMER COILCRAFT	634	11.69	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Isolated Buck Converters	-	STMicroelectronics	-	-	-	18µH @ 500kHz	500kHz	-40°C ~ 125°C	Surface Mount	-	0.450 (11.43mm)	0.600 L x 0.531 W (15.24mm x 13.50mm)
ZB1053-AED TRANSFORMER COILCRAFT	823	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)

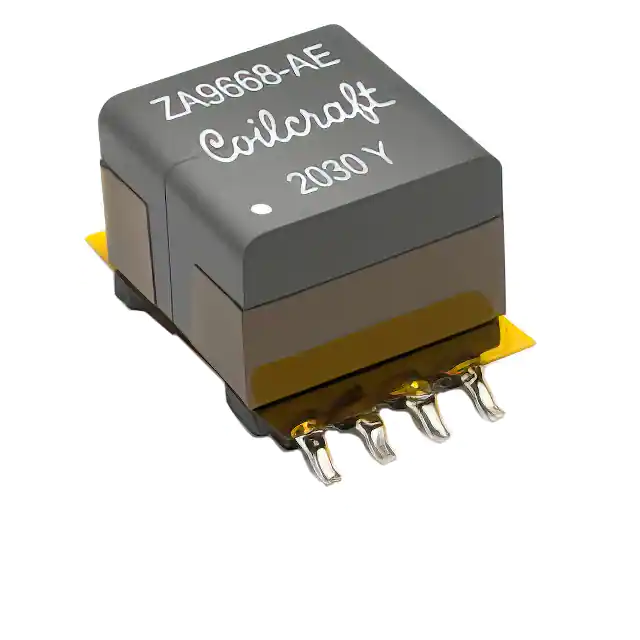

ZA9668-AED TRANSFORMER COILCRAFT	629	11.69	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Isolated Buck Converters	-	STMicroelectronics	-	-	-	18µH @ 500kHz	500kHz	-40°C ~ 125°C	Surface Mount	-	0.450 (11.43mm)	0.600 L x 0.531 W (15.24mm x 13.50mm)

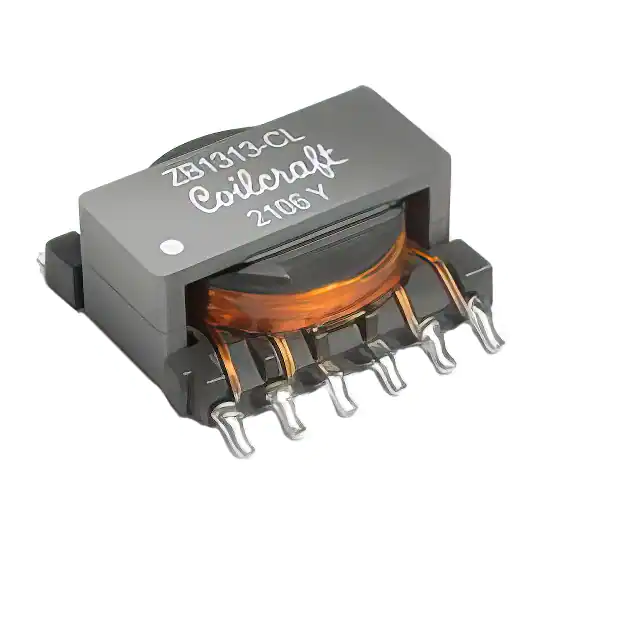

ZB1313-CLD TRANSFORMER COILCRAFT	2638	8.28	- + Add To Cart Inquiry Now	Datasheet	Strip	ZB1313-CL	Active	For DC/DC Converters	Flyback Converters	MAX17690	Maxim Integrated	18 ~ 38V	-	1500Vrms	10.5µH @ 150kHz	163kHz	-40°C ~ 85°C	Surface Mount	-	0.291 (7.40mm)	0.661 L x 0.642 W (16.80mm x 16.30mm)

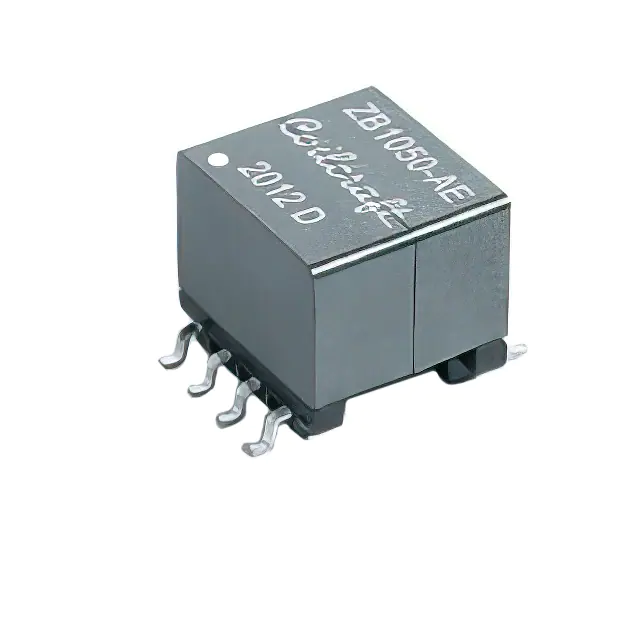

ZB1050-AED TRANSFORMER COILCRAFT	831	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)

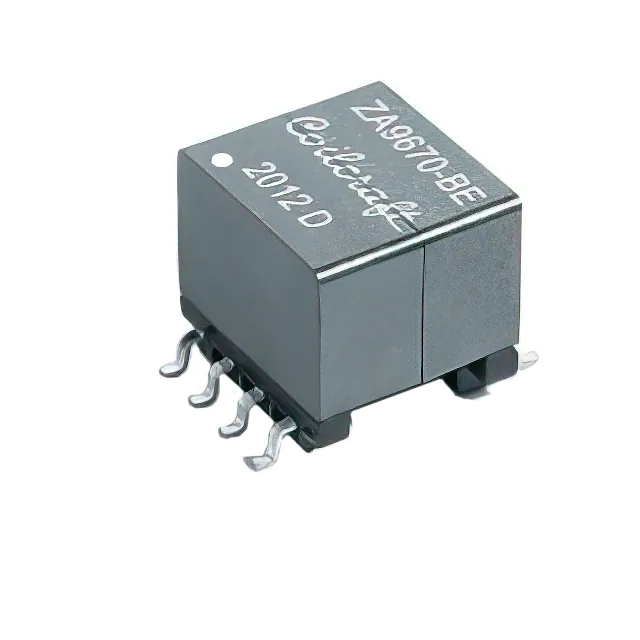

ZA9670-BED TRANSFORMER COILCRAFT	833	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZB1055-AED TRANSFORMER COILCRAFT	770	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)

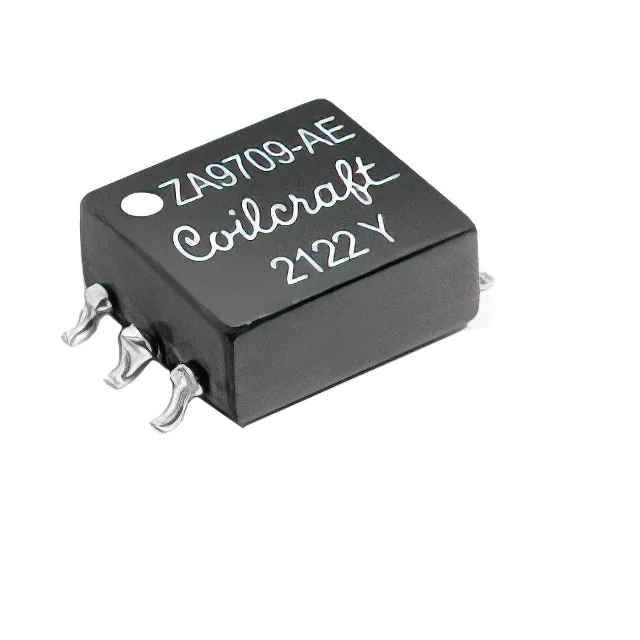

ZA9709-AED TRANSFORMER COILCRAFT	3649	5.43	- + Add To Cart Inquiry Now	Datasheet	Strip	ZA9709	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	3.3V	-	2500Vrms	145µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	-	0.171 (4.34mm)	0.512 L x 0.347 W (13.00mm x 8.82mm)
ZA9673-BED TRANSFORMER COILCRAFT	818	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	7µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9674-BED TRANSFORMER COILCRAFT	808	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)

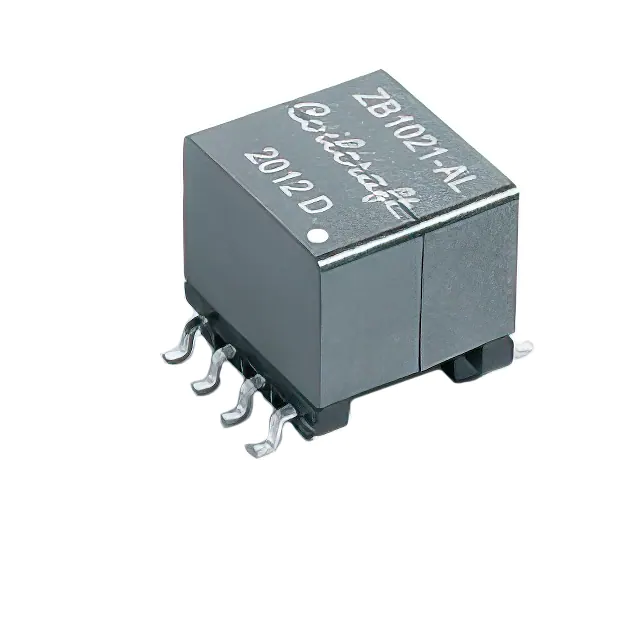

ZB1021-ALD TRANSFORMER COILCRAFT	498	6.31	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	-	-	-	-	17 ~ 36V	-	1500Vrms	22µH @ 150kHz	150kHz	-40°C ~ 85°C	Surface Mount	0.500 L x 0.413 W (12.70mm x 10.50mm)	0.433 (11.00mm)	0.600 L x 0.500 W (15.24mm x 12.70mm)
YA9037-ALD TRANSFORMER COILCRAFT	754	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	32µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZB1054-AED TRANSFORMER COILCRAFT	849	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
YA9036-ALD TRANSFORMER COILCRAFT	635	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	30µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
