Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
AEP-199SI 20.4UH 8% EP10 SMD TRANSFORMER Allied Components International	2842	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	1500V	20.4µH	-	-	Surface Mount	-	0.451 (11.45mm)	-

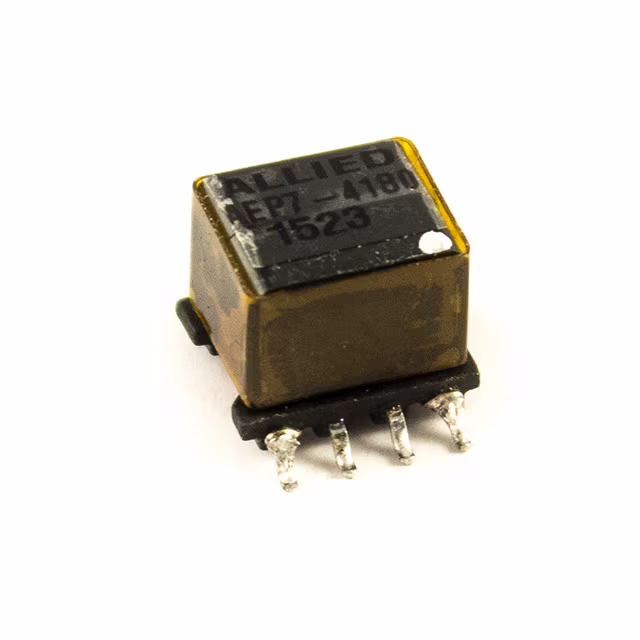

AEP7-4180 EP7 POWER TRANSFORMER Allied Components International	2471	2.85	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	625VAC	-	-	-	Surface Mount	0.394 L x 0.346 W (10.00mm x 8.80mm)	0.362 (9.20mm)	-
AER28-4702 200UH, ER28 TRANSFORMER Allied Components International	3317	12.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	200µH	-	-	Through Hole	1.220 L x 1.220 W (31.00mm x 31.00mm)	0.984 (25.00mm)	-
AEL25V-4162 1.3H 15% EL25 CORE THRU-HOLE Allied Components International	2635	12.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	600Vrms	-	-	-	Through Hole	1.043 L x 0.748 W (26.50mm x 19.00mm)	0.906 (23.00mm)	-
AEP-483SI 37uH +/-10% EP Transformer Allied Components International	3117	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	AEP-483SI	Active	-	Flyback Converters	-	Analog Devices, Inc	36 ~ 57V	12V @ 200mA	1500Vrms	37µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	-	0.500 (12.70mm)	0.699 L x 0.559 W (17.75mm x 14.20mm)
AEP13-1260 77.4UH 10% EP13 SMD TRANSFORMER Allied Components International	2223	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	1500V	77.4µH	-	-	Surface Mount	-	0.485 (12.32mm)	-
AEP-709SI 2UH 10% EP7 8-PIN SMD TRANSF. Allied Components International	3411	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	1000V	2µH	-	-	Surface Mount	-	0.362 (9.20mm)	-

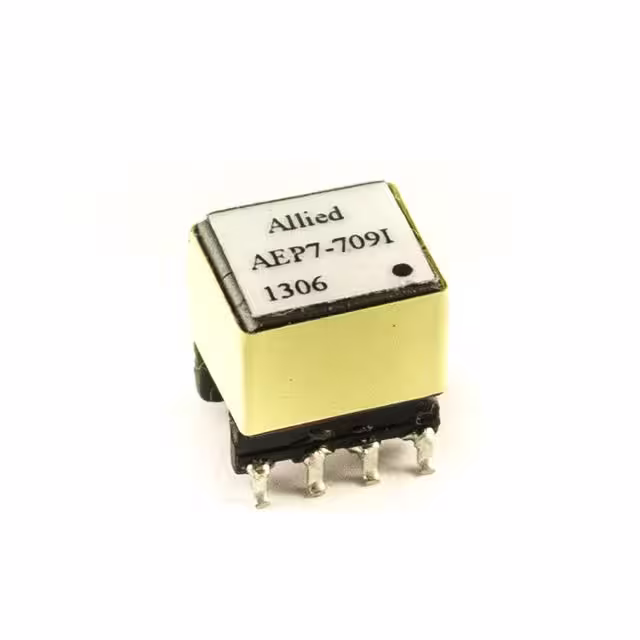

AEP7-709I 400UH 10% EP7 8-PIN SMD TRANSF. Allied Components International	2384	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	1875V	400µH	-	-	Surface Mount	0.394 L x 0.346 W (10.00mm x 8.80mm)	0.429 (10.90mm)	-
AEP13-4398 40UH 10% EP13 SMD TRANSFORMER Allied Components International	2166	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	8 ~ 32V	-	1875Vrms	40µH	200 ~ 300kHz	-40°C ~ 90°C	Surface Mount	-	0.450 (11.43mm)	0.600 L x 0.525 W (15.24mm x 13.34mm)
AEE16-2621 1000uH 10% High Freq Transformer Allied Components International	3898	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	Flyback Converters	-	-	100 ~ 430V	12V @ 10mA	4000Vrms	1mH	40kHz ~ 130kHz	-40°C ~ 130°C	Through Hole	0.716 L x 0.630 W (18.19mm x 16.00mm)	0.708 (17.98mm)	0.716 L x 0.630 W (18.19mm x 16.00mm)
AEE16-4642 1200UH10% (@60KHZ/1V) FLYBACK Allied Components International	3436	4.25	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	3000VAC	1200µH	-	-	Through Hole	0.750 L x 0.670 W (19.05mm x 17.02mm)	0.708 (17.98mm)	-

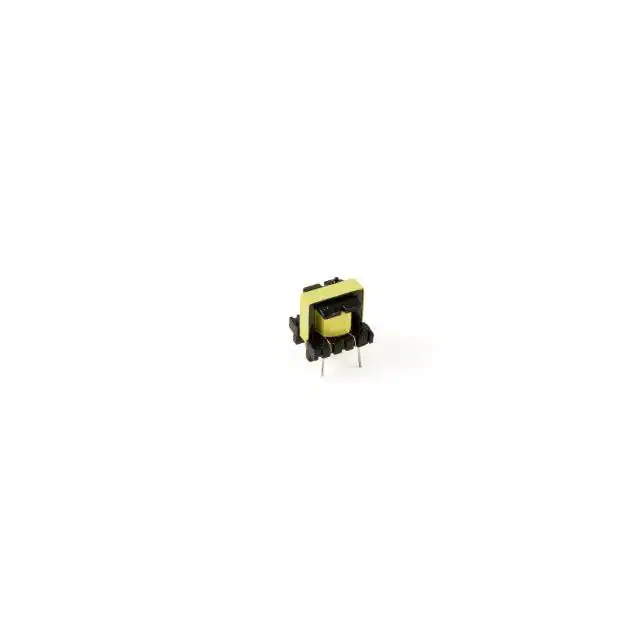

AEE16-2531 4.5uH 12% High Freq Transformer Allied Components International	2538	4.25	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	Flyback Converters	-	-	12V	-	4000Vrms	4.5µH	300kHz	-40°C ~ 130°C	Through Hole	0.716 L x 0.630 W (18.19mm x 16.00mm)	0.708 (17.98mm)	0.716 L x 0.630 W (18.19mm x 16.00mm)
AEE16-3662 3-phase 3.3V, 1.2A EE16 Trans. Allied Components International	2631	4.25	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	3000VAC	-	-	-	Through Hole	0.807 L x 0.710 W (20.50mm x 18.03mm)	0.630 (16.00mm)	-
AEI12-3777 EI12 TRANSFORMER Allied Components International	2765	4.95	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	Through Hole	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.378 (9.60mm)	-
APQ3230-4704 1.5MH10% PQ3230 RESONANT TRANS. Allied Components International	3146	7.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1800V	-	-	-	Through Hole	1.398 L x 1.358 W (35.50mm x 34.50mm)	1.319 (33.50mm)	-

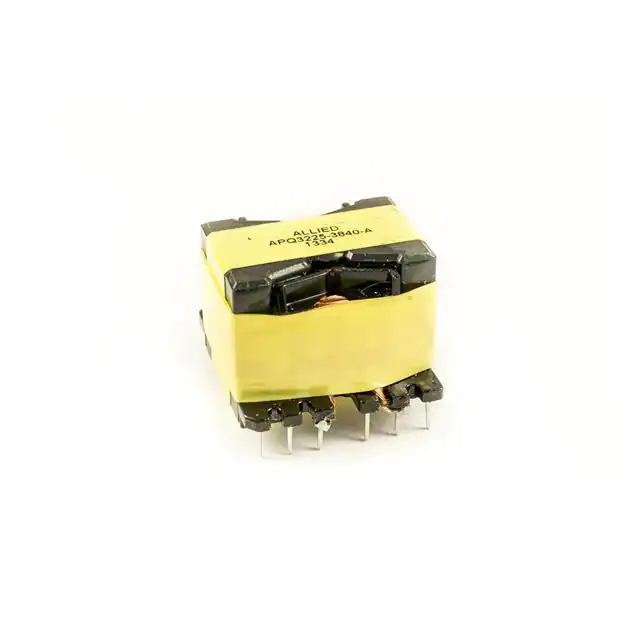

APQ3225-3840-A 175UH10% PFC CHOKE Allied Components International	2334	7.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1000V	175µH	-	-	Through Hole	1.437 L x 1.398 W (36.50mm x 35.50mm)	1.083 (27.50mm)	-
AEE25-4071 1.05MH 10% EE25 TRANSFORMER Allied Components International	3690	7.98	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	-	-	3750VAC	-	-	-	Through Hole	1.024 L x 0.728 W (26.00mm x 18.50mm)	1.181 (30.00mm)	-
AEE25-3971 3.4MH 10% EE25 TRANSFORMER Allied Components International	3298	7.98	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	-	-	2000VAC	-	-	-	Through Hole	1.100 L x 1.100 W (27.94mm x 27.94mm)	0.950 (24.13mm)	-
AEI19-4636 EI19 300mH Isolation Transformer Allied Components International	2002	8.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1800VAC	-	-	-	Through Hole	0.827 L x 0.669 W (21.00mm x 17.00mm)	0.709 (18.00mm)	-
AEI35-3857 EI35, MULTI-TAP PRIMARY TRANSFOR Allied Components International	2969	8.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	120V, 208V, 240V, 277V, 347V	-	-	-	-	-	Through Hole	1.556 L x 1.378 W (39.52mm x 35.00mm)	1.142 (29.01mm)	-

Total 109 Records«Prev12 3 4...6 Next»
