Results:

Photo Mfr. Part # Stock Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

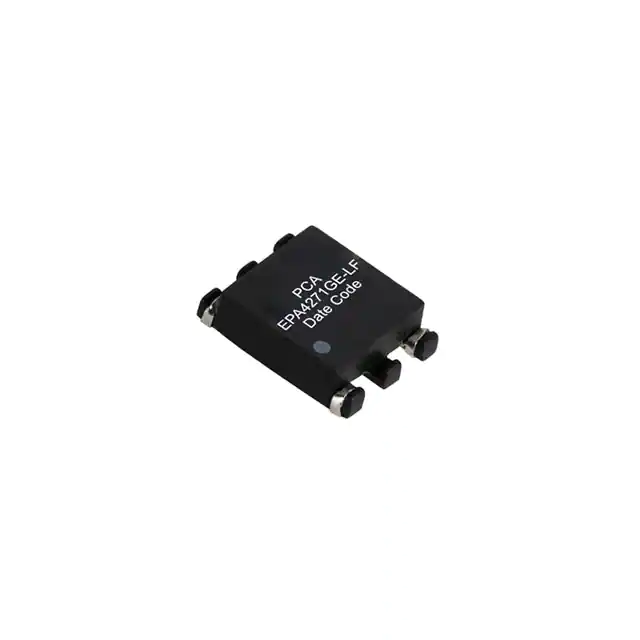

EPA4271GE-LF

EPA4271GE-LF

ISOLATED GATE DRIVE

PCA Electronics, Inc.

2196

2.29

- +

Add To Cart

Inquiry Now

EPA4271GE-LF

Datasheet

Tape & Reel (TR)

EPA

Active

Gate Drive

785µH

9.7VµS

1:1

Surface Mount

0.265 L x 0.340 W (6.73mm x 8.64mm)

0.098 (2.49mm)

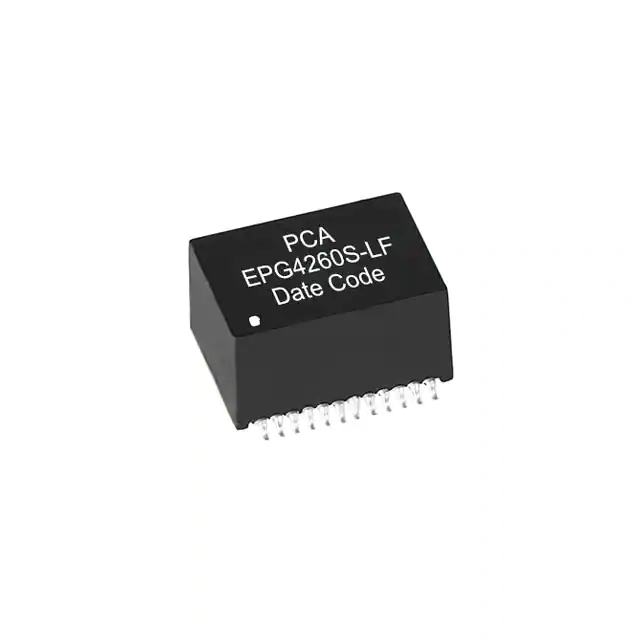

EPG4260S-LF

EPG4260S-LF

POE DATA XFM, 1.15A

PCA Electronics, Inc.

250

11.97

- +

Add To Cart

Inquiry Now

EPG4260S-LF

Datasheet

Tube

EPG-SMT24

Active

LAN 10/100/1000 Base-T, Power over Ethernet (PoE)

350µH

-

1CT:1CT Transmitter, 1CT:1CT Receiver

Surface Mount

0.710 L x 0.600 W (18.03mm x 15.24mm)

0.400 (10.16mm)
